Multi-Function Switch: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
  2. Remove tilt lever.
  3. Remove both upper and lower steering column shrouds. Refer to INSTRUMENT PANEL .

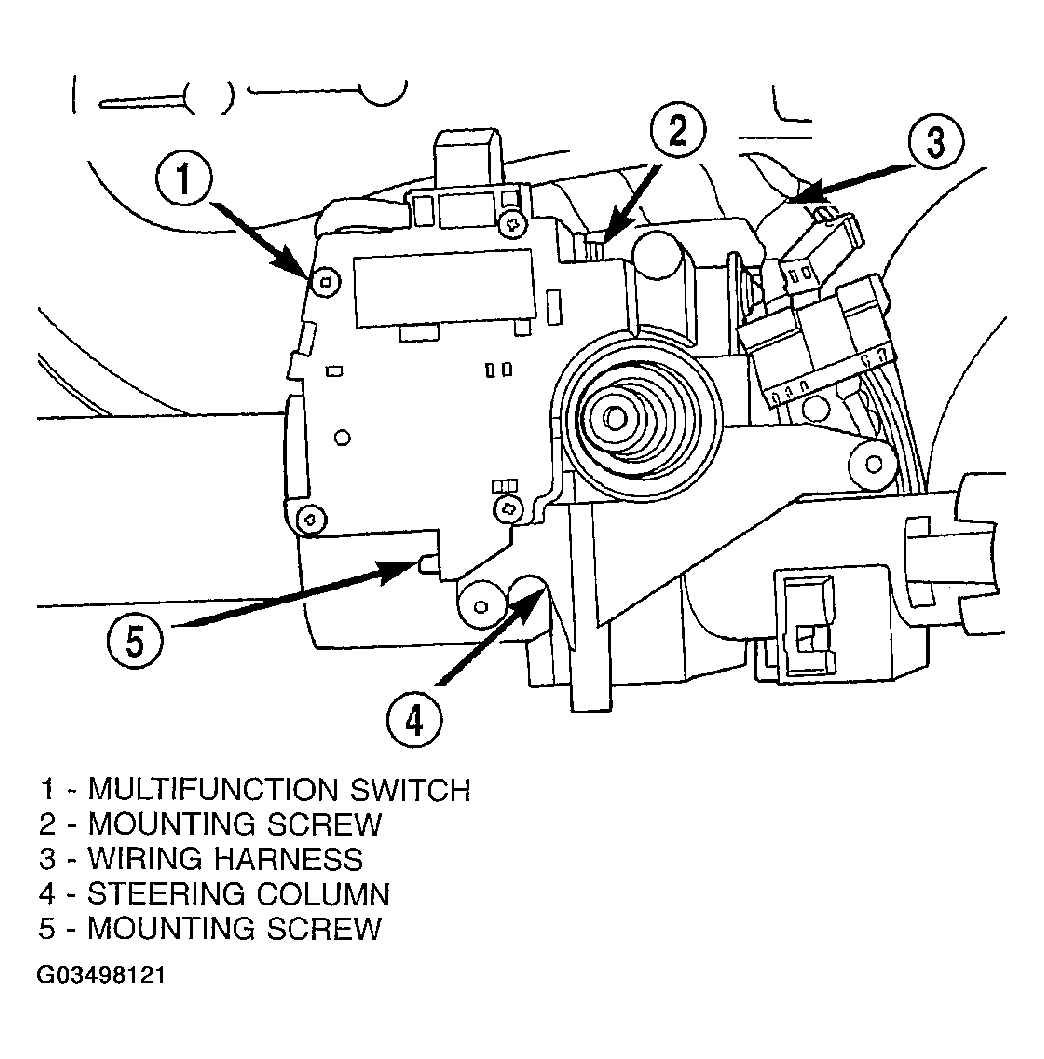

  4. Remove multi-function switch mounting screws and connectors (Figure).
