Wiper Blade Element: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

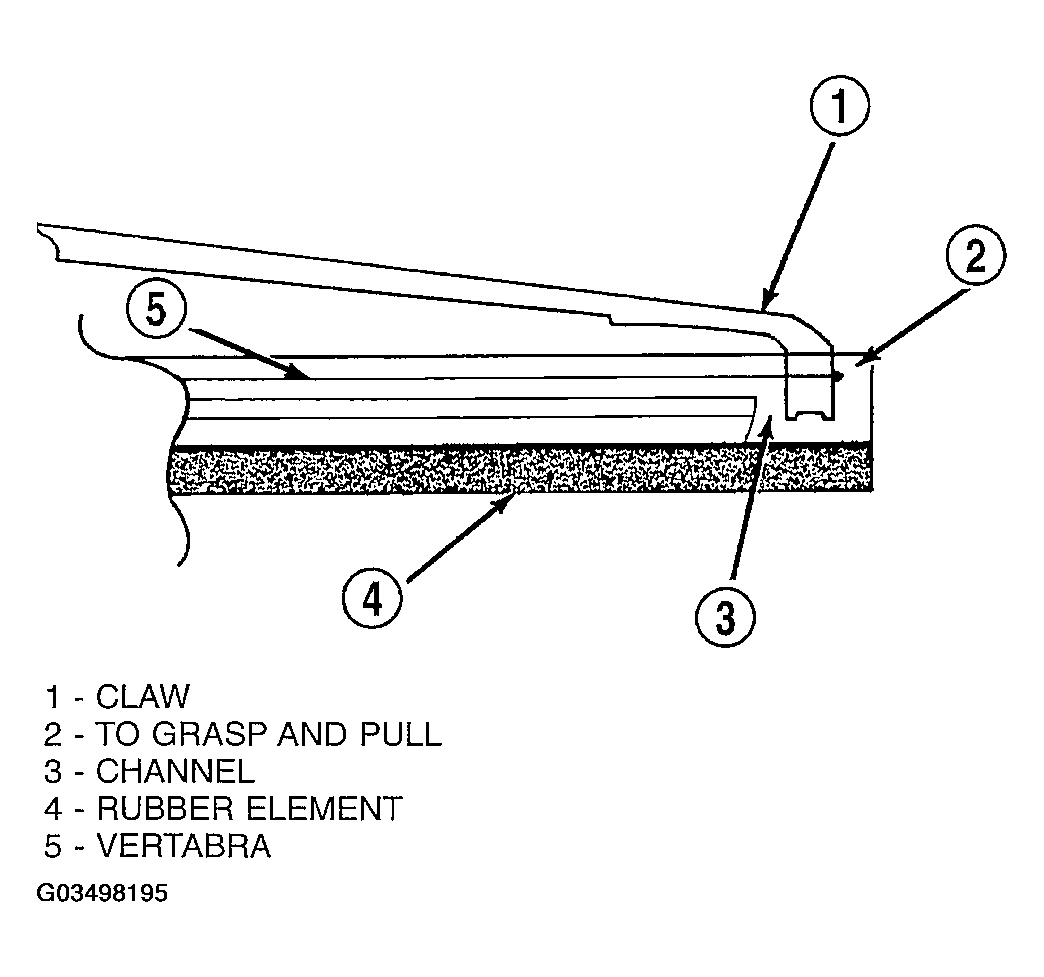

Install the vertebra onto the wiping element (Figure ).
Install the wiping element and vertebra into the blade assembly by sliding them into the claws.
NOTE: Install right blade element vertebra to match the shape of the windshield. Install vertebra with curve down. Install left blade element vertebra flat.
Check that blade element and vertebra are through all the claws and the final claw is locked in the stopper. Assure element locked end is closest to wiper system pivot.
