Recirculation Door Actuator Connector End View

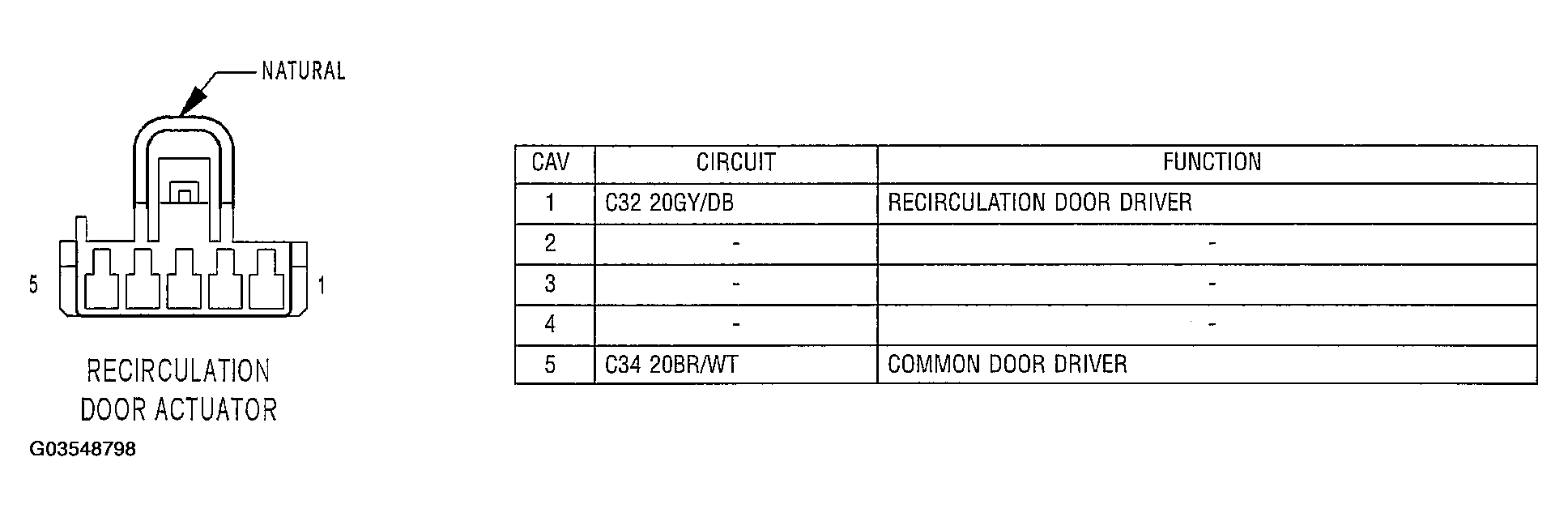

Fig 1: Recirculation Door Actuator
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
