Sunroof Limit Switch Connector End View

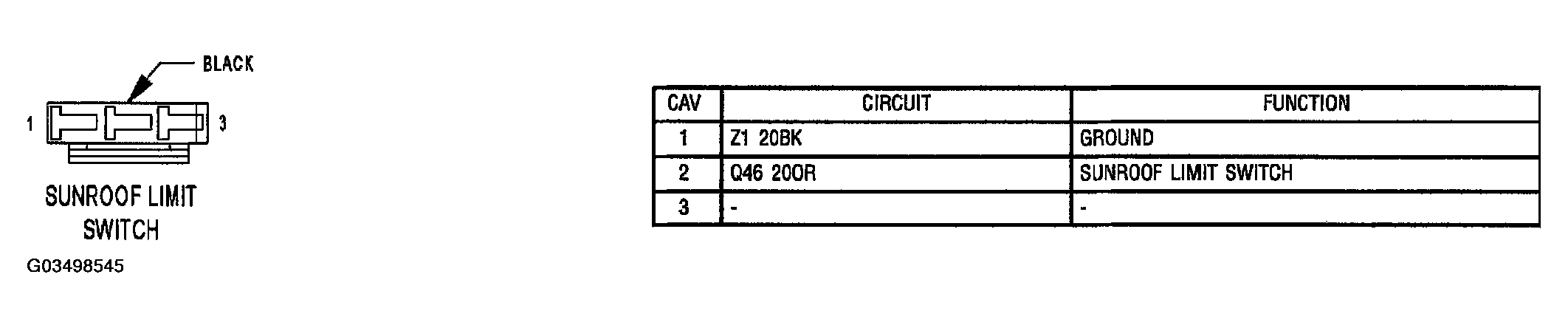

Fig 1: Sunroof Limit Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
