Oil Pump: Disassembly

When disassembling the transaxle it is necessary to inspect the oil pump for wear and damage.

1. Remove the reaction shaft support bolts.
2. Remove reaction shaft support from pump housing. See Fig 1.

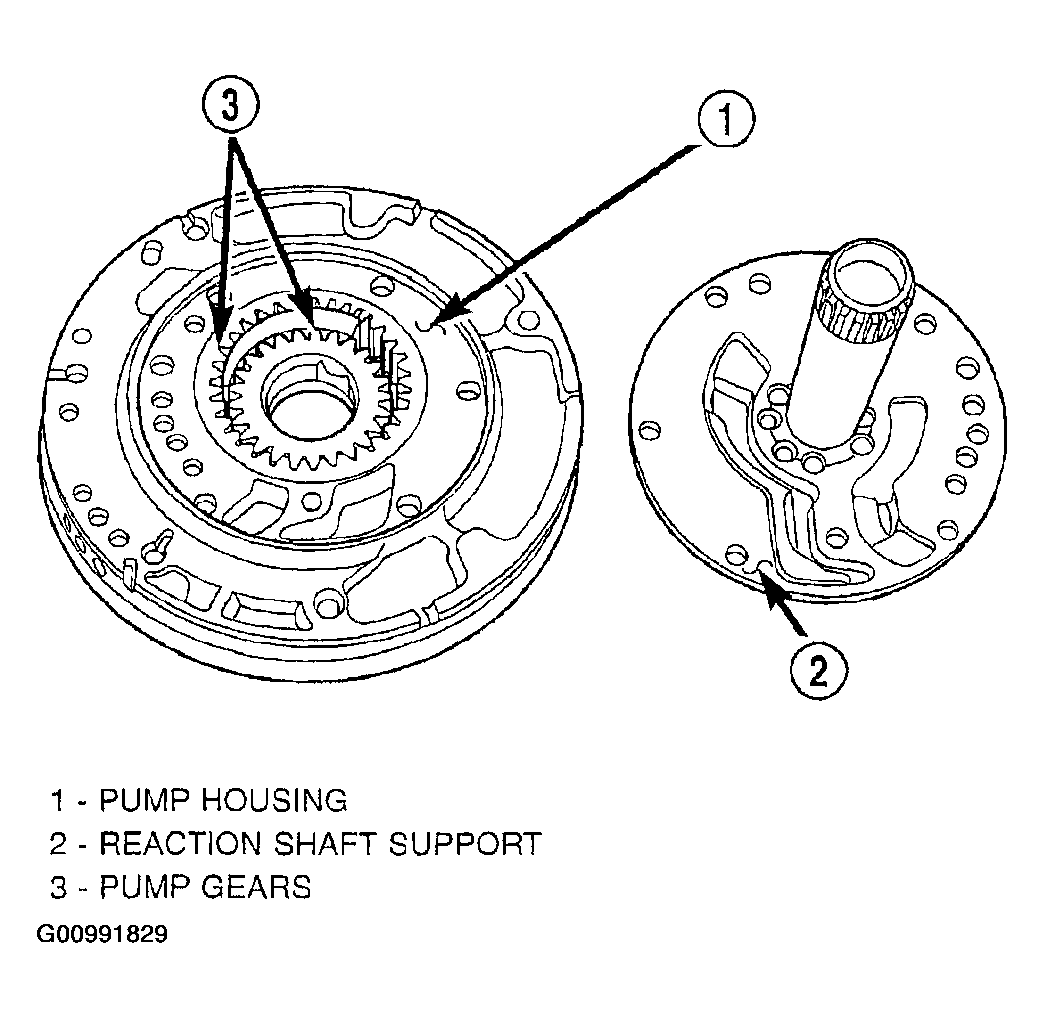

   Fig 1: Removing Reaction Shaft Support

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove the pump gears and check for wear and damage on pump housing and gears. See Fig 2.

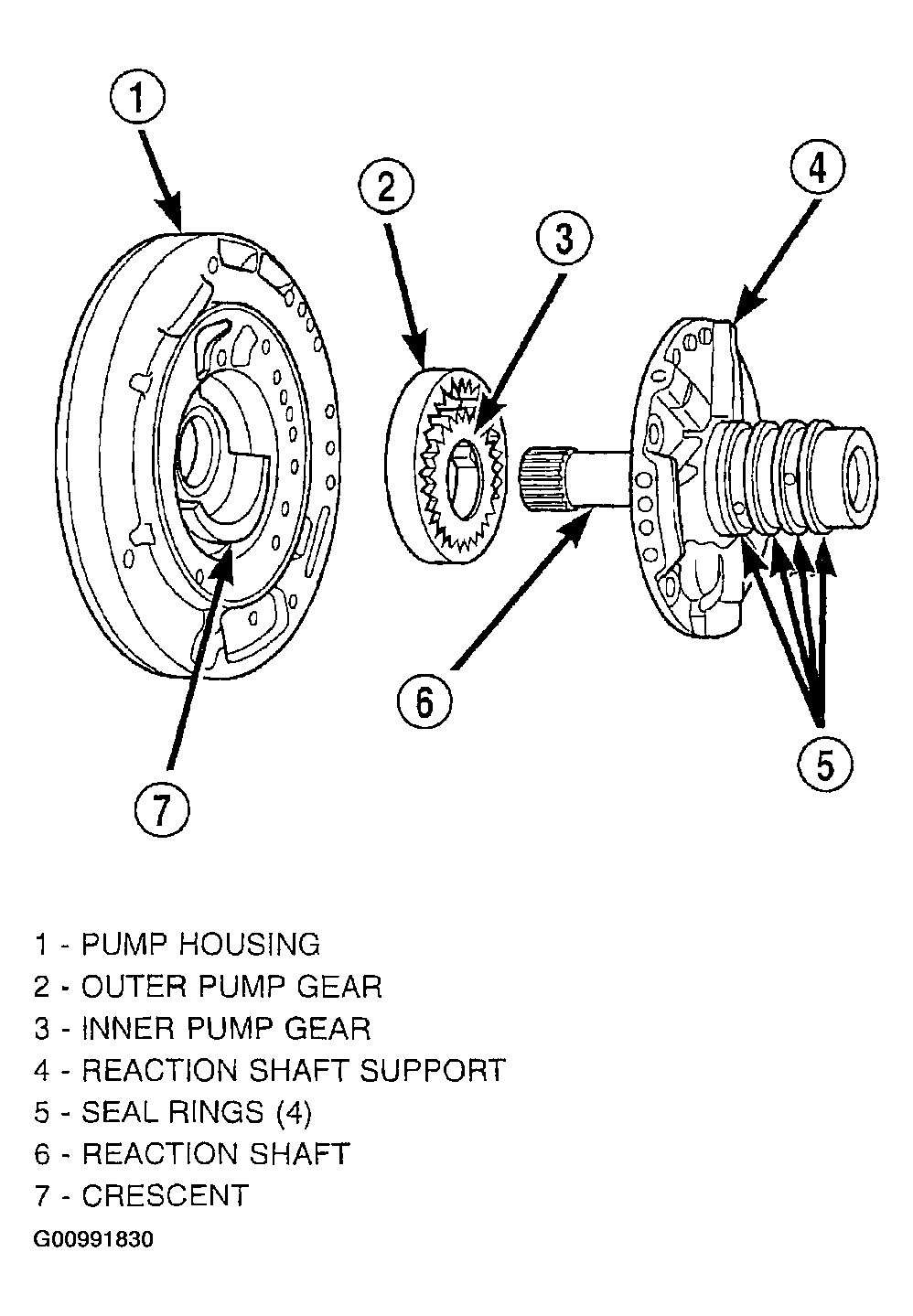

   Fig 2: Exploded View Of Oil Pump Assembly

   Courtesy of DAIMLERCHRYSLER CORP.
4. Reinstall the gears and check clearances.
5. Measure the clearance between the outer gear and the pump pocket. See Fig 3. Clearance should be 0.089-0.202 mm (0.0035-0.0079 in.).

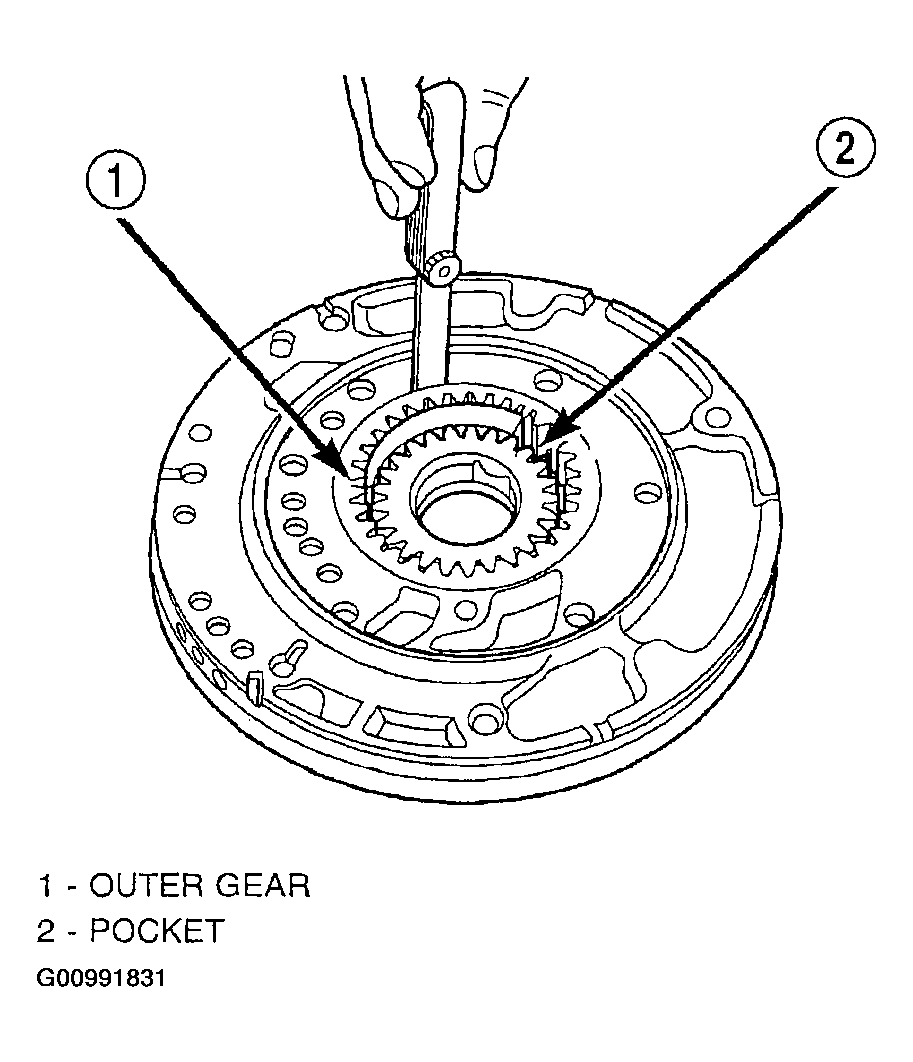

   Fig 3: Measuring Clearance Between Outer Gear & Pump Pocket

   Courtesy of DAIMLERCHRYSLER CORP.
6. Measure clearance between outer gear and crescent. Clearance should be 0.060-0.298 mm (0.0023-0.0117 in.).
7. Measure clearance between inner gear and crescent. Clearance should be 0.093-0.385 mm (0.0036-0.0151 in.).
8. Position an appropriate piece of Plastigage across both pump gears.
9. Align the Plastigage to a flat area on the reaction shaft support housing.
10. Install the reaction shaft to the pump housing. Tighten the bolts to 27 N.m (20 ft. lbs.).
11. Remove bolts and carefully separate the housings. Measure the Plastigage following the instructions supplied.
12. Clearance between outer gear side and the reaction shaft support should be 0.020-0.046 mm (0.0008-0.0018 in.). Clearance between inner gear side and the reaction shaft support should be 0.020-0.046 mm (0.0008-0.0018 in.).
