Shift Mechanism: Installation

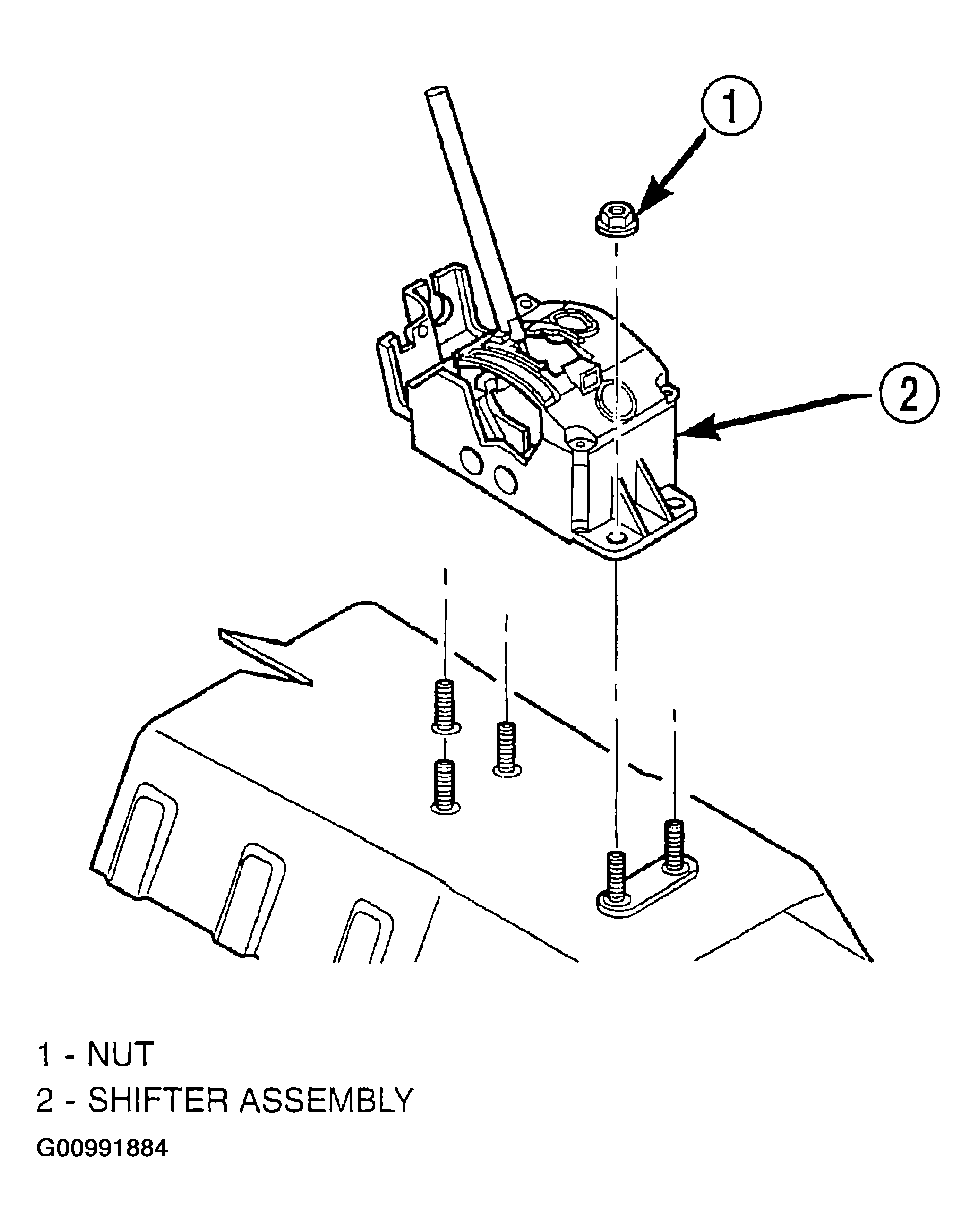

  1. Install shifter assembly. See Figure.
  2. Install five shifter/cable bracket to floor pan nuts and tighten to 31 N.m (23 ft. lbs.).
  3. Make sure shift lever and transaxle are in "Park."
    CAUTION: Park sprag must be engaged when adjusting linkage. Rock vehicle back and forth to ensure that park sprag is fully engaged.

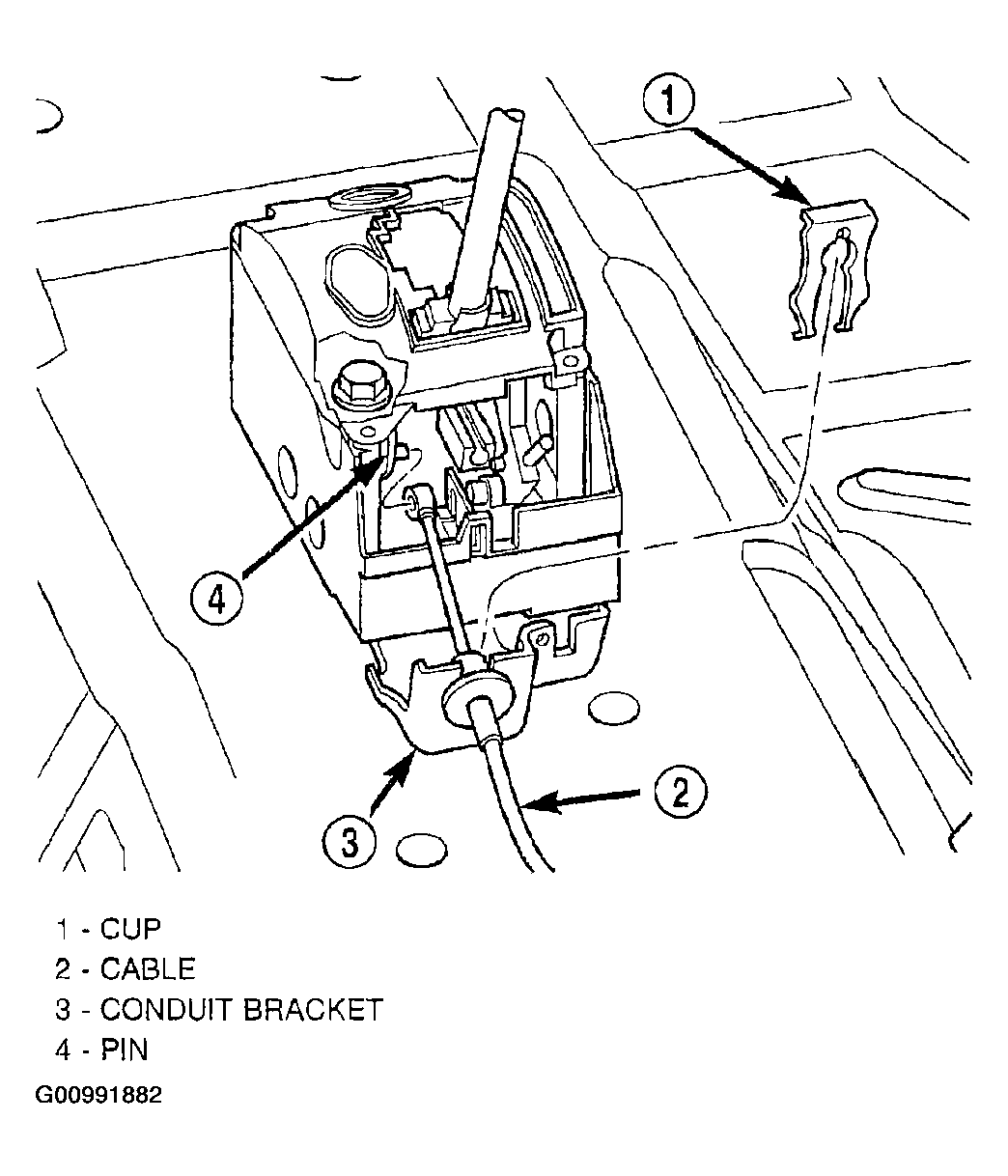

  4. With the ignition in the lock position, attach shift cable eyelet to shift pin. See Figure.
  5. Install shift cable to shifter assembly bracket. See Figure.

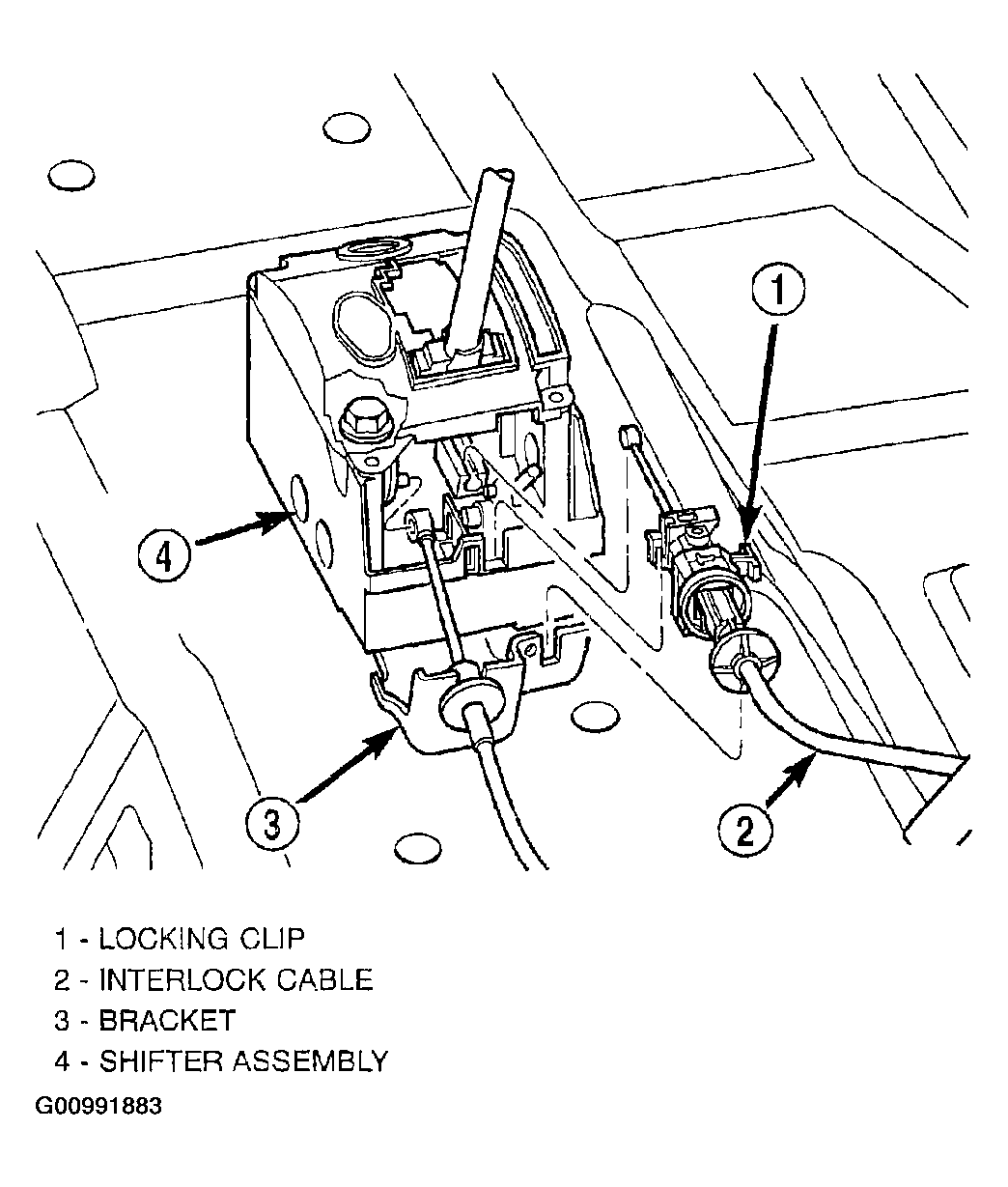

  6. Slip interlock cable core wire into interlock adjustment lever groove. See Figure. Make sure the interlock cable slug is seated in the groove.
  7. Slip interlock cable conduit end fitting into bracket and snap into place. See Figure.
  8. If equipped with Autostick, connect the Autostick connector.
  9. Adjust gear shift and interlock cables.
NOTE: Gearshift and interlock cables MUST be adjusted. Refer to the Adjustments section in this Group for the correct procedures.
