Power Distribution Center
For power distribution center location see
Fig 1
.
Fig 1: Locating Power Distribution Center
Courtesy of CHRYSLER CORP.
Fig 2: Identifying Power Distribution Center Components
Courtesy of CHRYSLER CORP.

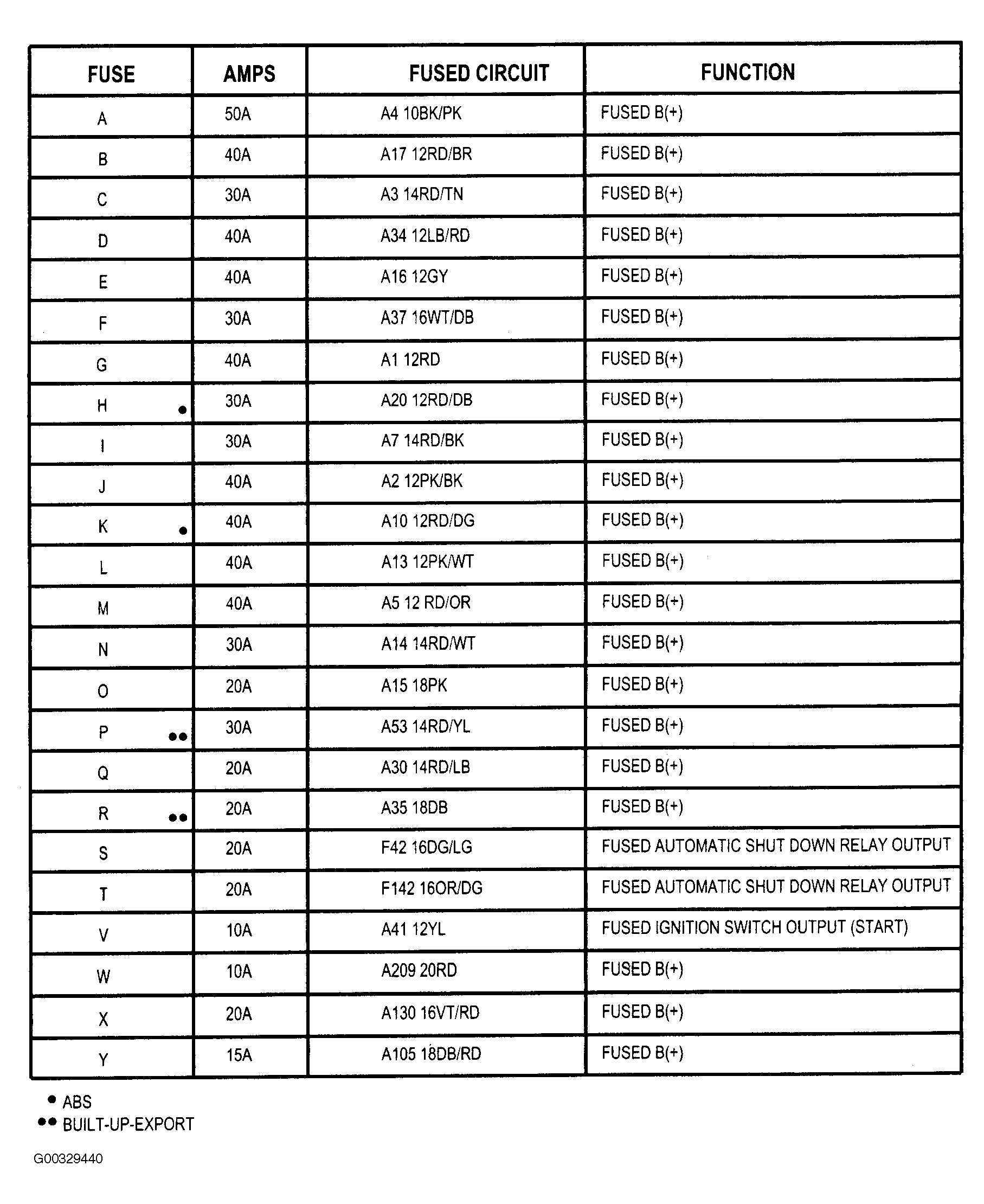

Fig 3: Power Distribution Center Legend
Courtesy of CHRYSLER CORP.
