Power Distribution Center

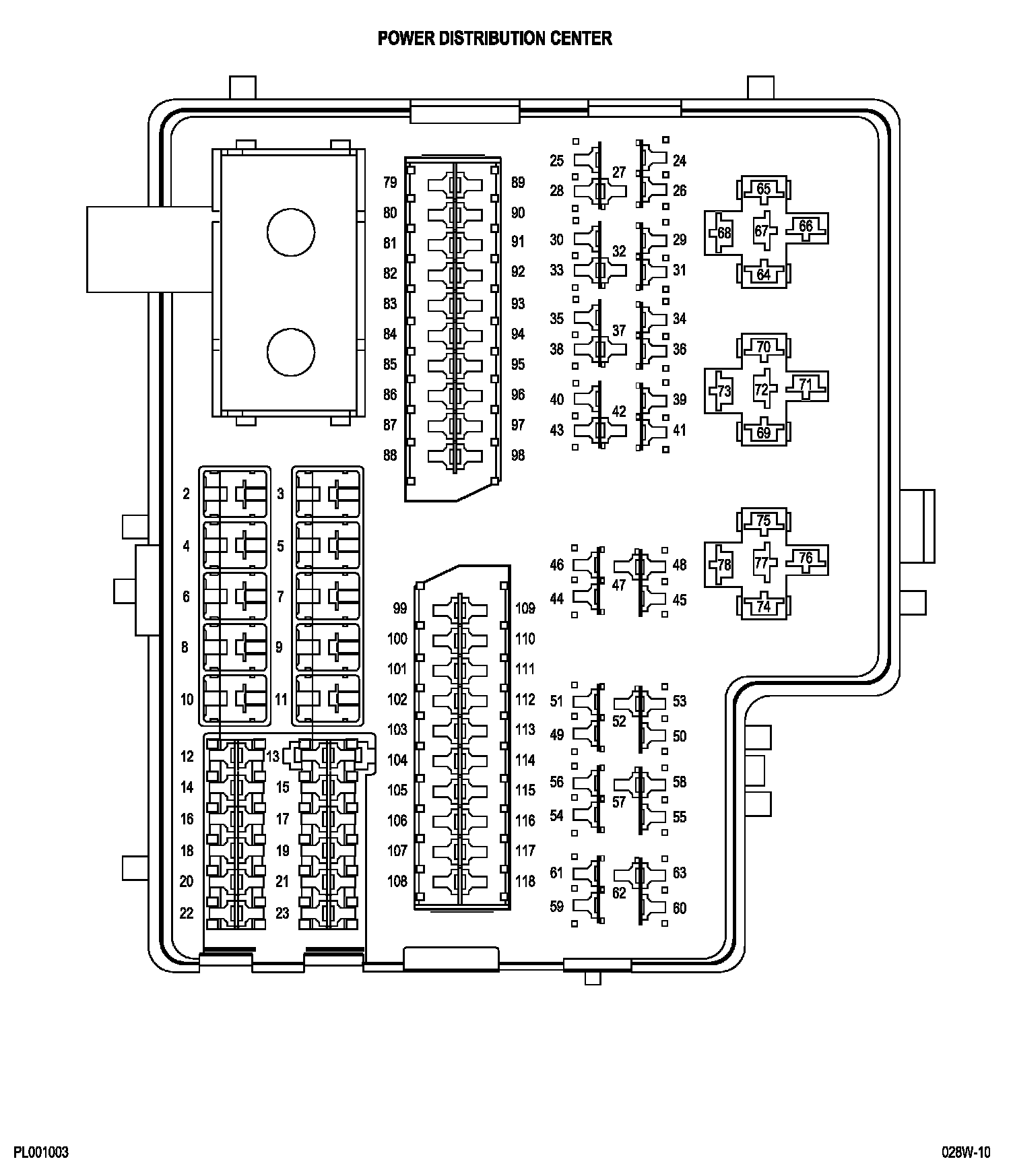

Power Distribution Center:




Power Distribution Center (Bottom):

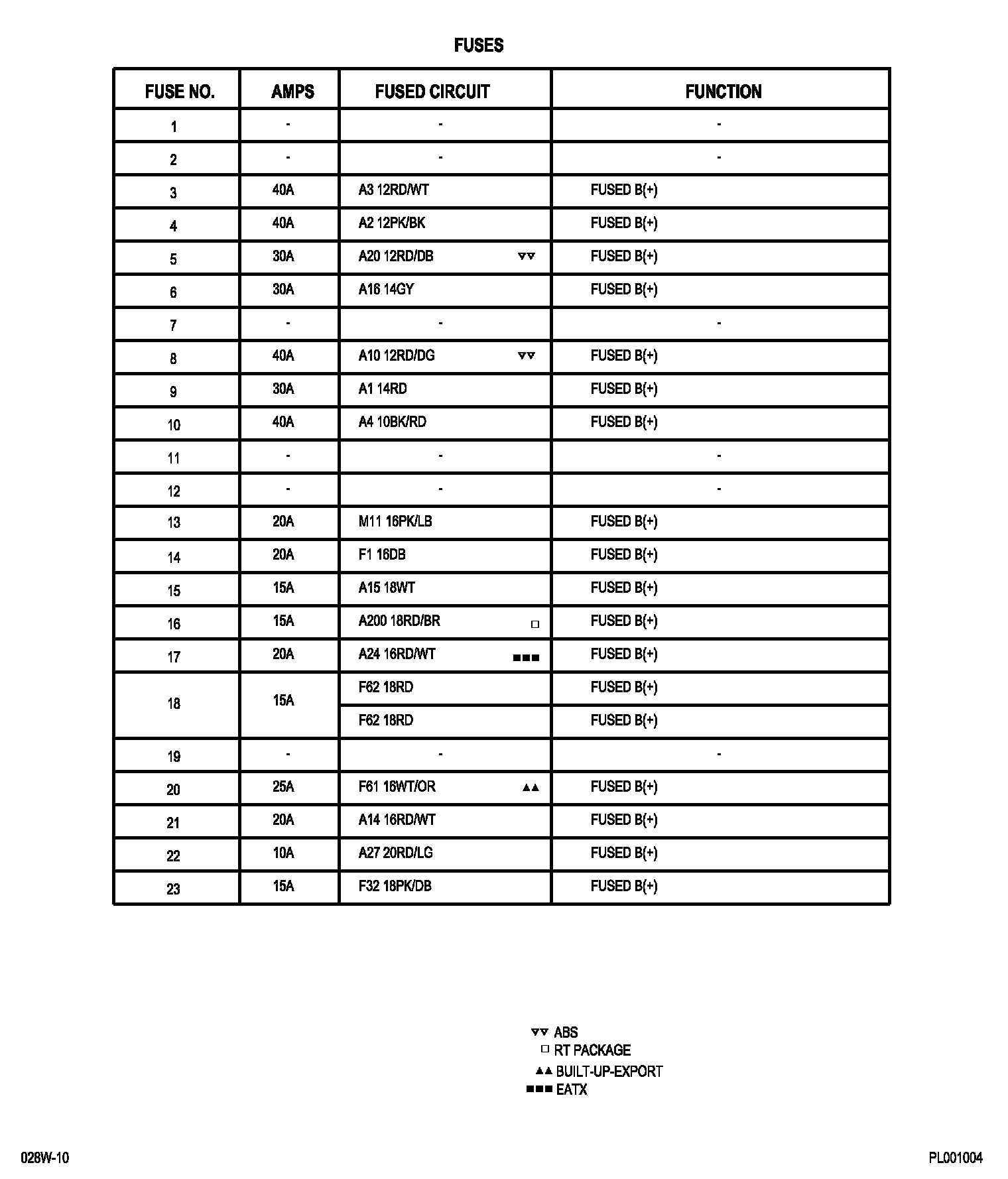

Fuses (PDC):
