Home >> Chrysler >> 2002 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Solenoid Position Sensor/Switch

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

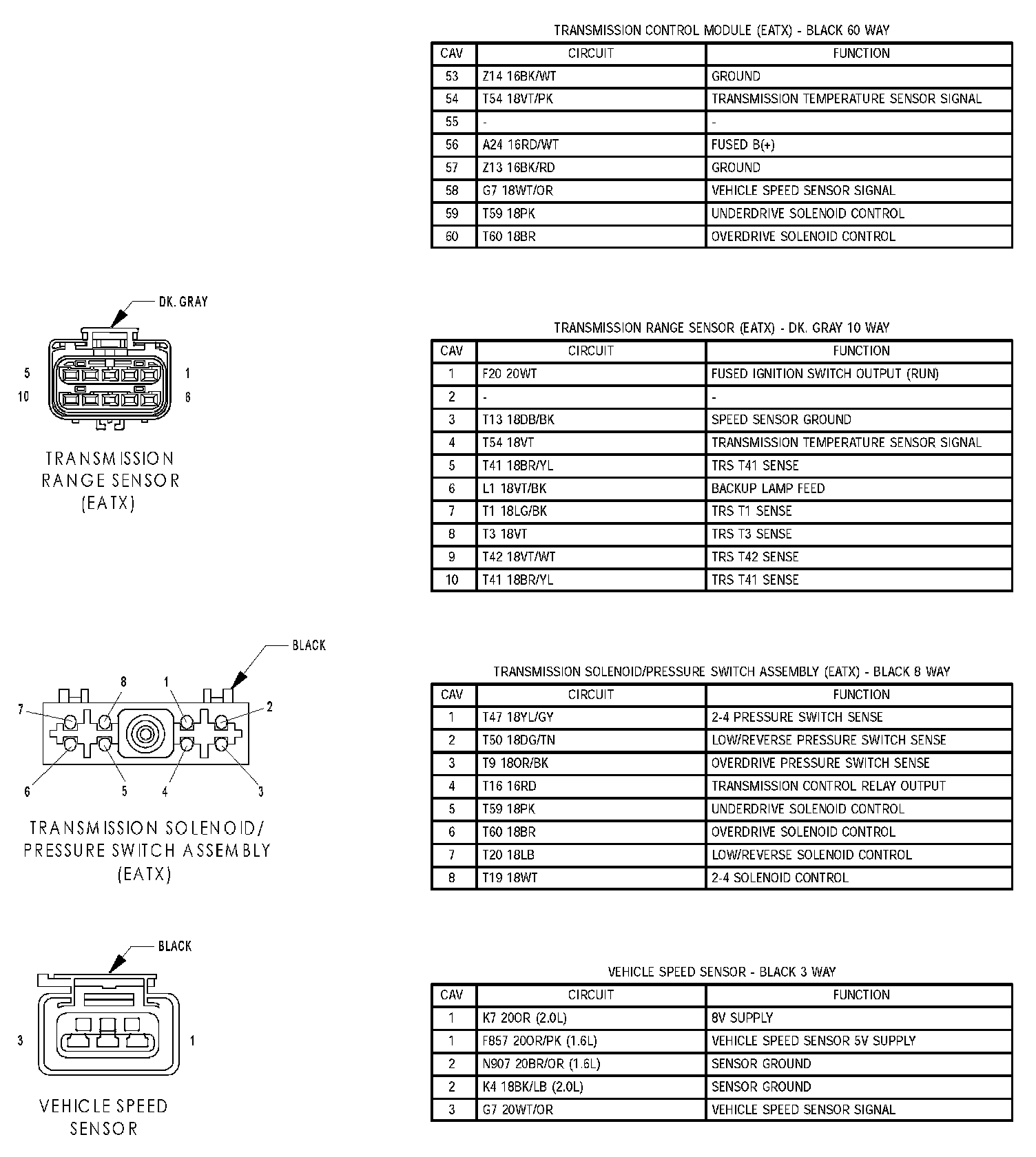

Shift Solenoid Position Sensor/Switch

8w-80-61:
