Airbag Control Module

REMOVAL

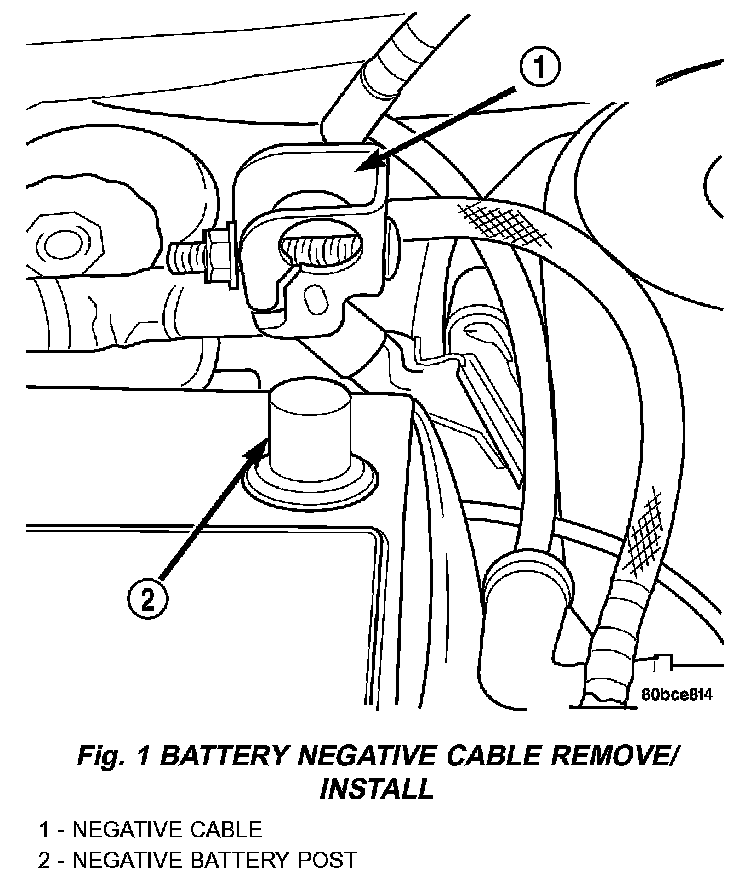

Fig.1 Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove center console. Refer to Body Interior, Floor Console, Removal.

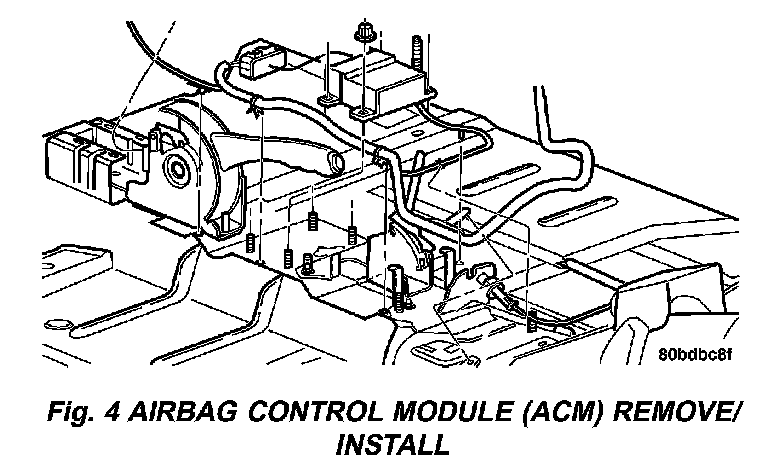

Fig.4 Airbag Control Module (ACM) Remove/Install:

3. Remove module mounting nuts and remove module.
4. Disconnect ACM 23-way connector.
5. Remove ACM from vehicle.

INSTALLATION
1. Connect ACM connector and ensure that the connector and all locking tabs are engaged.

CAUTION: USE SUPPLIED NUTS ONLY.

2. Position ACM (arrow pointing forward) in the console floor bracket, attach the nuts and tighten to 9.6 to 14 Nm (85 to 125 in. lbs.) torque.
3. Install center console assembly Refer to Body, Interior, Floor Console Installation.

WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. REFER TO ELECTRICAL, RESTRAINTS, DIAGNOSIS AND TESTING - AIRBAG SYSTEM FIRST.
