Steering System: Pump: Specifications

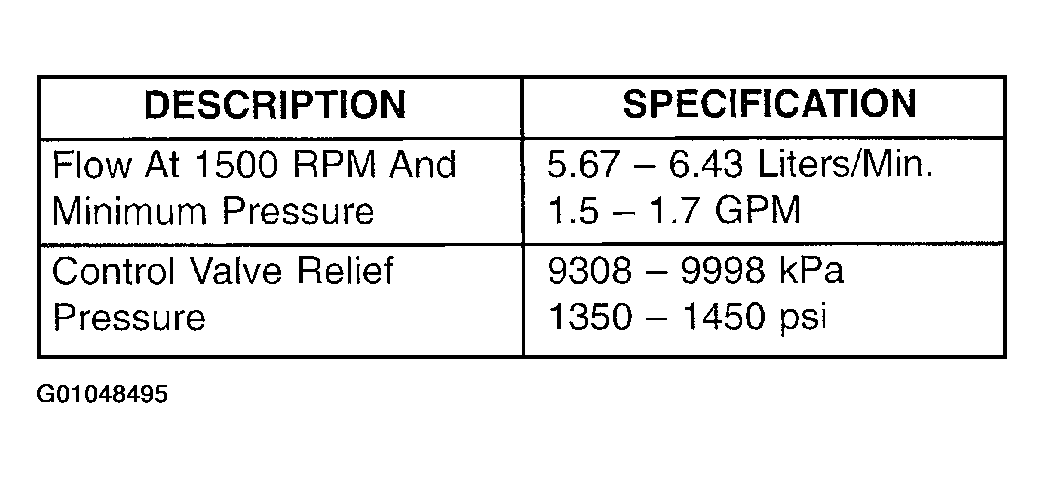

Fig 1: Power Steering Pump Flow Specifications

G01048495

Courtesy of DAIMLERCHRYSLER CORP.
