Removal - 2.0/2.4L
- Remove the air cleaner lid, disconnect the inlet air sensor and makeup air hose.
- Disconnect the negative battery cable.
- Loosen the upper generator adjustment lock nut (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Raise vehicle on hoist.
- Remove the right front wheel.
- Remove the accessory drive belt splash shield (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the support bracket (Fig 3
).
Courtesy of DAIMLERCHRYSLER CORP.
- Loosen the lower pivot bolt (Fig 4
).
Courtesy of DAIMLERCHRYSLER CORP.
- Loosen the accessory drive belt t-bolt.

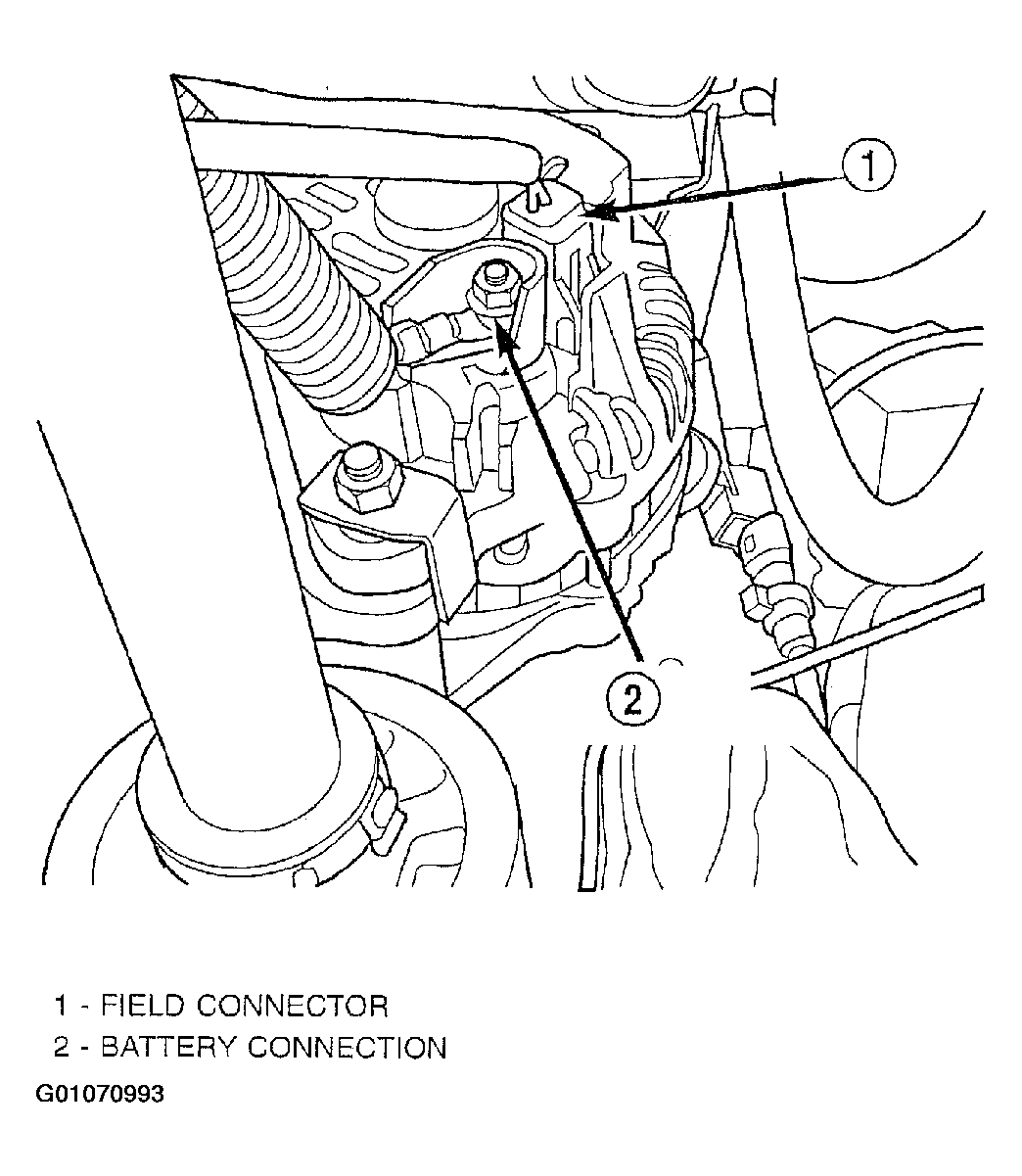

- Unplug field circuit connector from generator (Fig 5
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the B+ terminal nut and wire.
- Remove the generator belt. Refer to ACCESSORY DRIVE - 2.0/2.4L
for more information.
- Remove the axle retaining nut.
- Remove the lower control arm from steering knuckle. Refer to SUSPENSION FRONT
.
- Remove axle shaft. Refer to AXLE SHAFTS
. Put a container under the transmission to catch the transmission fluid from the transmission.
- Remove the generator lower mounting bolt and nut from the upper adjustment bracket.
- Remove generator out the bottom (Fig 6
).
Courtesy of DAIMLERCHRYSLER CORP.
