Connector Identification

WARNING: This page is about a different car, the 2002 Dodge Ram Wagon, 2002 Dodge Ram Van, 2001 Dodge Ram Wagon, and 2001 Dodge Ram Van. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector identification, see Fig 1 -Fig 12 .

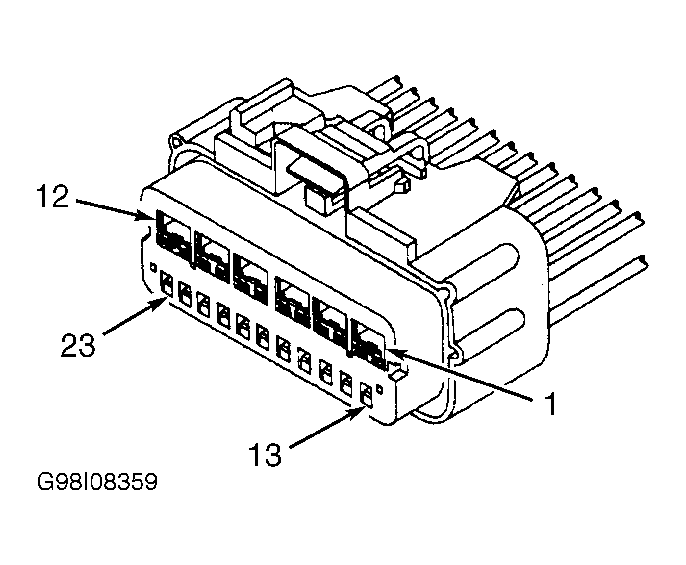

Fig 1: Identifying Air Bag Control Module Connector Terminals

G98I08359

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying Central Timer Module Connector C1 Terminals

G97H28024

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Central Timer Module Connector C2 Terminals

G97I28025

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Controller Anti-Lock Brake Connector Terminals

G00027767

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Identifying Data Link Connector Terminals

G95H14289

Courtesy of DAIMLERCHRYSLER CORP.

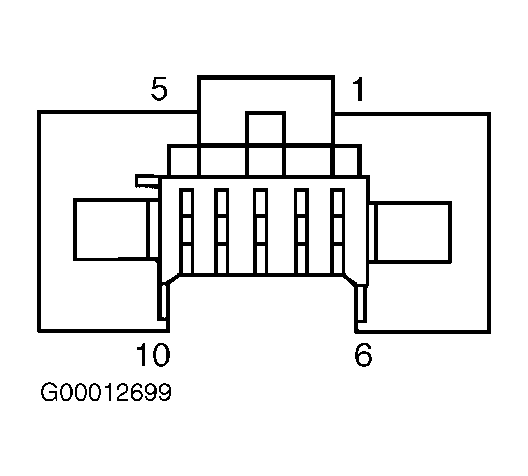

Fig 6: Identifying Electro-Mechanical Instrument Cluster Connectors C1 & C2 Terminals

G00012699

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Identifying Headlight Switch 9-Pin Connector Terminals

G98E00103

Courtesy of DAIMLERCHRYSLER CORP.

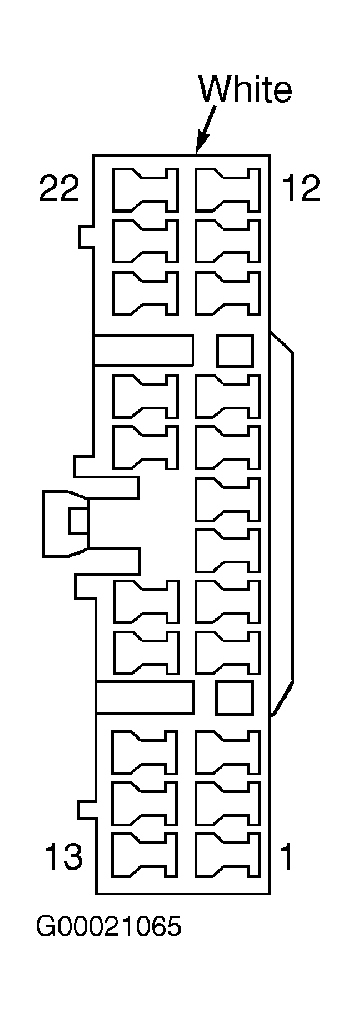

Fig 8: Identifying Joint Connector No. 3 Terminals

G00021065

Courtesy of DAIMLERCHRYSLER CORPORATION

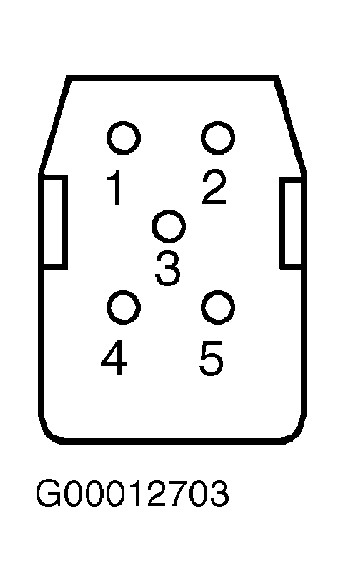

Fig 9: Identifying Power Door Lock Switch Connector Terminals

G00012703

Courtesy of DAIMLERCHRYSLER CORP.

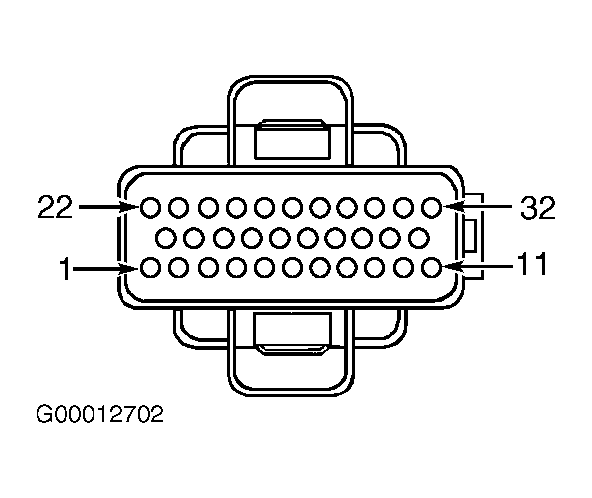

Fig 10: Identifying Powertrain Control Module Connectors C1, C2 & C3 Terminals

G00012702

Courtesy of DAIMLERCHRYSLER CORP.

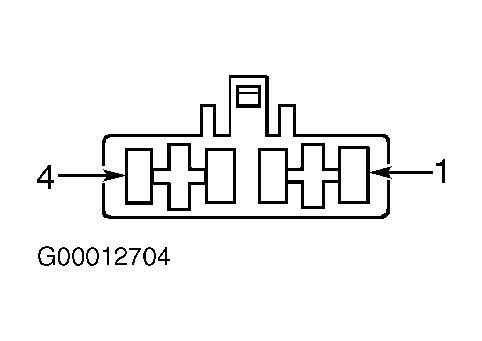

Fig 11: Identifying Windshield Wiper Motor Connector Terminals

G00012704

Courtesy of DAIMLERCHRYSLER CORP.

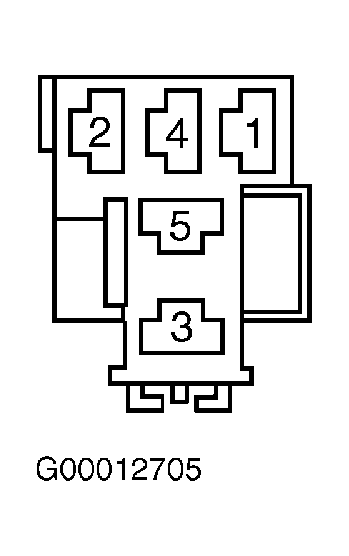

Fig 12: Identifying Wiper Relay Connector Terminals

G00012705

Courtesy of DAIMLERCHRYSLER CORP.

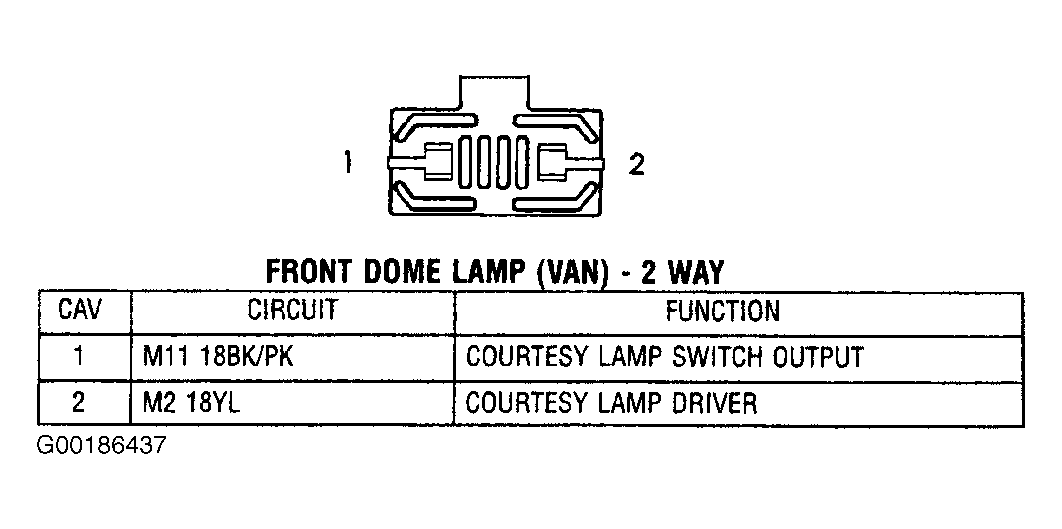

Fig 13: Identifying Front Dome/Courtesy Lamp Connector Terminals

G00186437

Courtesy of CHRYSLER CORP.

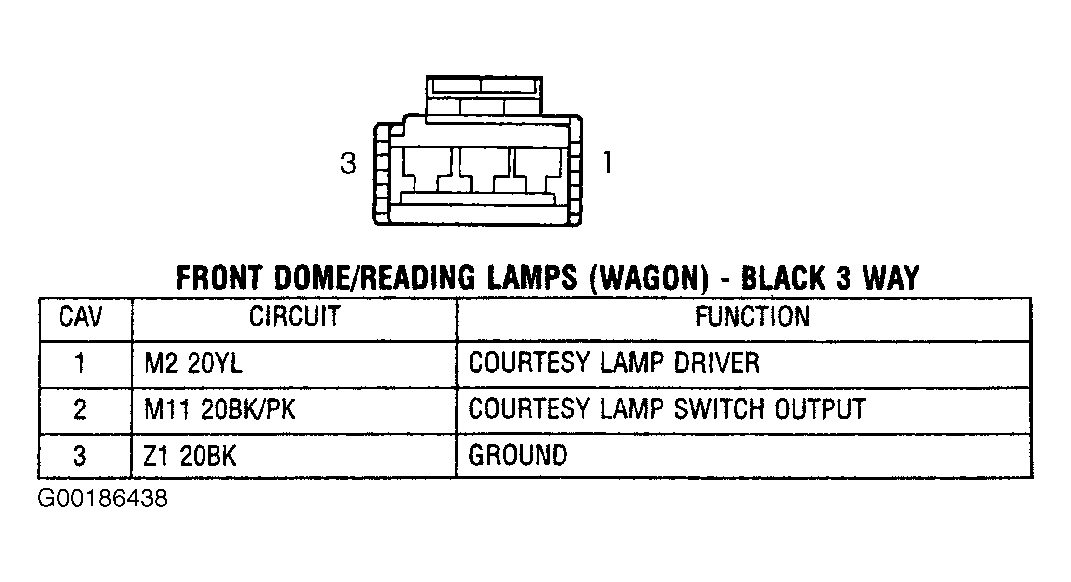

Fig 14: Identifying Front Dome/Reading Lamp Connector Terminals

G00186438

Courtesy of CHRYSLER CORP.
