Modular Clutch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install clutch module (Fig 1 ) onto input shaft. Install transaxle into position.
  2. Install transaxle into vehicle. Refer to REMOVAL & INSTALLATION .

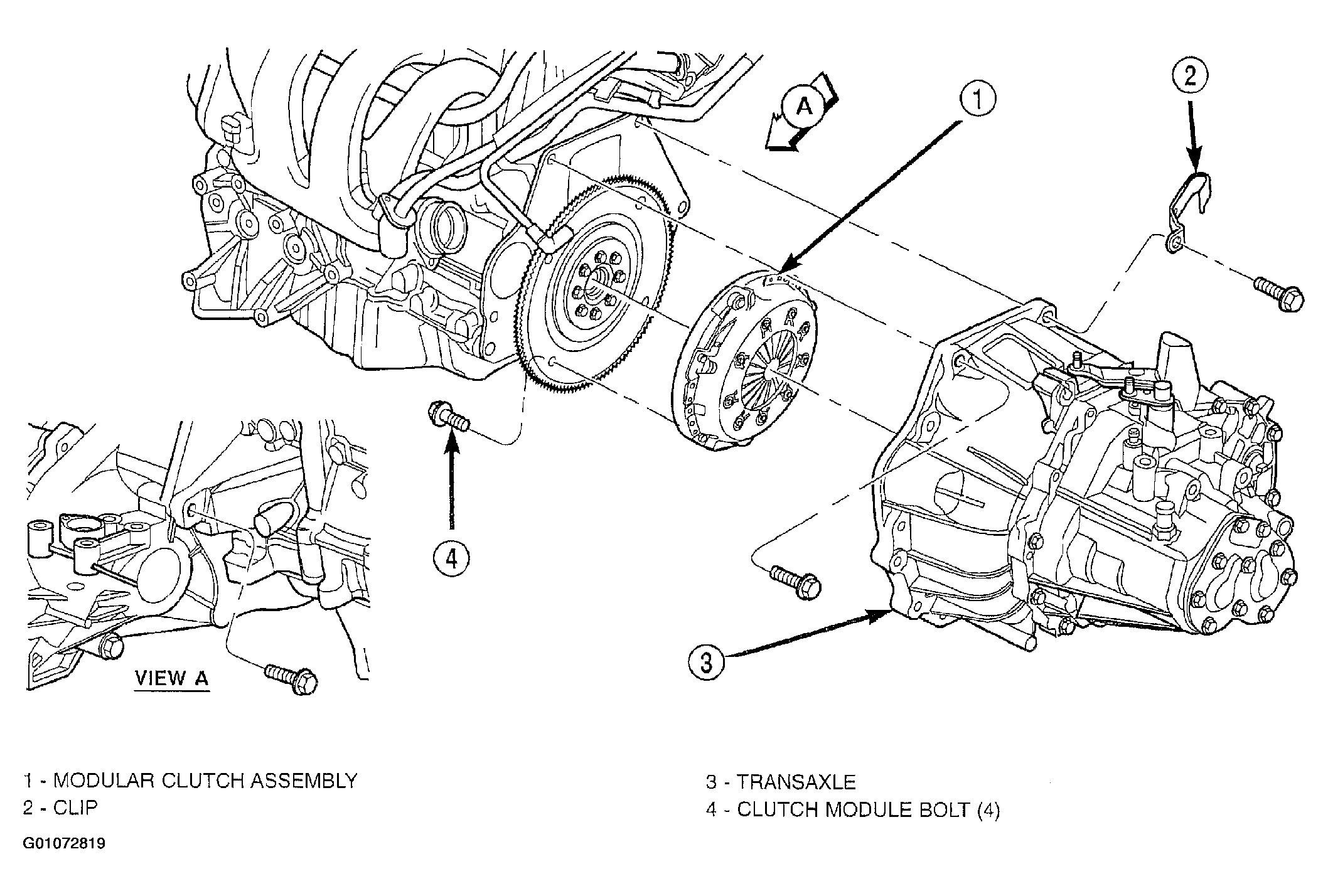

    Fig 1: Removing/Installing Transaxle Clutch Module
    G01072819Courtesy of DAIMLERCHRYSLER CORP.
