Input Clutch Assembly: Assembly

Use petrolatum on all seals to ease assembly of components.

  1. Using an arbor press, install input shaft to input shaft hub (Fig 1).

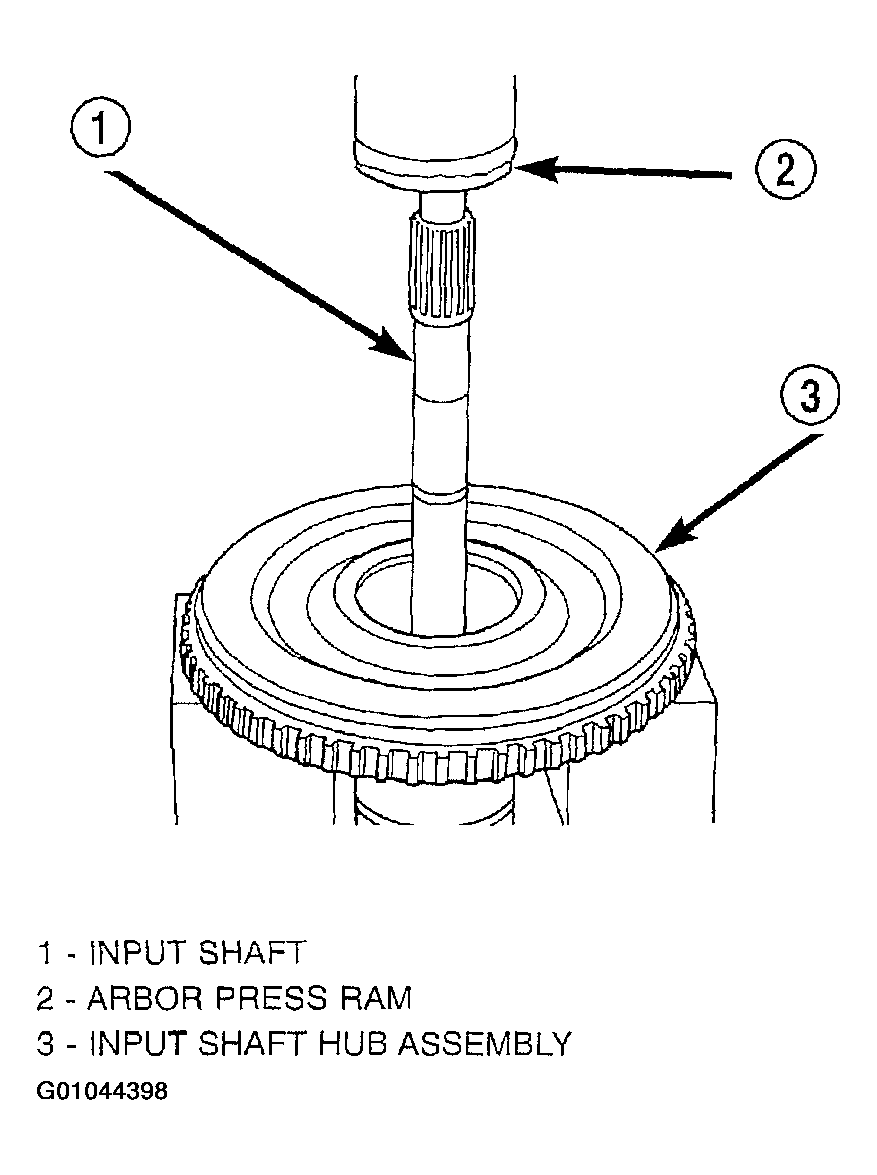

    Fig 1: Installing Input Shaft
    G01044398Courtesy of DAIMLERCHRYSLER CORP.
  2. Install input shaft snap ring (Fig 2).

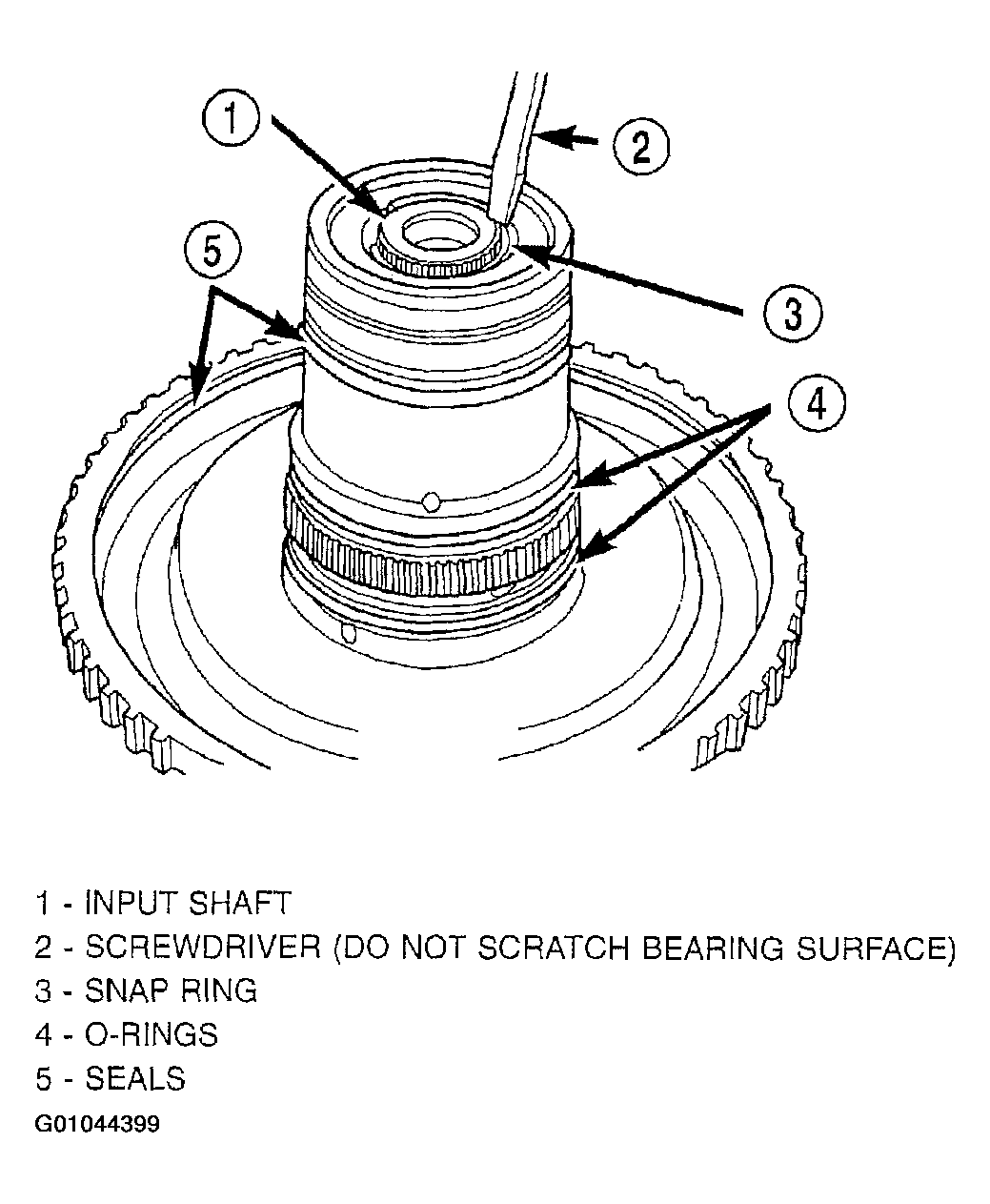

    Fig 2: Installing Input Shaft Snap Ring
    G01044399Courtesy of DAIMLERCHRYSLER CORP.
  3. Using an arbor press and Tool 6057, Install OD/Reverse piston return spring and snap ring (Fig 3) (Fig 4).

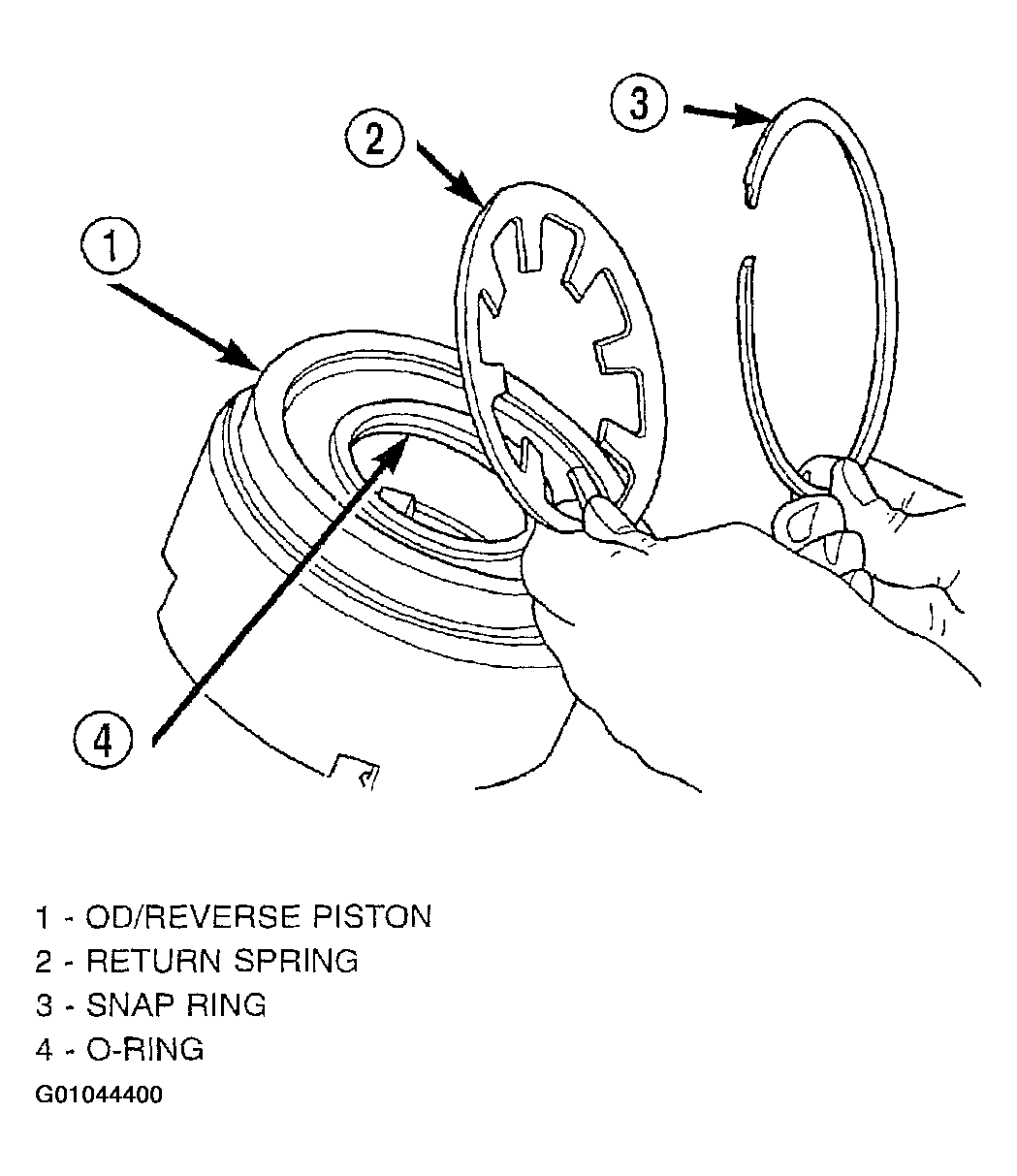

    Fig 3: Installing Return Spring & Snap Ring
    G01044400Courtesy of DAIMLERCHRYSLER CORP.

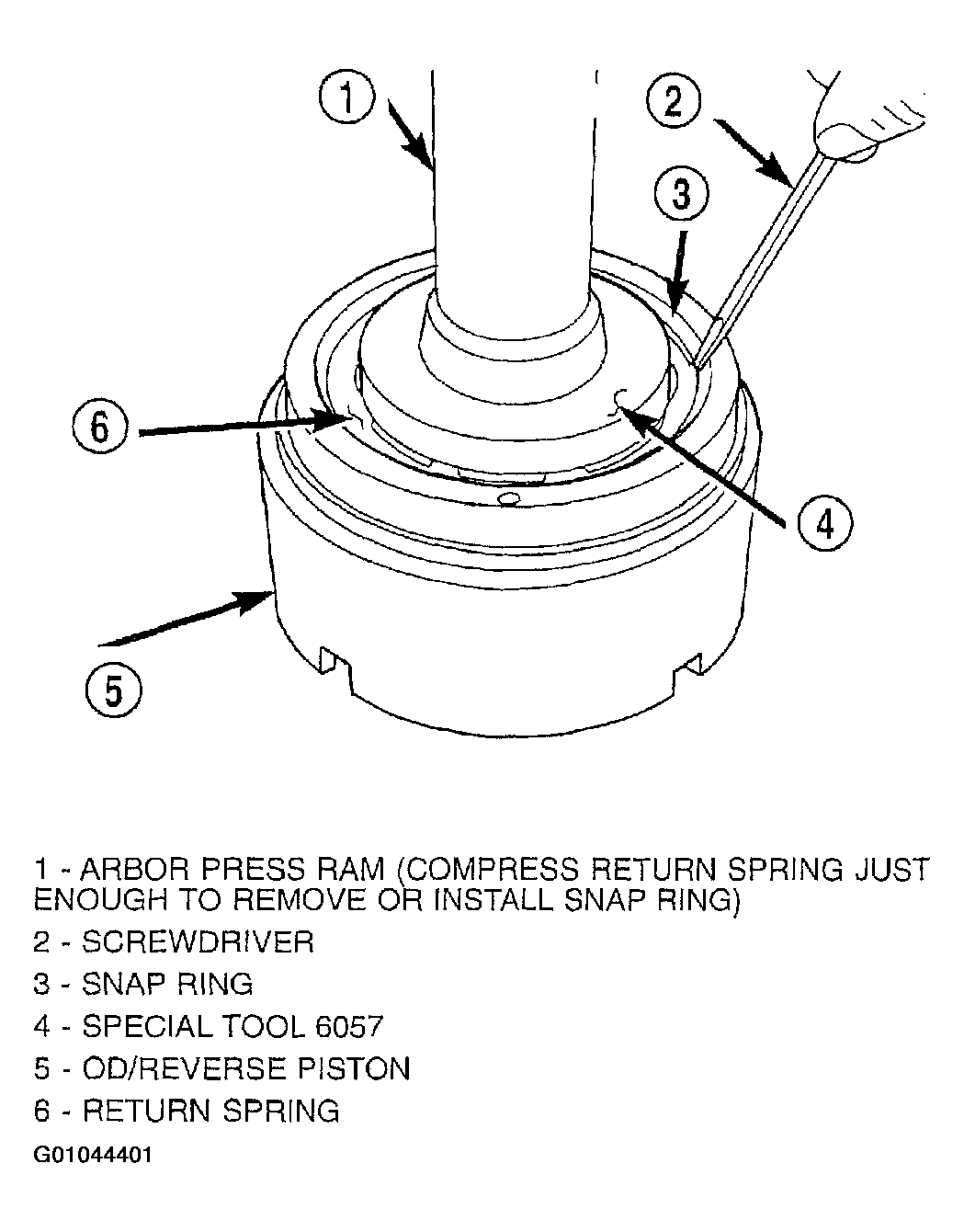

    Fig 4: Installing Snap Ring
    G01044401Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the OD/Reverse piston assembly to the input clutch retainer as shown in (Fig 5).

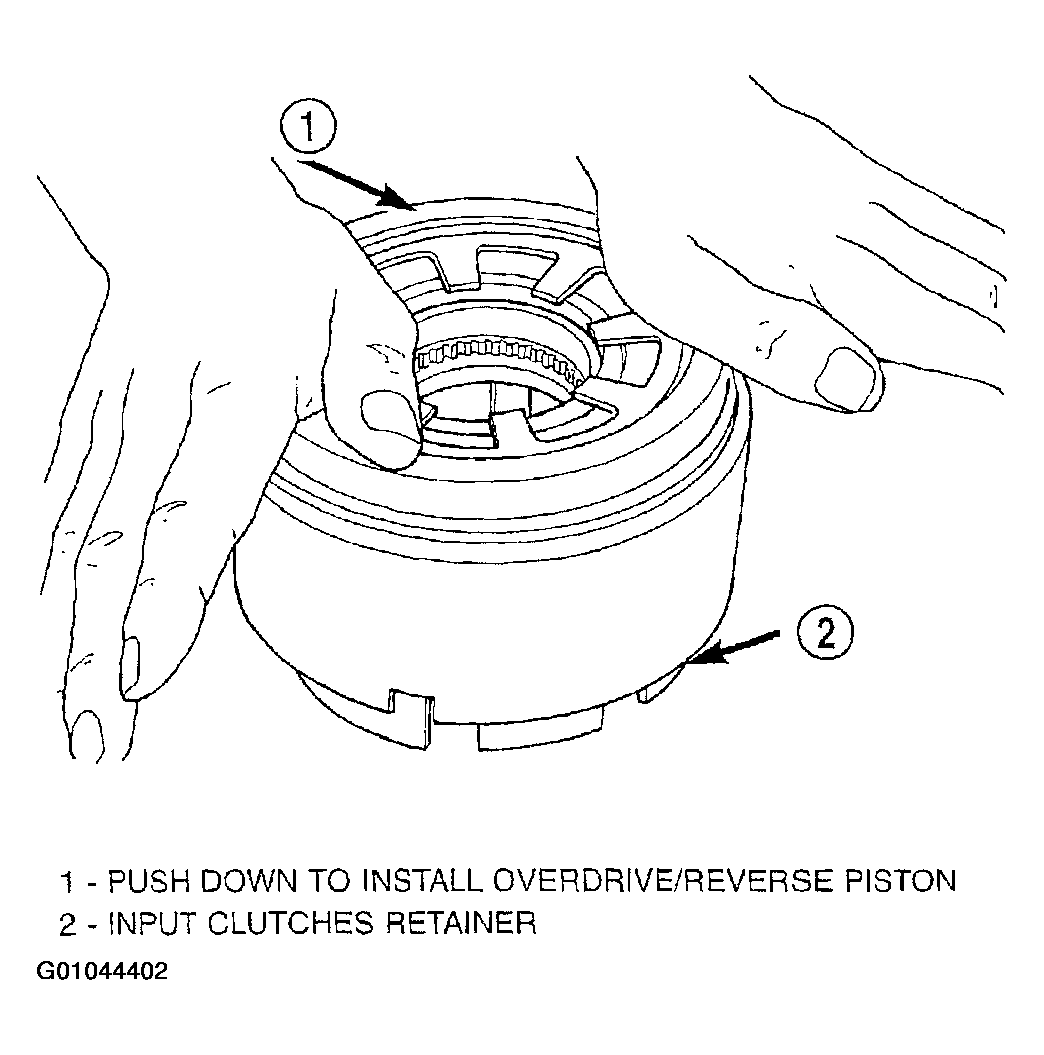

    Fig 5: Installing OD/Reverse Piston
    G01044402Courtesy of DAIMLERCHRYSLER CORP.

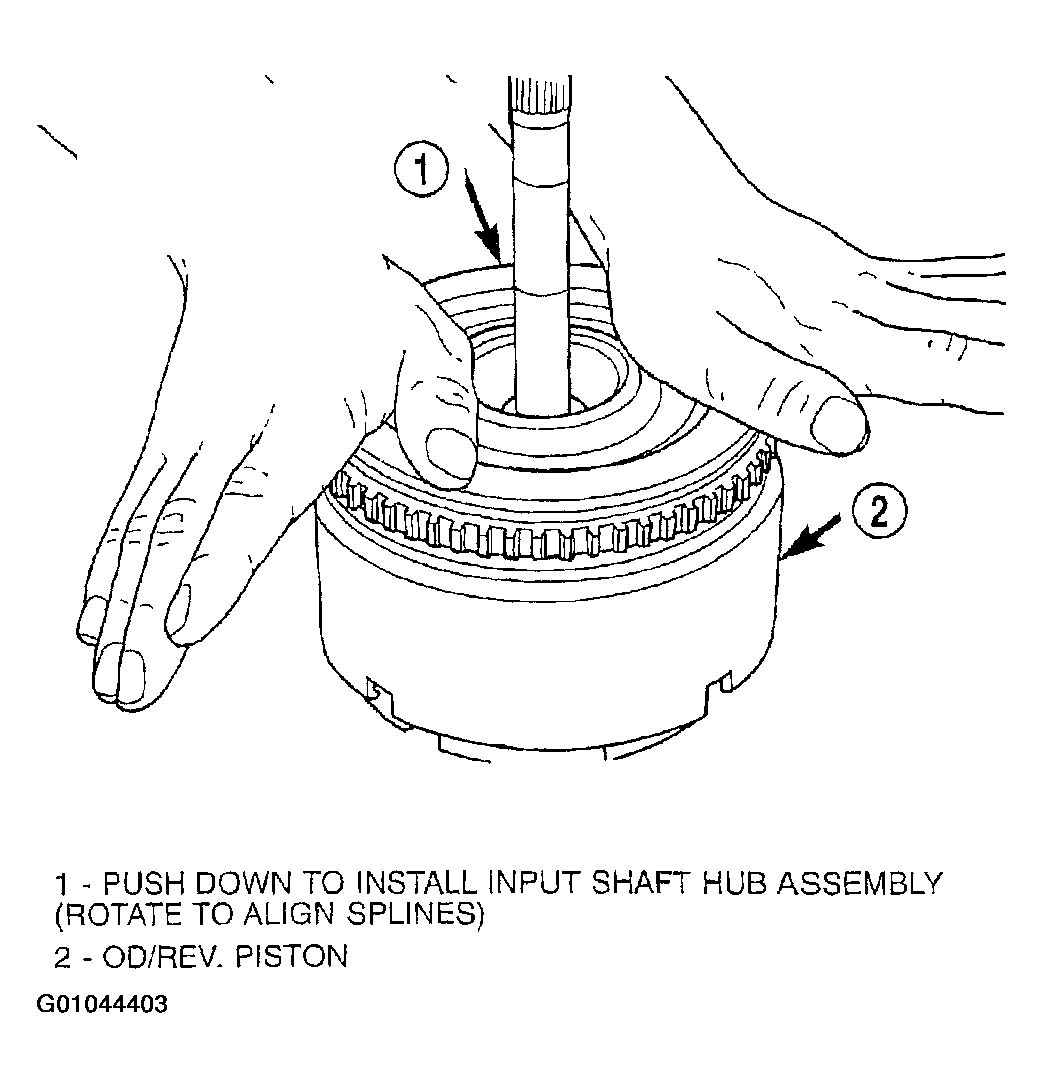

  5. Install the input hub/shaft assembly to the OD/Reverse piston/clutch retainer assembly (Fig 6).
    Fig 6: Installing Input Shaft Hub Assembly
    G01044403Courtesy of DAIMLERCHRYSLER CORP.
  6. Install input hub tapered snap ring (Fig 7).

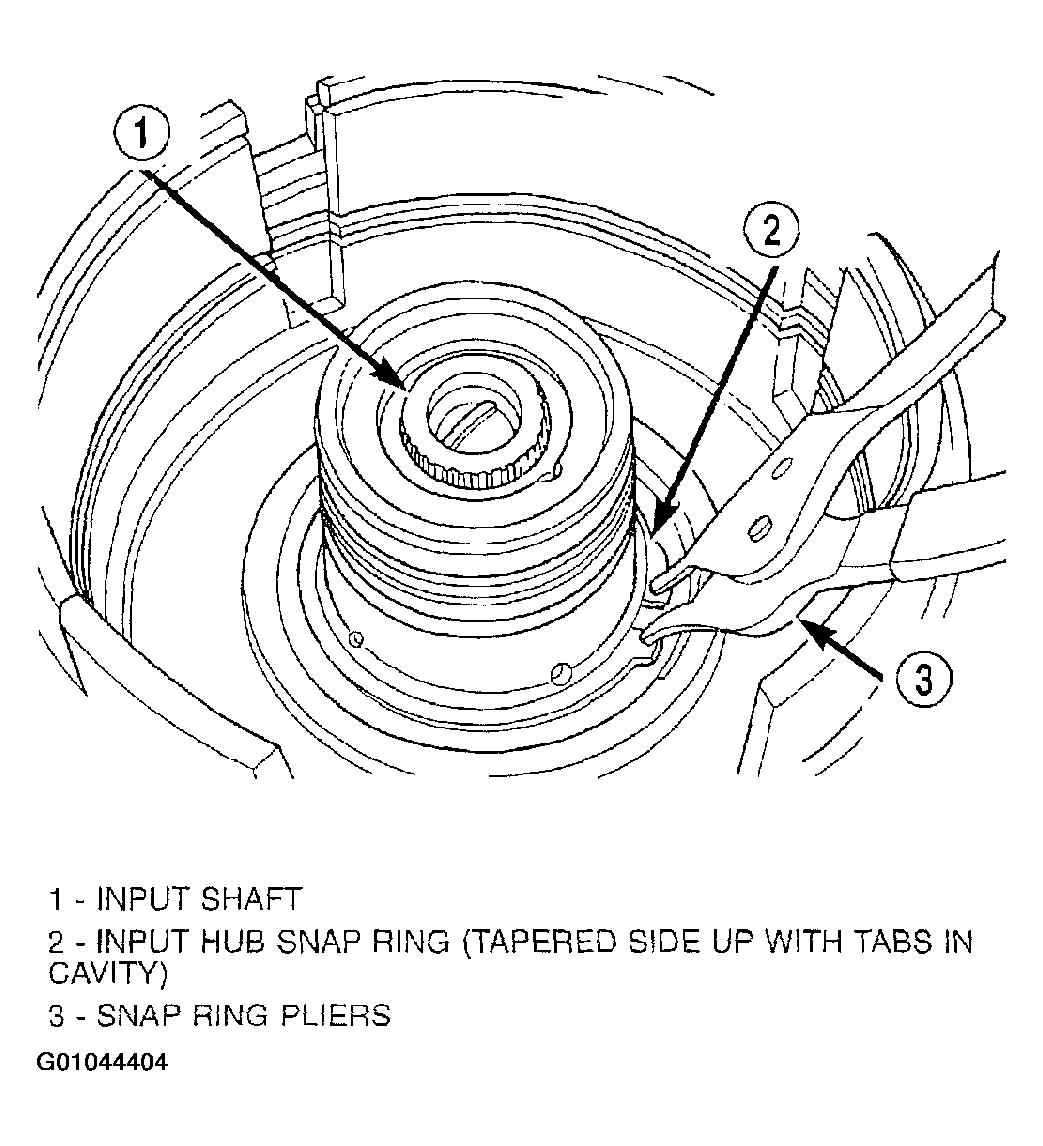

    Fig 7: Installing Input Hub Tapered Snap Ring
    G01044404Courtesy of DAIMLERCHRYSLER CORP.
  7. Install UD clutch piston (Fig 8).

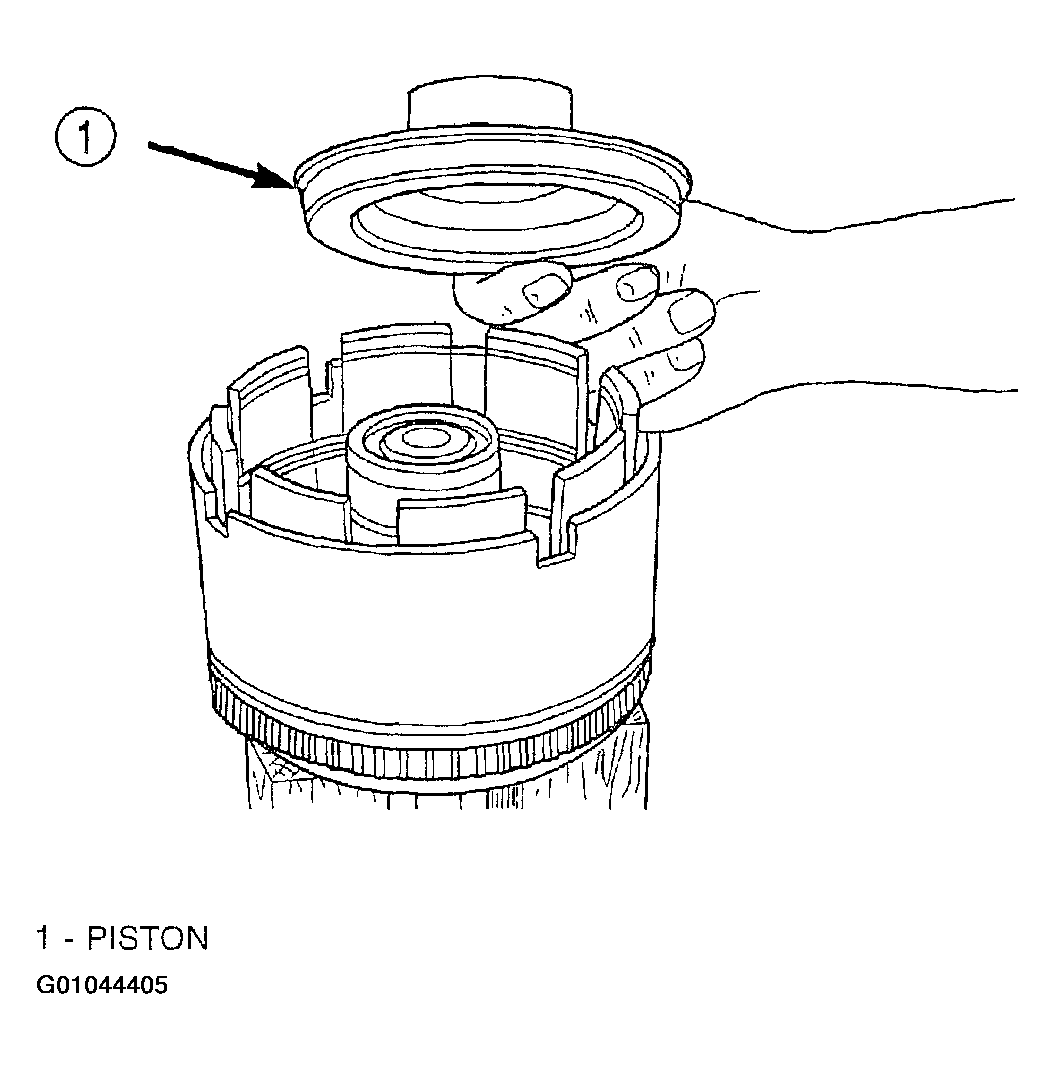

    Fig 8: Installing Underdrive Clutch Piston
    G01044405Courtesy of DAIMLERCHRYSLER CORP.

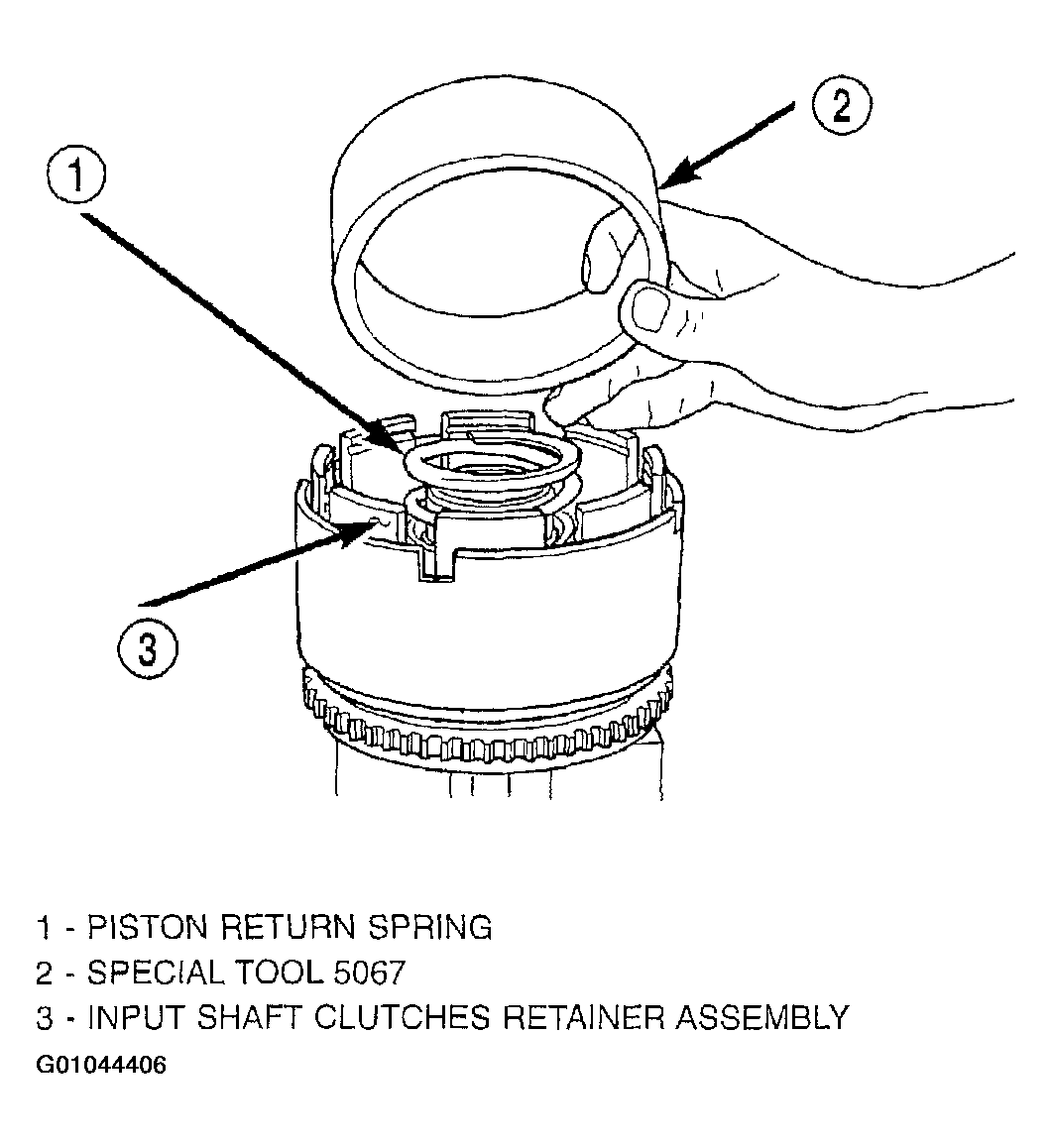

  8. Install UD piston return spring and Tool 5067 as shown in (Fig 9).
    Fig 9: Identifying Seal Compressor Special Tool 5067
    G01044406Courtesy of DAIMLERCHRYSLER CORP.
  9. Using Tool 5059A and an arbor press, Install the UD spring retainer and snap ring. (Fig 10) (Fig 11) Compress just enough to install snap ring.
    CAUTION: Compress return spring just enough to install snap ring.

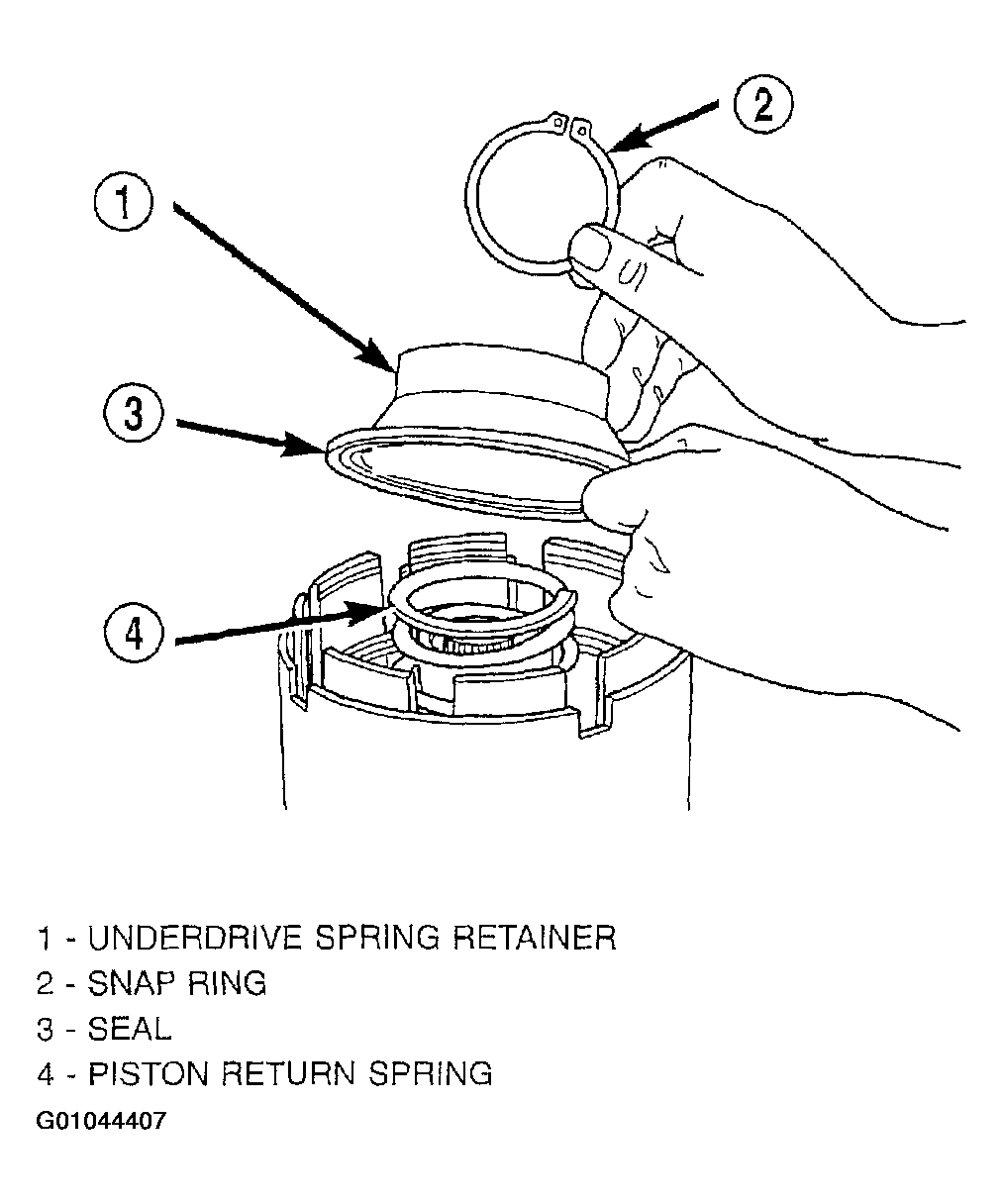

    Fig 10: Installing UD Return Spring & Retainer
    G01044407Courtesy of DAIMLERCHRYSLER CORP.

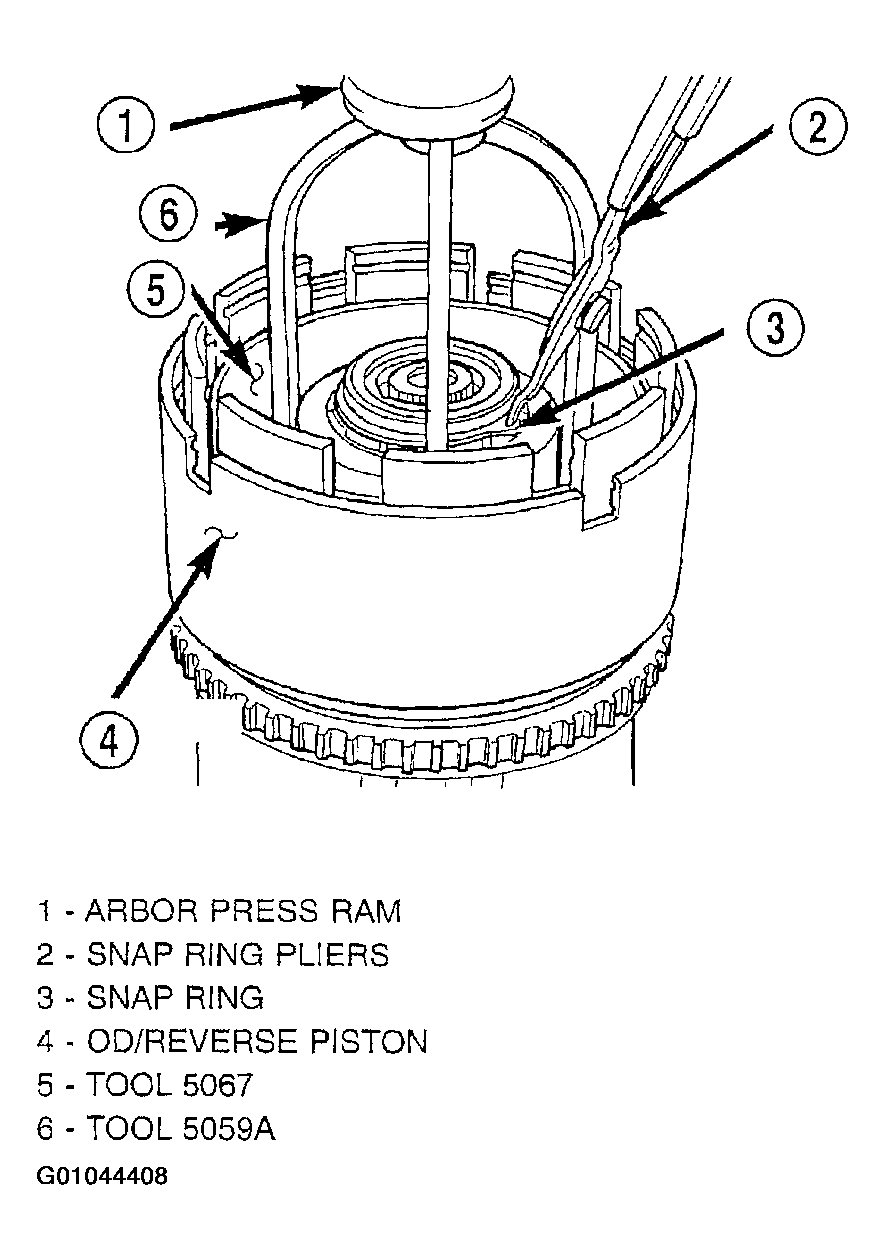

    Fig 11: Installing UD Spring Retainer & Snap Ring
    G01044408Courtesy of DAIMLERCHRYSLER CORP.
  10. Install the UD clutch pack. Leave out upper disc, until snap ring is installed (Fig 12).

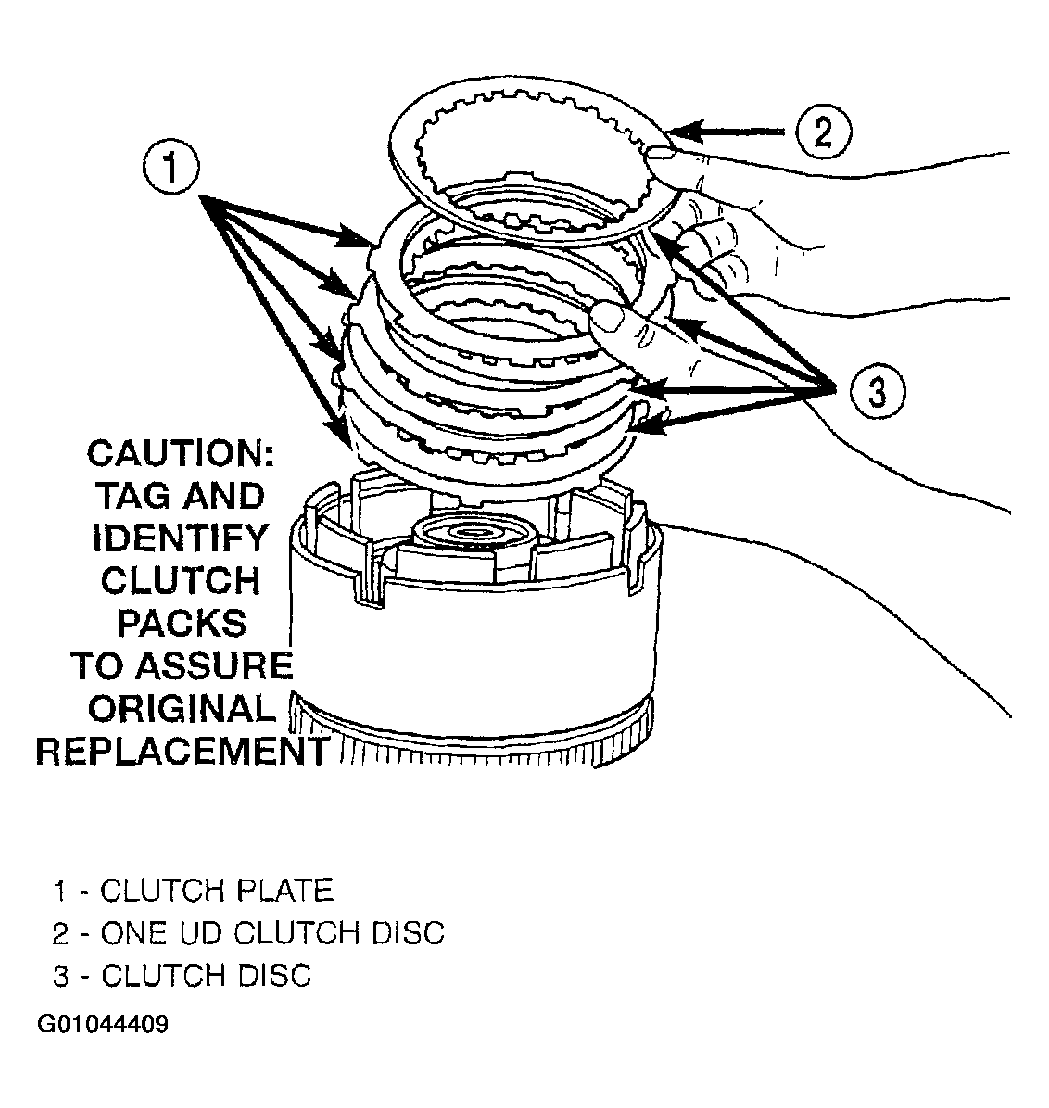

    Fig 12: Installing Underdrive Clutch Pack
    G01044409Courtesy of DAIMLERCHRYSLER CORP.
  11. Install the UD clutch flat snap ring (Fig 13).

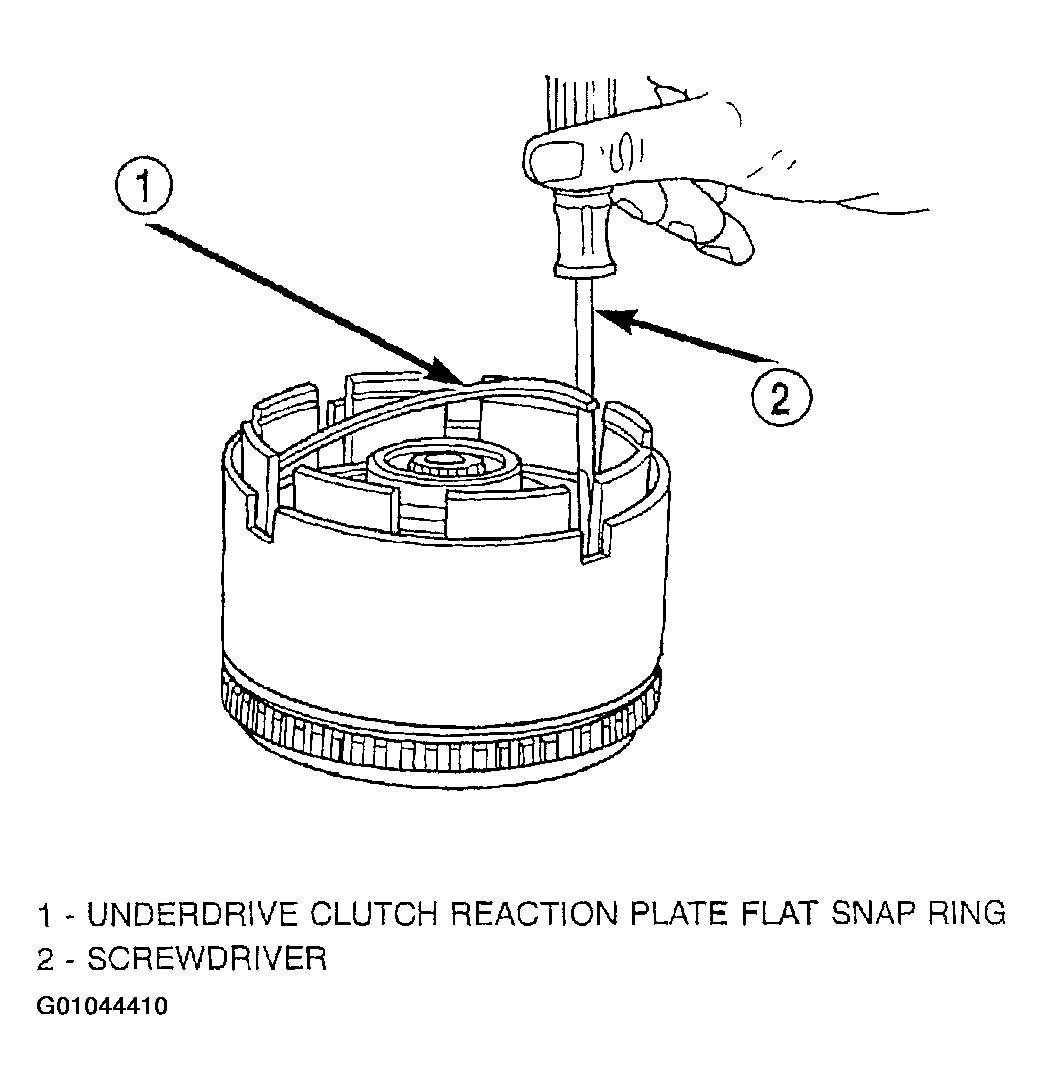

    Fig 13: Installing UD Clutch Flat Snap Ring
    G01044410Courtesy of DAIMLERCHRYSLER CORP.

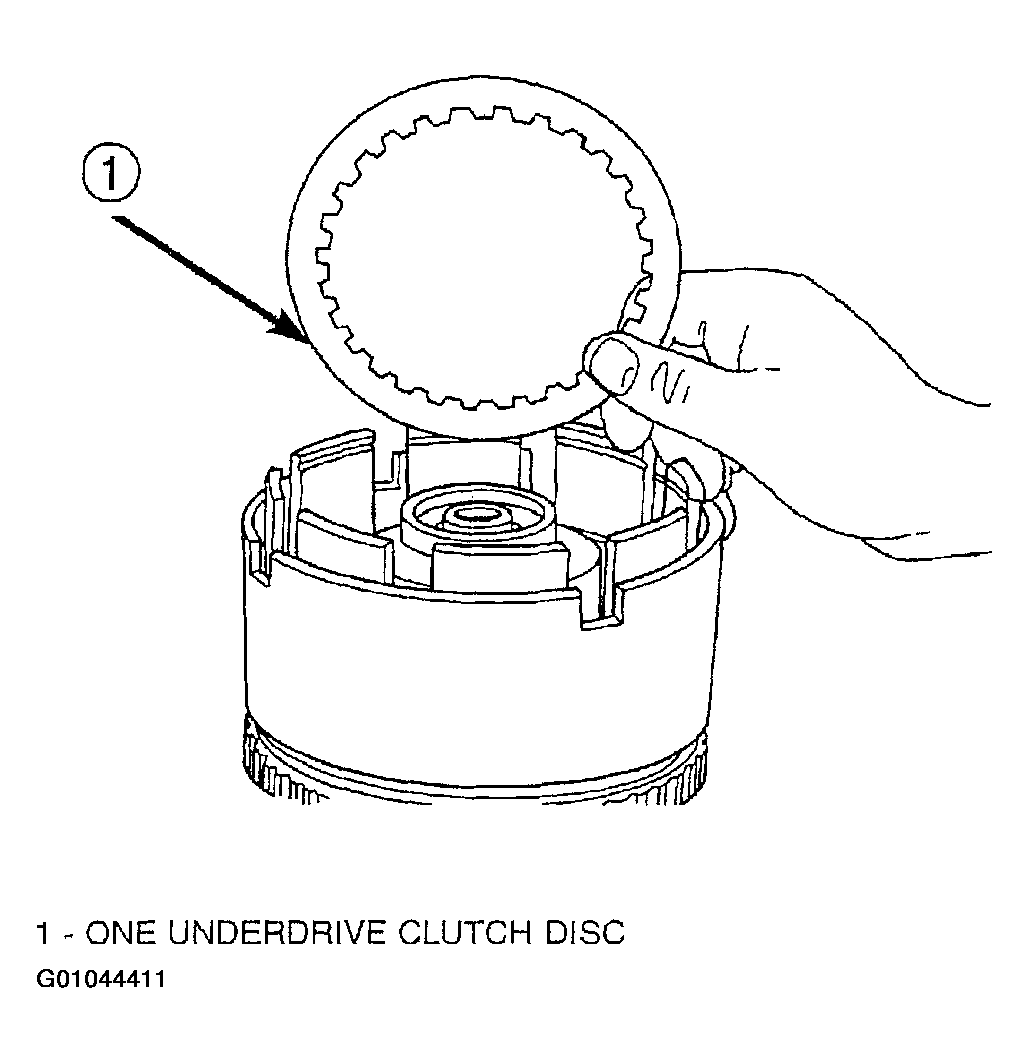

  12. Install the last UD clutch disc (Fig 14).
    Fig 14: Installing Last UD Clutch Disc
    G01044411Courtesy of DAIMLERCHRYSLER CORP.
  13. Install the OD/UD clutch reaction plate and snap ring (Fig 15) (Fig 16). The OD/UD clutches reaction plate has a step on both sides. Install the OD/UD clutches reaction plate tapered step side up.

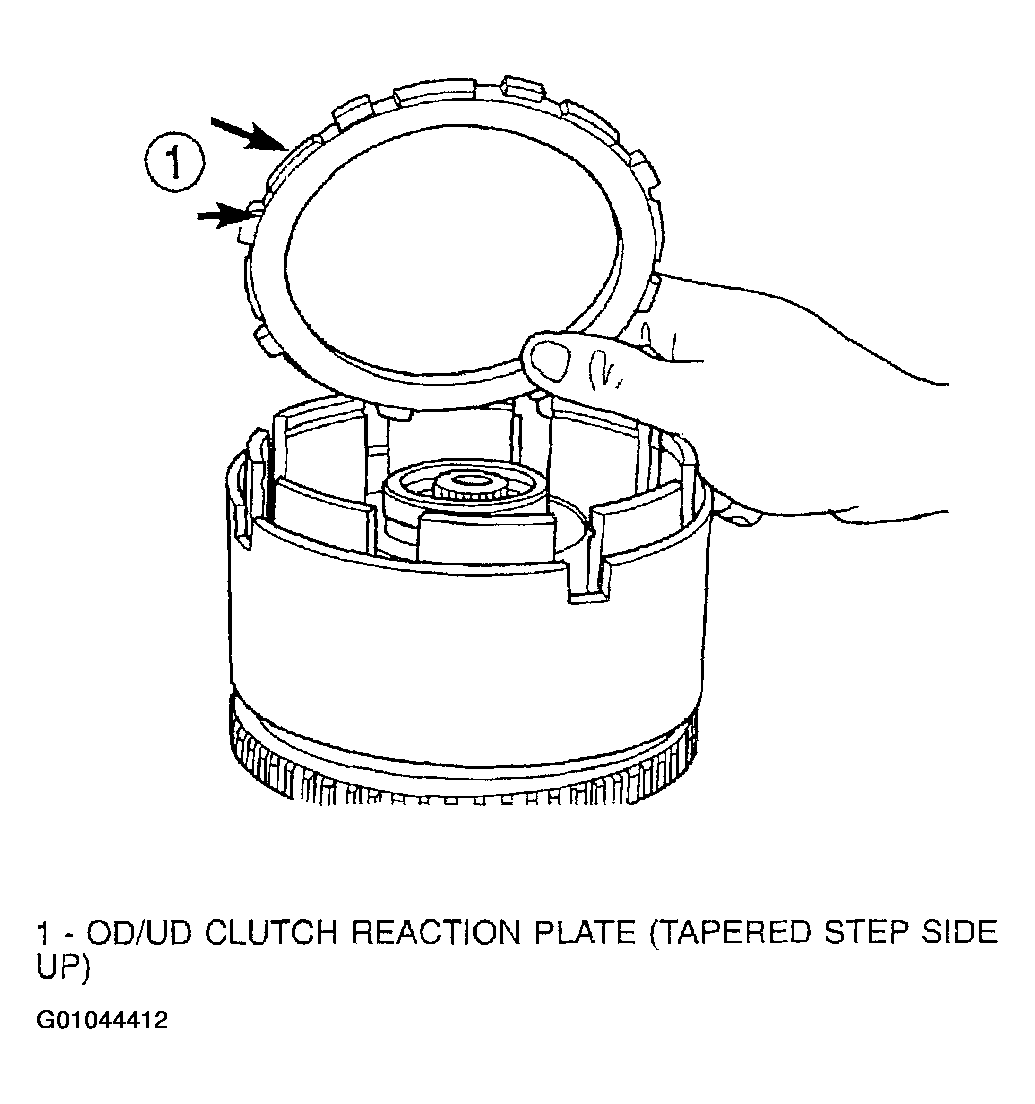

    Fig 15: Installing OD/UD Reaction Plate
    G01044412Courtesy of DAIMLERCHRYSLER CORP.

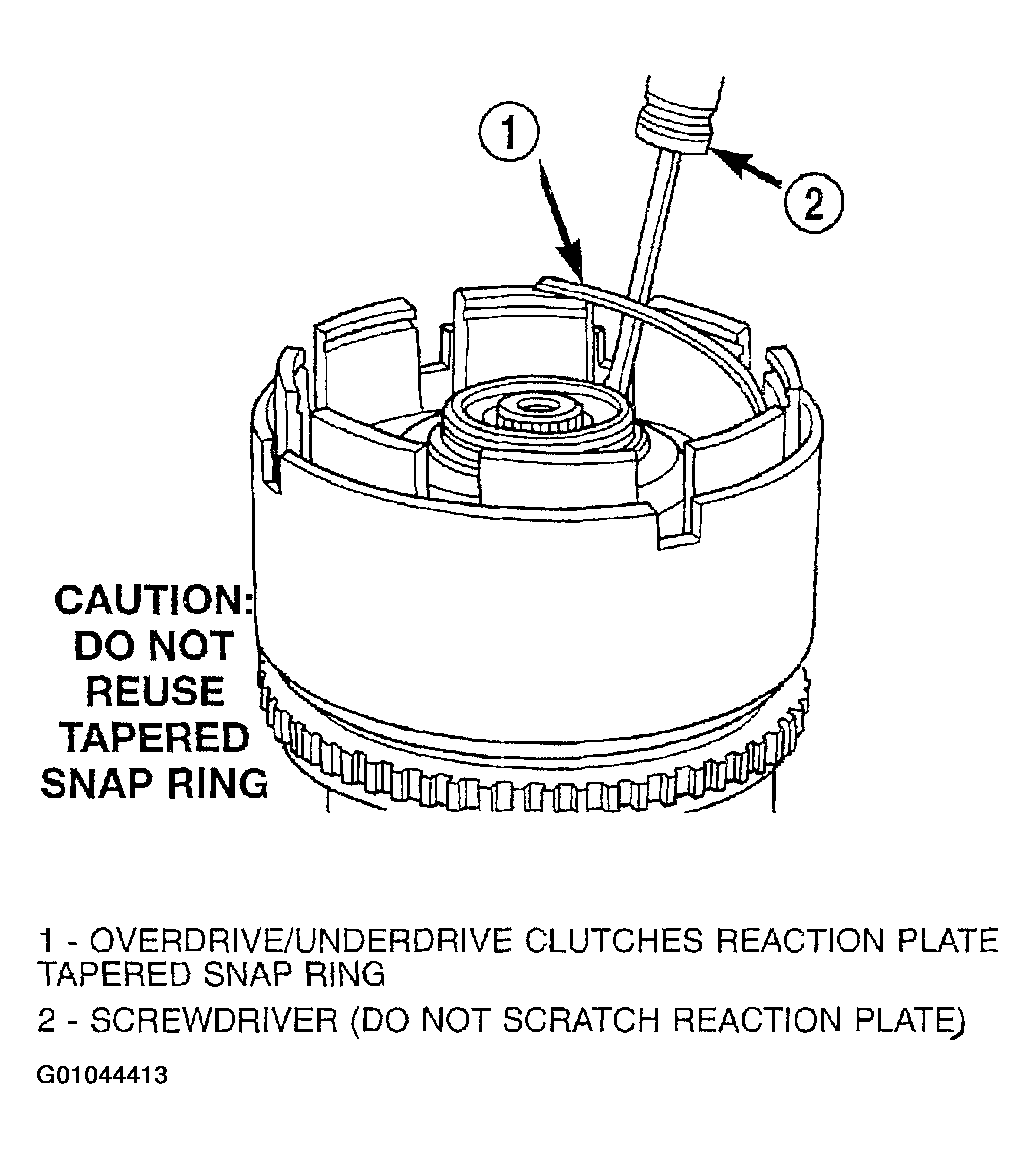

    Fig 16: Installing Tapered Snap Ring
    G01044413Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: Snap ring ends must be located within one finger of the input clutch hub. Be sure that snap ring is fully seated, by pushing with screwdriver, into snap ring groove all the way around.
  14. Seat tapered snap ring to ensure proper installation (Fig 17).

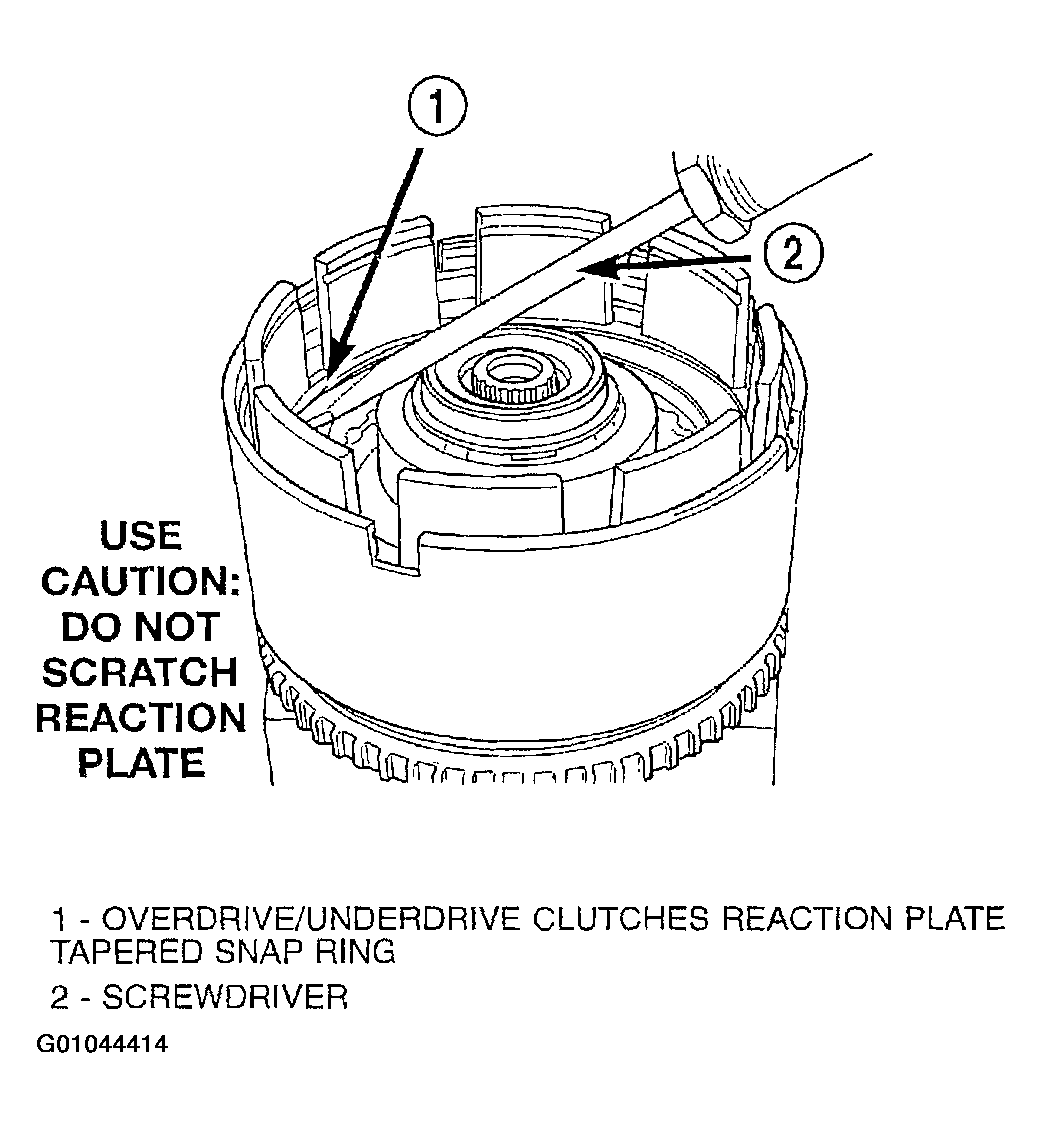

    Fig 17: Seating Tapered Snap Ring
    G01044414Courtesy of DAIMLERCHRYSLER CORP.
  15. Install input clutch assembly to the Input Clutch Pressure Fixture-Tool 8391 (Fig 18).

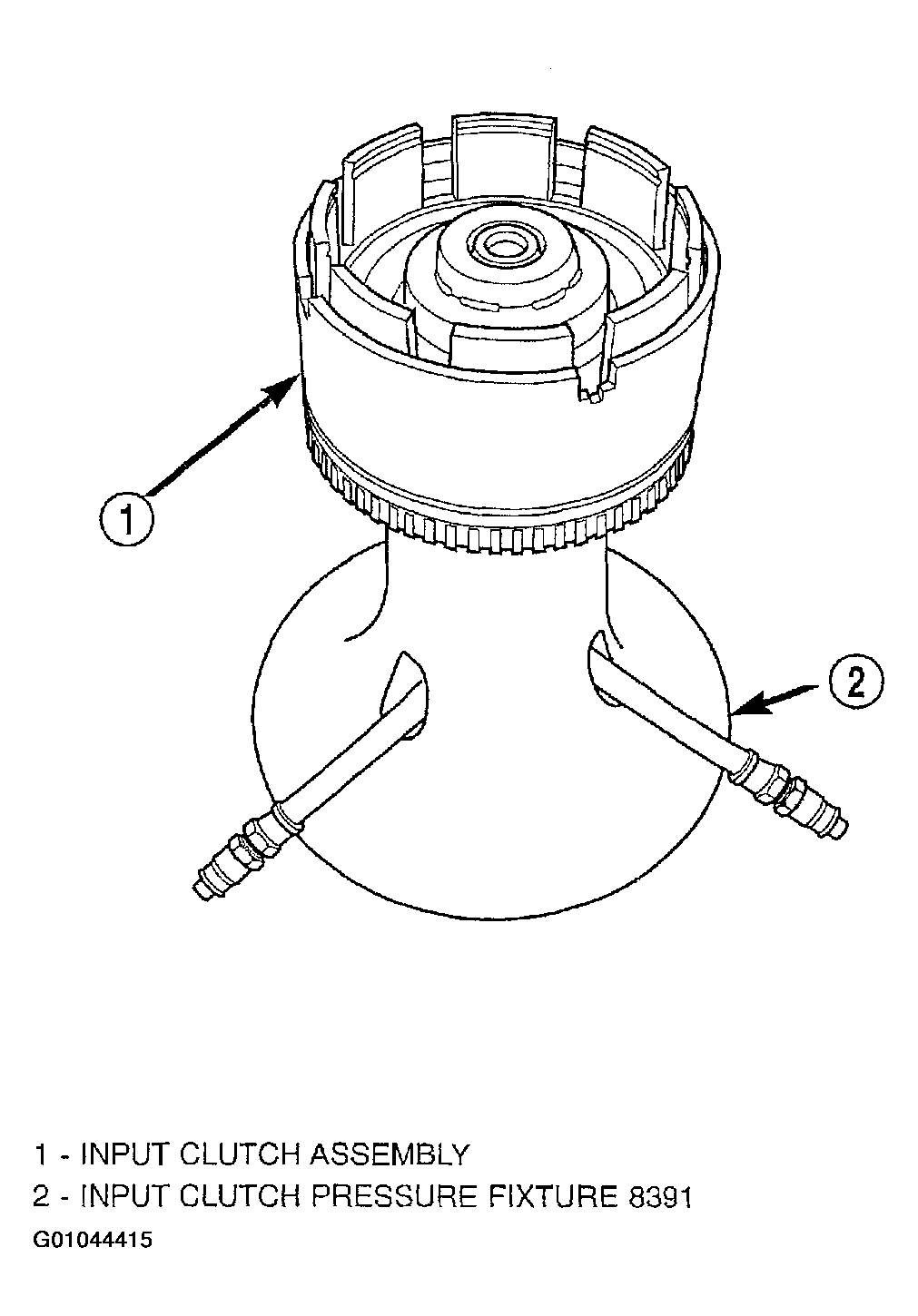

    Fig 18: Installing Input Clutch Assembly On Pressure Fixture Tool 8391
    G01044415Courtesy of DAIMLERCHRYSLER CORP.
  16. Set up dial indicator on the UD clutch pack as shown in (Fig 19).

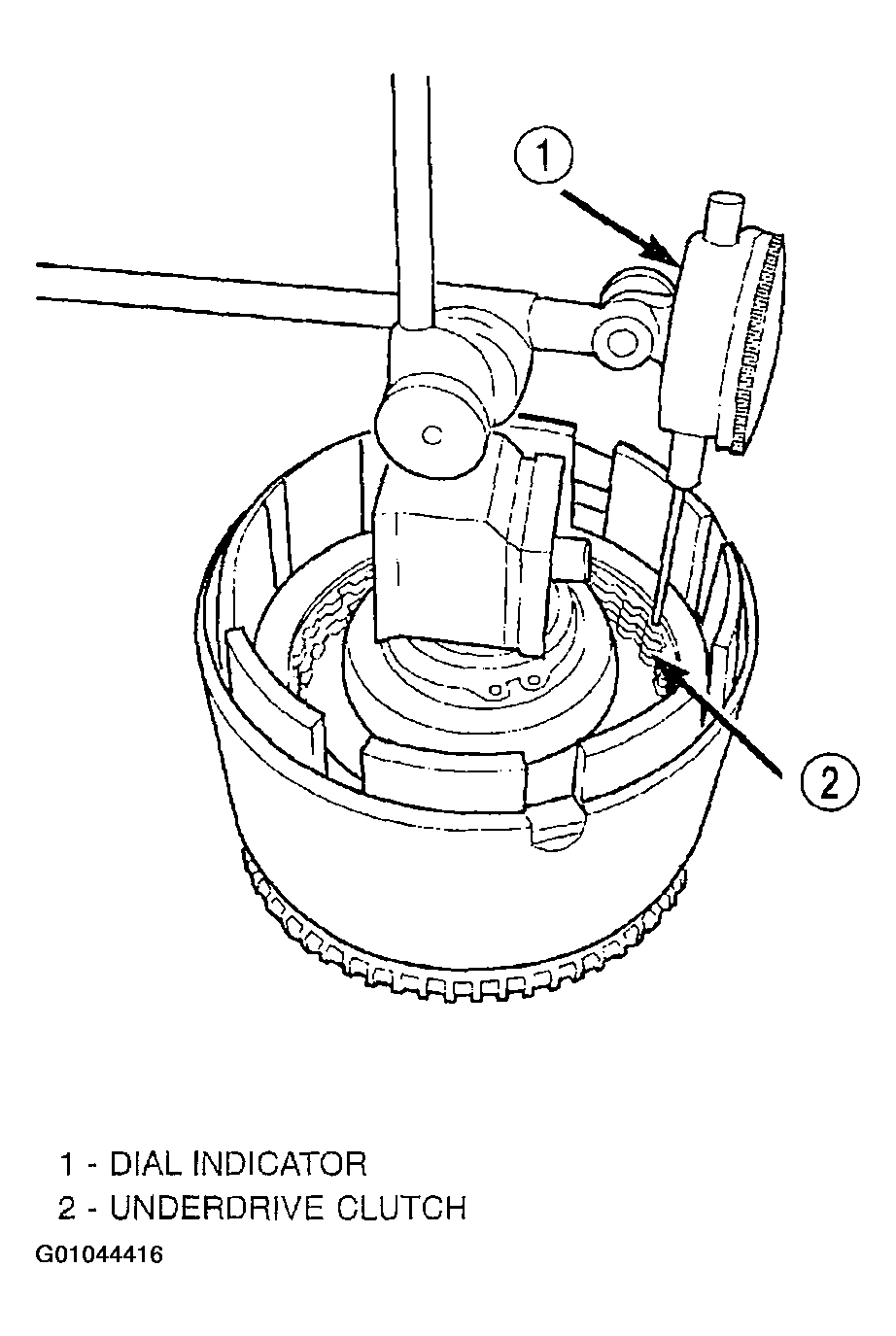

    Fig 19: Setting Up Dial Indicator To Measure UD Clutch Clearance
    G01044416Courtesy of DAIMLERCHRYSLER CORP.
  17. Using moderate pressure, press down and hold (near indicator) the UD clutch pack with screwdriver or suitable tool and zero dial indicator (Fig 21). When releasing pressure on clutch pack, indicator reading should advance 0.005-0.010.
    CAUTION: Do not apply more than 30 psi (206 kPa) to the underdrive clutch pack.
  18. Apply 30 psi (206 kPa) to the underdrive hose on Tool 8391 and measure UD clutch clearance. Measure and record UD clutch pack measurement in four (4) places, 90° apart.
  19. Take average of four measurements and compare with UD clutch pack clearance specification. Underdrive clutch pack clearance must be 0.94-1.50 mm (0.037-0.059 in.).
  20. If necessary, select the proper reaction plate to achieve specifications:
    Fig 20: Identifying Underdrive Reaction Plate Thickness
    G01044417Courtesy of DAIMLERCHRYSLER CORP.

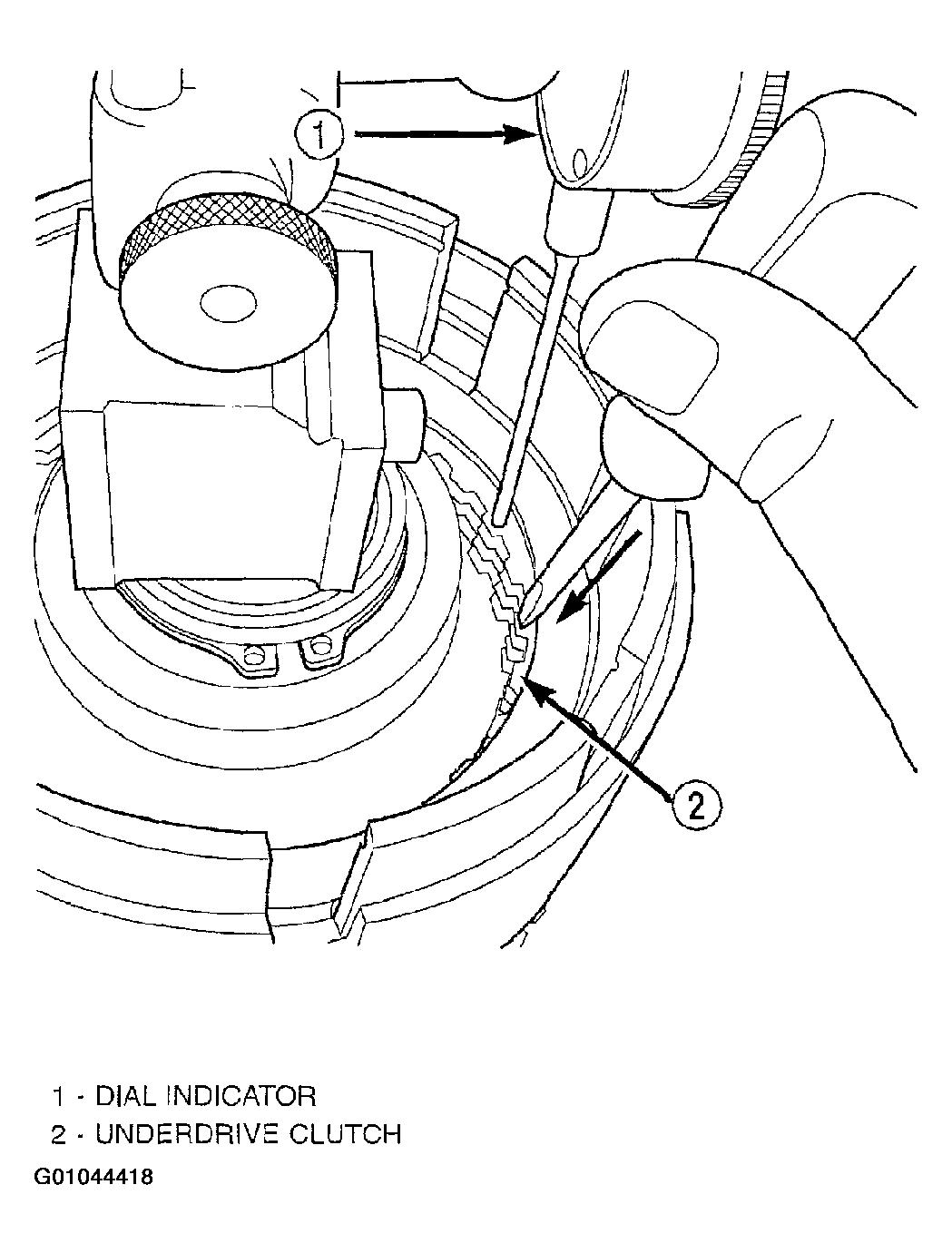

    Fig 21: Pressing Down On UD Clutch Pack & Zero Dial Indicator
    G01044418Courtesy of DAIMLERCHRYSLER CORP.
  21. Install the OD clutch pack (four frictions/three steels) (Fig 22).

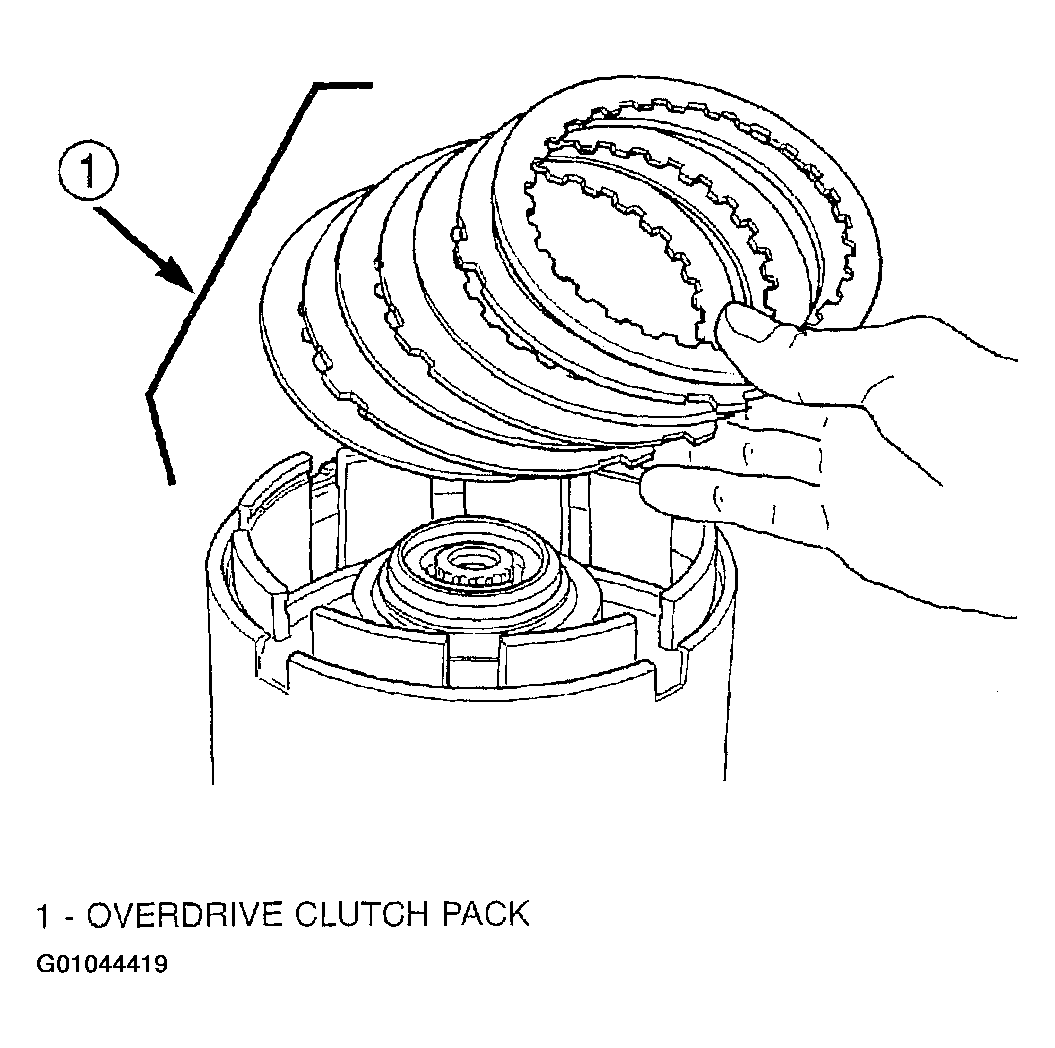

    Fig 22: Installing OD Clutch Pack
    G01044419Courtesy of DAIMLERCHRYSLER CORP.
  22. Install OD pressure plate waved snap ring (Fig 23).

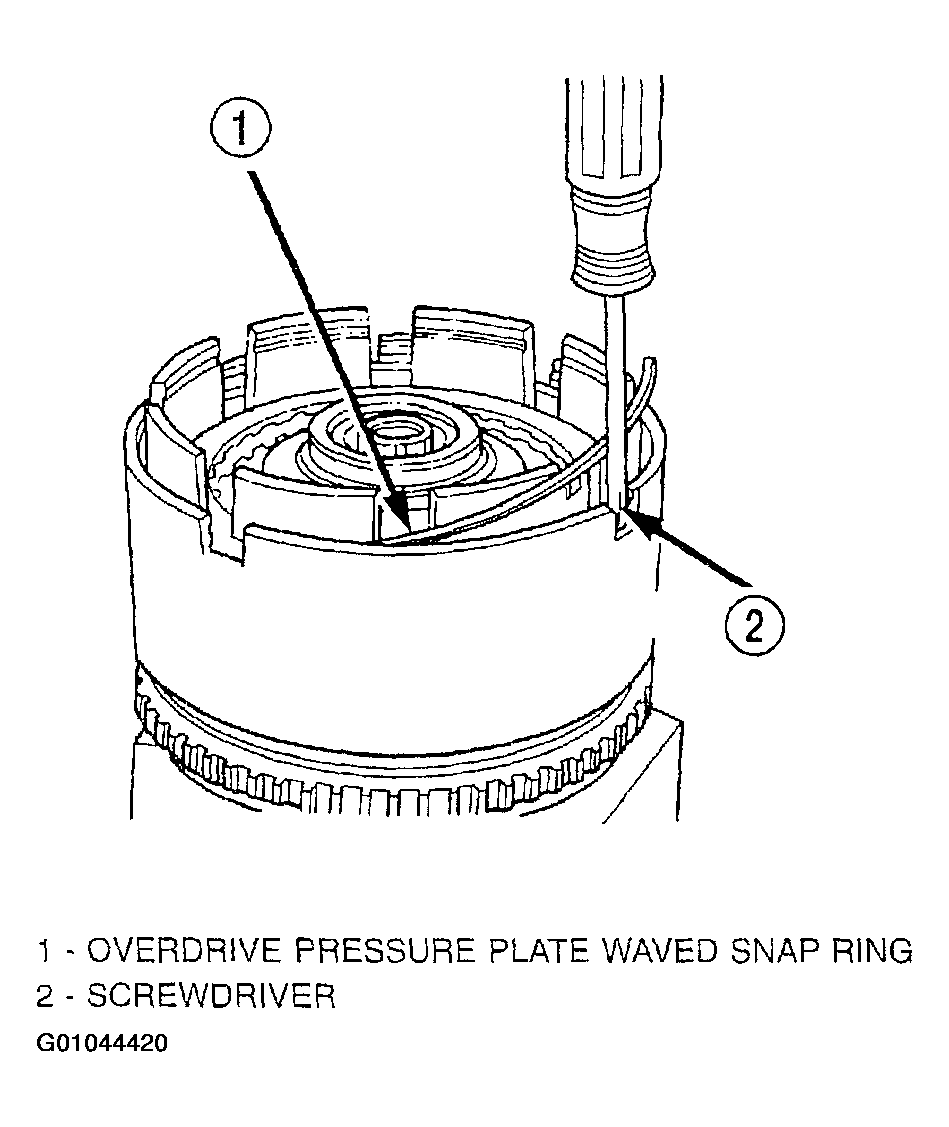

    Fig 23: Installing Waved Snap Ring
    G01044420Courtesy of DAIMLERCHRYSLER CORP.
  23. Install the OD/Reverse pressure plate with large step down (towards OD clutch pack) (Fig 24).

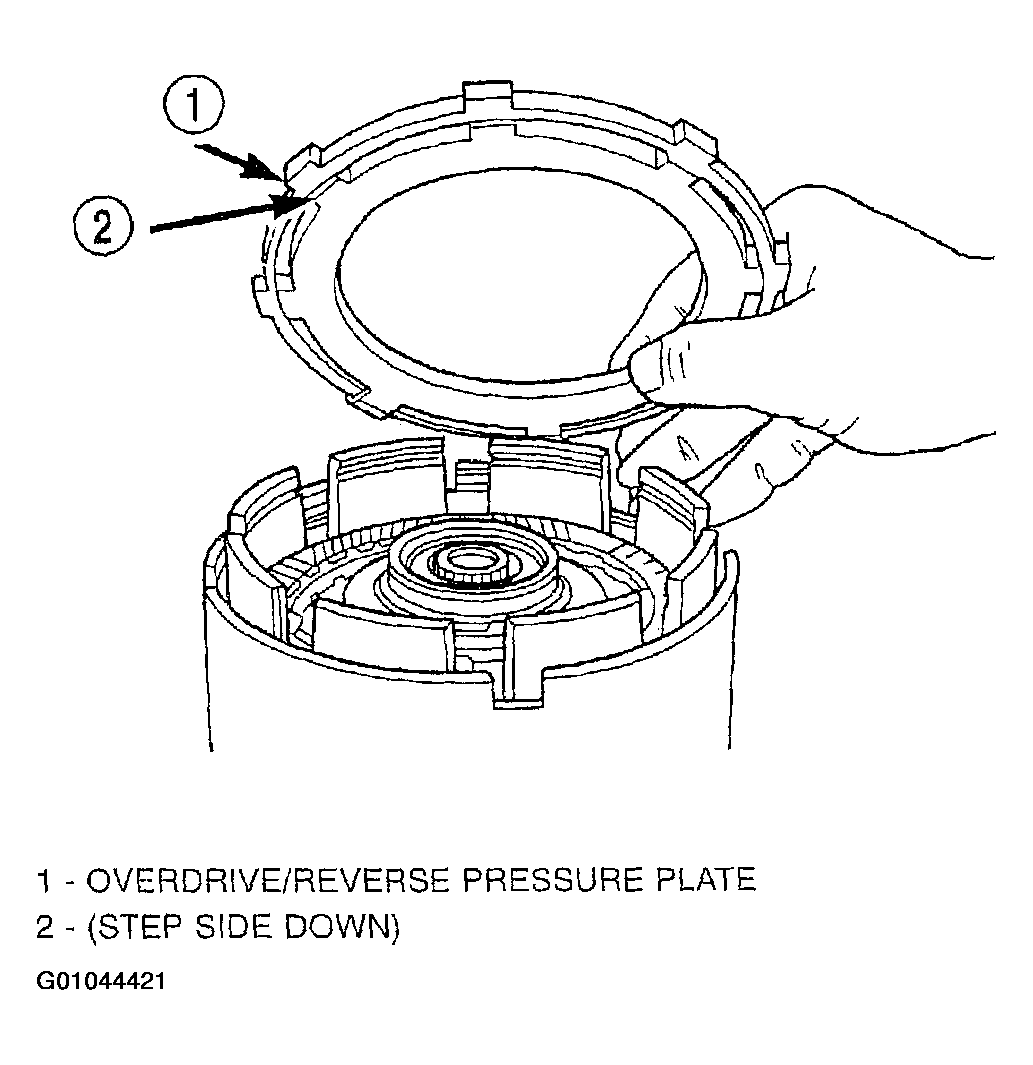

    Fig 24: Installing OD/Reverse Pressure Plate
    G01044421Courtesy of DAIMLERCHRYSLER CORP.
  24. Install OD pressure plate flat snap ring (Fig 25).

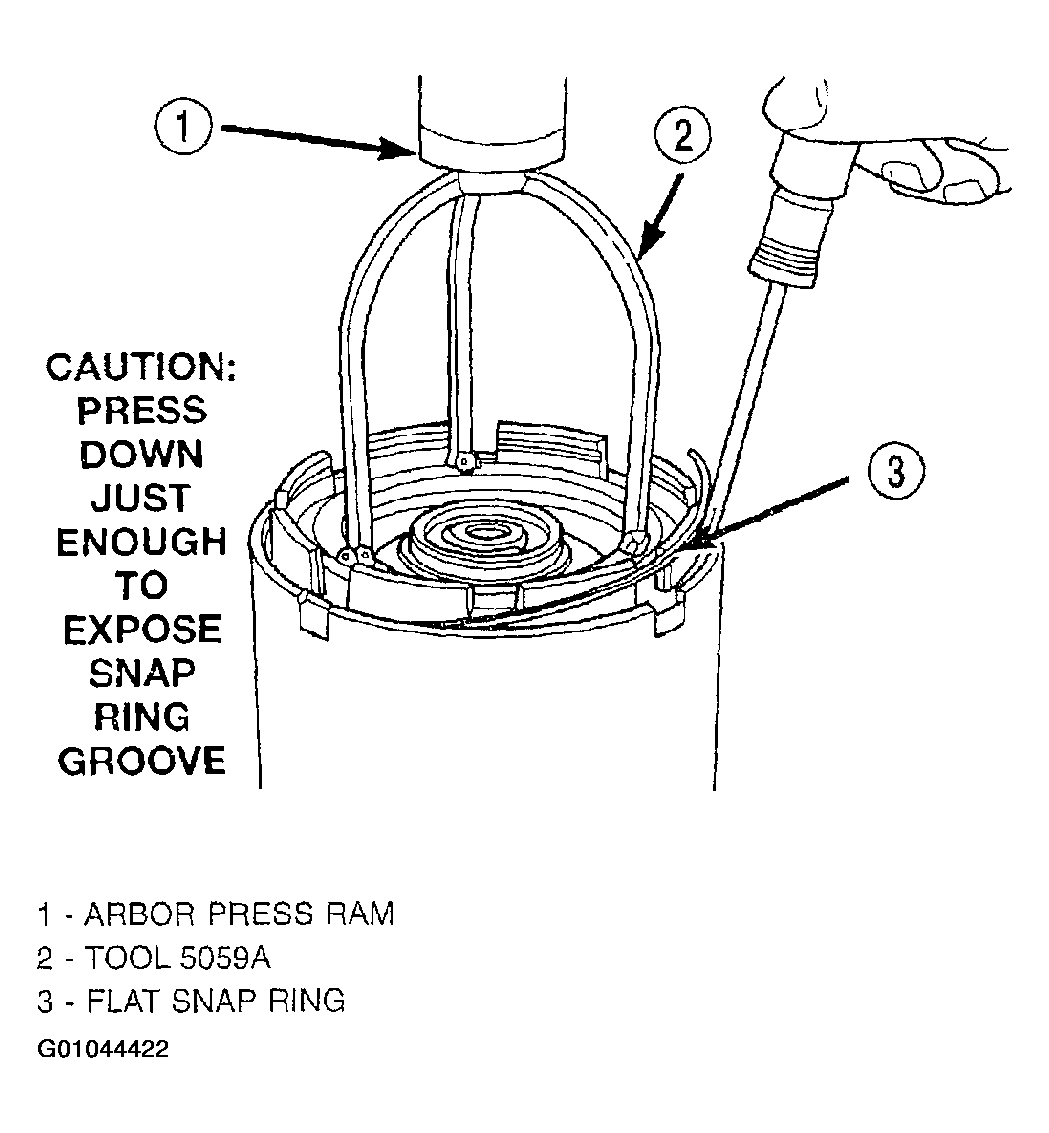

    Fig 25: Installing Flat Snap Ring
    G01044422Courtesy of DAIMLERCHRYSLER CORP.

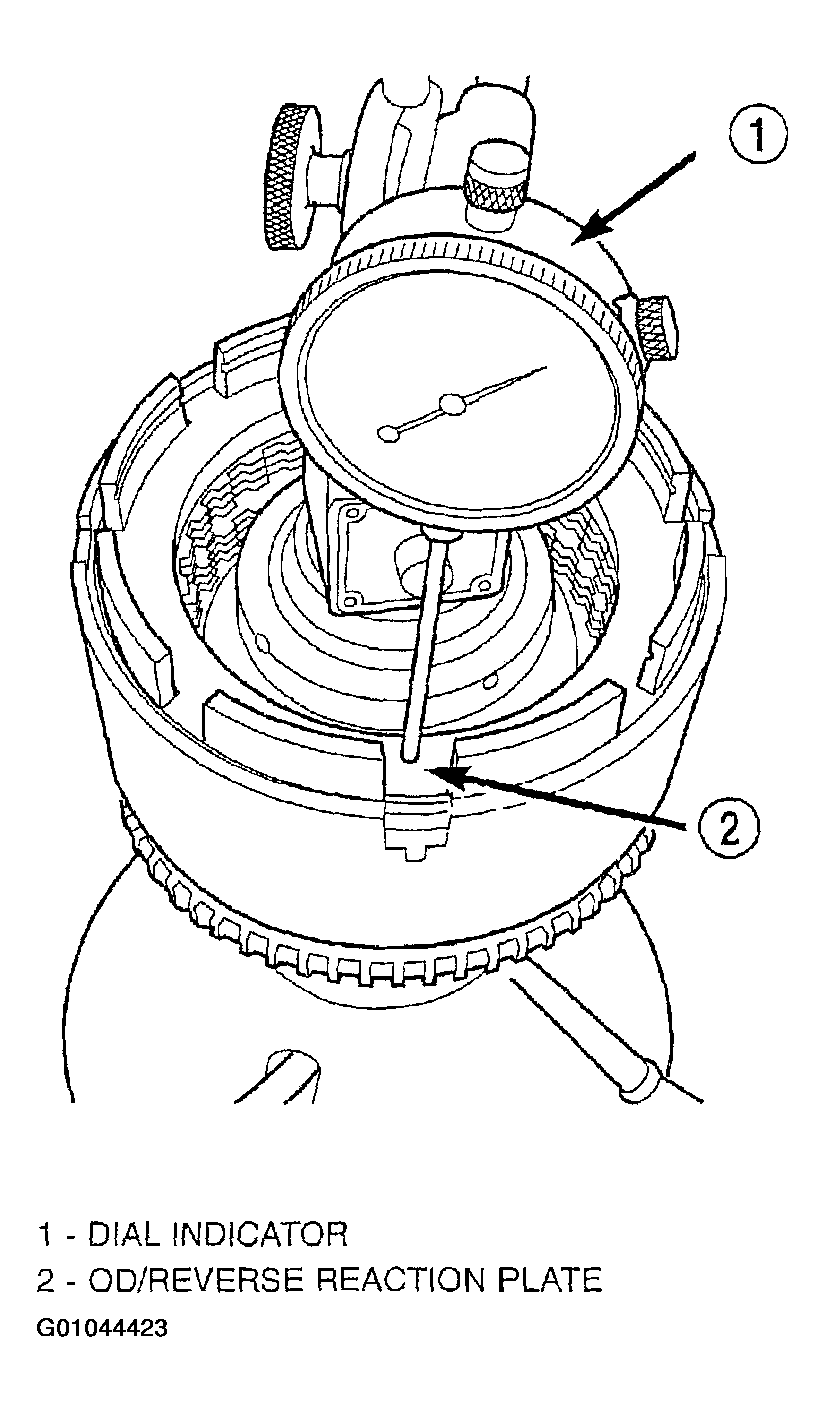

  25. Measure OD clutch pack clearance. Set up dial indicator on top of the OD/Reverse pressure plate as shown in (Fig 26).
    Fig 26: Measuring OD Clutch Pack Clearance
    G01044423Courtesy of DAIMLERCHRYSLER CORP.
  26. Zero dial indicator and apply 30 psi (206 kPa) air pressure to the overdrive clutch hose on Tool 8391. Measure and record OD clutch pack measurement in four (4) places, 90° apart.
  27. Take average of four measurements and compare with OD clutch pack clearance specification. The overdrive (OD) clutch pack clearance is 1.07-3.25 mm (0.042-0.128 in.).

    If not within specifications, the clutch is not assembled properly. There is no adjustment for the OD clutch clearance.

  28. Install reverse clutch pack (two frictions/one steel) (Fig 27).

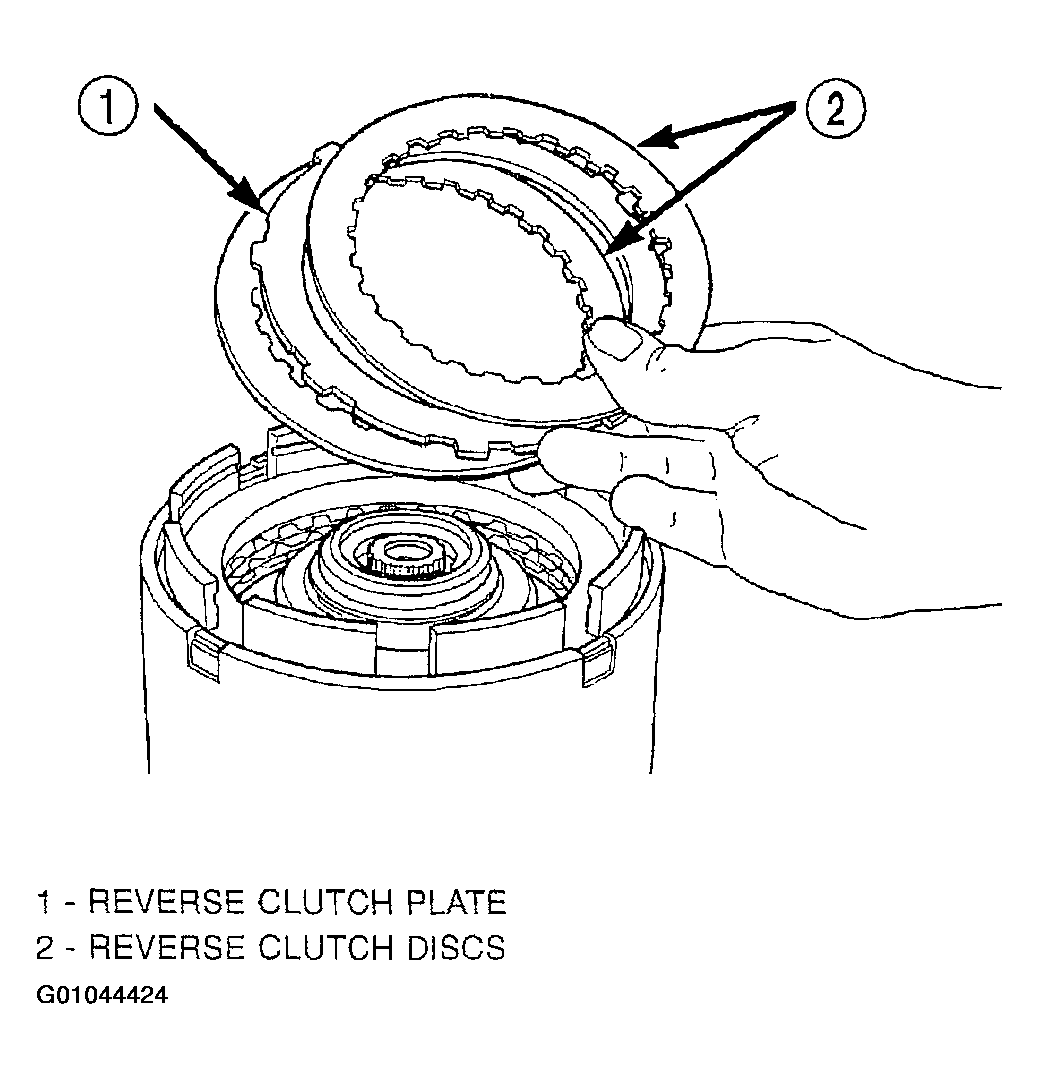

    Fig 27: Installing Reverse Clutch Pack
    G01044424Courtesy of DAIMLERCHRYSLER CORP.
  29. Install reverse clutch reaction plate with the flat side down towards reverse clutch (Fig 28).

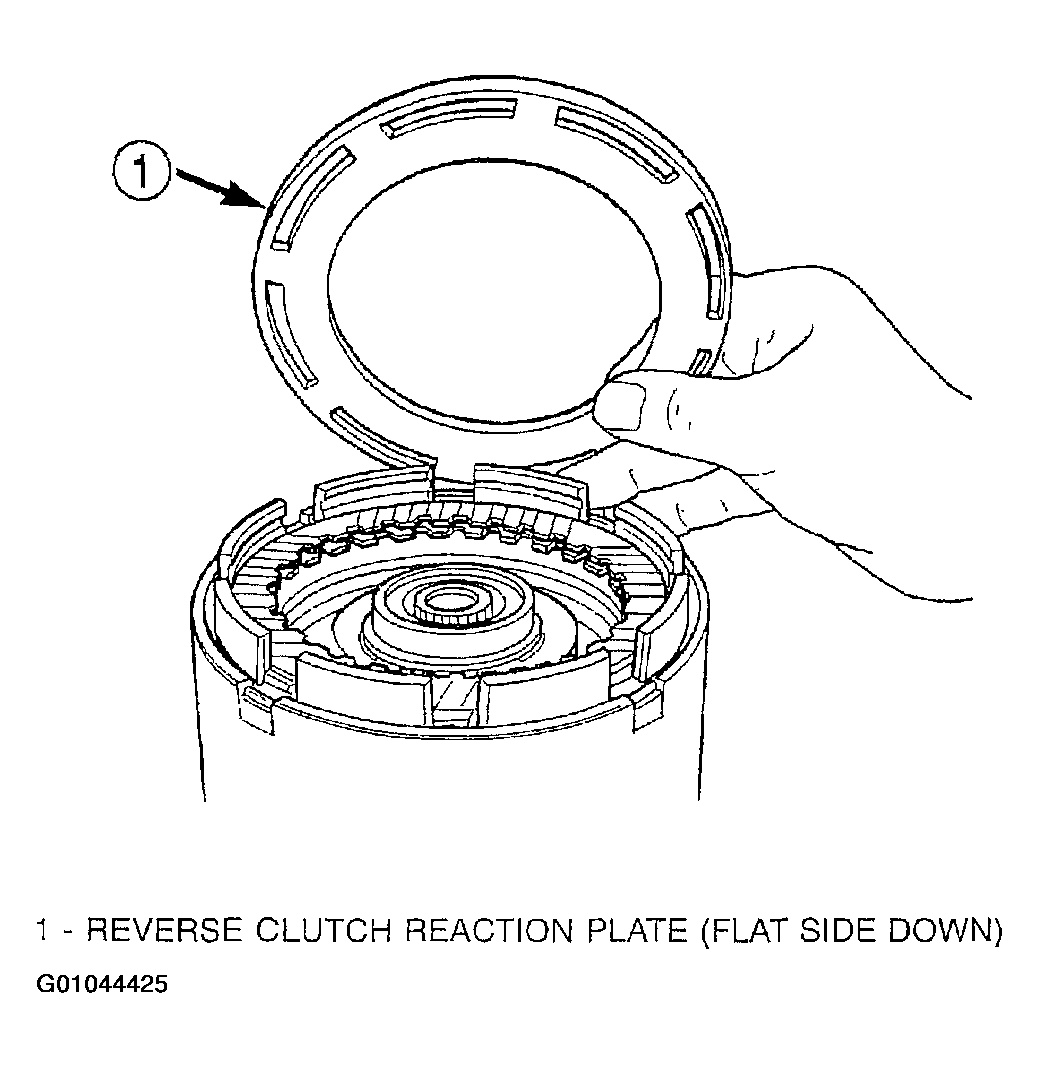

    Fig 28: Installing Reaction Plate
    G01044425Courtesy of DAIMLERCHRYSLER CORP.
  30. Tap reaction plate down to allow installation of the reverse clutch snap ring. Install reverse clutch snap ring (Fig 29).

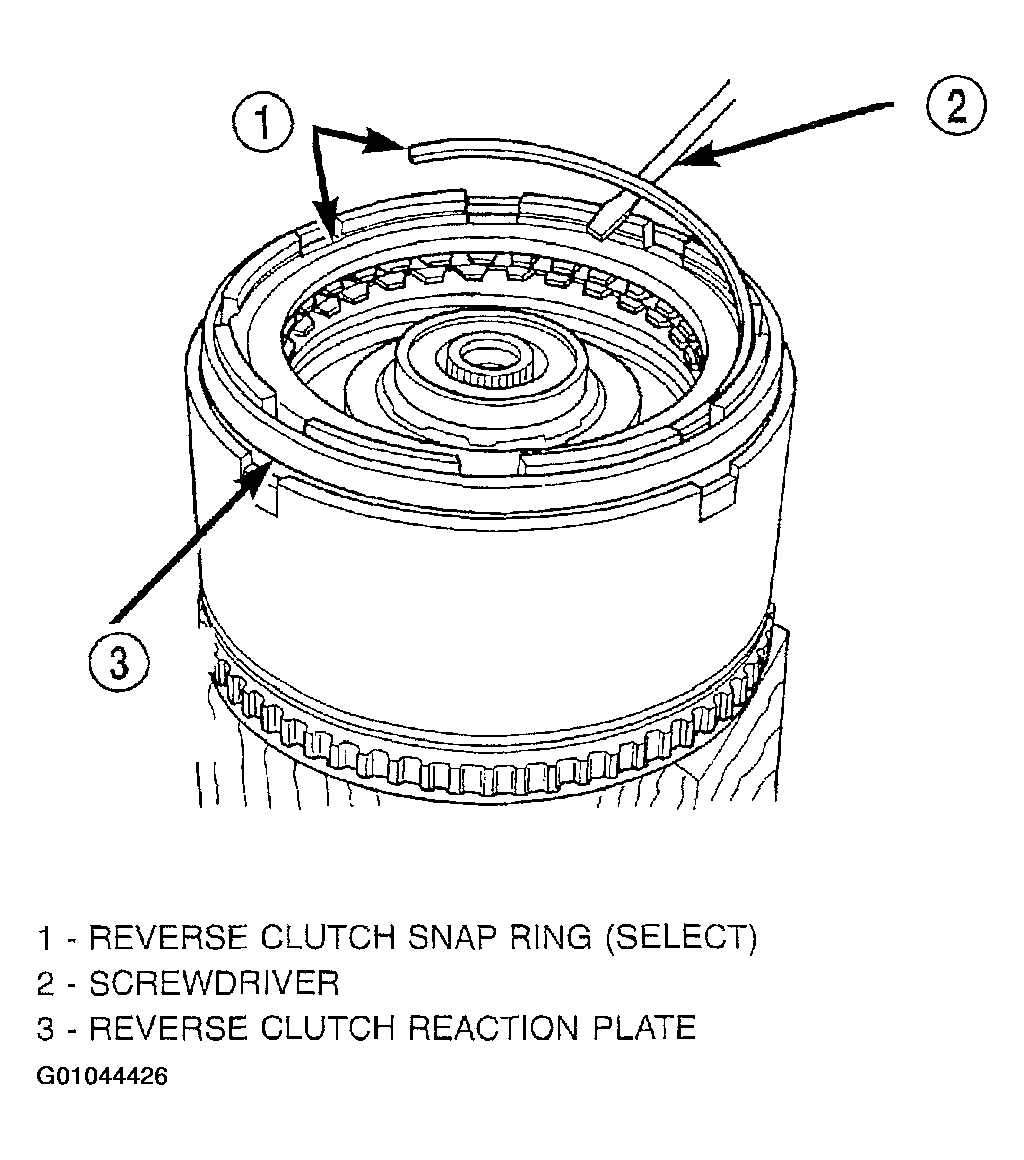

    Fig 29: Installing Reverse Clutch Snap Ring
    G01044426Courtesy of DAIMLERCHRYSLER CORP.
  31. Pry up reverse reaction plate to seat against snap ring (Fig 30).

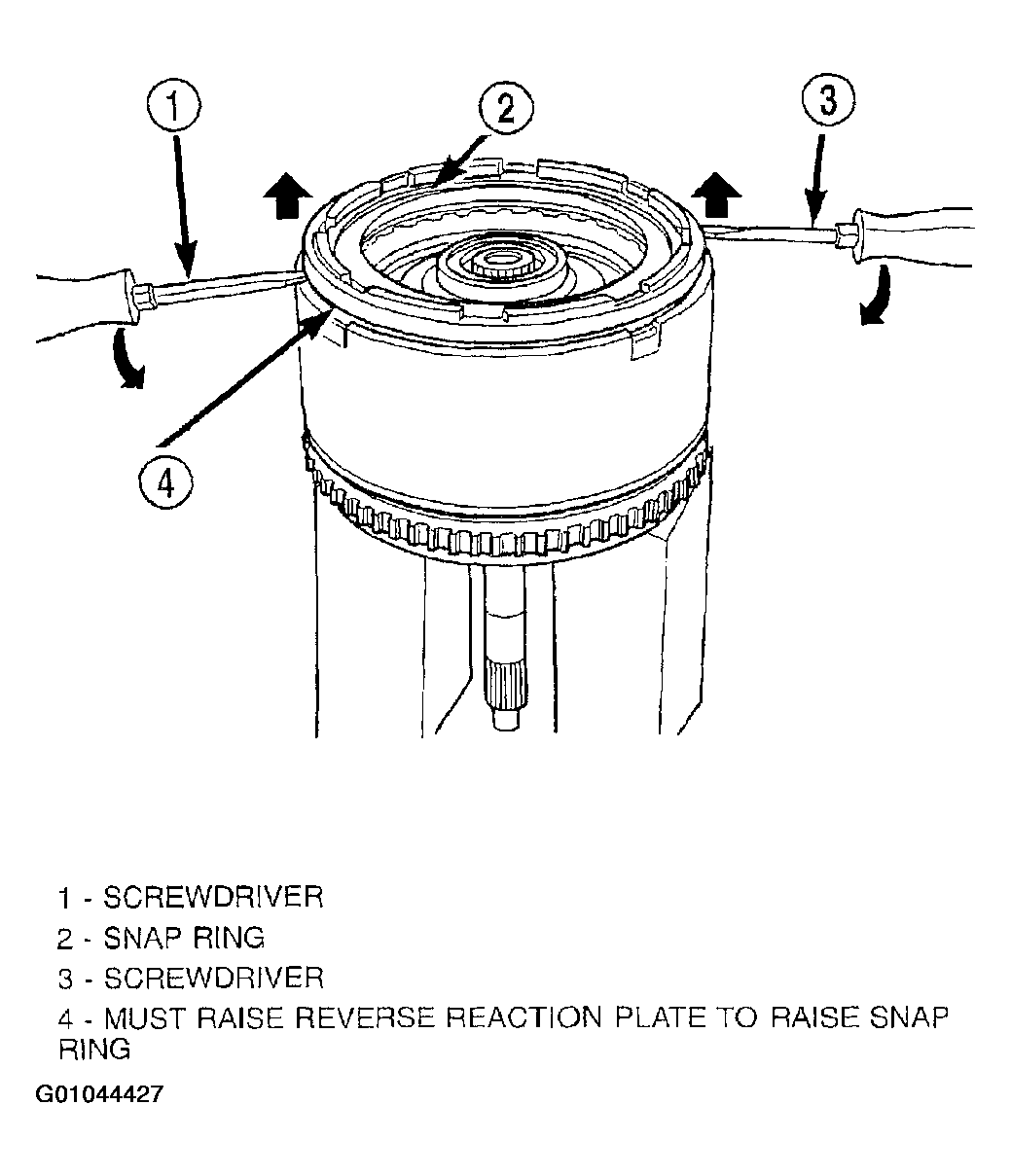

    Fig 30: Prying Up Reaction Plate To Seat Against Snap Ring
    G01044427Courtesy of DAIMLERCHRYSLER CORP.
  32. Set up a dial indicator on the reverse clutch pack as shown in (Fig 31).

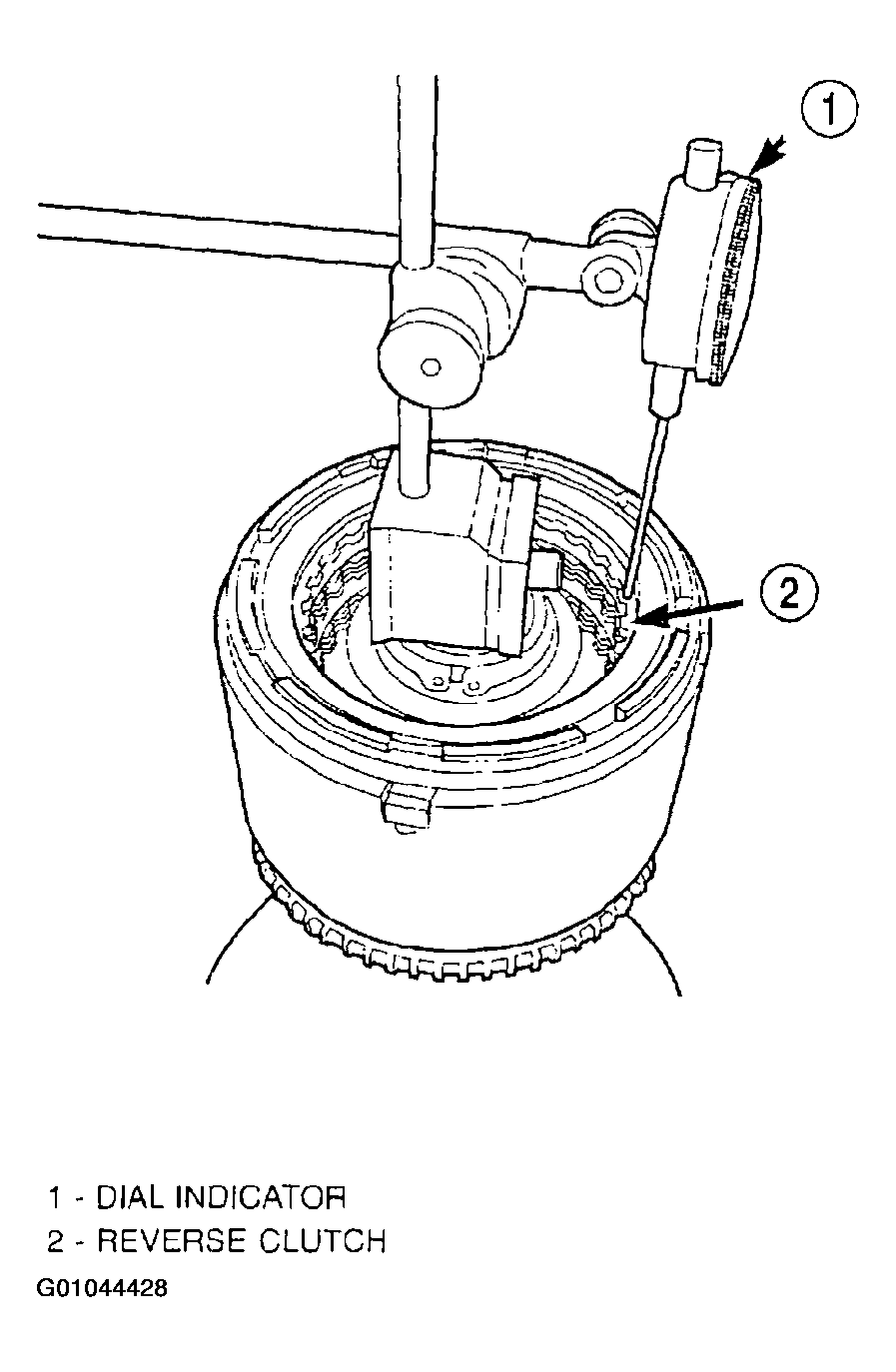

    Fig 31: Measuring Reverse Clutch Pack Clearance
    G01044428Courtesy of DAIMLERCHRYSLER CORP.

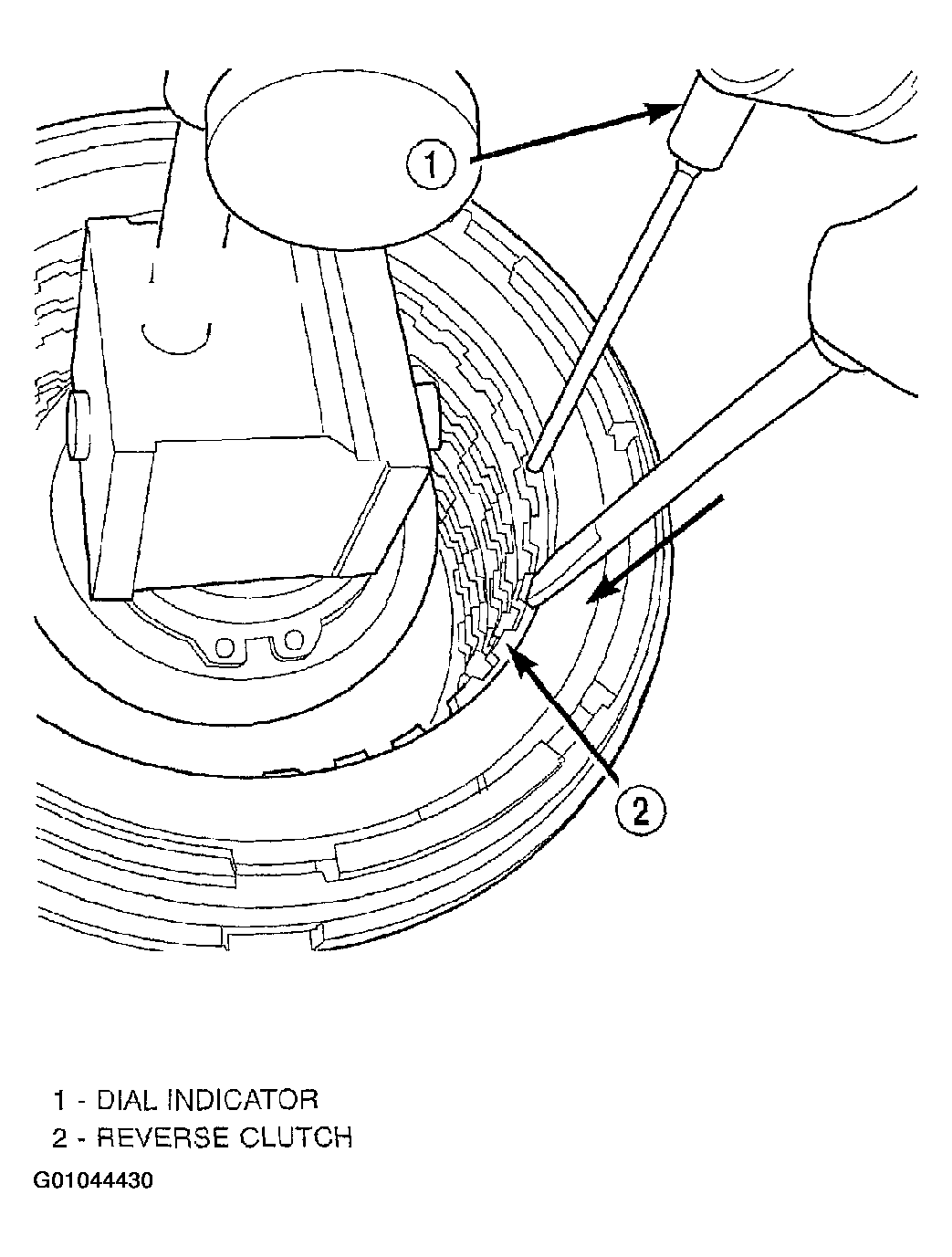

  33. Using moderate pressure, press down and hold (near indicator) reverse clutch disc with screwdriver or suitable tool and zero dial indicator (Fig 33). When releasing pressure, indicator should advance 0.005-0.010. as clutch pack relaxes.

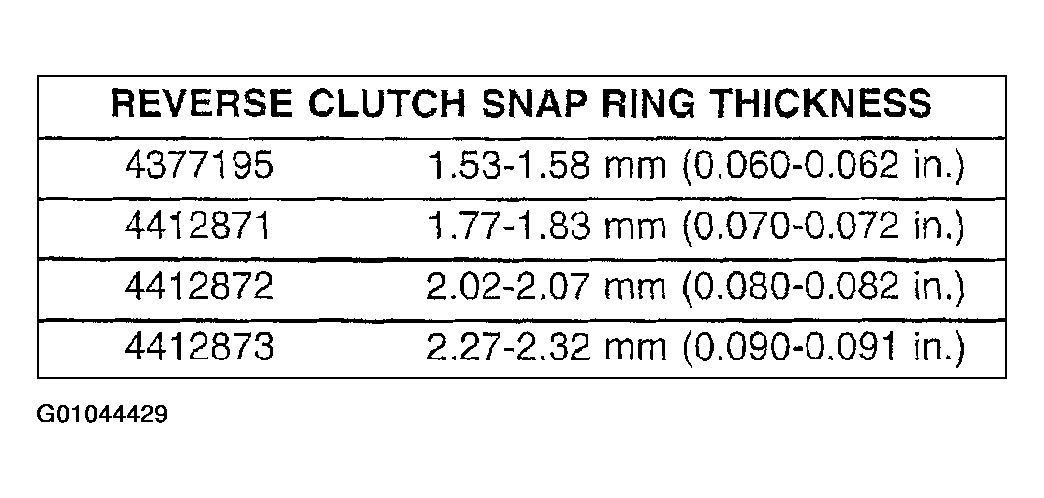

    Fig 32: Identifying Reverse Clutch Snap Ring Thickness
    G01044429Courtesy of DAIMLERCHRYSLER CORP.
    Fig 33: Pressing Down On Reverse Clutch & Zero Indicator
    G01044430Courtesy of DAIMLERCHRYSLER CORP.
  34. Apply 30 psi (206 kPa) air pressure to the reverse clutch hose on Tool 8391. Measure and record reverse clutch pack measurement in four (4) places, 90° apart.
  35. Take average of four measurements and compare with reverse clutch pack clearance specification. The reverse clutch pack clearance is 0.89-1.37 mm (0.035-0.054 in.).  Select the proper reverse clutch snap ring to achieve specifications:
  36. To complete the assembly, reverse clutch and overdrive clutch must be removed.
  37. Install the #2 needle bearing (Fig 34).

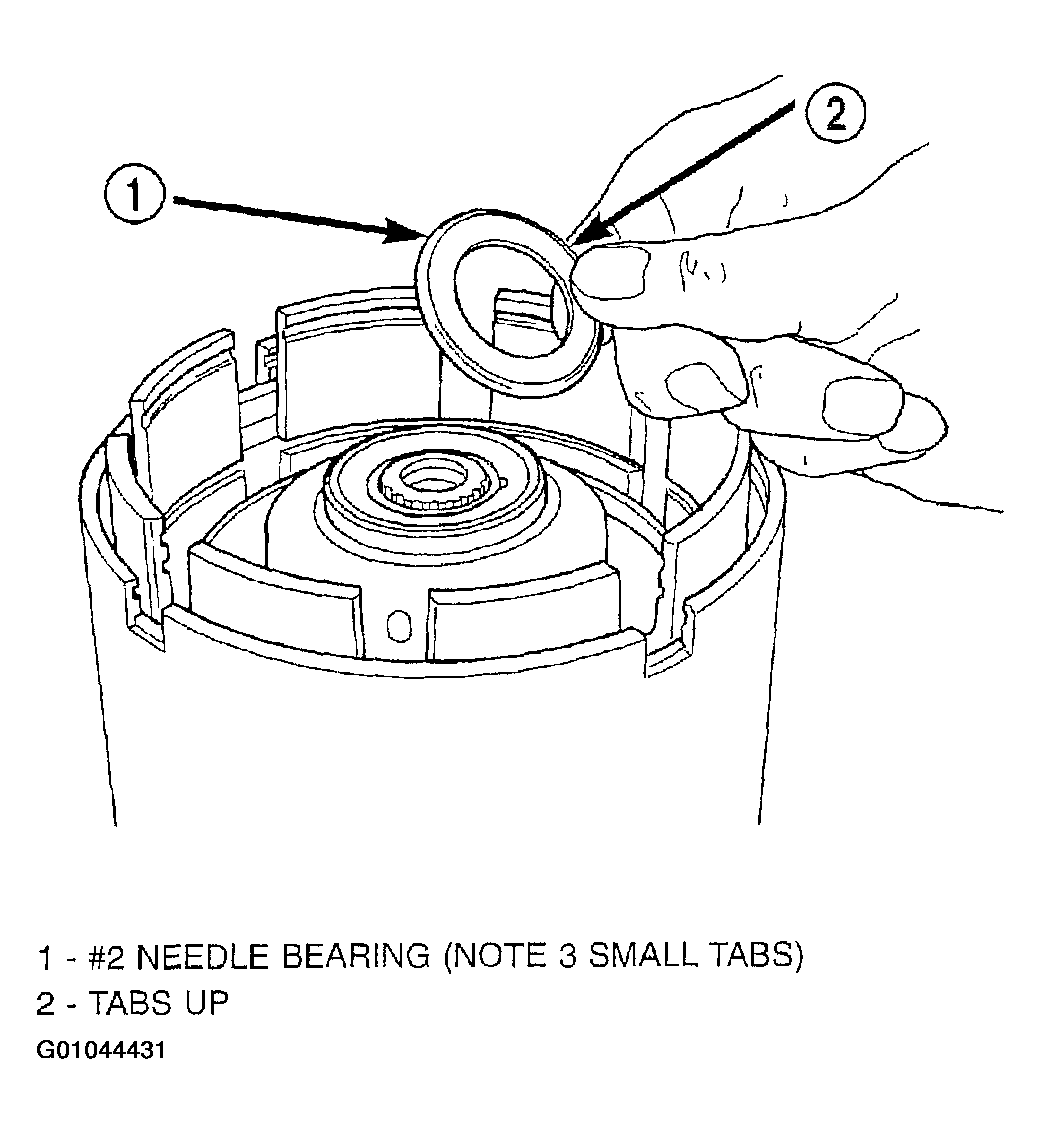

    Fig 34: Installing No. 2 Needle Bearing
    G01044431Courtesy of DAIMLERCHRYSLER CORP.
  38. Install the underdrive shaft assembly (Fig 35).

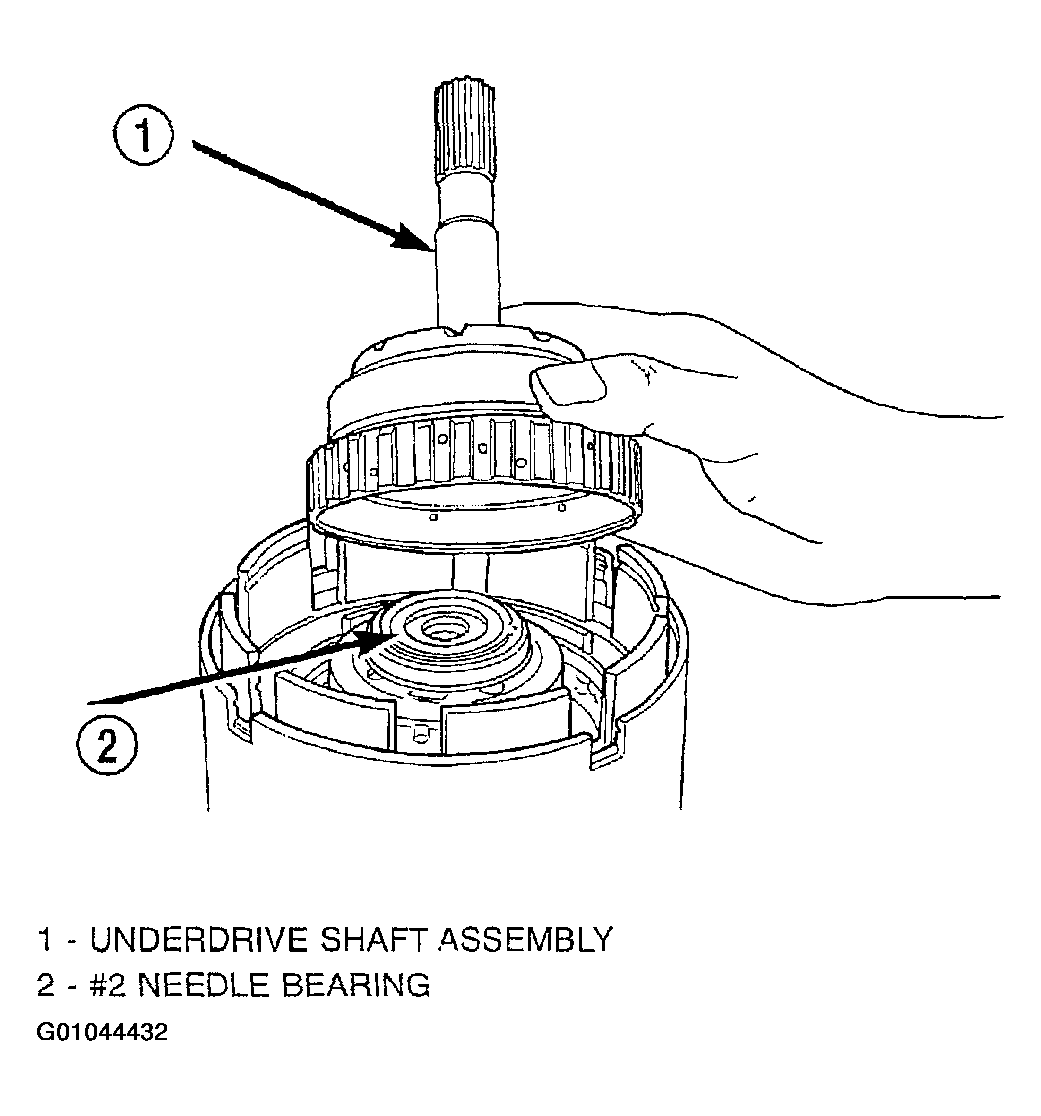

    Fig 35: Installing Underdrive Shaft Assembly
    G01044432Courtesy of DAIMLERCHRYSLER CORP.
  39. Install the #3 thrust washer to the underdrive shaft assembly. Be sure five tabs are seated properly (Fig 36).

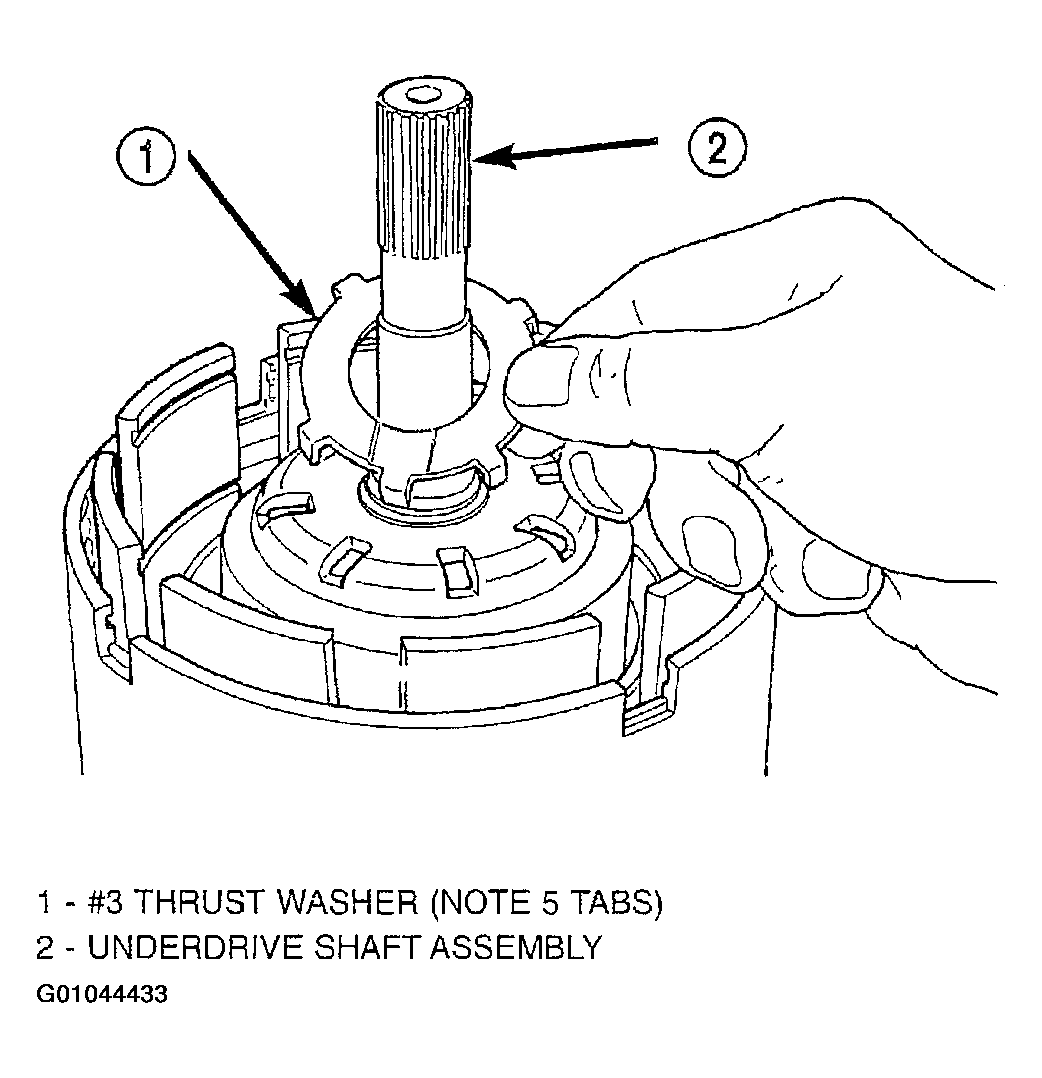

    Fig 36: Installing No. 3 Thrust Washer
    G01044433Courtesy of DAIMLERCHRYSLER CORP.
  40. Install the #3 thrust plate to the bottom of the overdrive shaft assembly. Retain with petrolatum or transmission assembly gel (Fig 37).

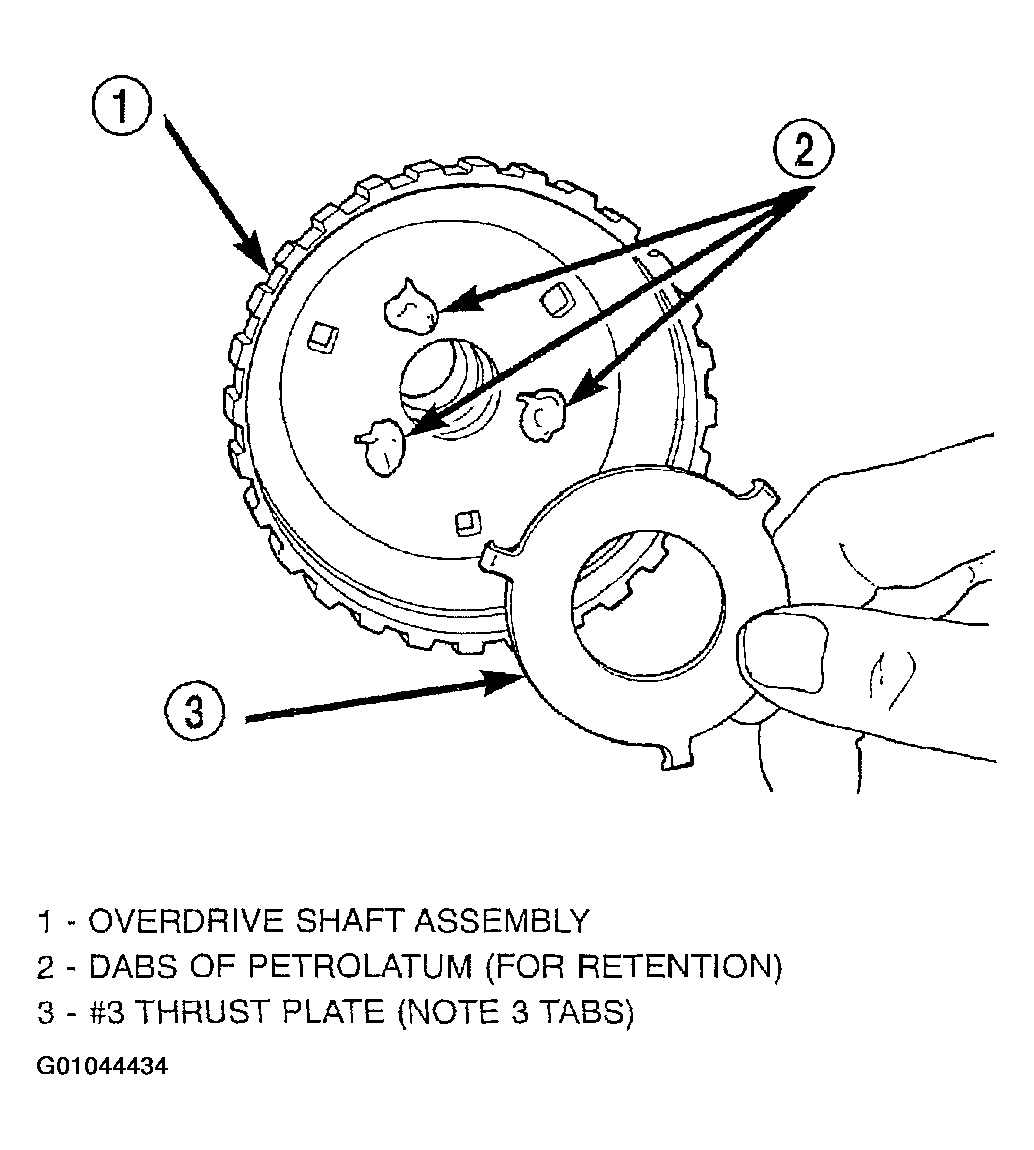

    Fig 37: Installing No. 3 Thrust Plate
    G01044434Courtesy of DAIMLERCHRYSLER CORP.
  41. Install the overdrive shaft assembly (Fig 38).

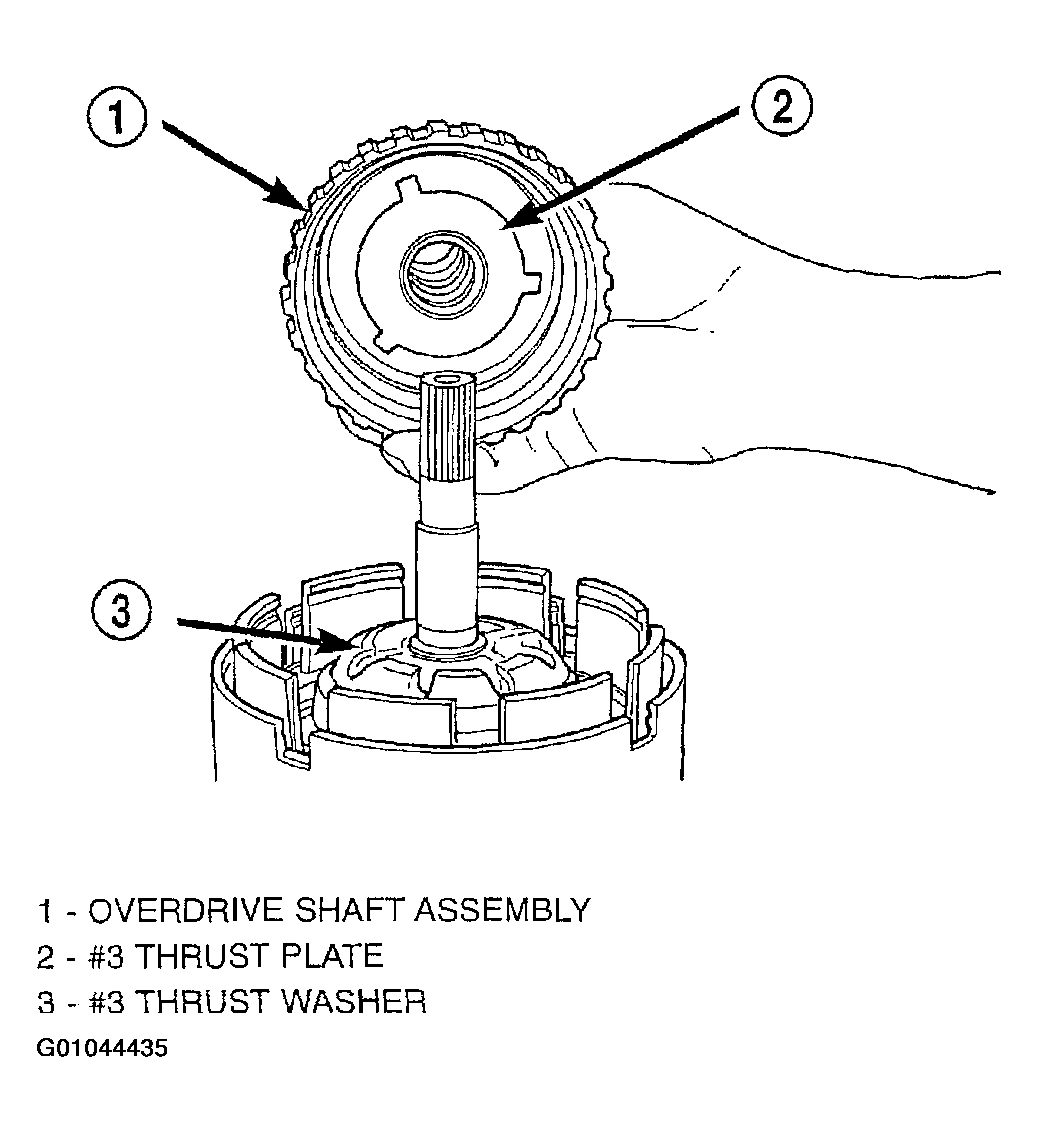

    Fig 38: Installing Overdrive Shaft Assembly
    G01044435Courtesy of DAIMLERCHRYSLER CORP.
  42. Reinstall overdrive and reverse clutch as shown. Rechecking these clutch clearances is not necessary.
