Speed Sensor - Input: Installation
CAUTION:
When disconnecting speed sensor connector, be sure that the connector weather seal does not fall off or remain in old sensor.
- Verify o-ring is installed into position.
- Install and tighten input speed sensor to 27 N.m (20 ft. lbs.).
- Connect speed sensor connector.

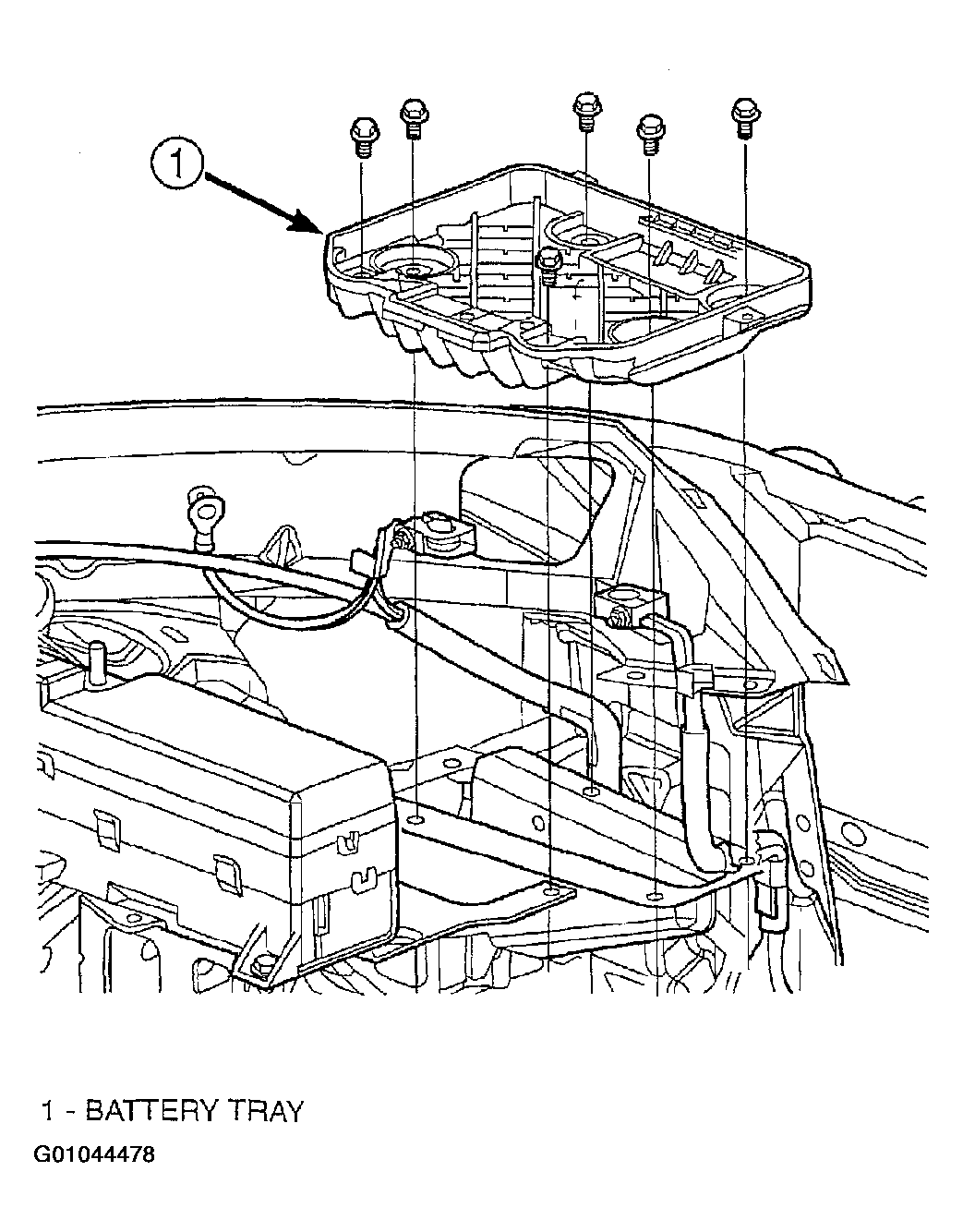

- Install the battery tray (Figure).

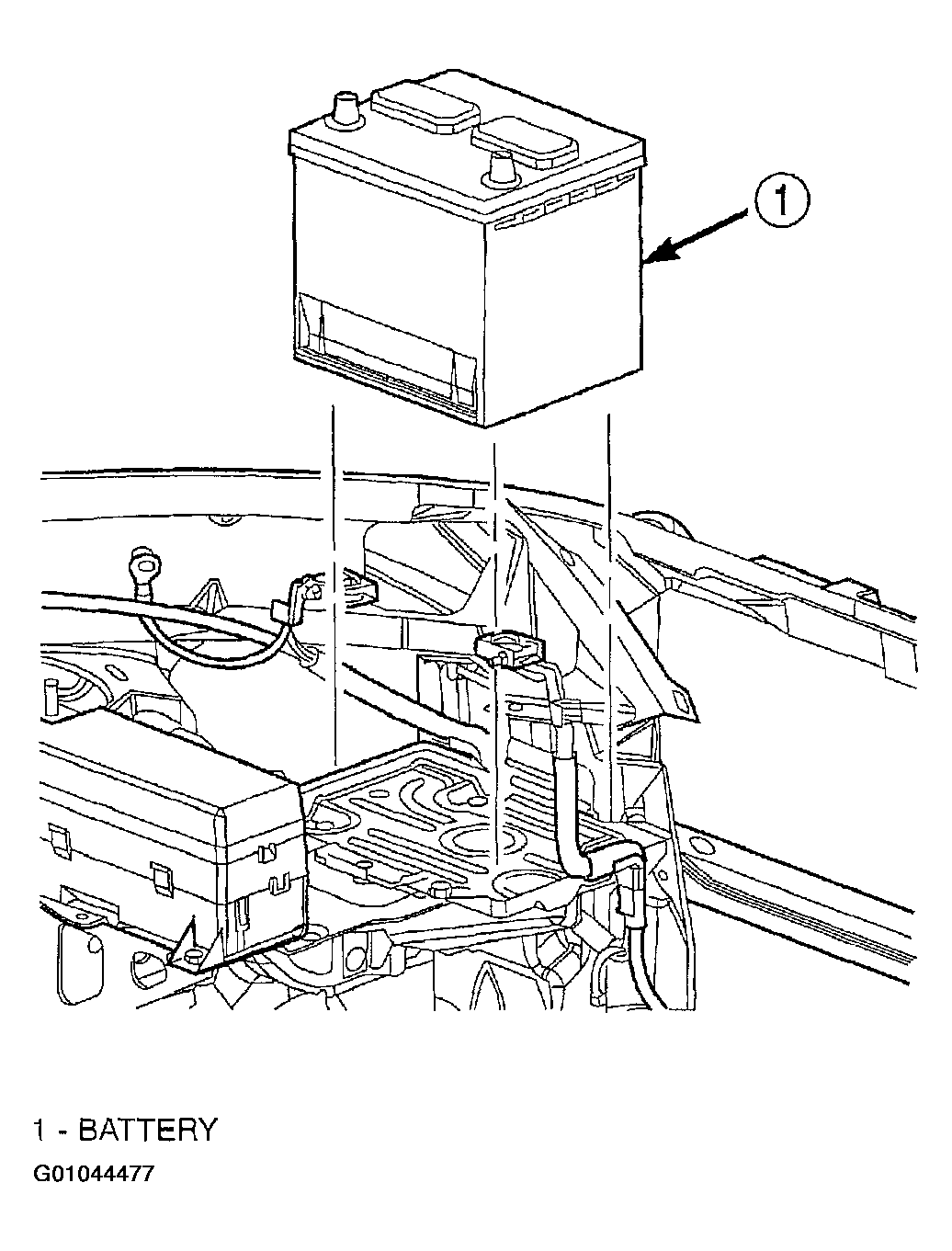

- Install the battery and hold down clamp (Figure).

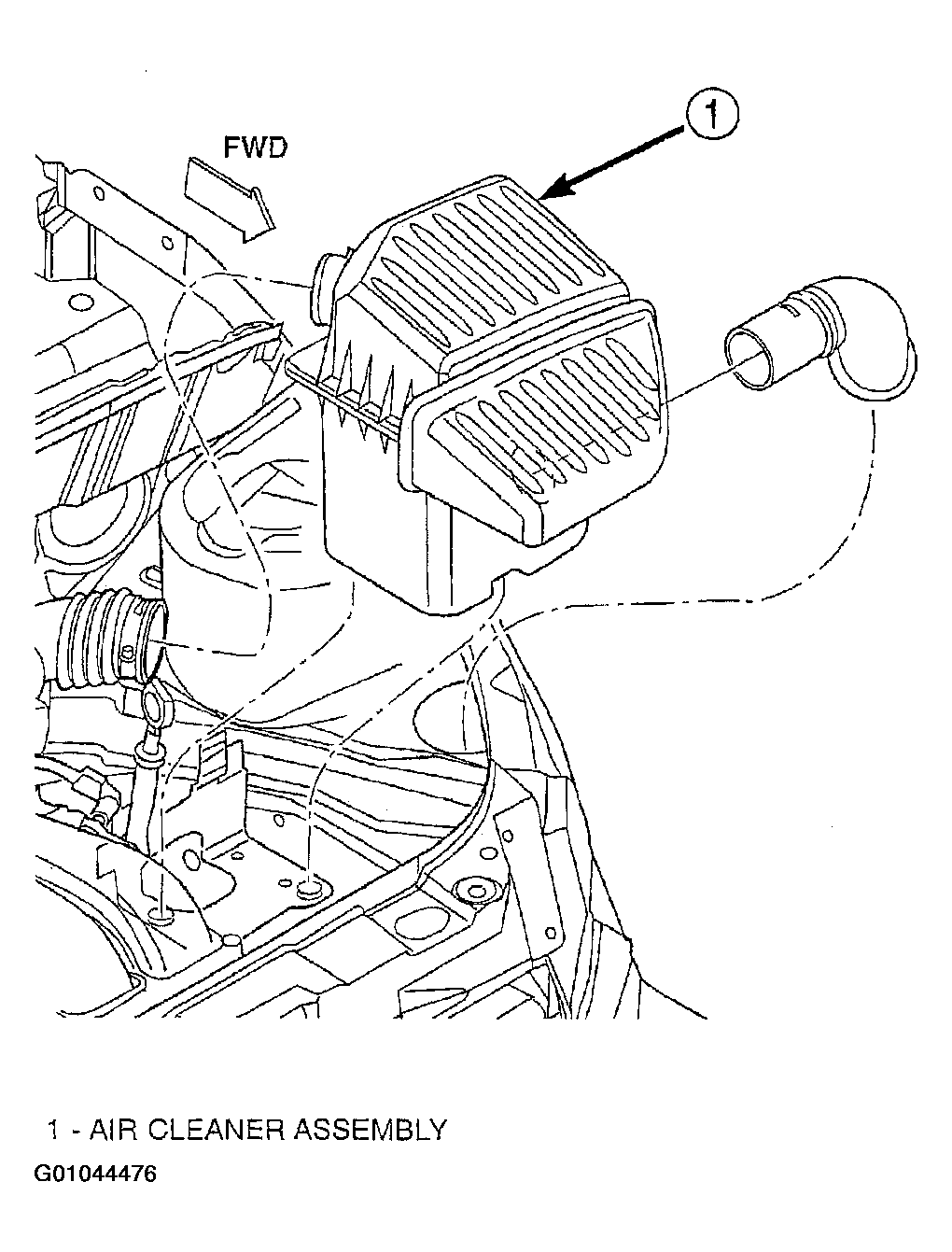

- Install air cleaner assembly (Figure).
- Connect battery cables.
