Speed Sensor - Input: Removal

CAUTION: When disconnecting speed sensor connector, be sure that the connector weather seal does not fall off or remain in old sensor.

Disconnect the battery cables.
Remove air cleaner assembly (Fig 1).

Fig 1: Removing Air Cleaner Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Remove the battery hold down clamp and remove the battery (Fig 2).

Fig 2: Removing Battery
Courtesy of DAIMLERCHRYSLER CORP.
Remove the battery tray (Fig 3).

Fig 3: Removing Battery Tray
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect input speed sensor connector.
Unscrew and remove input speed sensor (Fig 4).

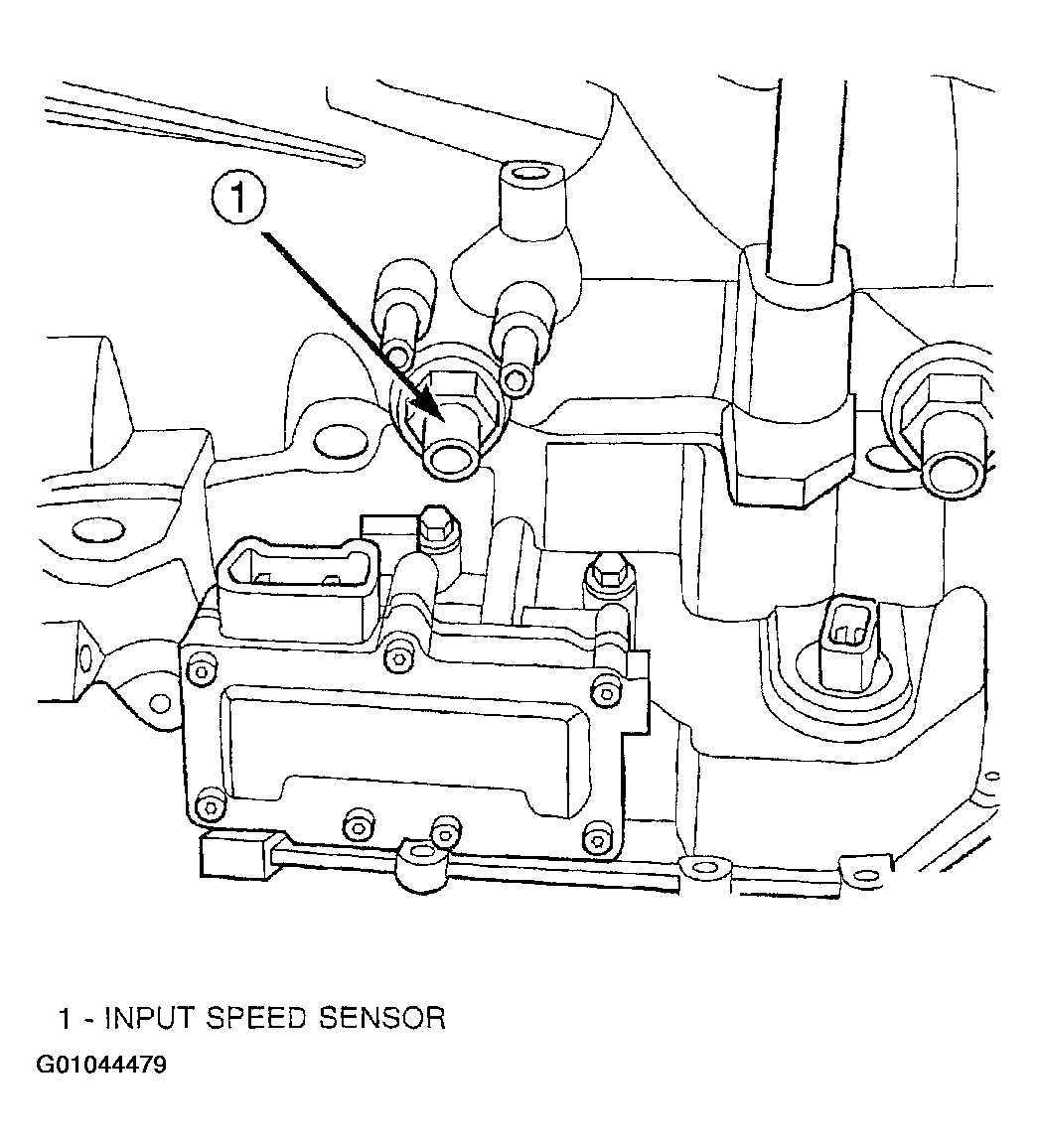

Fig 4: Removing Input (Turbine) Speed Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Inspect speed sensor o-ring (Fig 5) and replace if necessary.

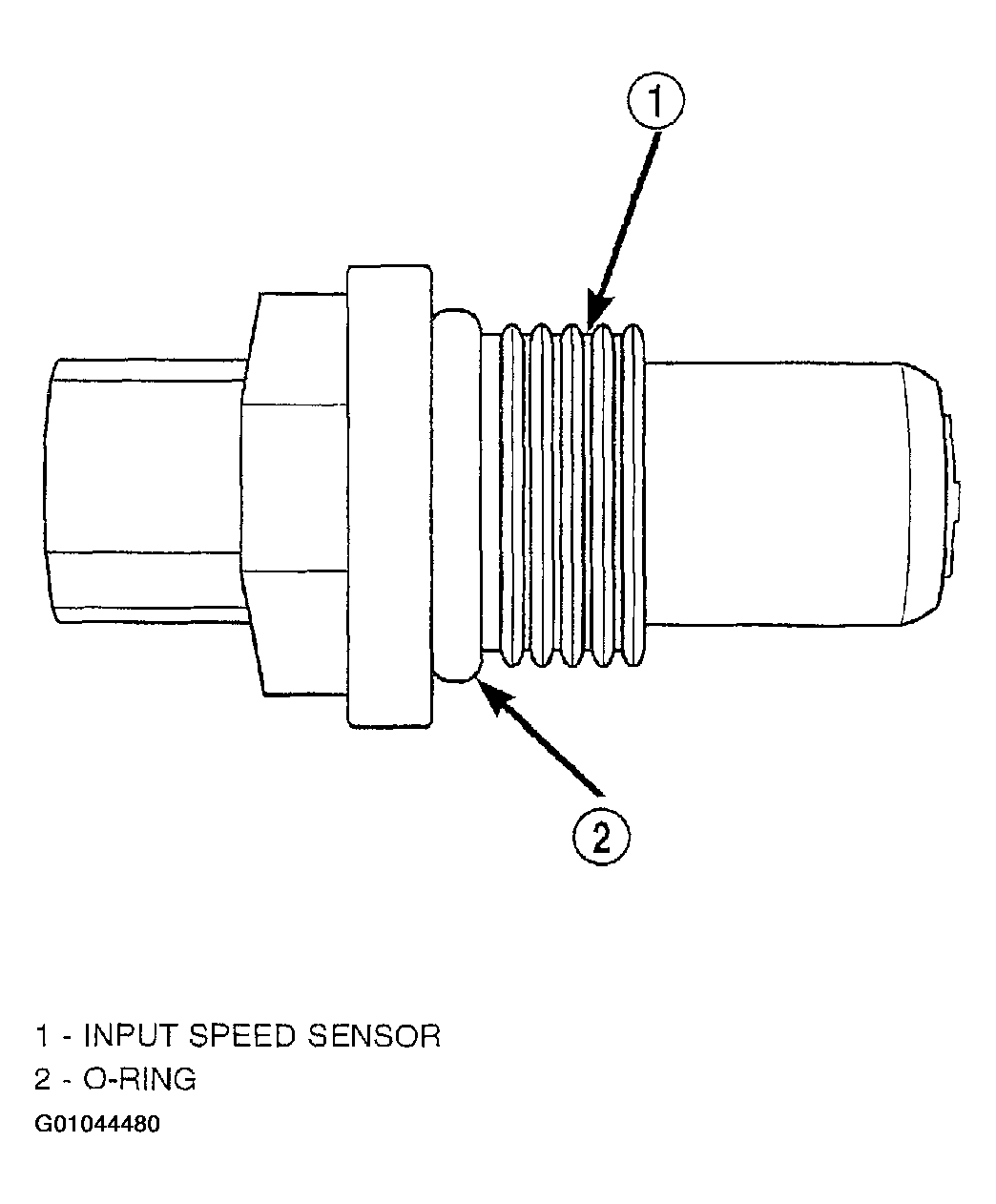

Fig 5: Locating O-ring
Courtesy of DAIMLERCHRYSLER CORP.
