Powertrain Control Module (Next Generation Controller) Connector End View (C2)

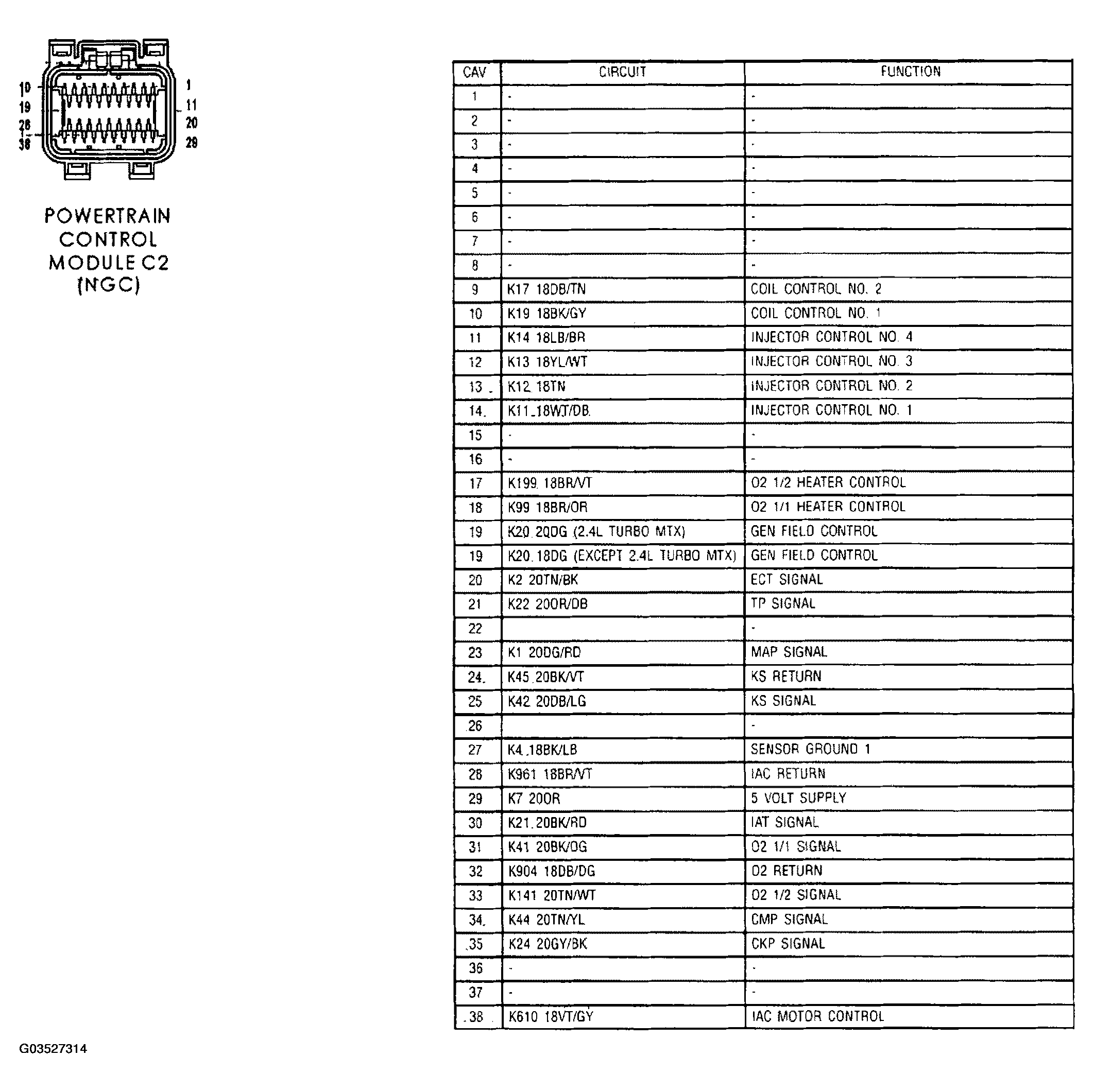

Fig 1: Powertrain Control Module (Next Generation Controller) Connector End View (C2)
G03527314Courtesy of CHRYSLER GROUP, LLC
