Powertrain Control Module C2 (NGC) Connector End View

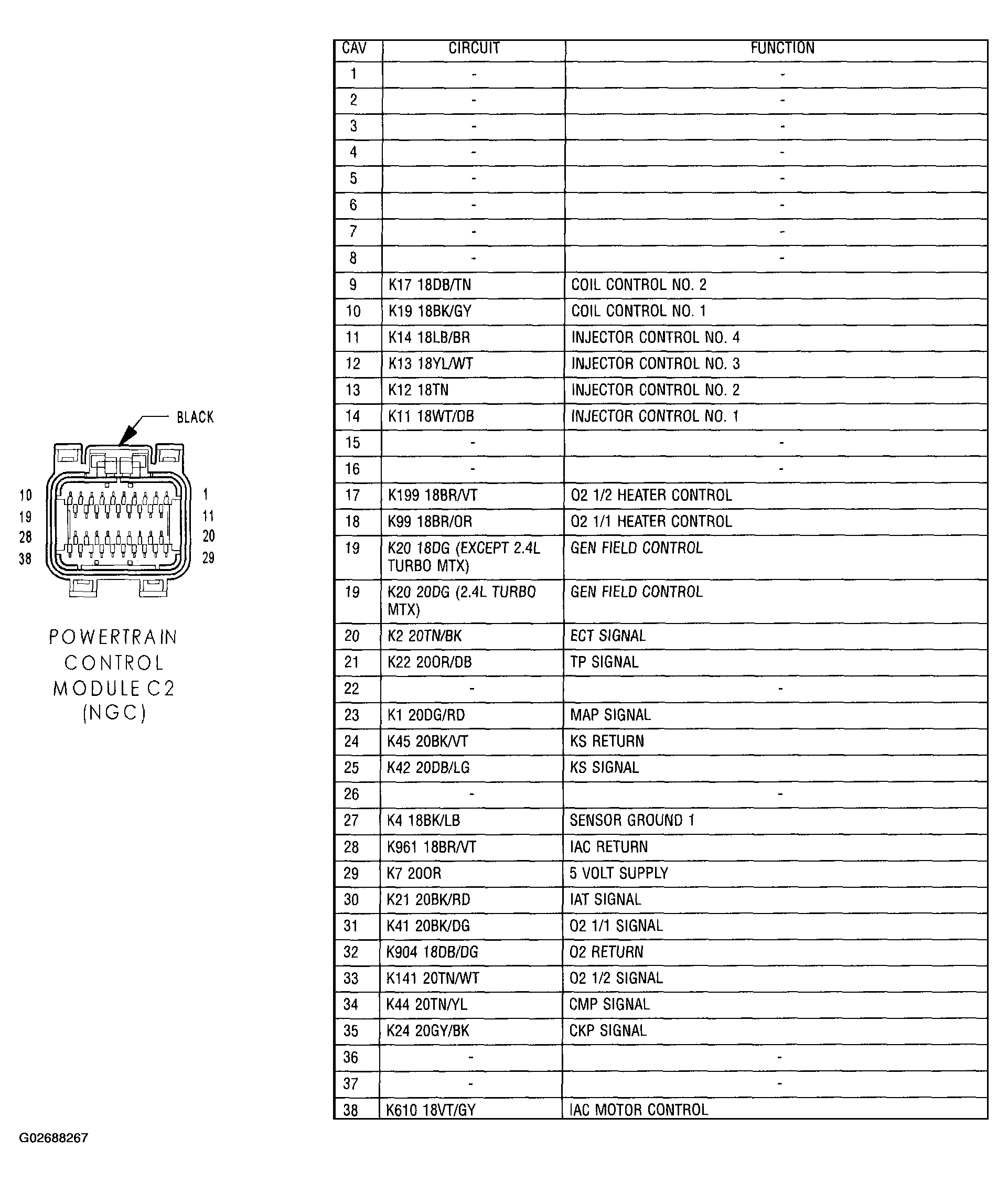

Fig 1: Powertrain Control Module C2 (NGC) Connector End View
G02688267Courtesy of CHRYSLER GROUP, LLC
