Remote Keyless Entry Module Connector End View

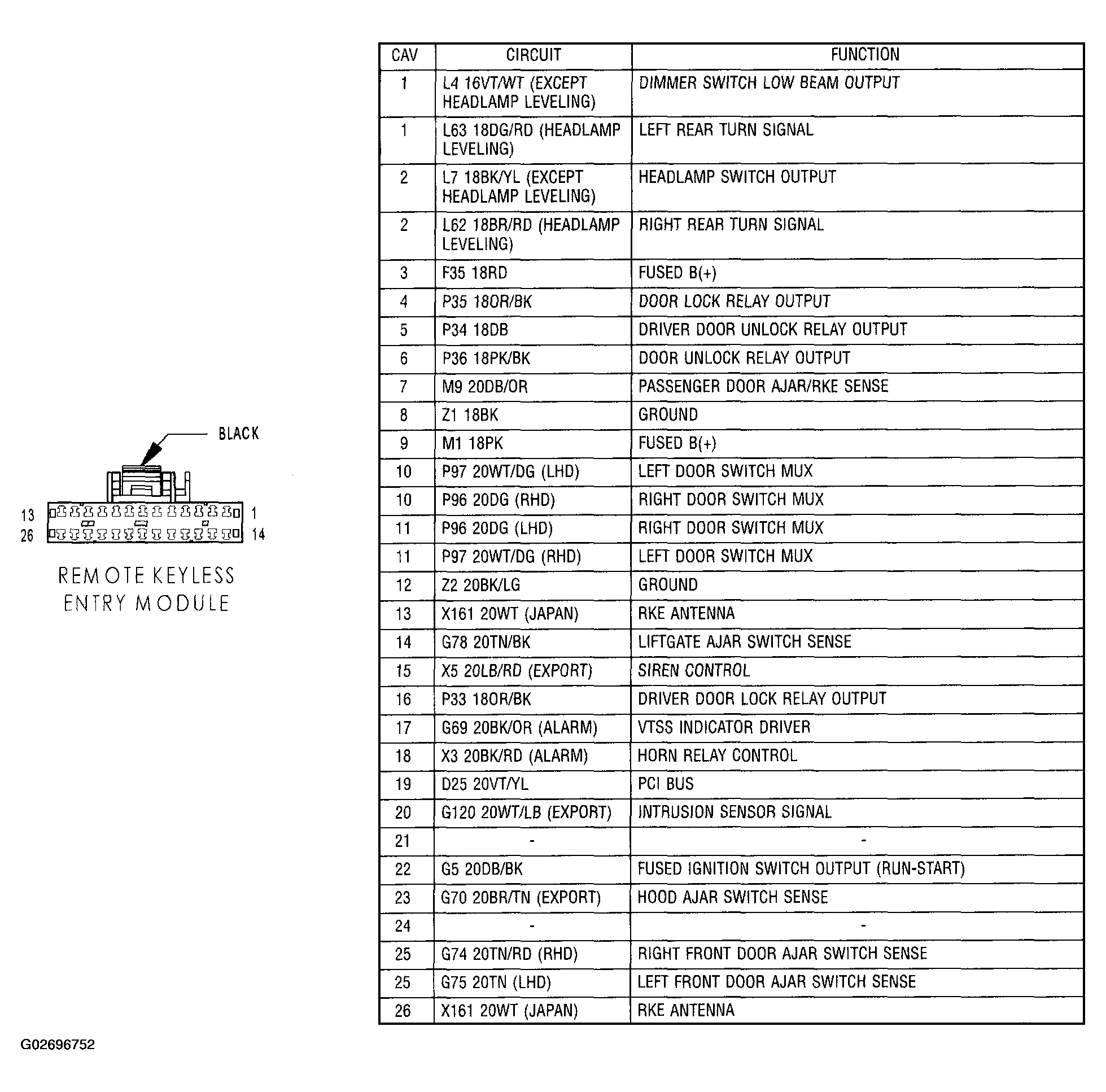

Fig 1: Remote Keyless Entry Module Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
