Driver Window Regulator Module (PT27) Connector End View

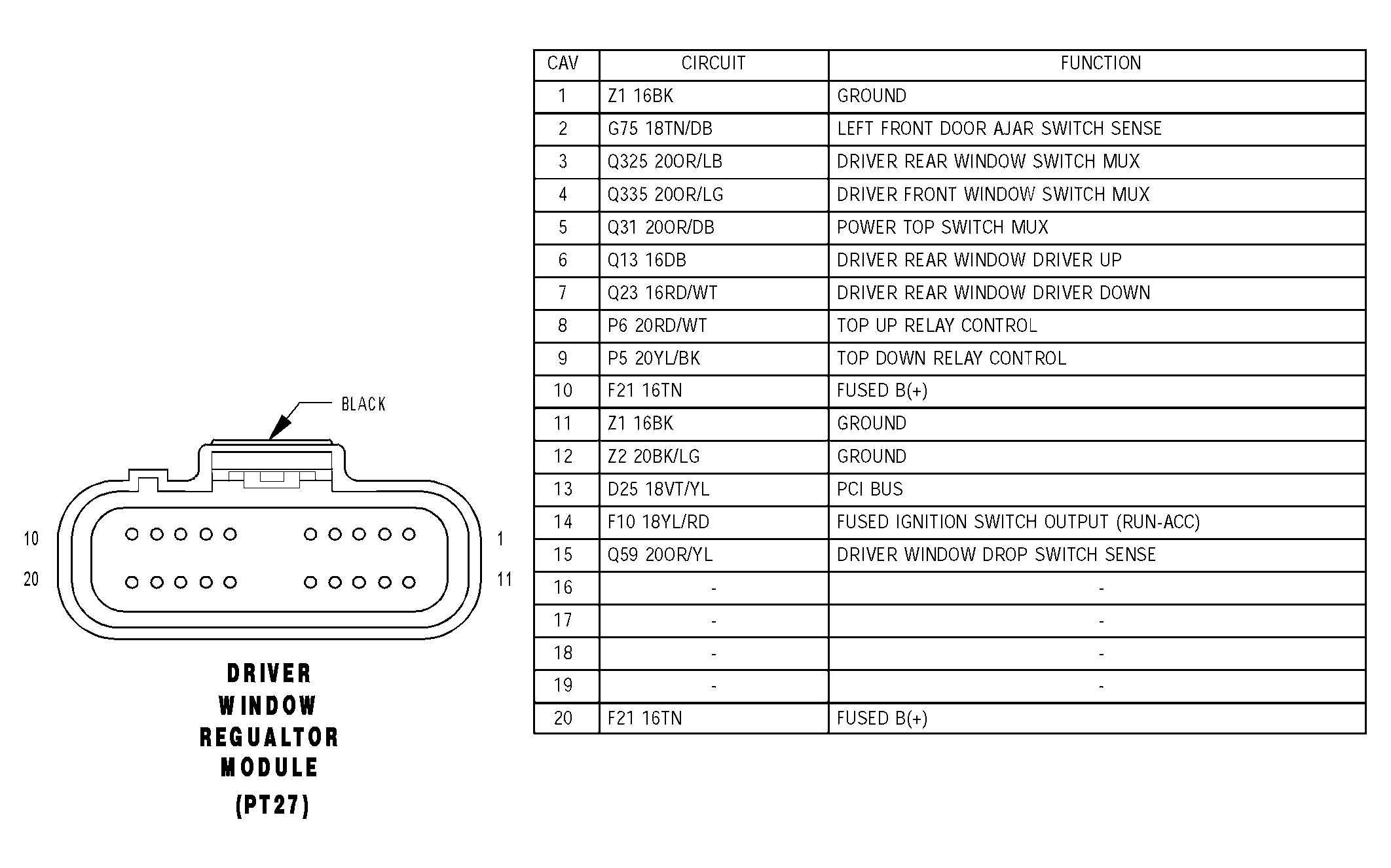

Fig 1: Driver Window Regulator Module (PT27) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
