Heat Shields: Description

CAUTION: Avoid application of rust prevention compounds or undercoating materials to exhaust system floor pan heat shield on cars if equipped. Light over-spray near the edges is permitted. Application of coating will greatly reduce the efficiency of the heat shields resulting in excessive floor pan temperatures and objectionable fumes.

Heat shields are needed to protect both the vehicle and the environment from the high temperatures developed in the vicinity of the catalytic converter. See Fig 1 -Fig 4 .

Fig 1: Identifying Engine Wiring Heat Shield

Courtesy of DAIMLERCHRYSLER CORP.

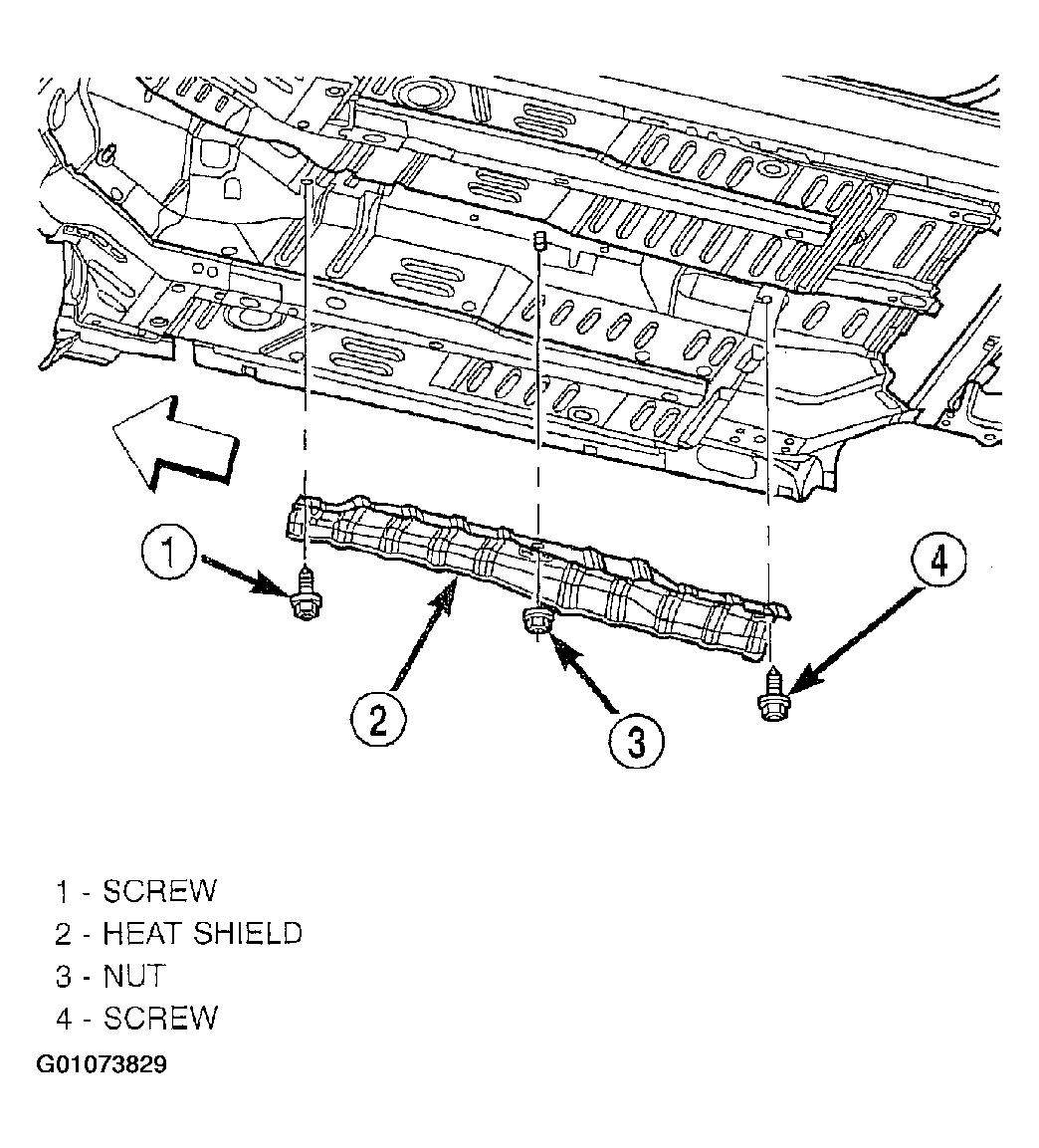

Fig 2: Identifying Catalytic Converter Heat Shield

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Intermediate Pipe Heat Shield

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Muffler Heat Shield

Courtesy of DAIMLERCHRYSLER CORP.
