Antilock Brake Controller Connector End View

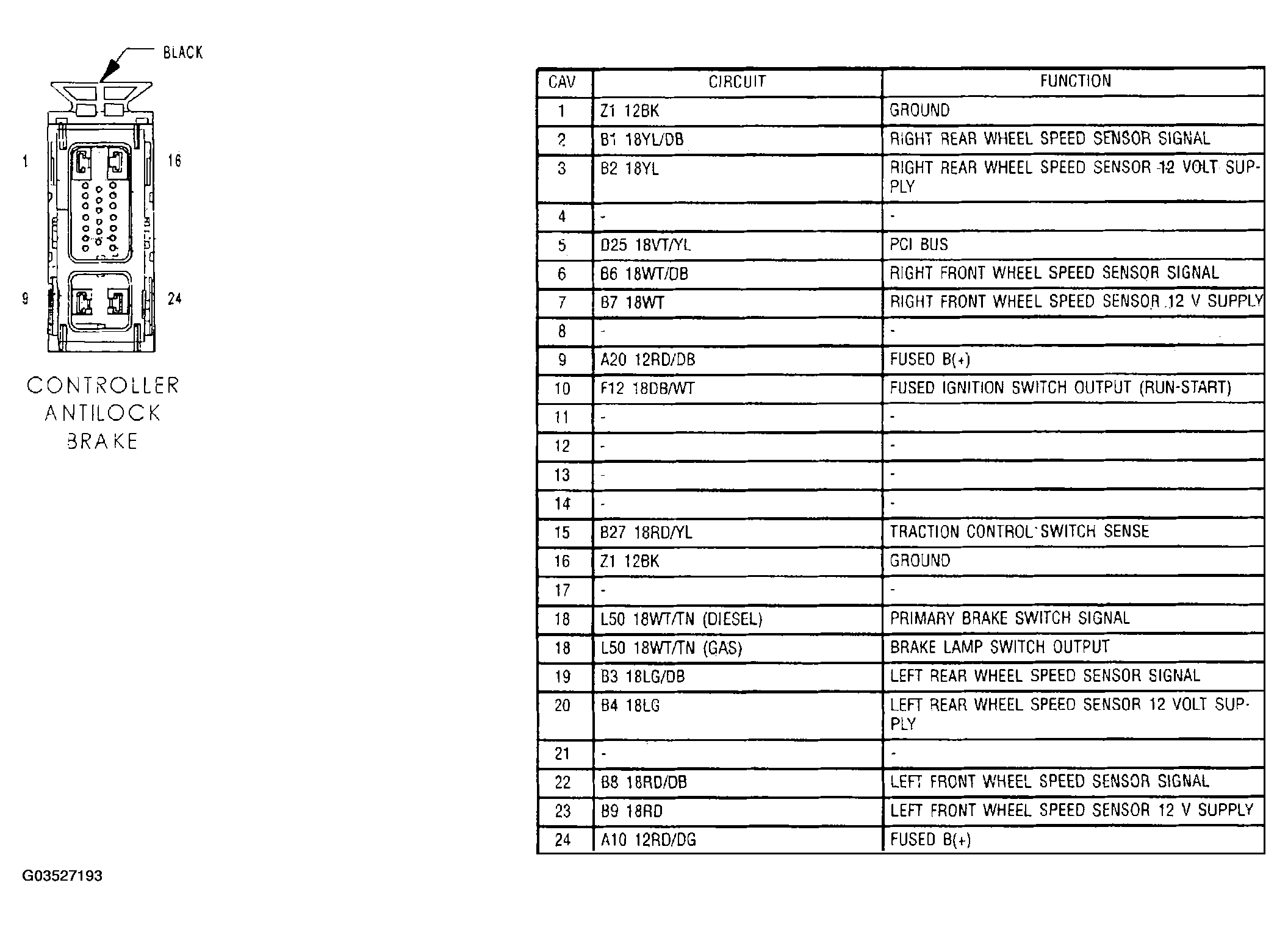

Fig 1: Antilock Brake Controller Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
