Compass/Temperature Mirror Module (PT27) Connector End View

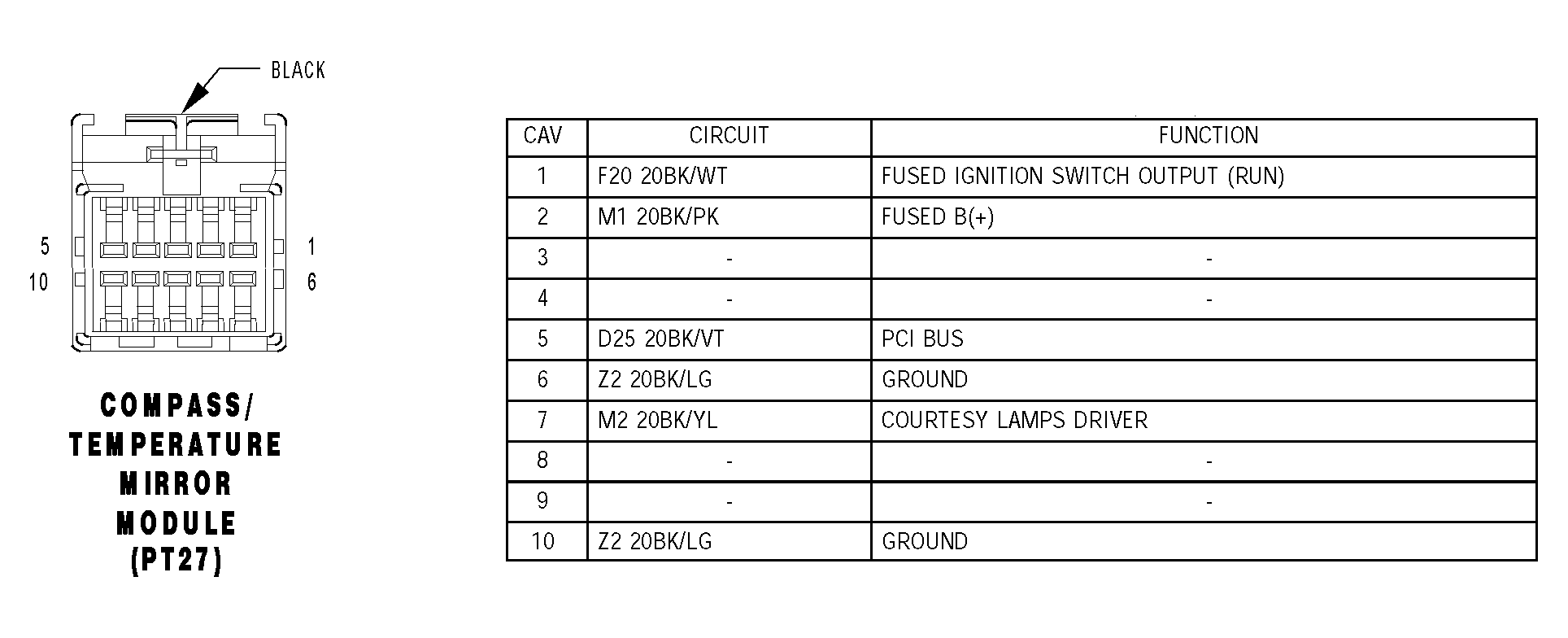

Fig 1: Compass/Temperature Mirror Module (PT27) Connector End View
G04549044Courtesy of CHRYSLER GROUP, LLC
