Hands Free Module C1 Connector End View

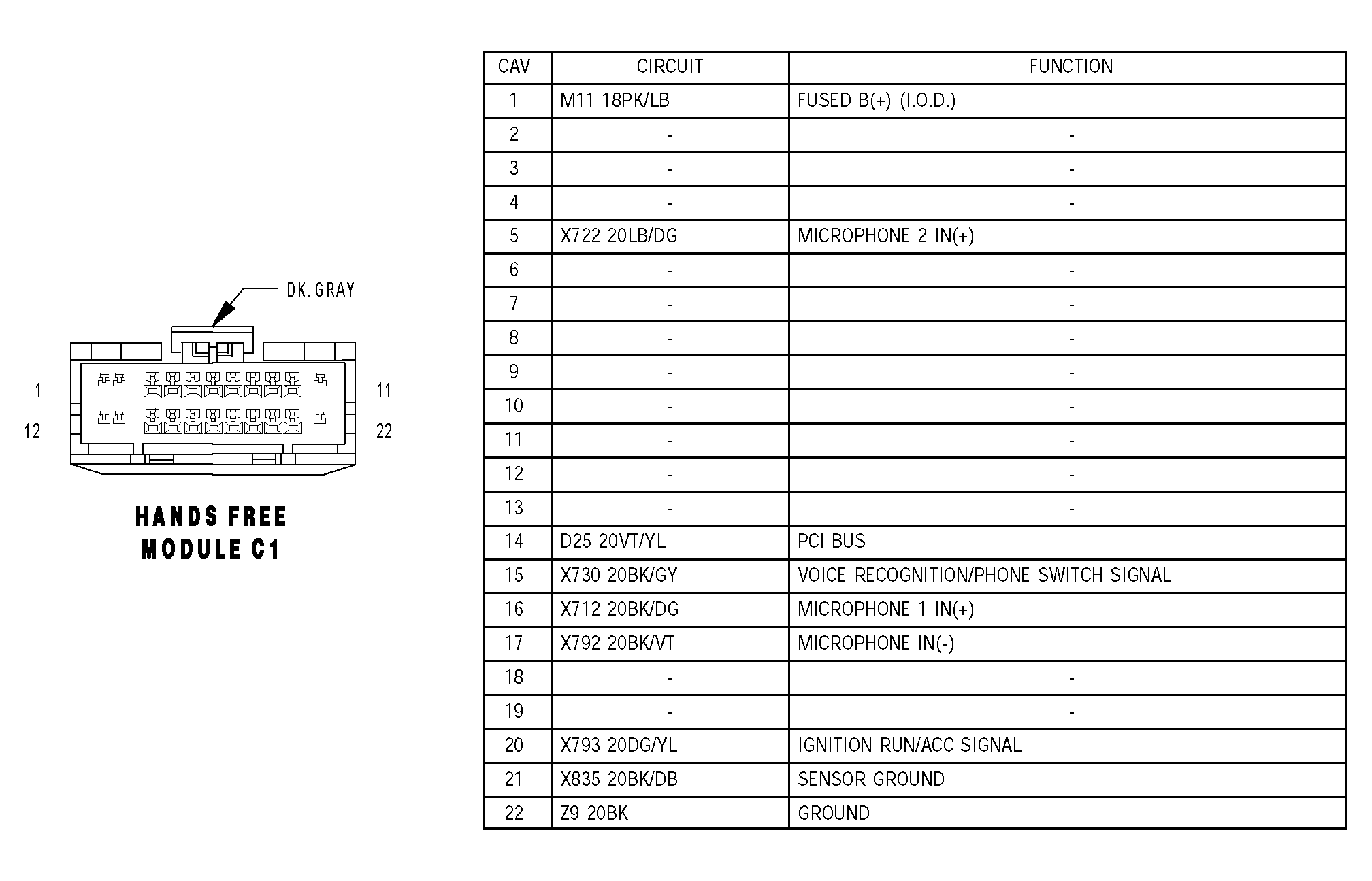

Fig 1: Hands Free Module C1 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
