Rear Window Defogger Switch Connector End View

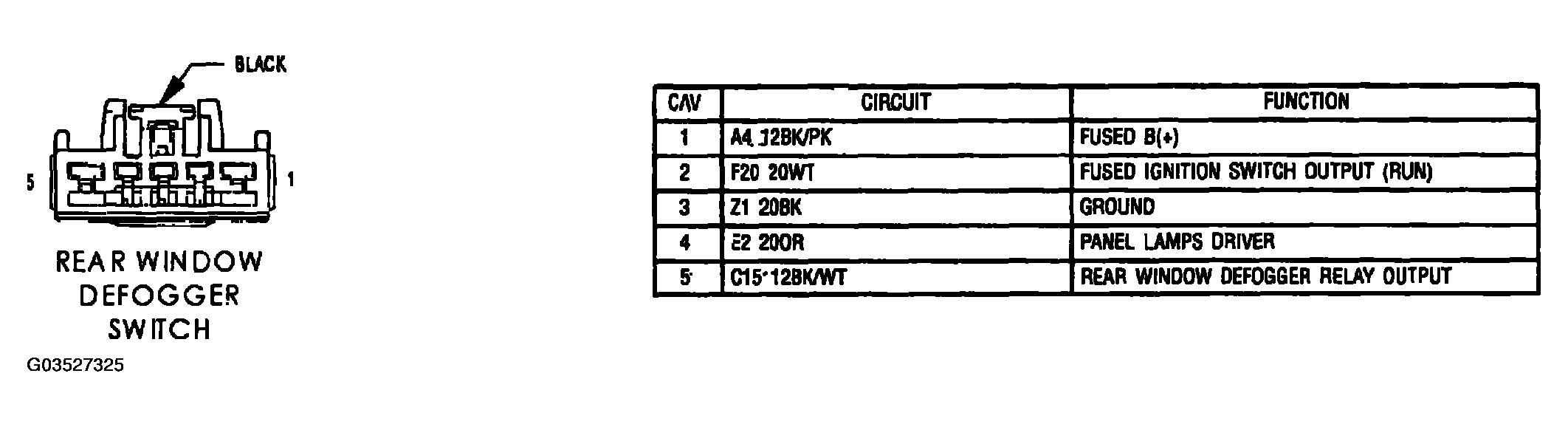

Fig 1: Rear Window Defogger Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
