Vehicle Speed Control Switch Harness Connector End View

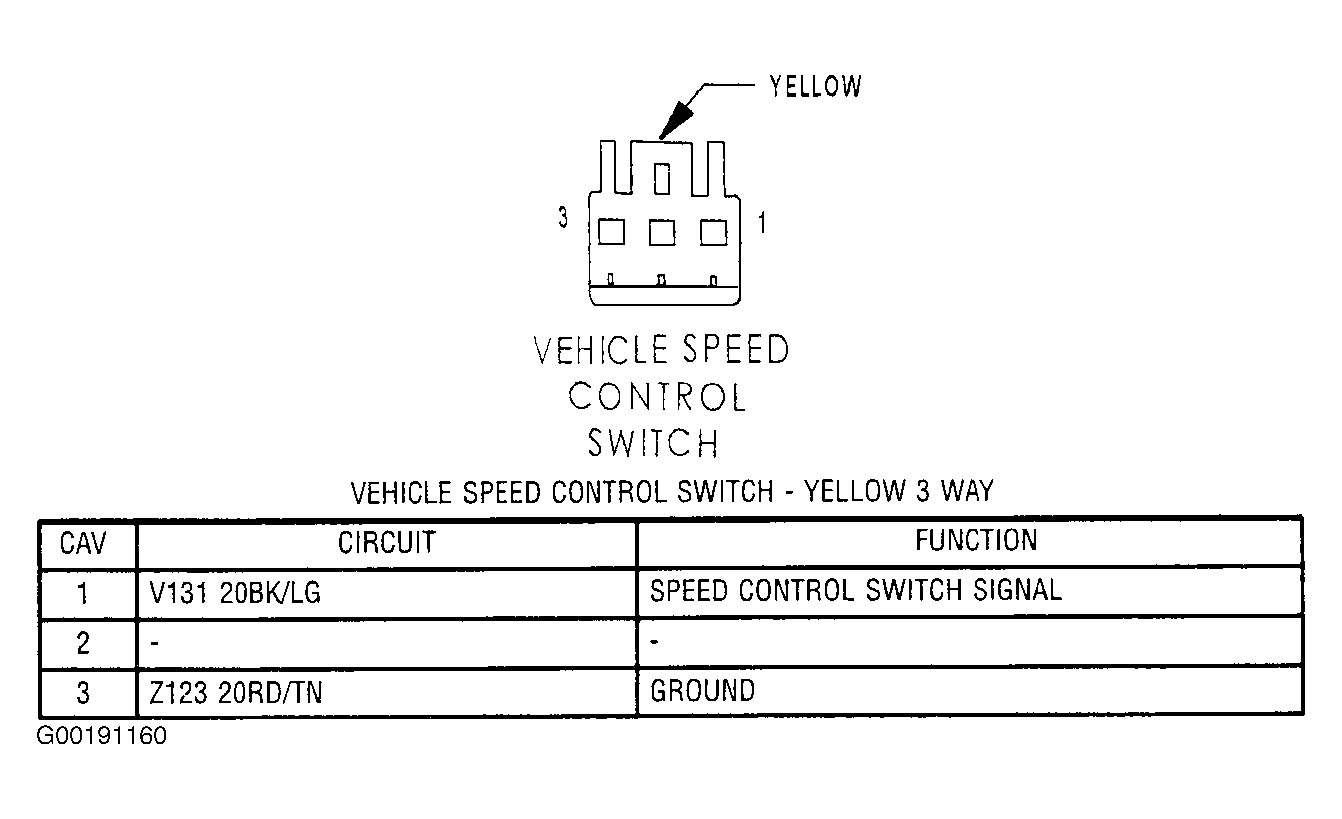

Fig 1: Vehicle Speed Control Switch Harness Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
