Camshaft Position Sensor: Locations

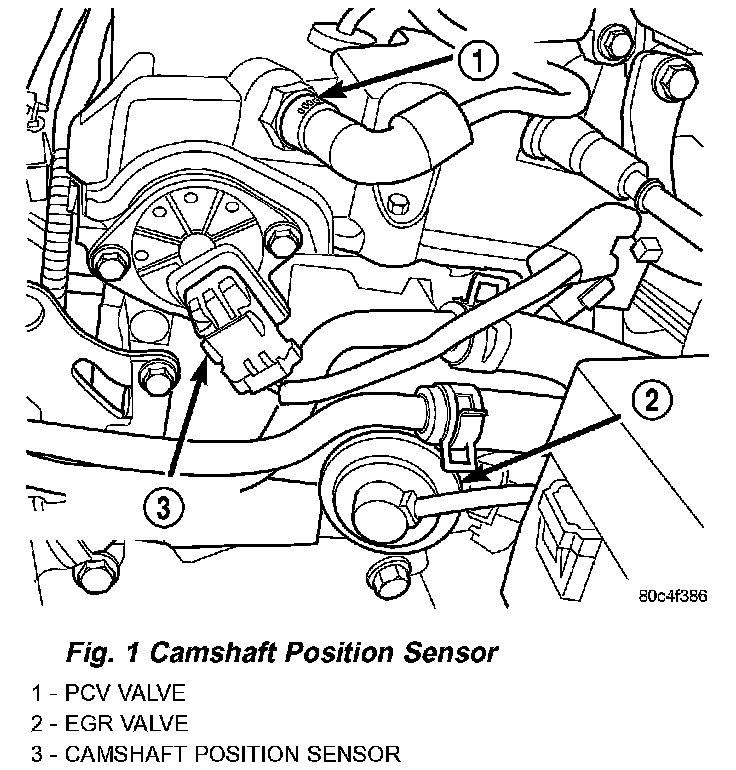

Fig. 1 Camshaft Position Sensor - 2.4L DOHC:




The camshaft position sensor is mounted to the rear of the cylinder head.
