Home >> Chrysler >> 2002 >> Prowler V6-3.5L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse >> Fuse Block
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Fuse Block

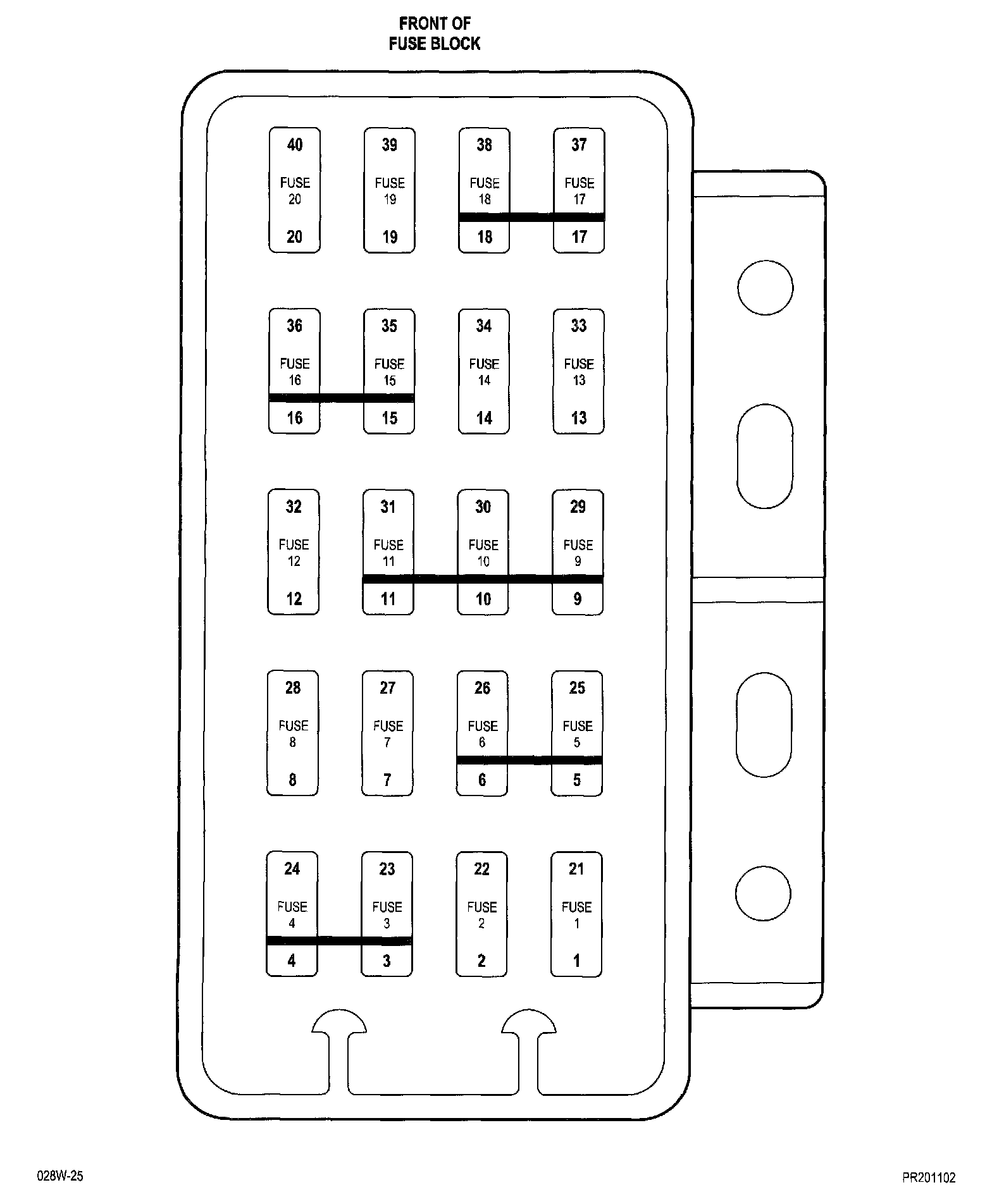

Fuse Block:

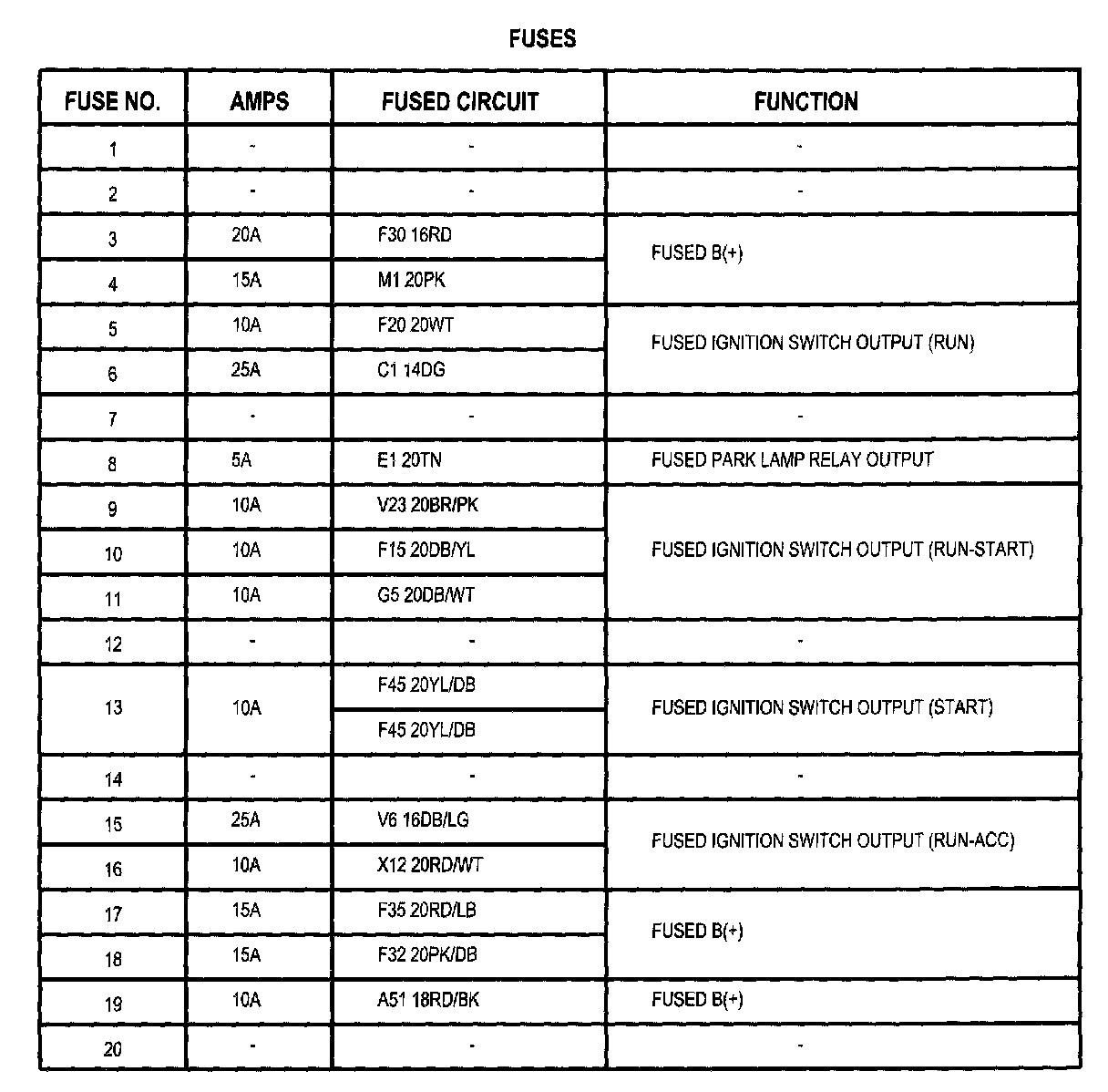

Fuses (FB):
