Audio System

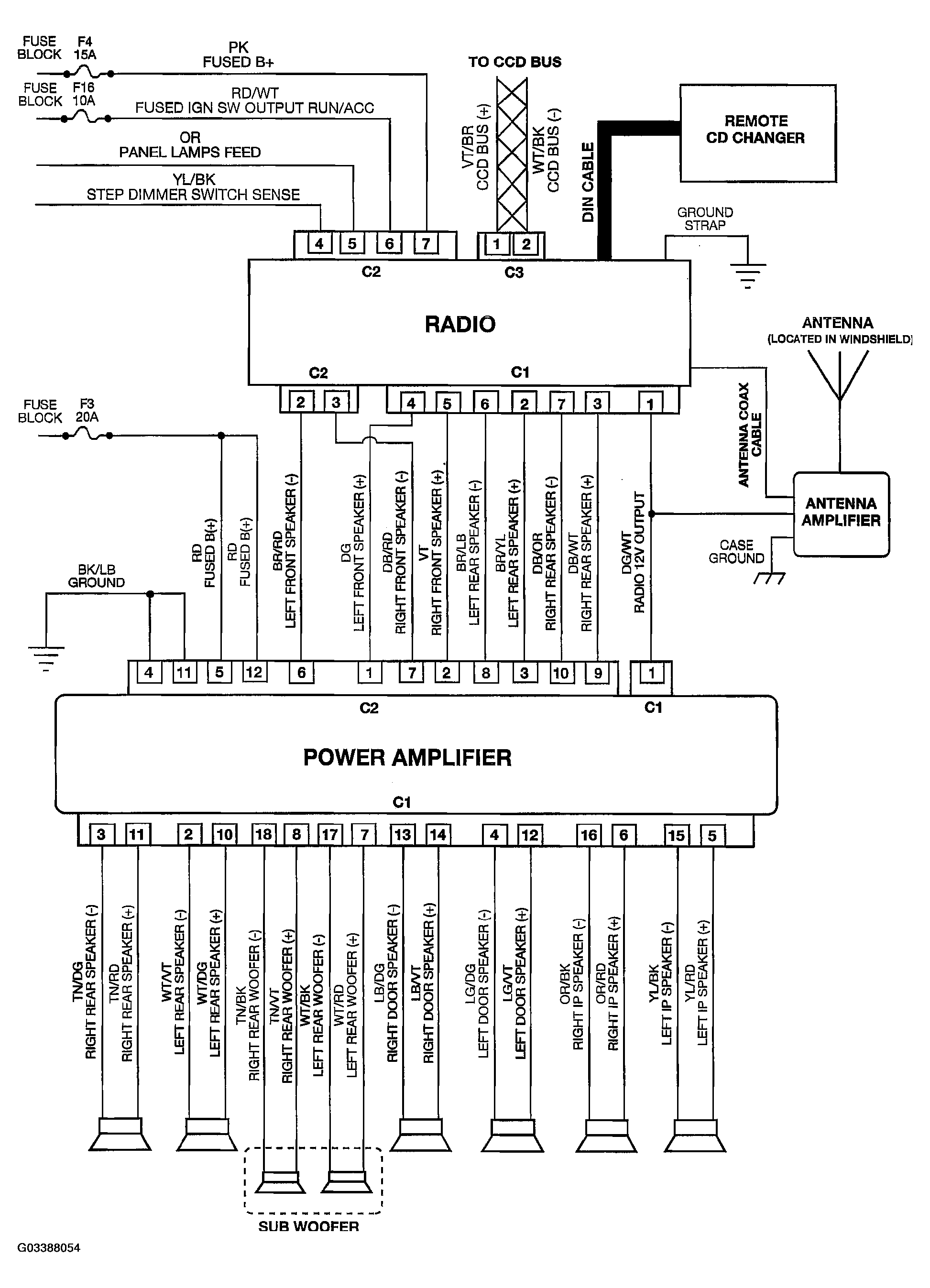

Fig 1: Audio System Schematic Diagram

Courtesy of DAIMLERCHRYSLER CORP.

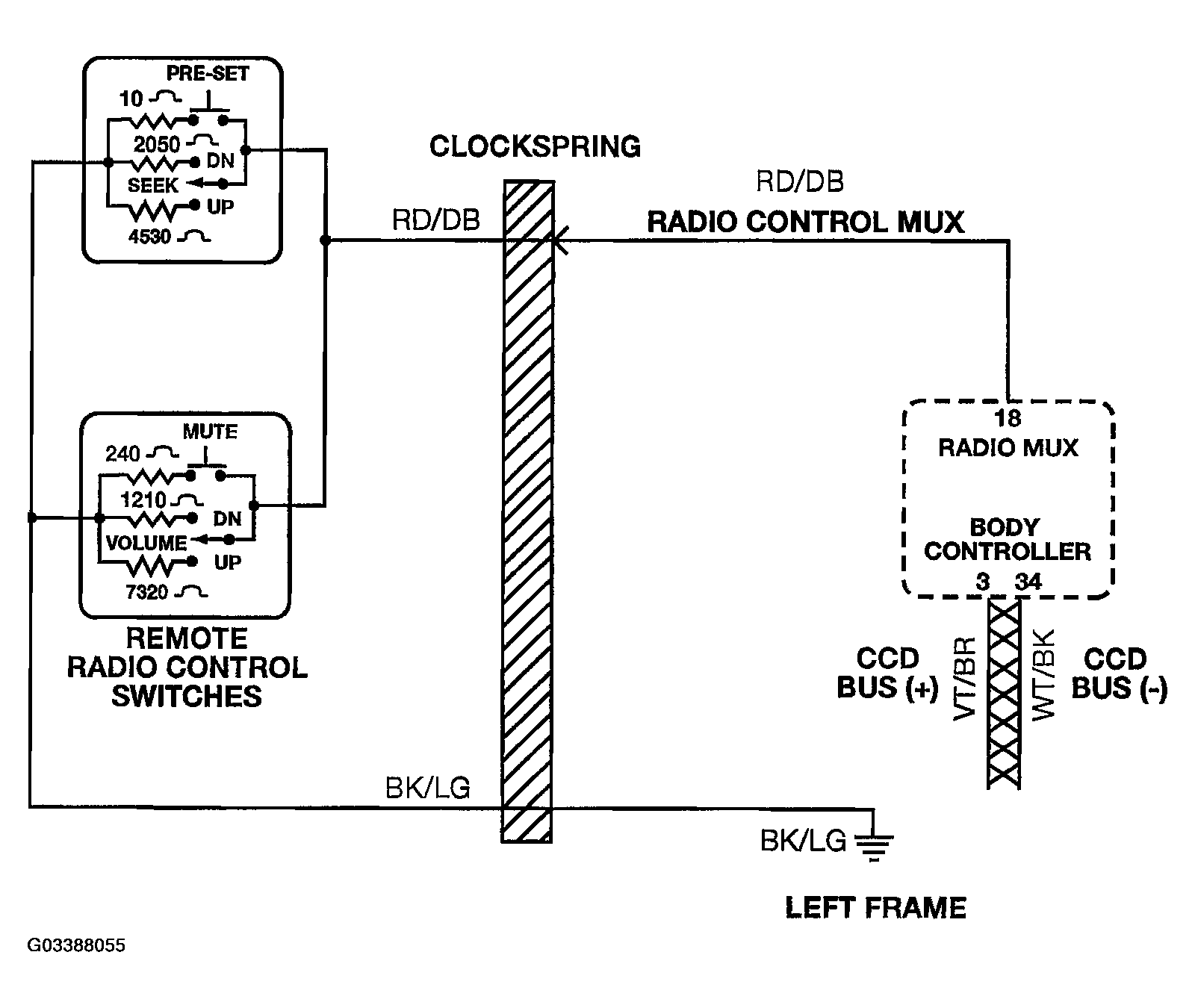

Fig 2: Radio Remote Controls Schematic Diagram

Courtesy of DAIMLERCHRYSLER CORP.

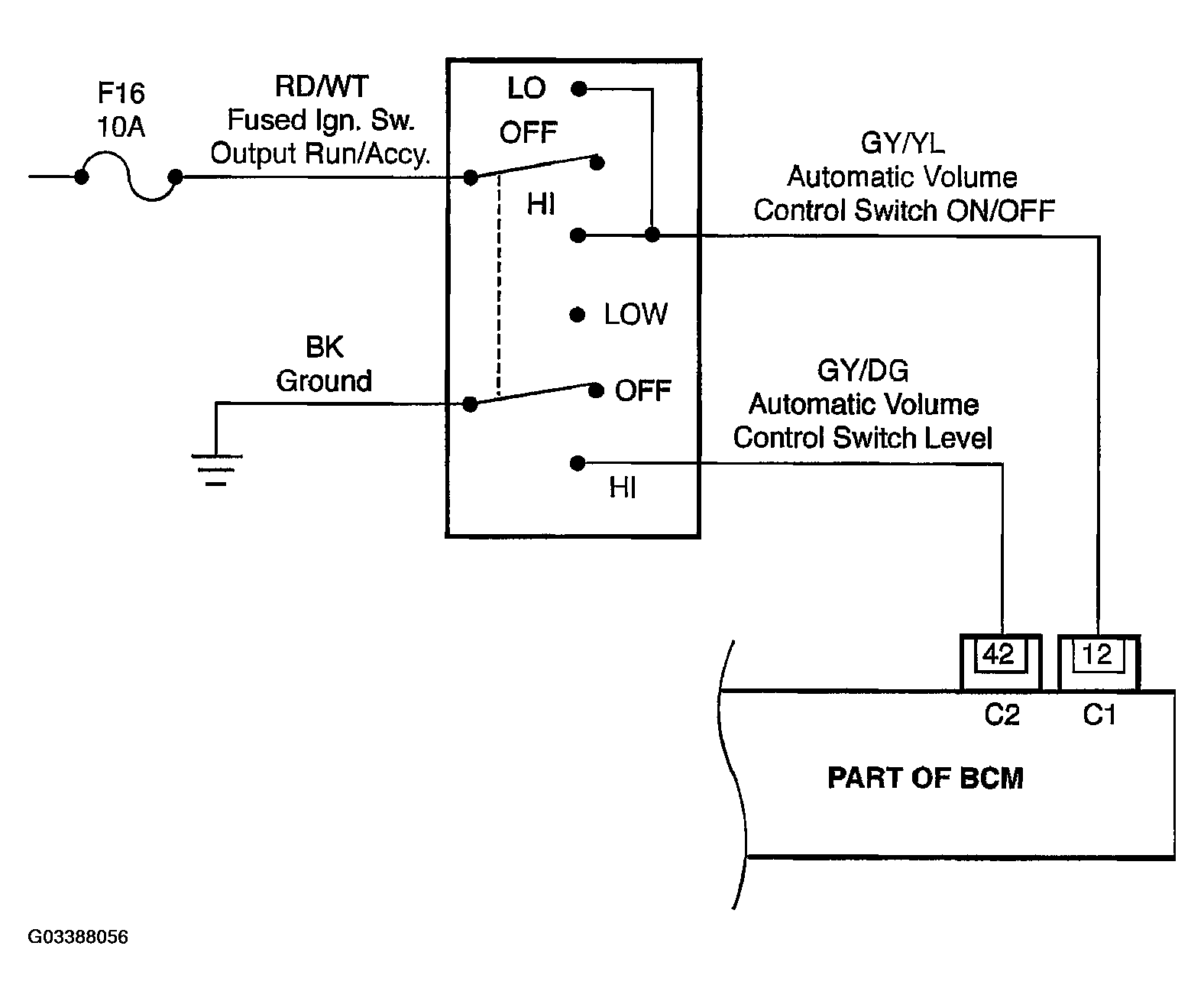

Fig 3: Automatic Volume Control Circuit Schematic Diagram

Courtesy of DAIMLERCHRYSLER CORP.
