Speed Control Servo - Black 4 Way

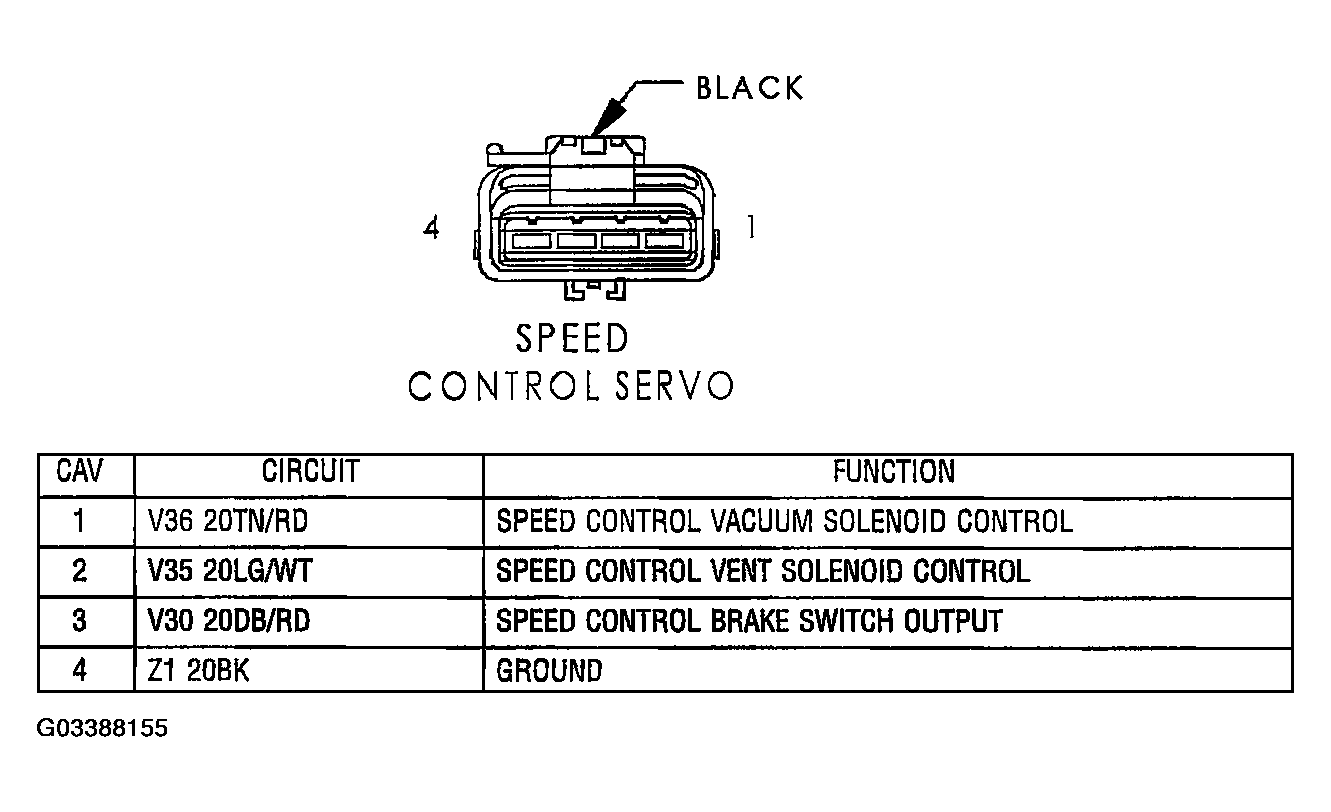

Fig 1: Identifying Speed Control Servo Connector

G03388155

Courtesy of DAIMLERCHRYSLER CORP.
