Connector Identification

NOTE: For connector identification, see Fig 1 -Fig 125 .

Fig 1: Identifying A/C Evaporator Temperature Sensor Connector

G00213828

Courtesy of CHRYSLER CORP.

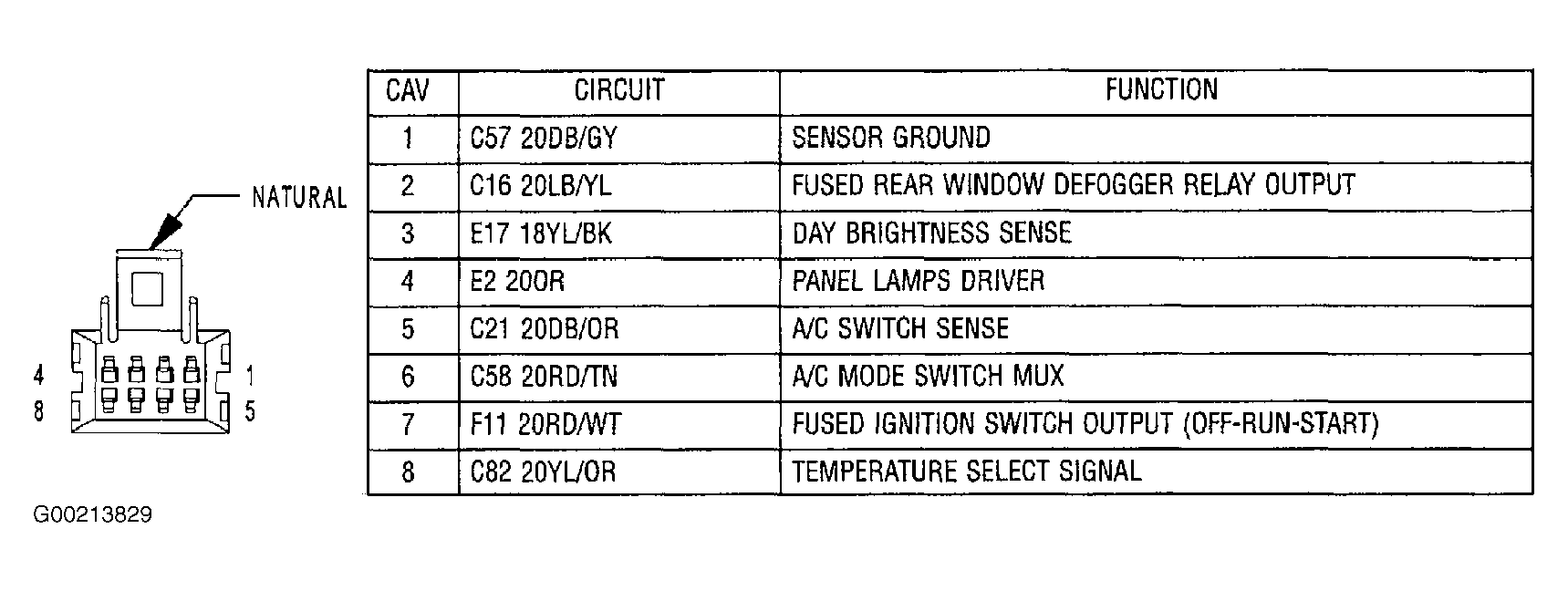

Fig 2: Identifying A/C-Heater Control Connector C1

G00213829

Courtesy of CHRYSLER CORP.

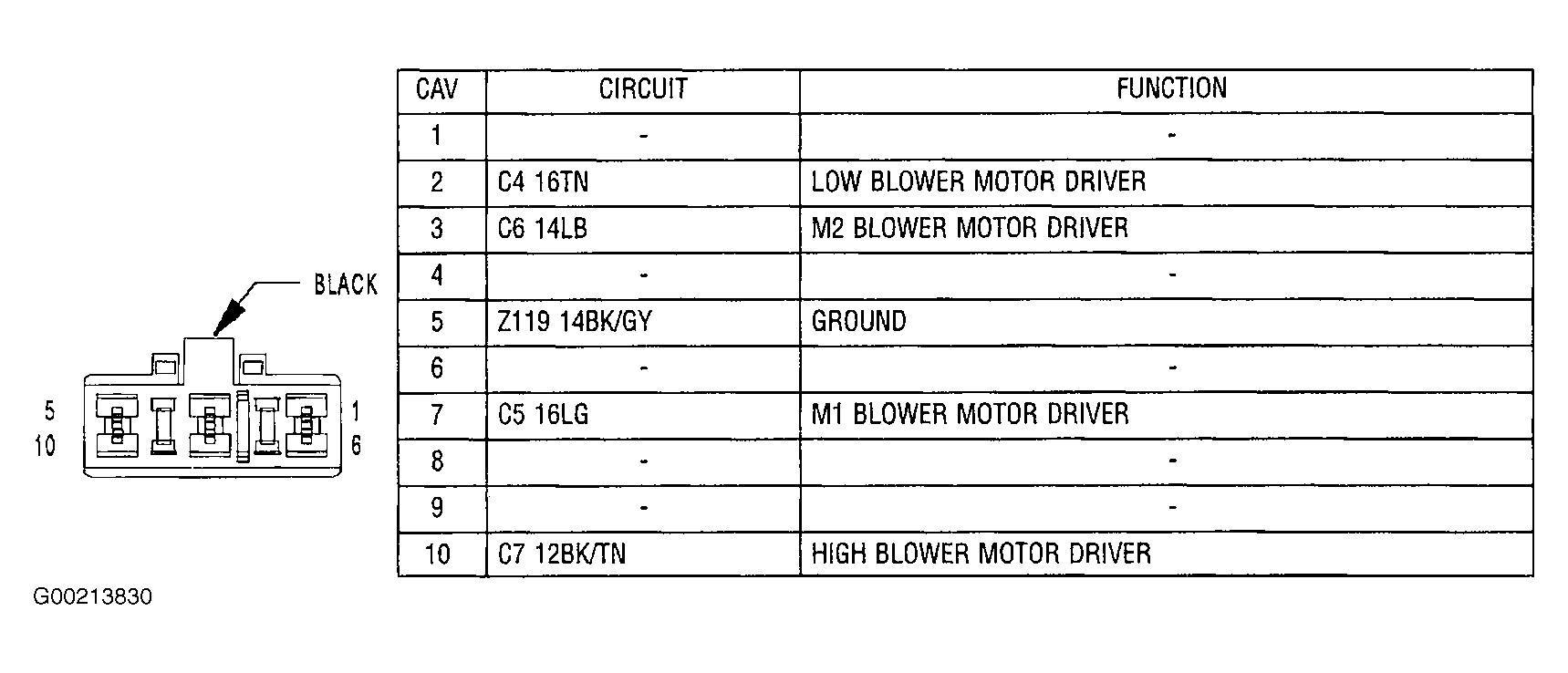

Fig 3: Identifying A/C-Heater Control Connector C2

G00213830

Courtesy of CHRYSLER CORP.

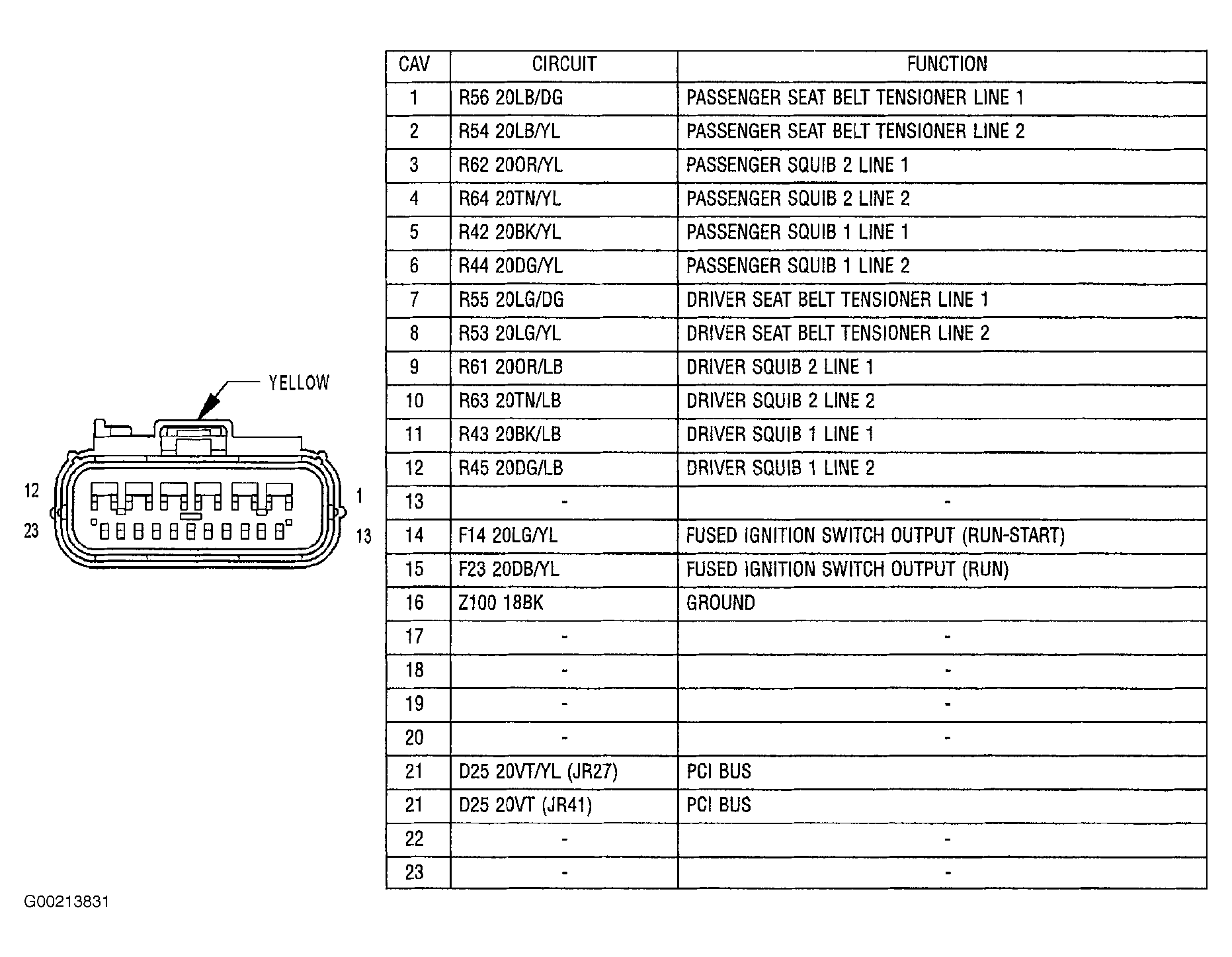

Fig 4: Identifying Air Bag Control Module (ACM) Connector

G00213831

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Ash Receiver Light Connector

G00226138

Courtesy of CHRYSLER CORP.

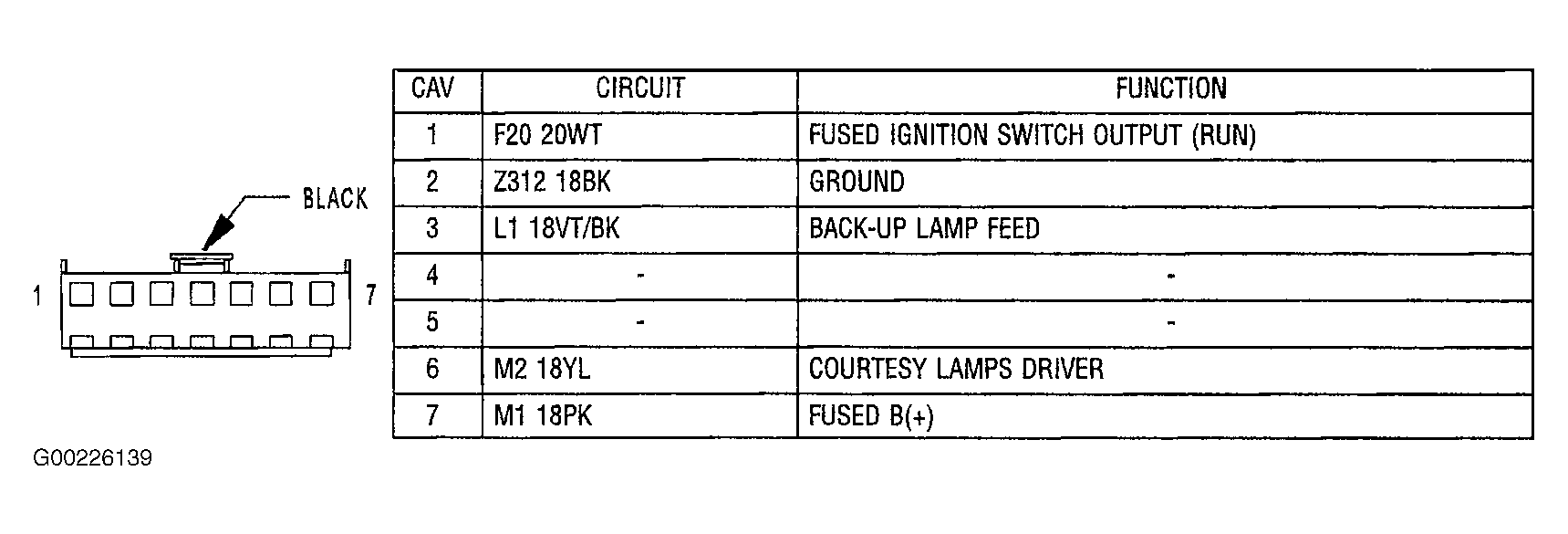

Fig 6: Identifying Automatic Day/Night Mirror Connector

G00226139

Courtesy of CHRYSLER CORP.

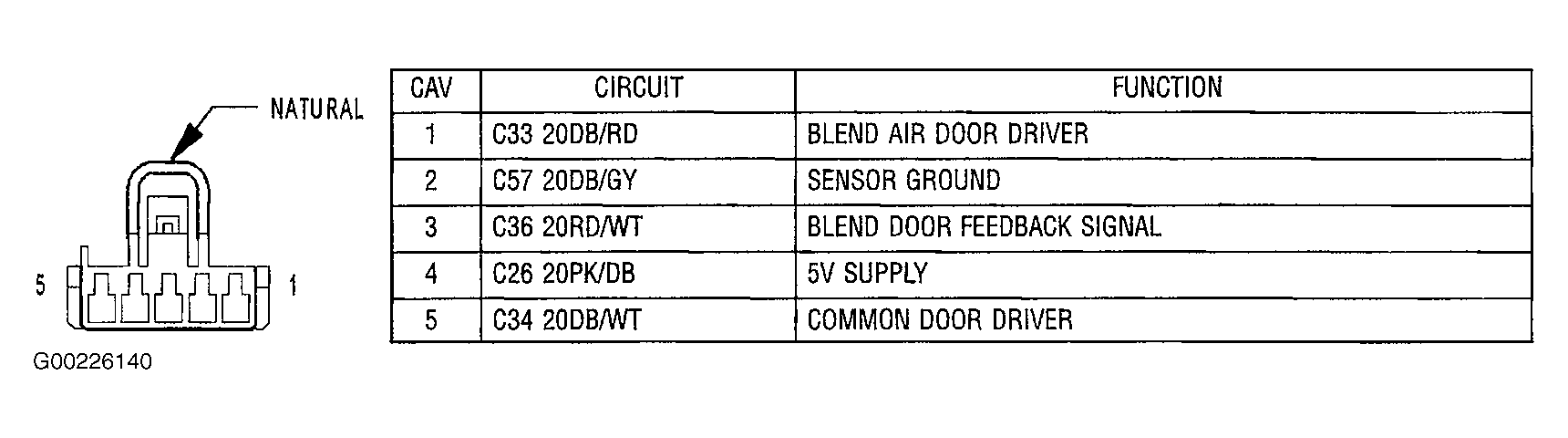

Fig 7: Identifying Blend Door Actuator Connector

G00226140

Courtesy of CHRYSLER CORP.

Fig 8: Identifying Blower Motor Connector

G00226141

Courtesy of CHRYSLER CORP.

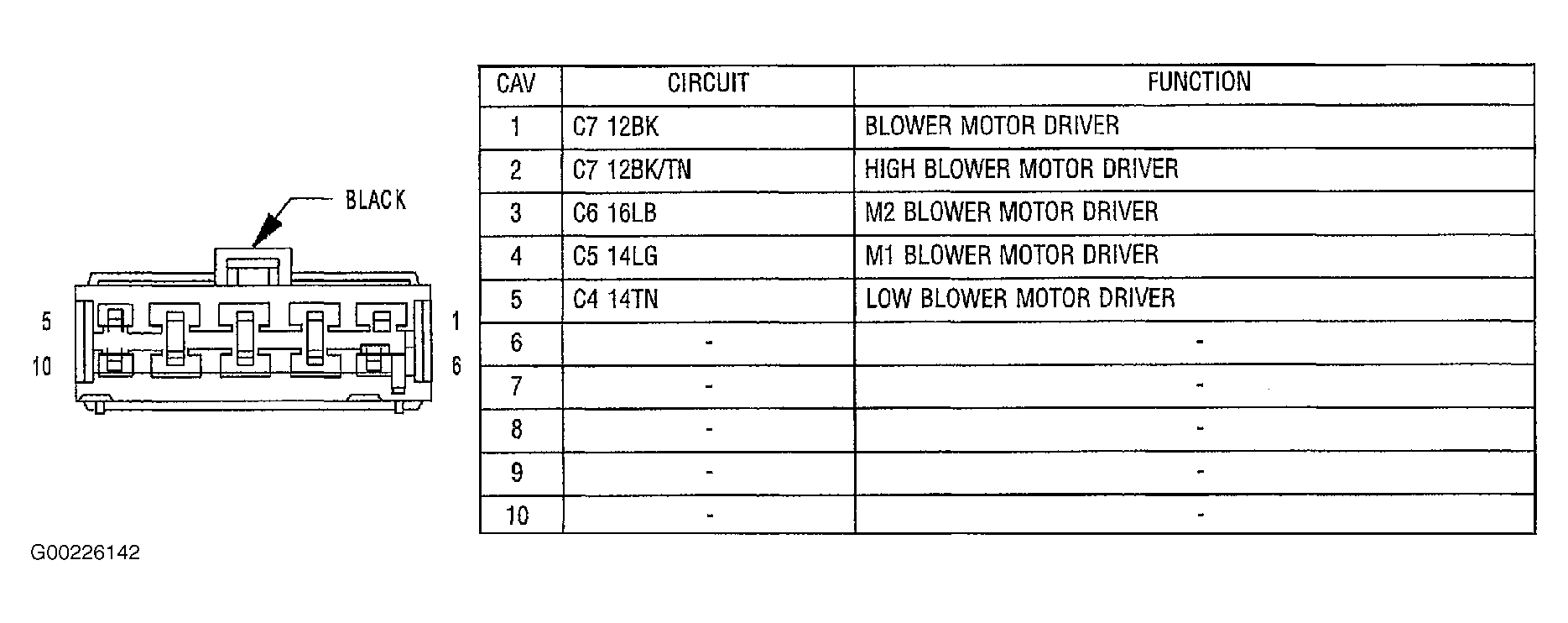

Fig 9: Identifying Blower Motor Resistor Block Connector

G00226142

Courtesy of CHRYSLER CORP.

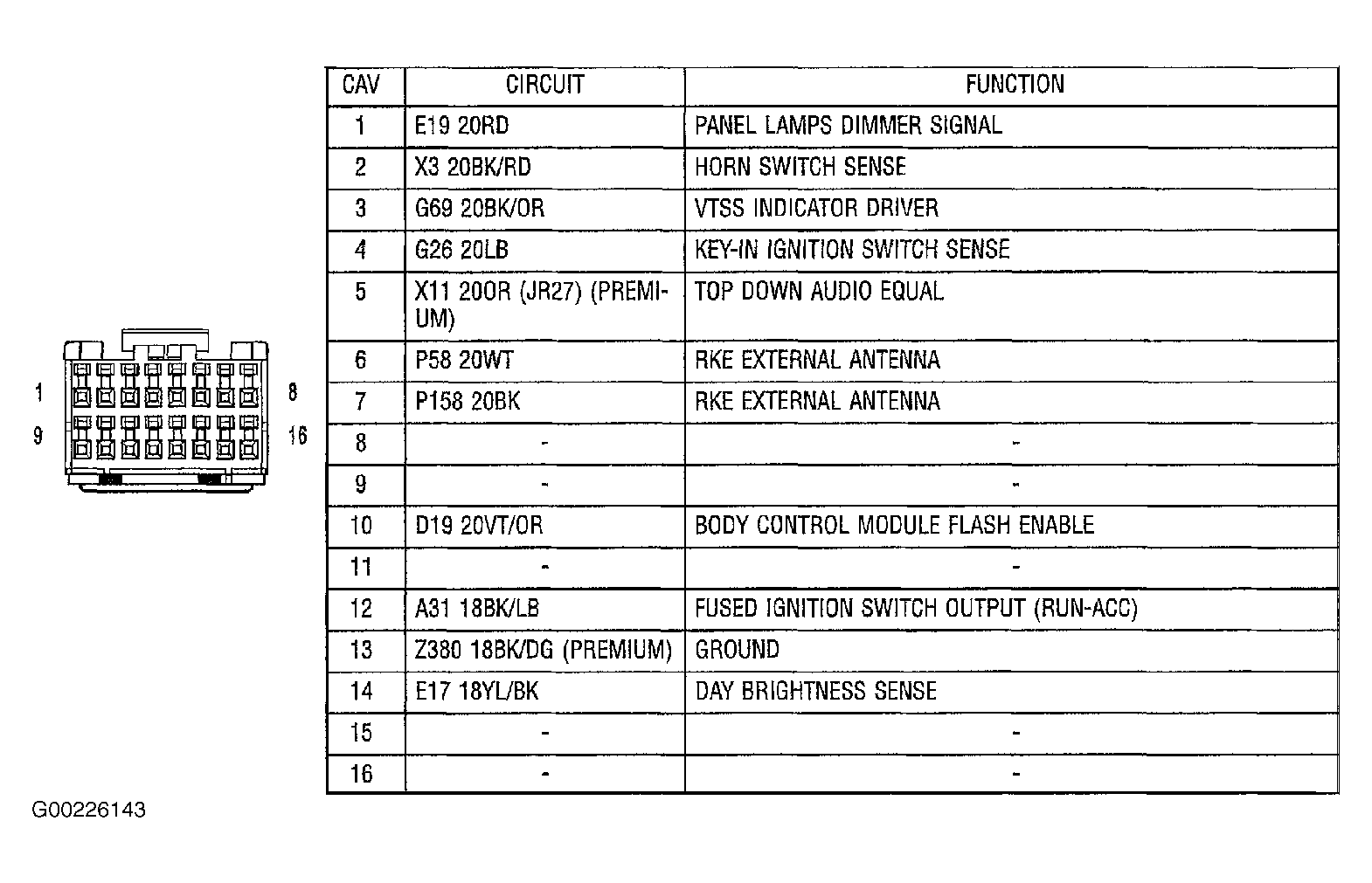

Fig 10: Identifying Body Control Module Connector C1

G00226143

Courtesy of CHRYSLER CORP.

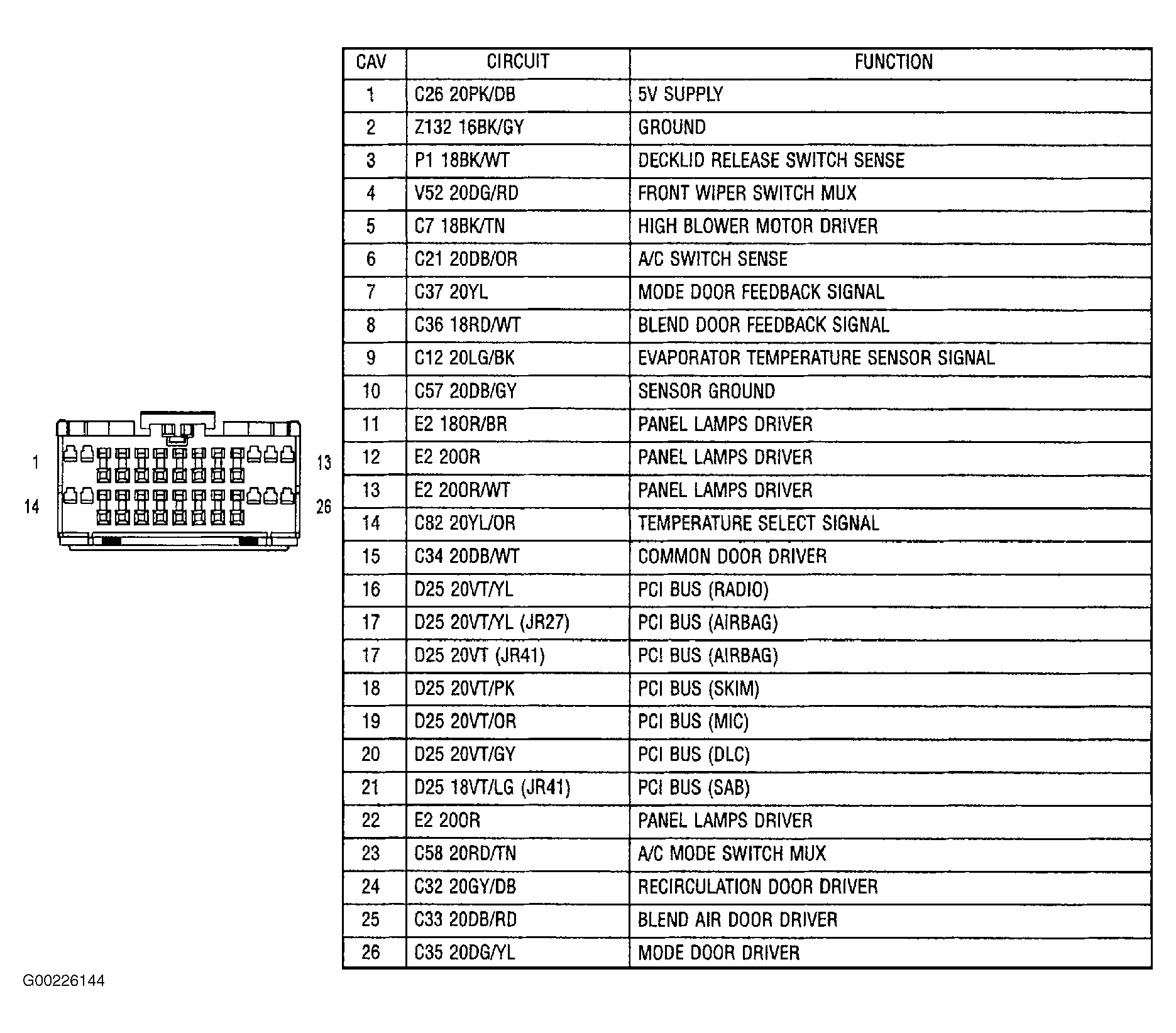

Fig 11: Identifying Body Control Module Connector C2

G00226144

Courtesy of CHRYSLER CORP.

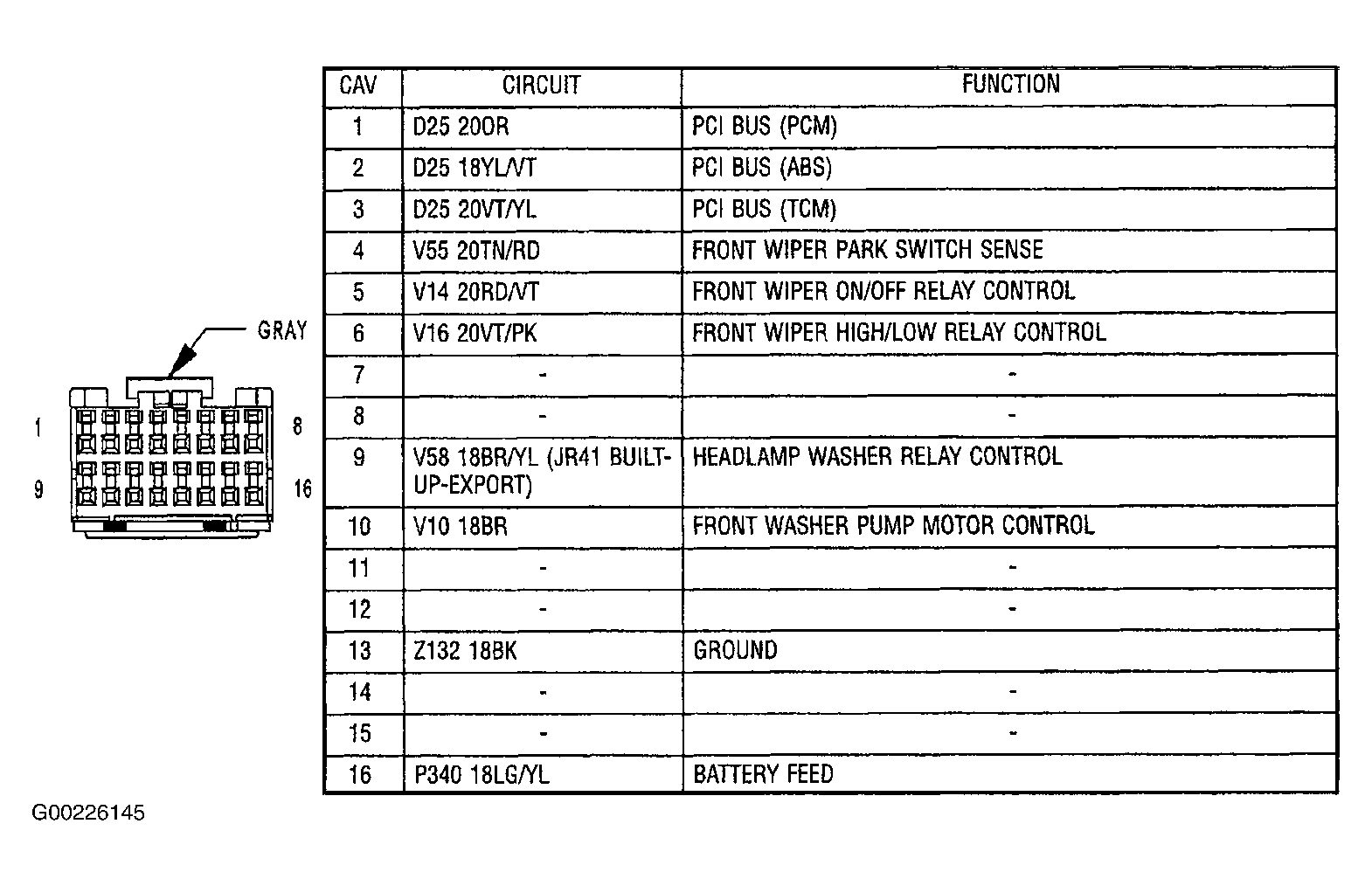

Fig 12: Identifying Body Control Module Connector C3

G00226145

Courtesy of CHRYSLER CORP.

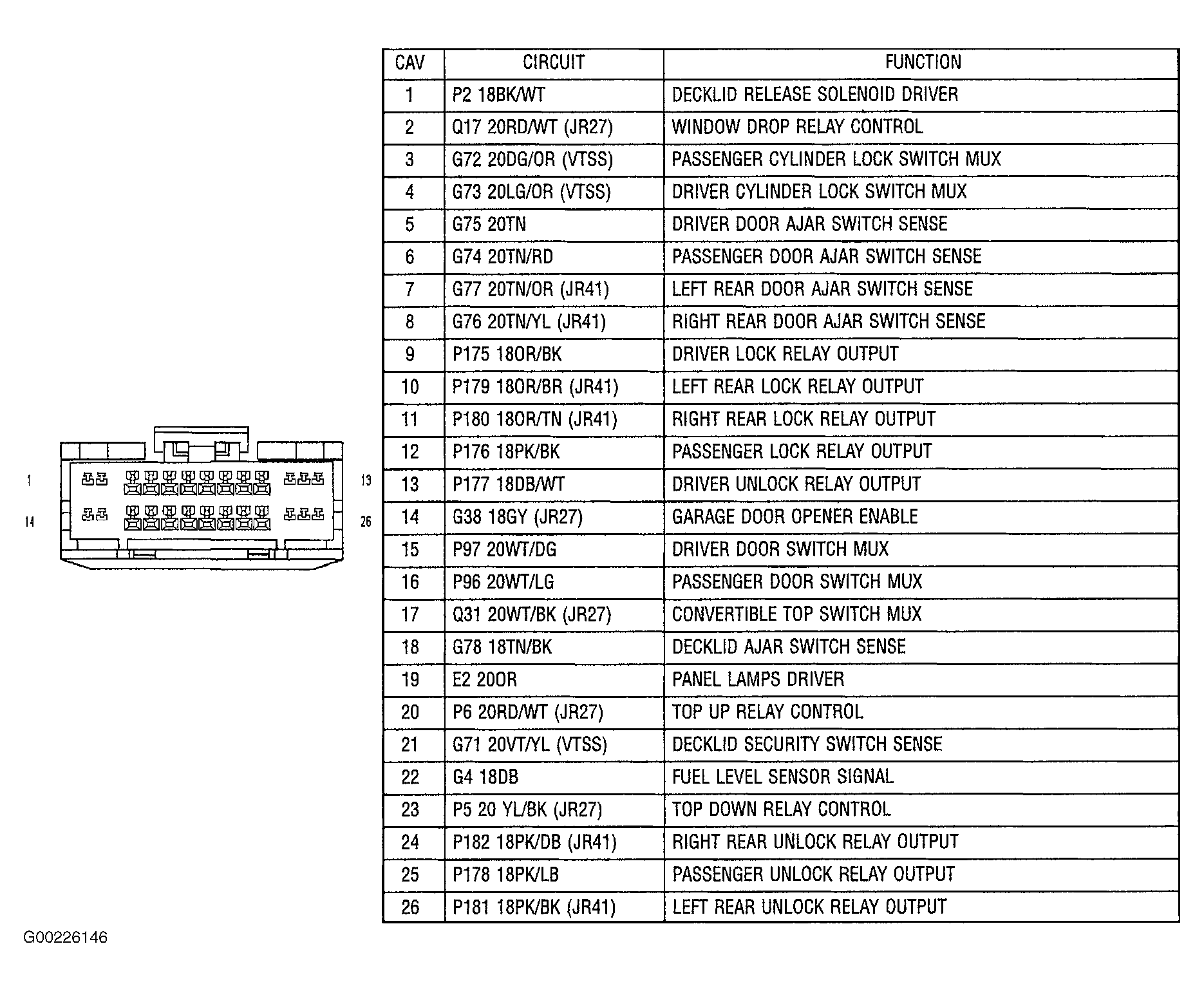

Fig 13: Identifying Body Control Module Connector C4

G00226146

Courtesy of CHRYSLER CORP.

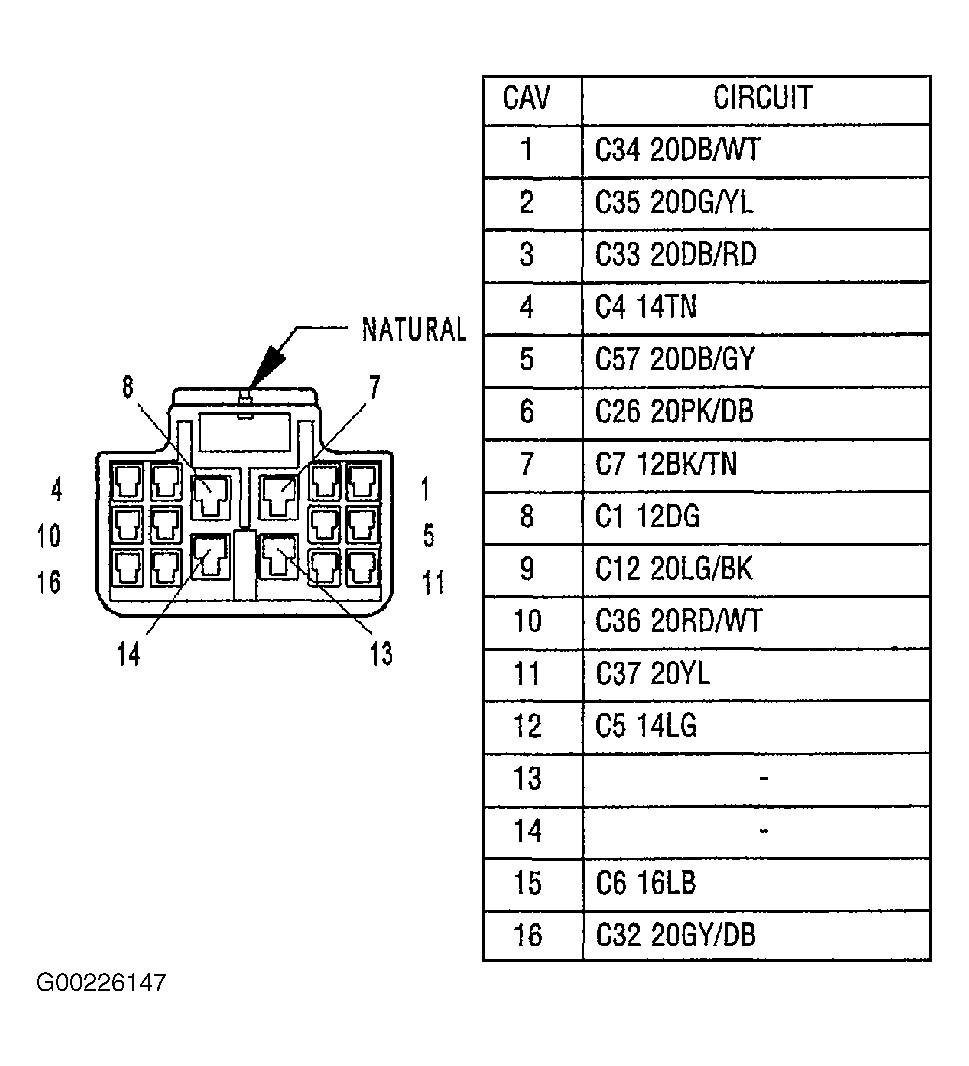

Fig 14: Identifying Connector C200 (HVAC Side)

G00226147

Courtesy of CHRYSLER CORP.

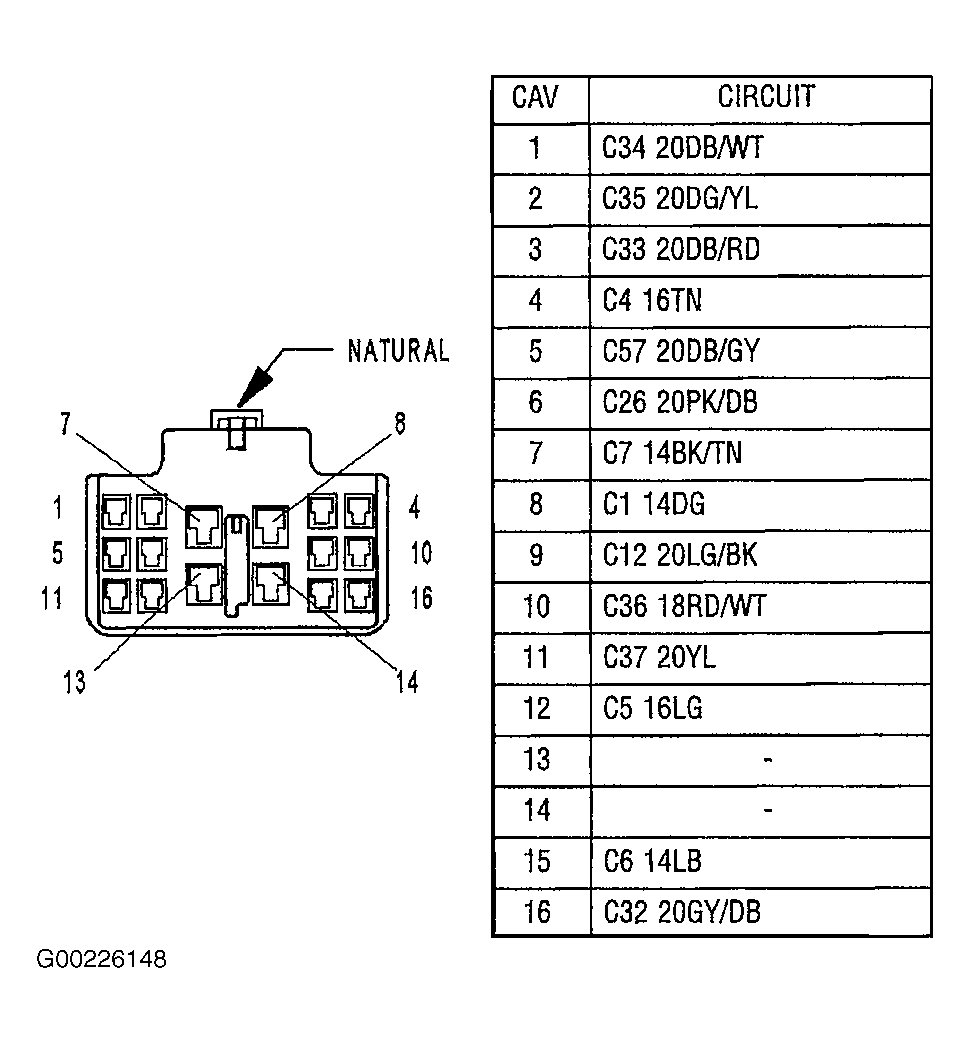

Fig 15: Identifying Connector C200 (Instrument Panel Side)

G00226148

Courtesy of CHRYSLER CORP.

Fig 16: Identifying Connector C304 (Body Side)

G00226149

Courtesy of CHRYSLER CORP.

Fig 17: Identifying Connector C304 (Instrument Panel Side)

G00226150

Courtesy of CHRYSLER CORP.

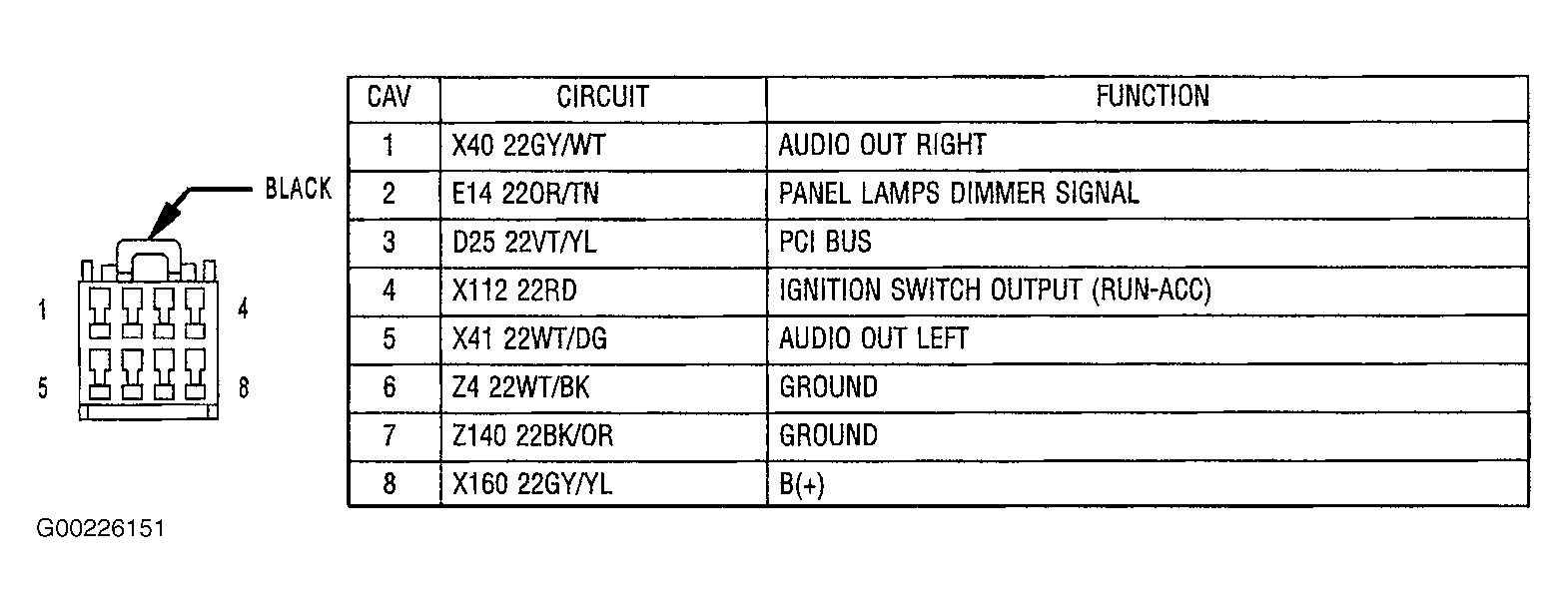

Fig 18: Identifying CD Changer Connector

G00226151

Courtesy of CHRYSLER CORP.

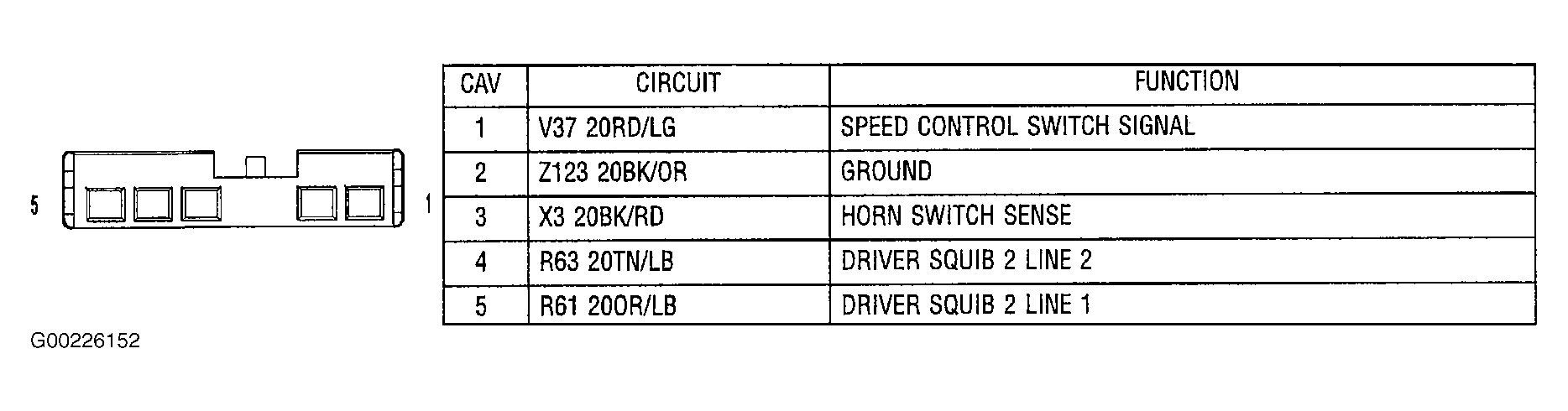

Fig 19: Identifying Clockspring Connector C1

G00226152

Courtesy of CHRYSLER CORP.

Fig 20: Identifying Clockspring Connector C2

G00226153

Courtesy of CHRYSLER CORP.

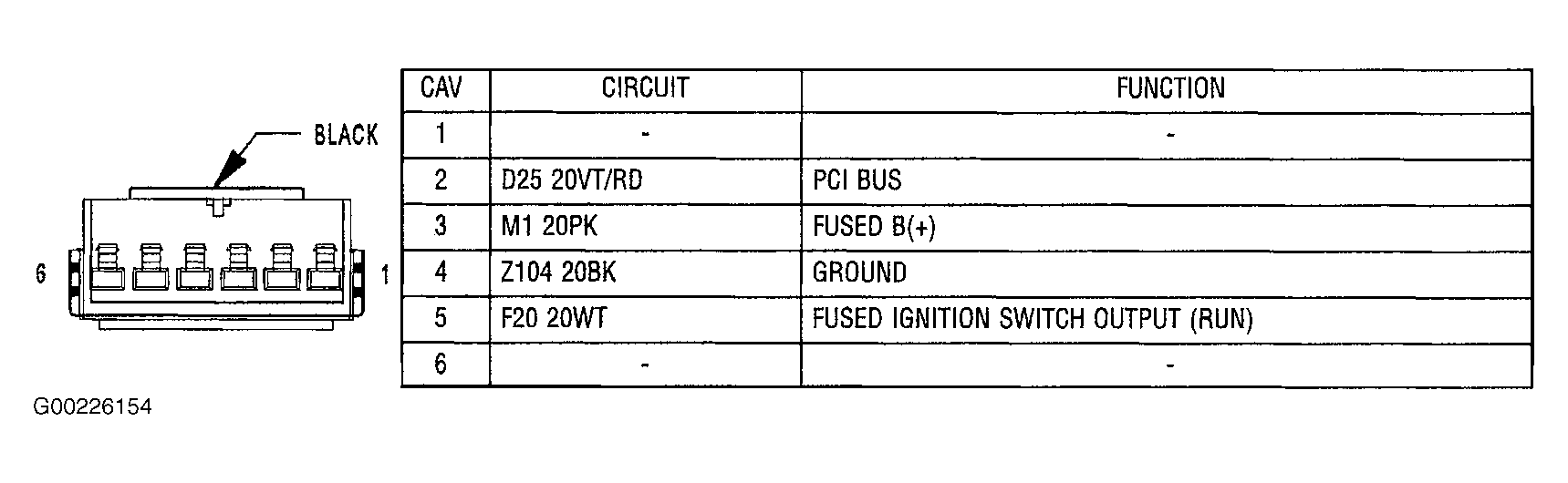

Fig 21: Identifying Compass/Mini-Trip Computer Connector

G00226154

Courtesy of CHRYSLER CORP.

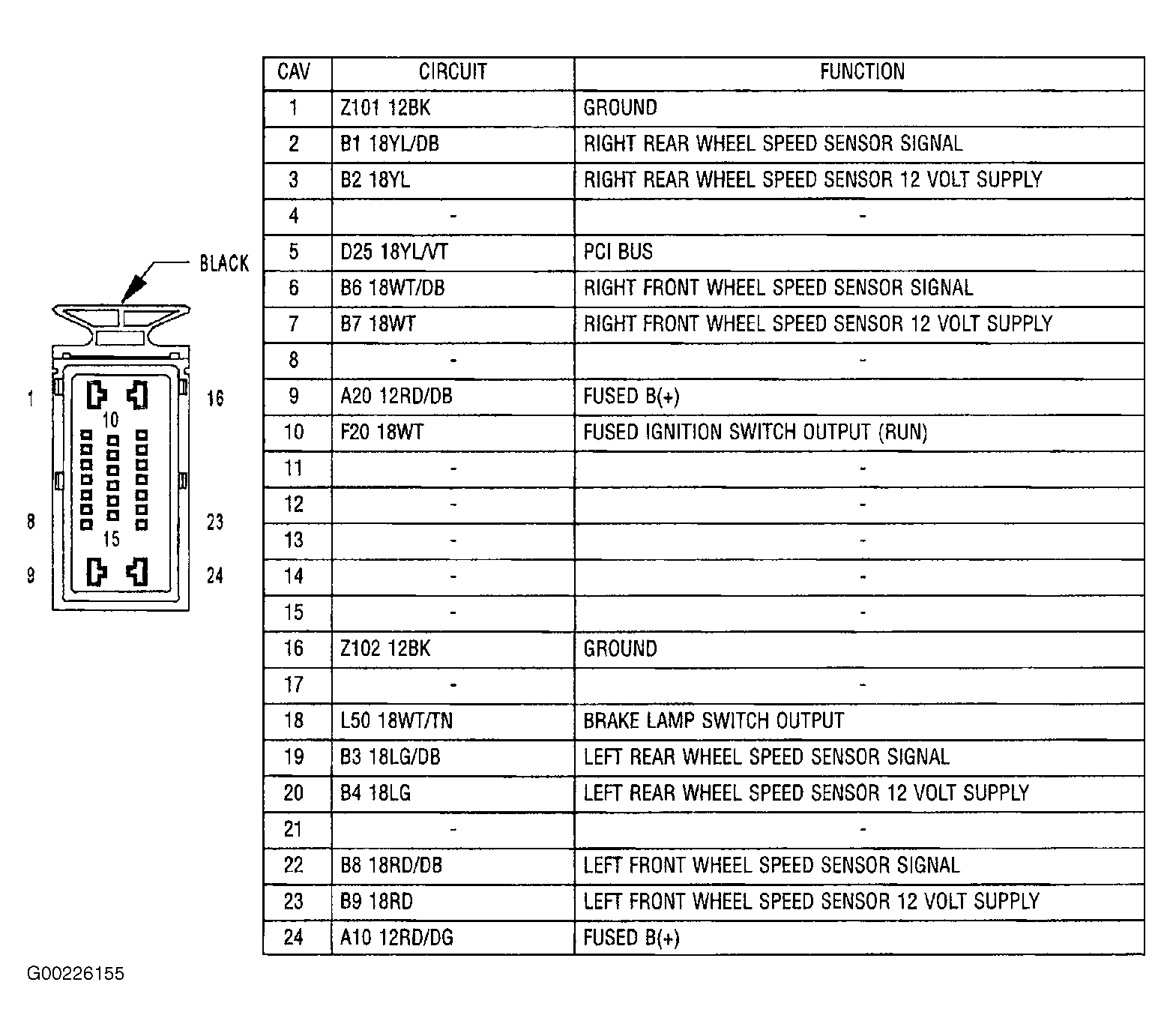

Fig 22: Identifying Controller Anti-Lock Brake Connector

G00226155

Courtesy of CHRYSLER CORP.

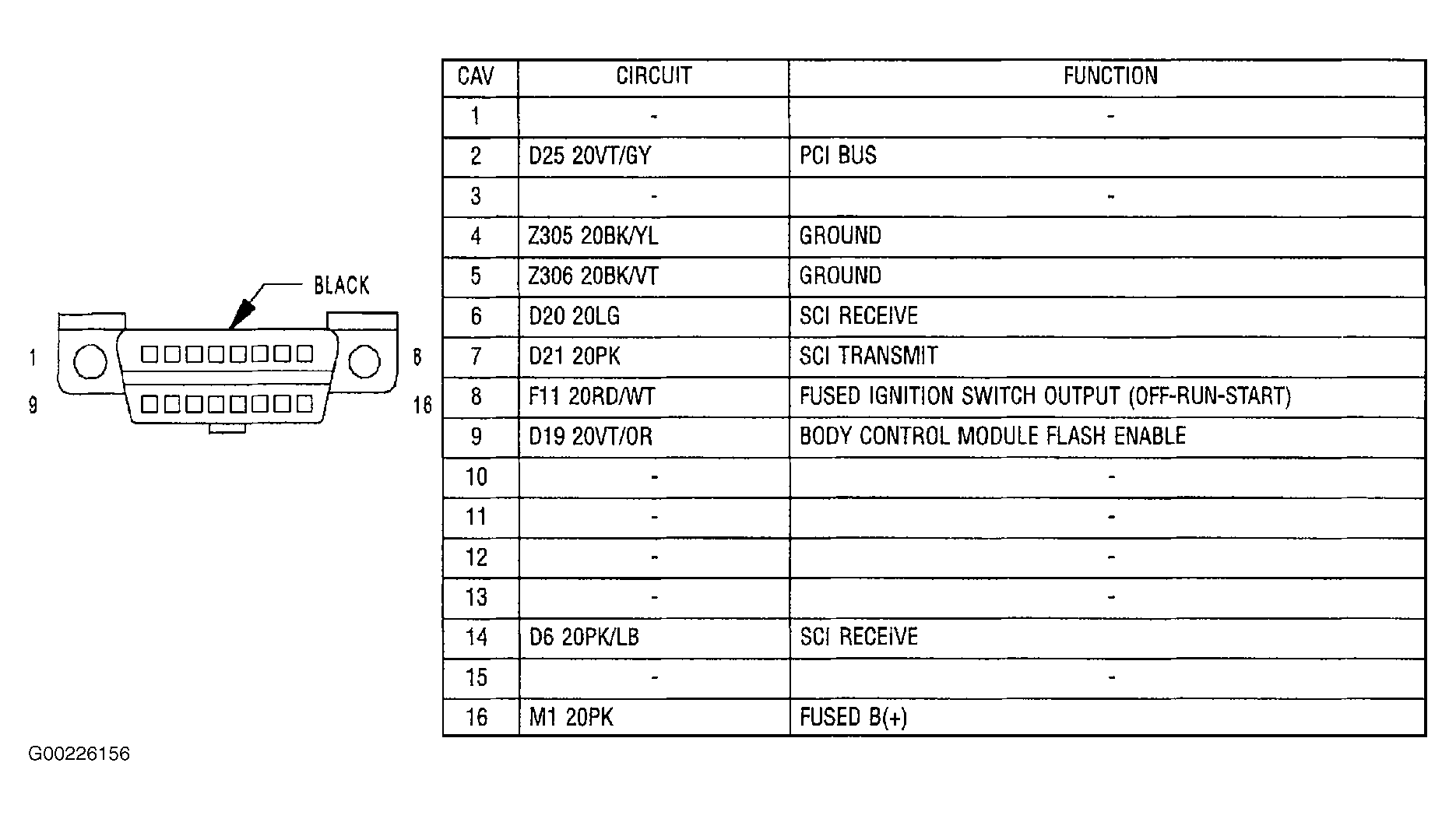

Fig 23: Identifying Data Link Connector

G00226156

Courtesy of CHRYSLER CORP.

Fig 24: Identifying Decklid Cylinder Lock Switch Connector

G00226157

Courtesy of CHRYSLER CORP.

Fig 25: Identifying Decklid Release Solenoid/Ajar Switch Connector

G00226158

Courtesy of CHRYSLER CORP.

Fig 26: Identifying Decklid Release Switch Connector

G00226159

Courtesy of CHRYSLER CORP.

Fig 27: Identifying Dome Light Connector

G00226160

Courtesy of CHRYSLER CORP.

Fig 28: Identifying Driver Air Bag Squib Connector No. 1

G00226161

Courtesy of CHRYSLER CORP.

Fig 29: Identifying Driver Air Bag Squib Connector No. 2

G00226162

Courtesy of CHRYSLER CORP.

Fig 30: Identifying Driver Cylinder Lock Switch Connector

G00226163

Courtesy of CHRYSLER CORP.

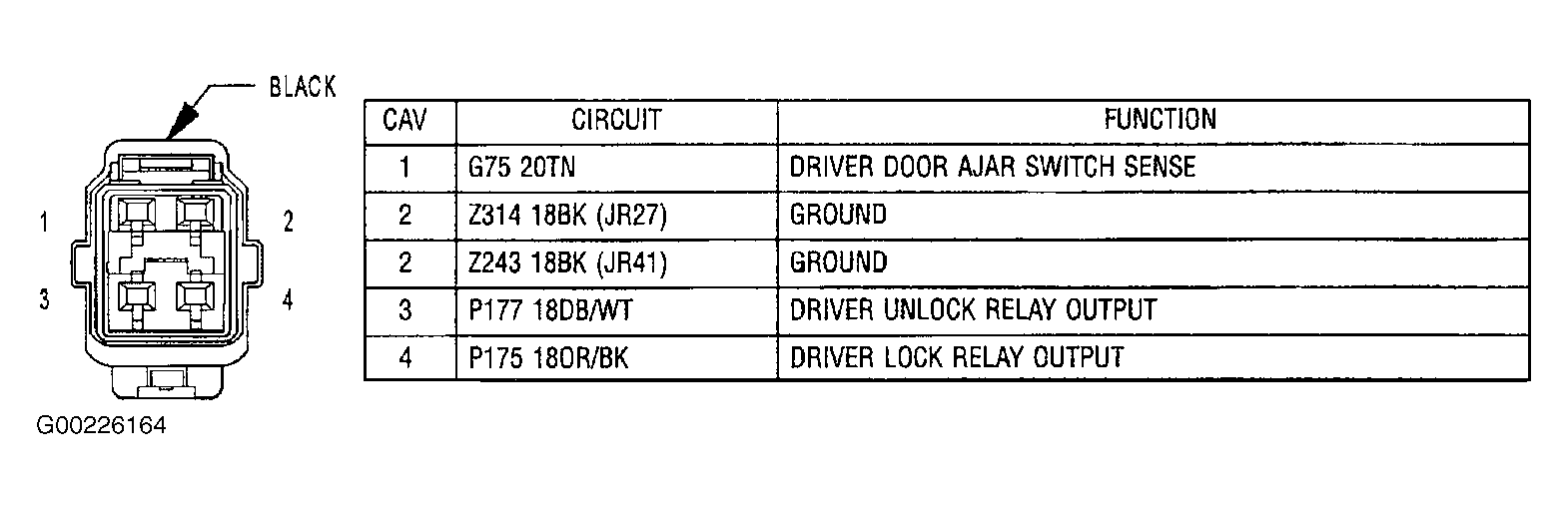

Fig 31: Identifying Driver Door Lock Motor/Ajar Switch Connector

G00226164

Courtesy of CHRYSLER CORP.

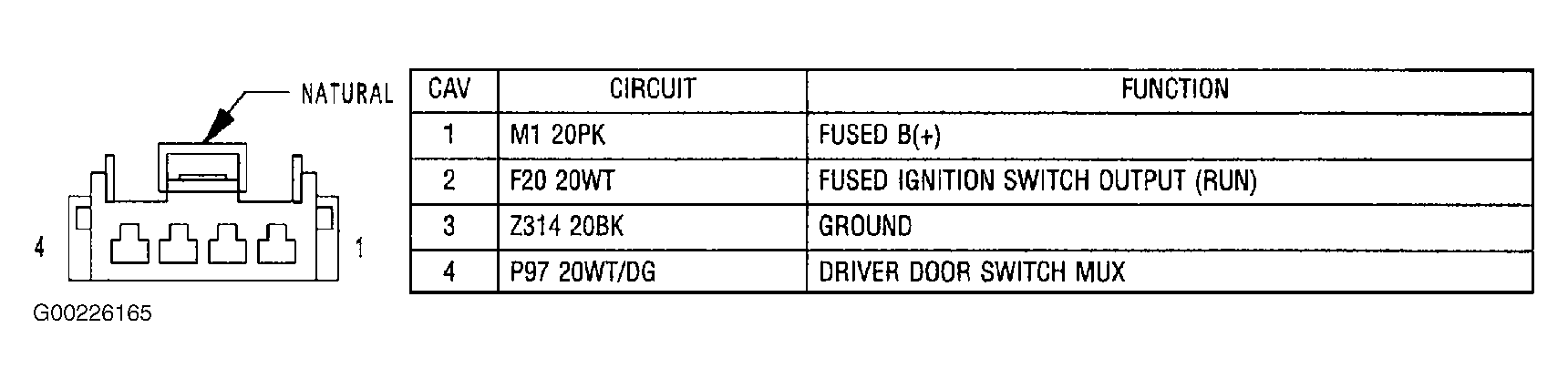

Fig 32: Identifying Driver Door Lock Switch Connector

G00226165

Courtesy of CHRYSLER CORP.

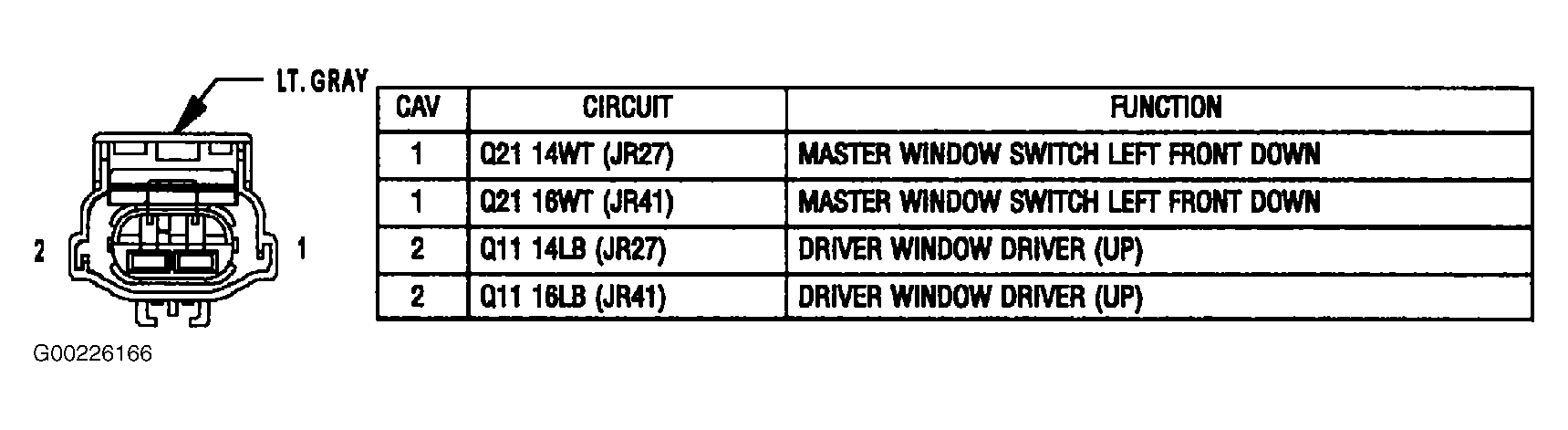

Fig 33: Identifying Driver Power Window Motor Connector

G00226166

Courtesy of CHRYSLER CORP.

Fig 34: Identifying Driver Seat Belt Switch Connector

G00226167

Courtesy of CHRYSLER CORP.

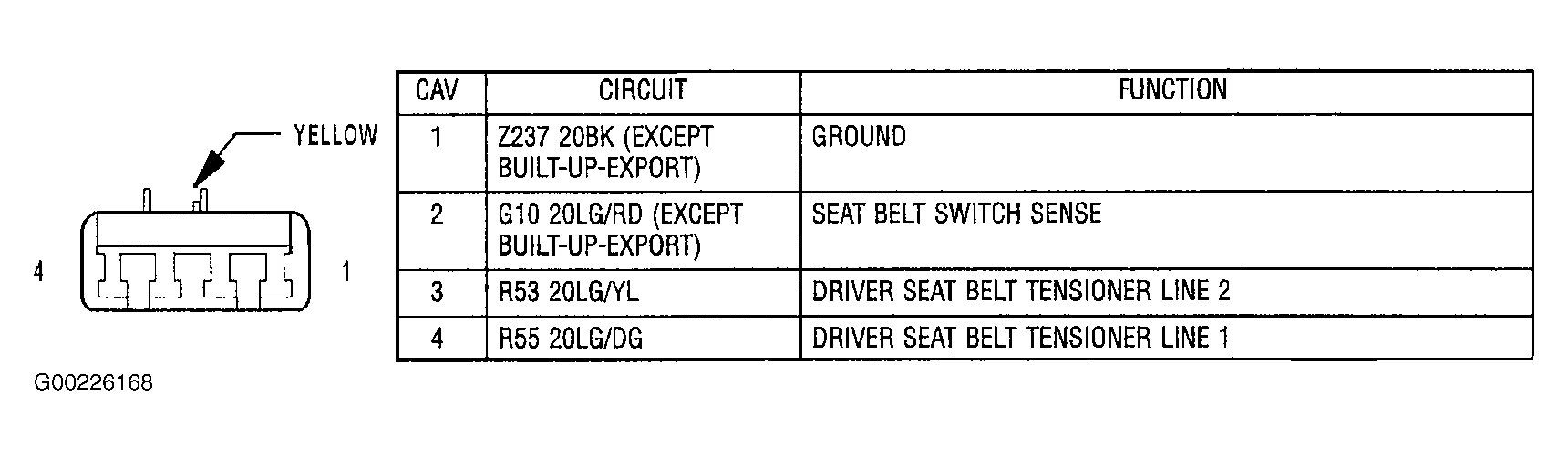

Fig 35: Identifying Driver Seat Belt Tensioner Connector (Yellow 4-Pin)

G00226168

Courtesy of CHRYSLER CORP.

Fig 36: Identifying Driver Seat Belt Tensioner Connector (2-Pin)

G00226169

Courtesy of CHRYSLER CORP.

Fig 37: Identifying Front Washer Pump Motor Connector

G00226170

Courtesy of CHRYSLER CORP.

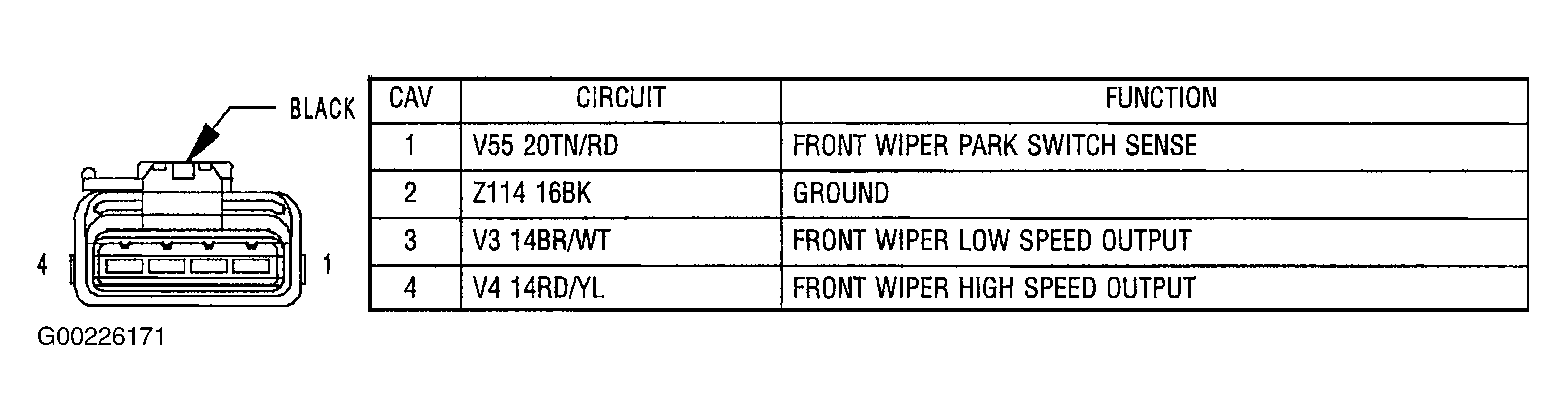

Fig 38: Identifying Front Wiper Motor Connector

G00226171

Courtesy of CHRYSLER CORP.

Fig 39: Identifying Horn Note Connector

G00226173

Courtesy of CHRYSLER CORP.

Fig 40: Identifying Ignition Switch Connector C1

G00226174

Courtesy of CHRYSLER CORP.

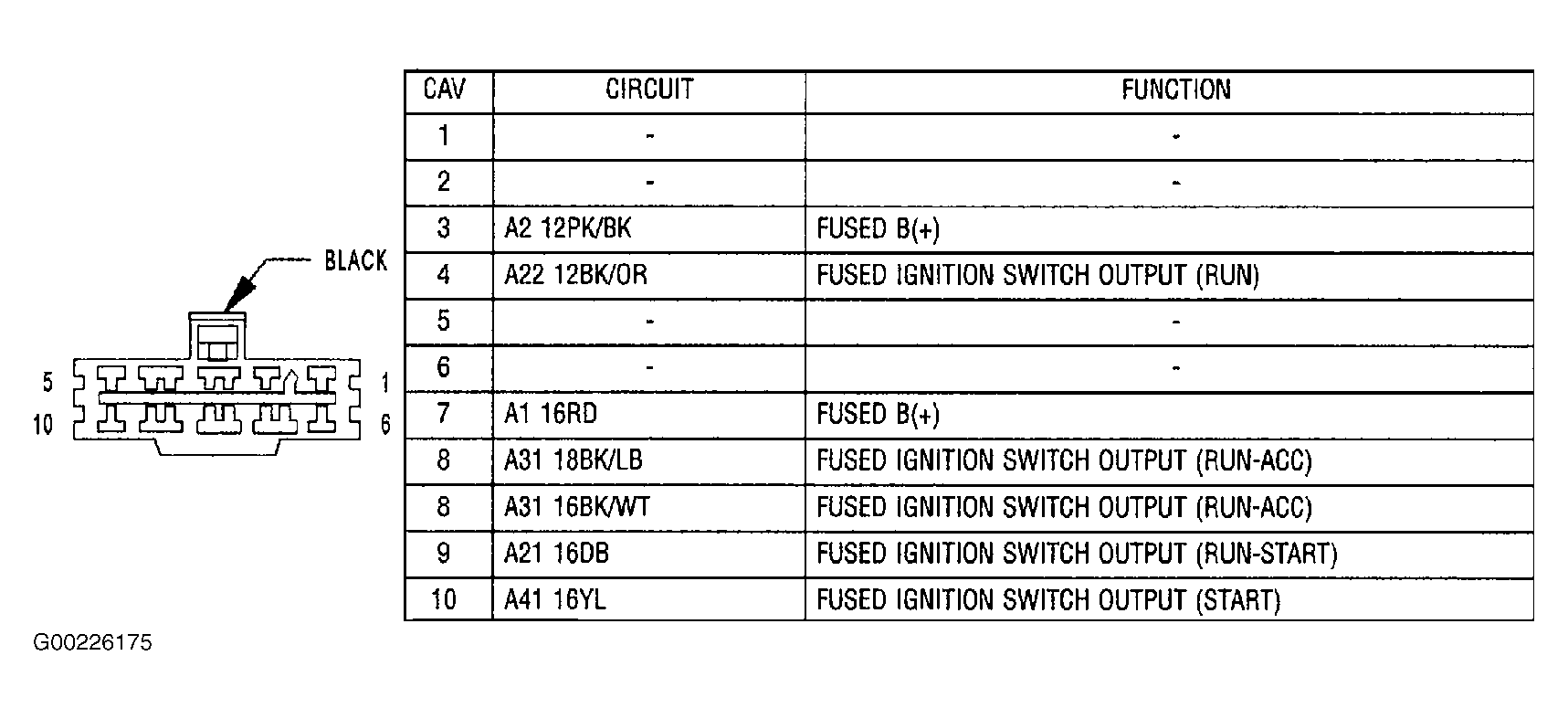

Fig 41: Identifying Ignition Switch Connector C2

G00226175

Courtesy of CHRYSLER CORP.

Fig 42: Identifying Ignition Switch Connector C3

G00226176

Courtesy of CHRYSLER CORP.

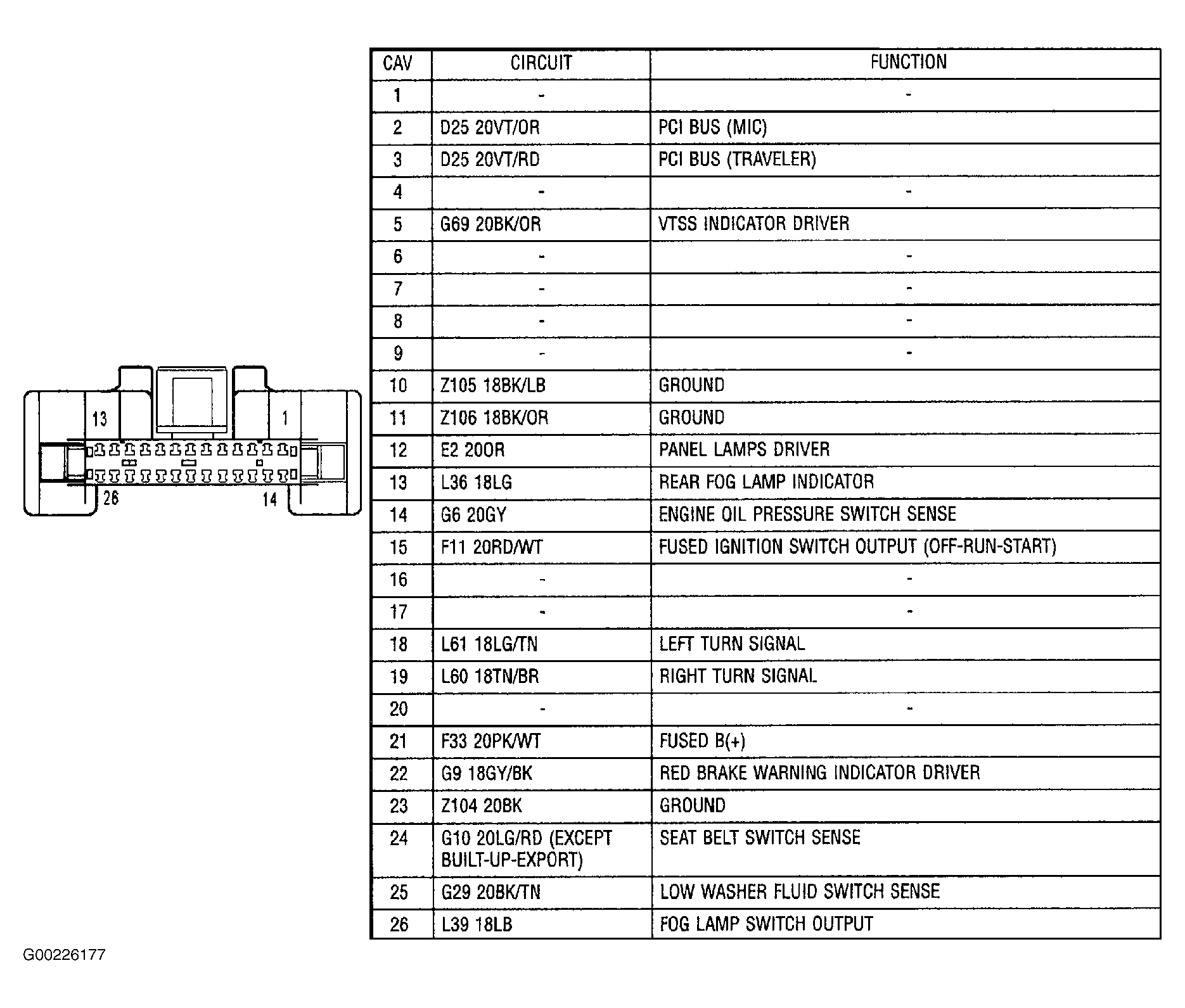

Fig 43: Identifying Instrument Cluster Connector

G00226177

Courtesy of CHRYSLER CORP.

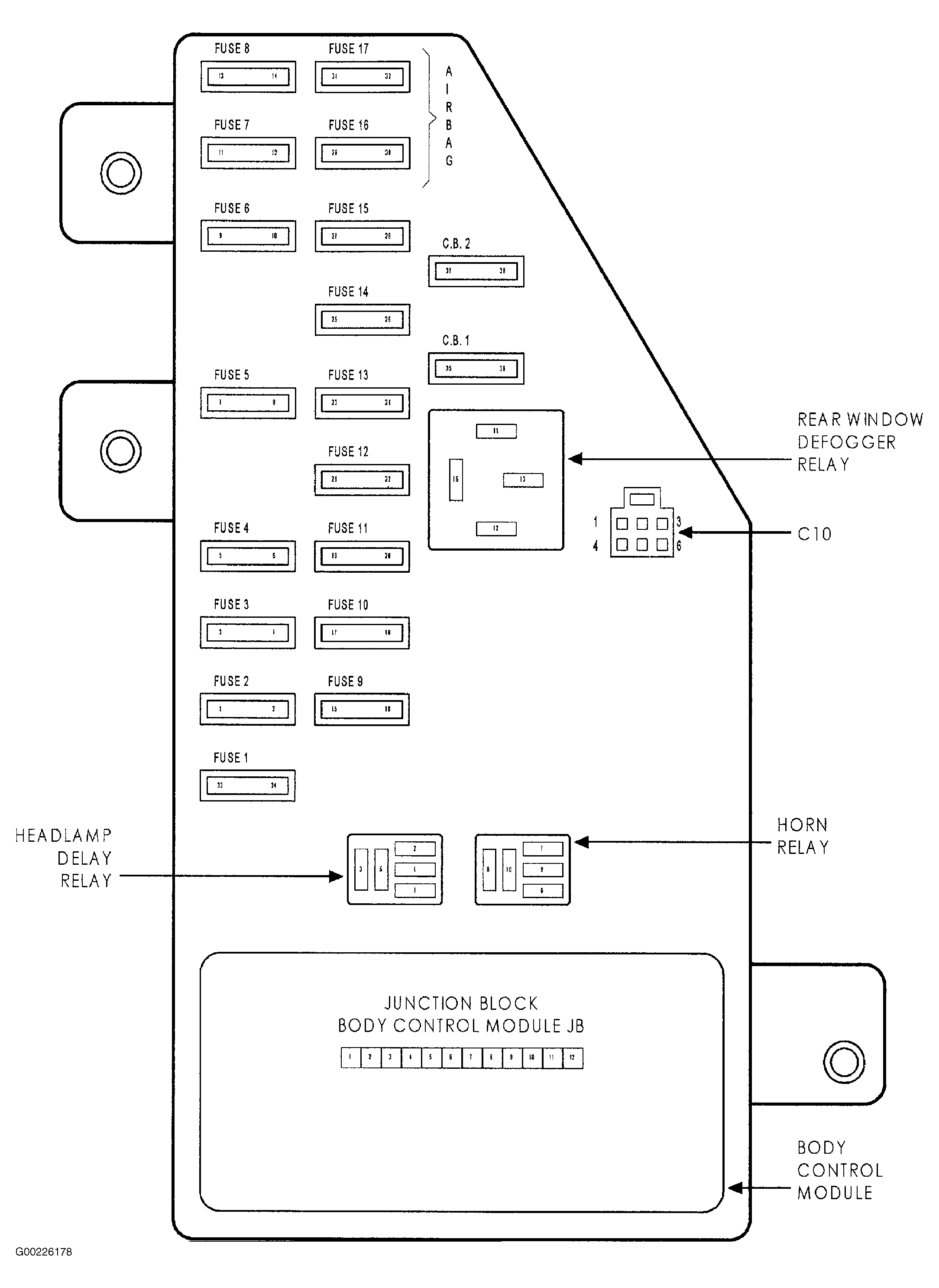

Fig 44: Identifying Junction Block Connector

G00226178

Courtesy of CHRYSLER CORP.

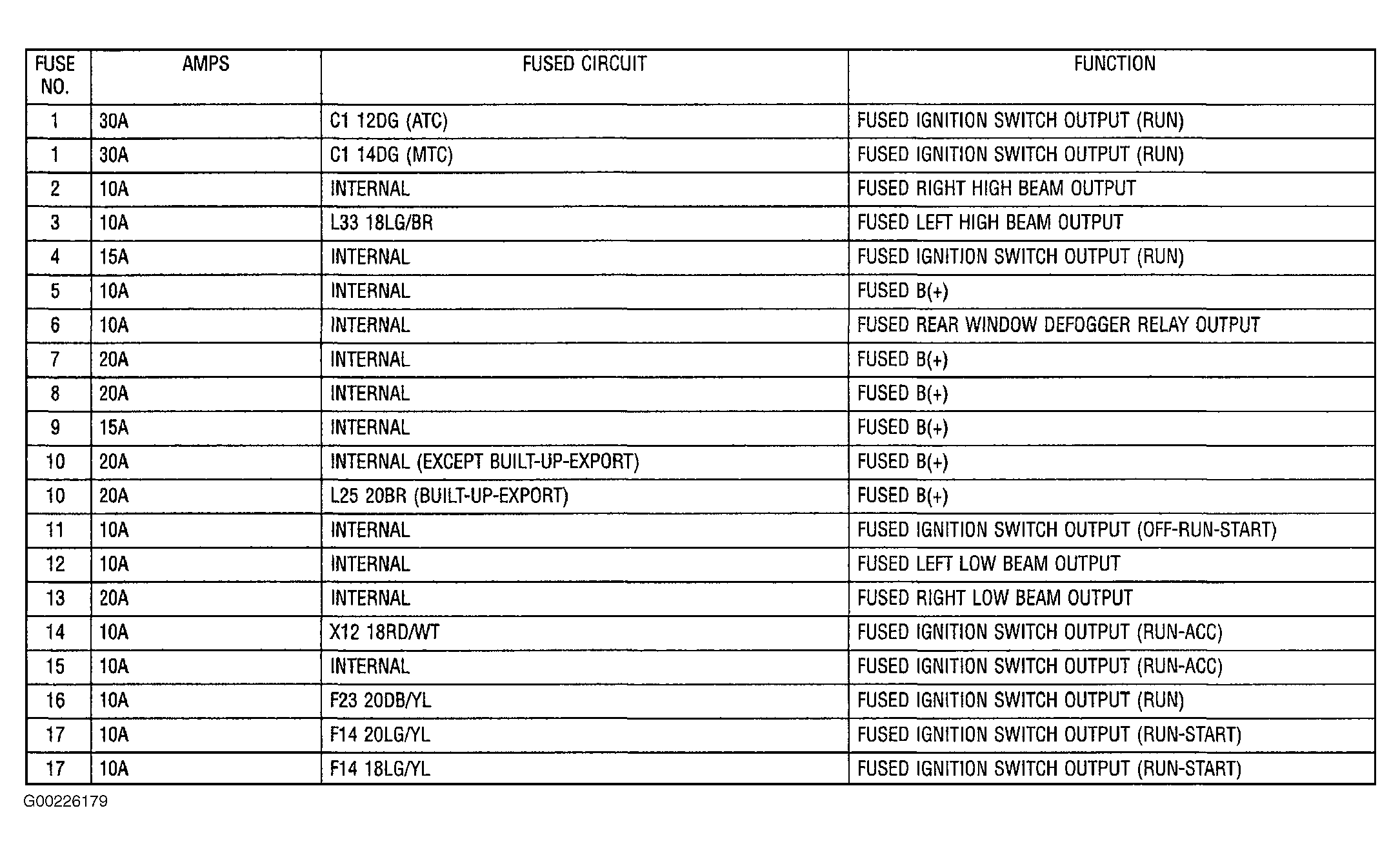

Fig 45: Identifying Junction Block Fuses

G00226179

Courtesy of CHRYSLER CORP.

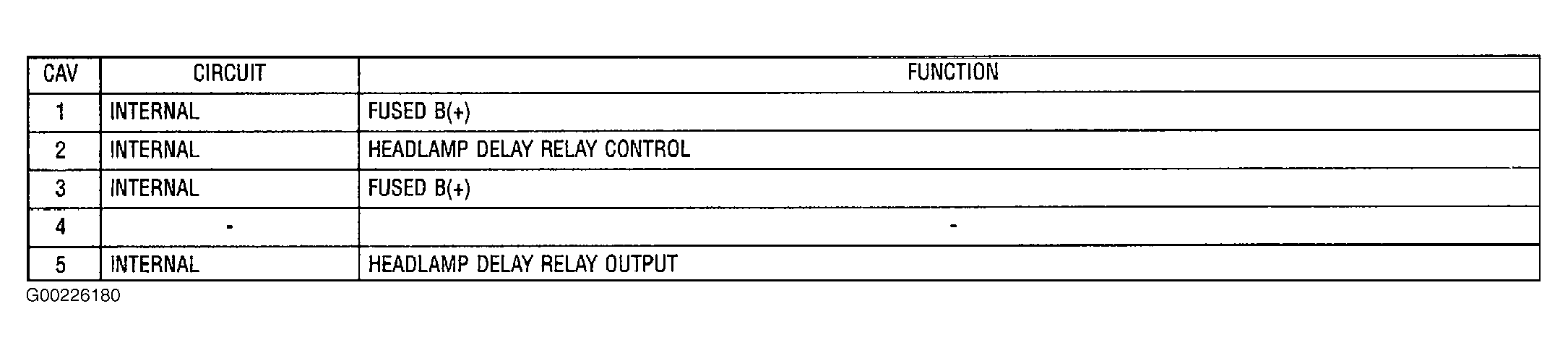

Fig 46: Identifying Junction Block Headlight Delay Relay Terminals

G00226180

Courtesy of CHRYSLER CORP.

Fig 47: Identifying Junction Block Horn Relay Terminals

G00226181

Courtesy of CHRYSLER CORP.

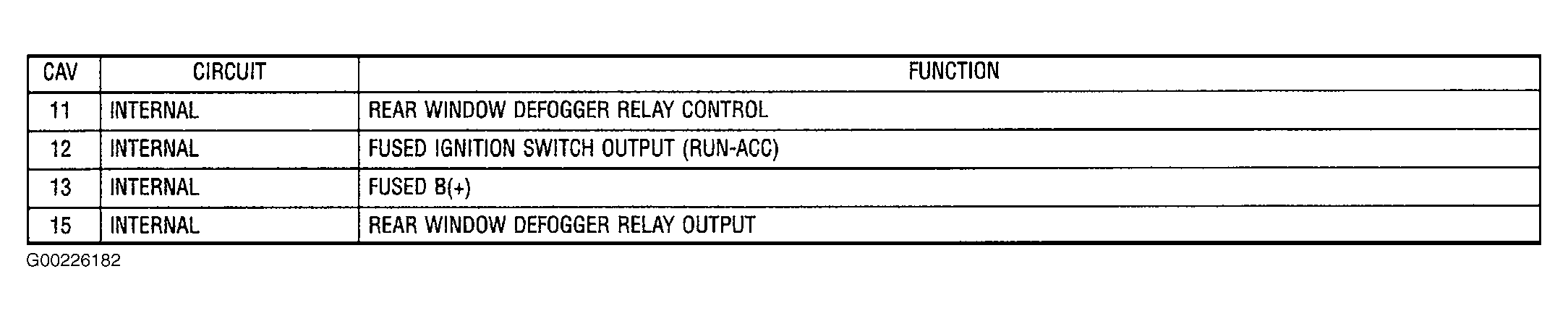

Fig 48: Identifying Junction Block Rear Window Defogger Relay Terminals

G00226182

Courtesy of CHRYSLER CORP.

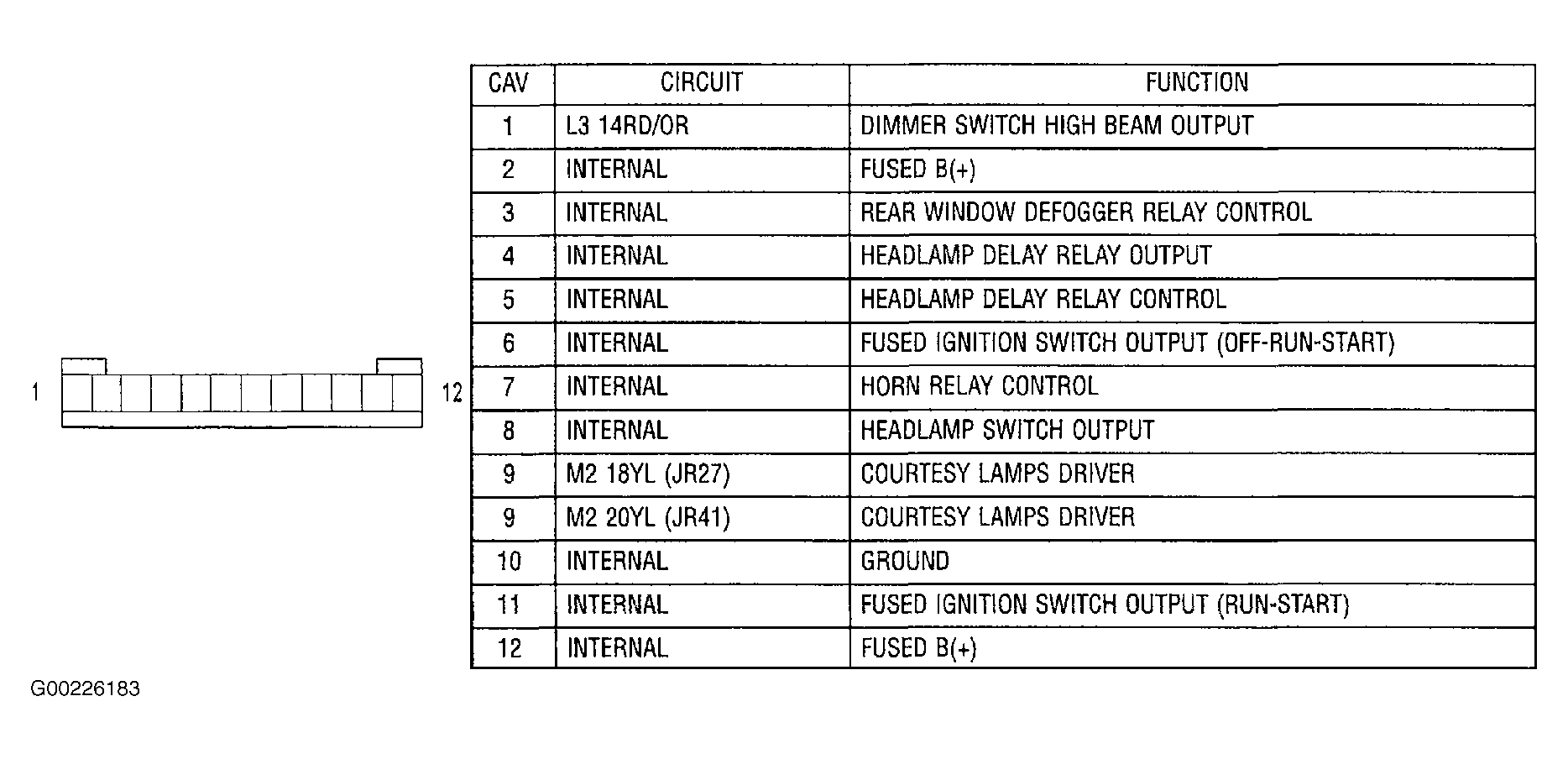

Fig 49: Identifying Junction Block Body Control Module Connector

G00226183

Courtesy of CHRYSLER CORP.

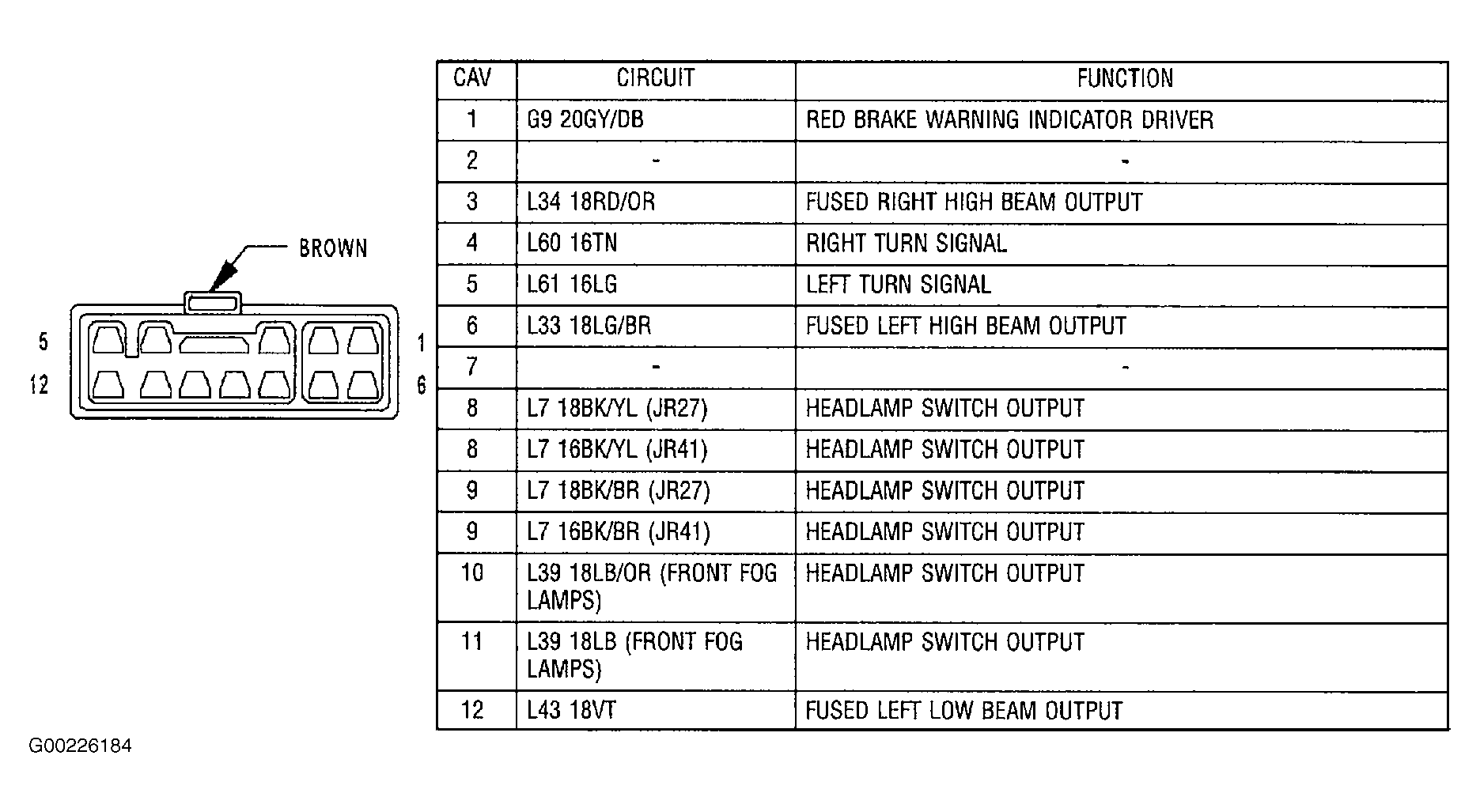

Fig 50: Identifying Junction Block Connector C1

G00226184

Courtesy of CHRYSLER CORP.

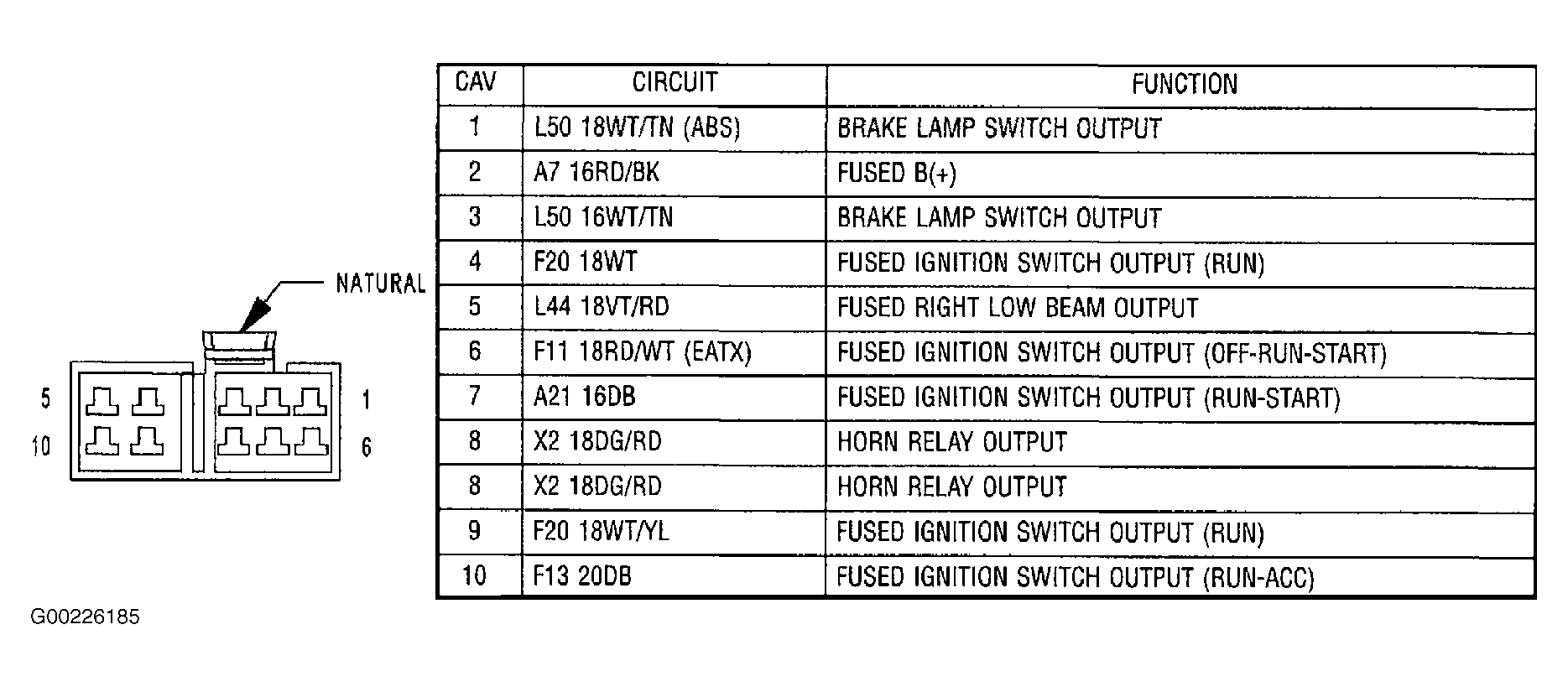

Fig 51: Identifying Junction Block Connector C2

G00226185

Courtesy of CHRYSLER CORP.

Fig 52: Identifying Junction Block Connector C3

G00226186

Courtesy of CHRYSLER CORP.

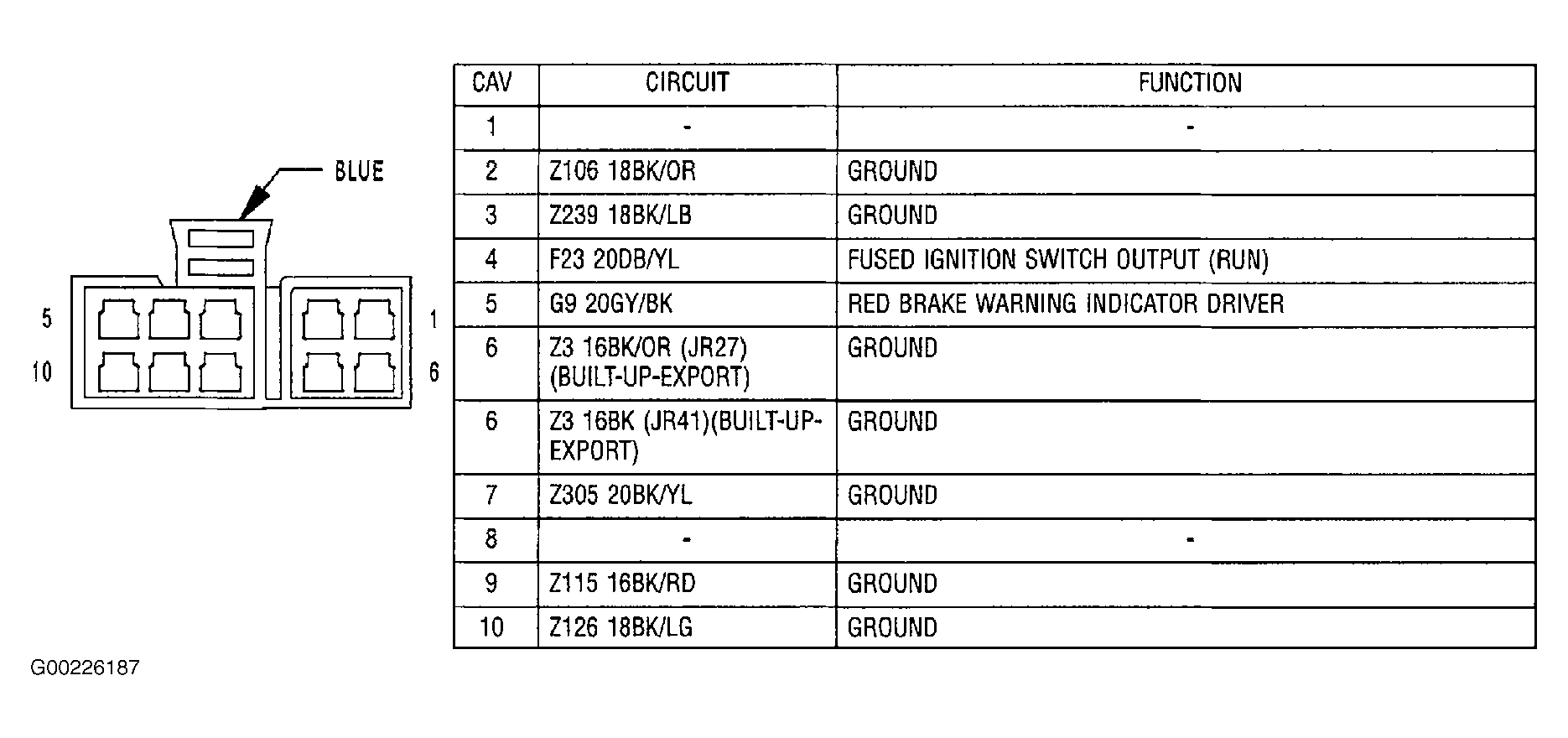

Fig 53: Identifying Junction Block Connector C4

G00226187

Courtesy of CHRYSLER CORP.

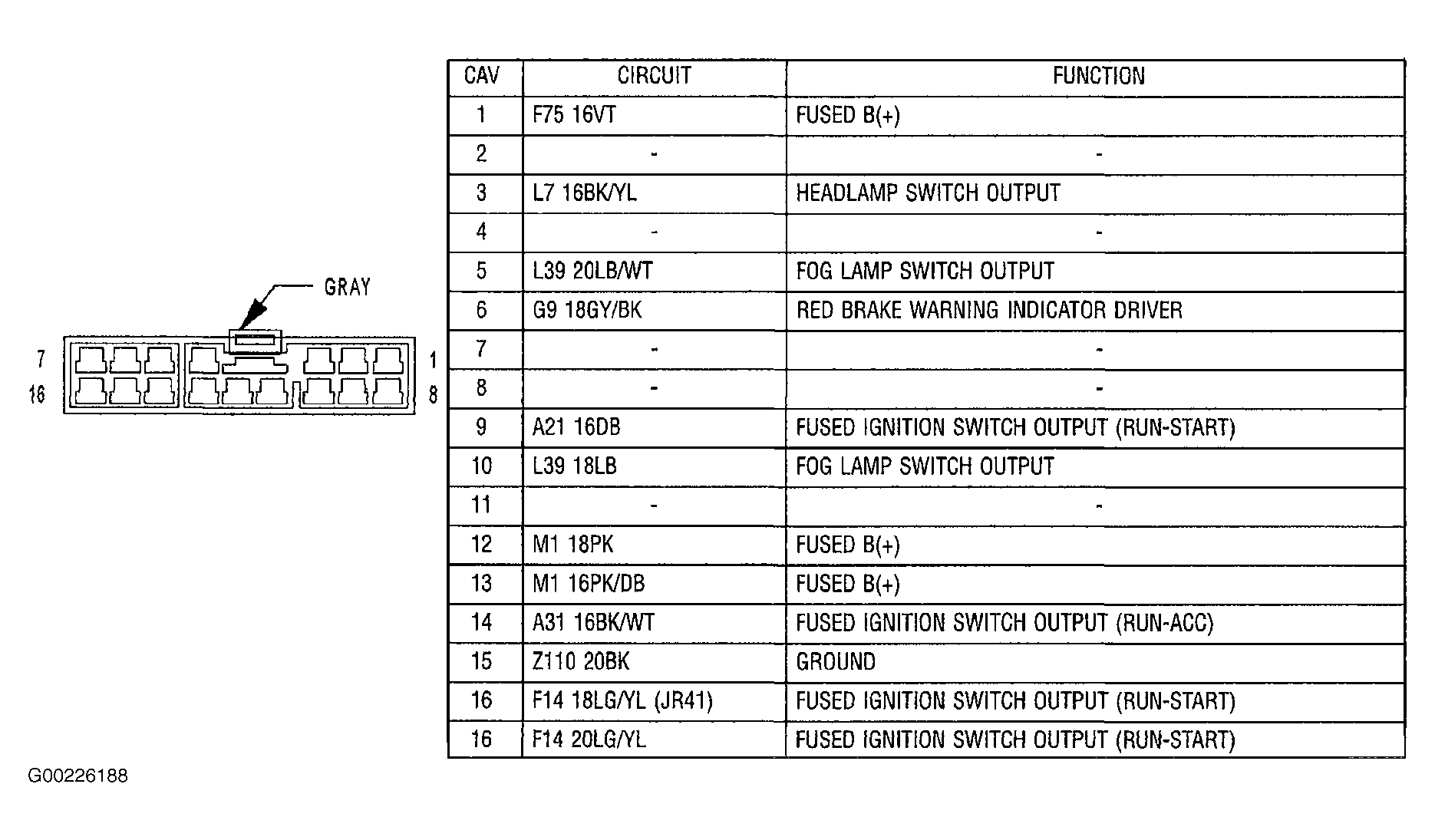

Fig 54: Identifying Junction Block Connector C5

G00226188

Courtesy of CHRYSLER CORP.

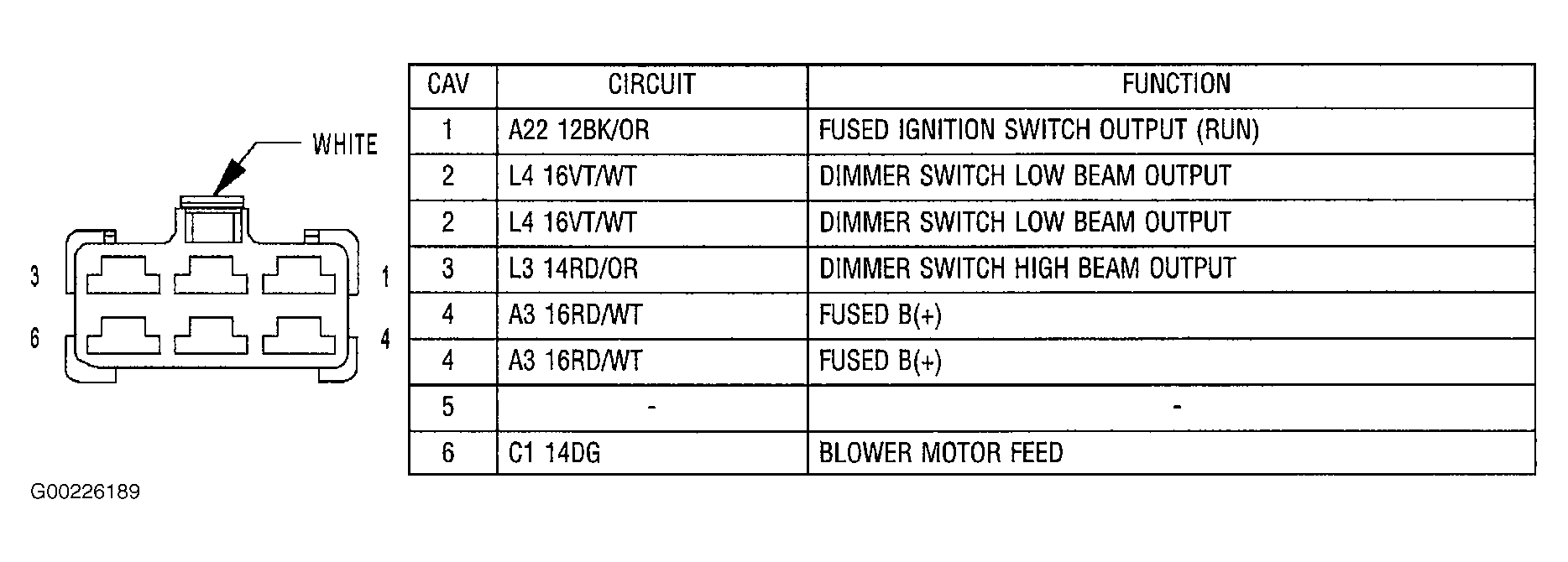

Fig 55: Identifying Junction Block Connector C6

G00226189

Courtesy of CHRYSLER CORP.

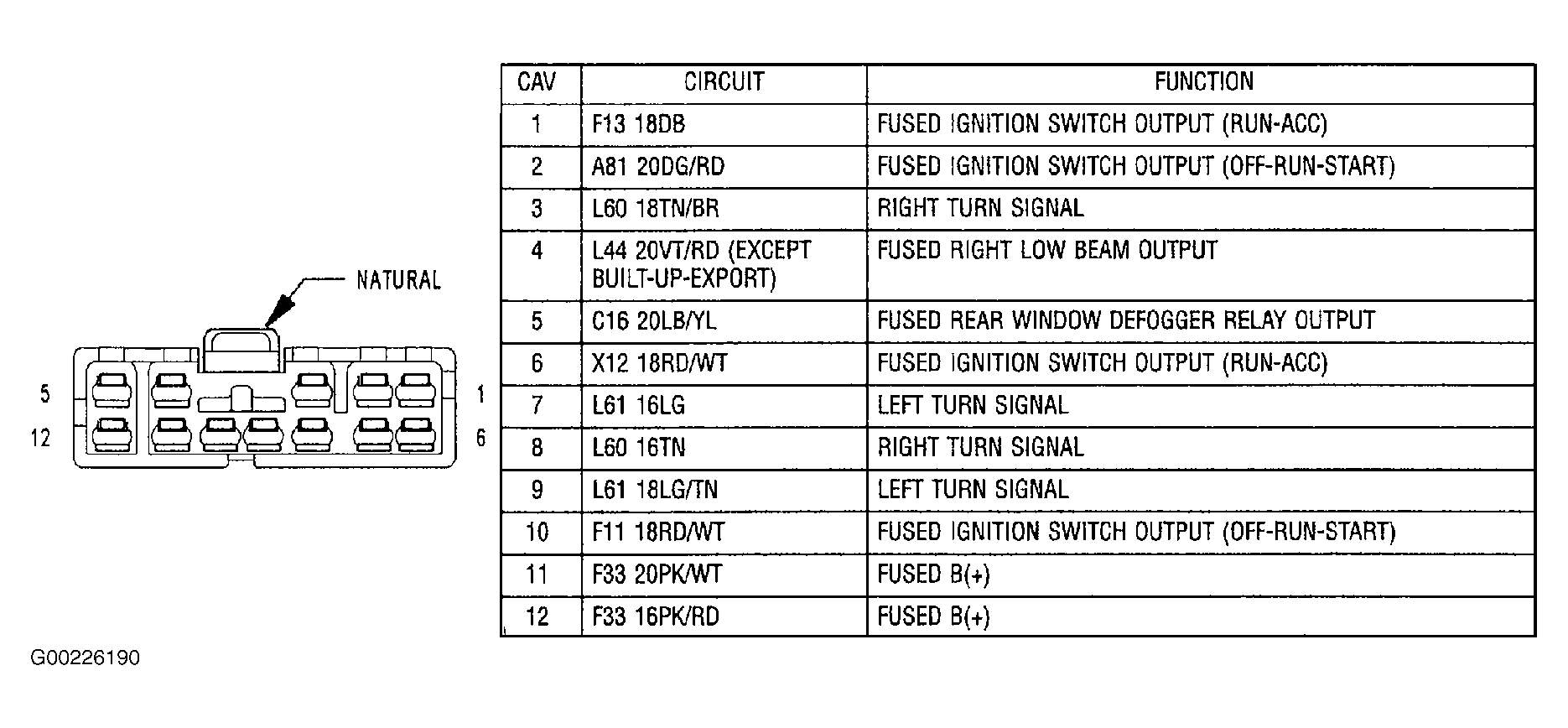

Fig 56: Identifying Junction Block Connector C7

G00226190

Courtesy of CHRYSLER CORP.

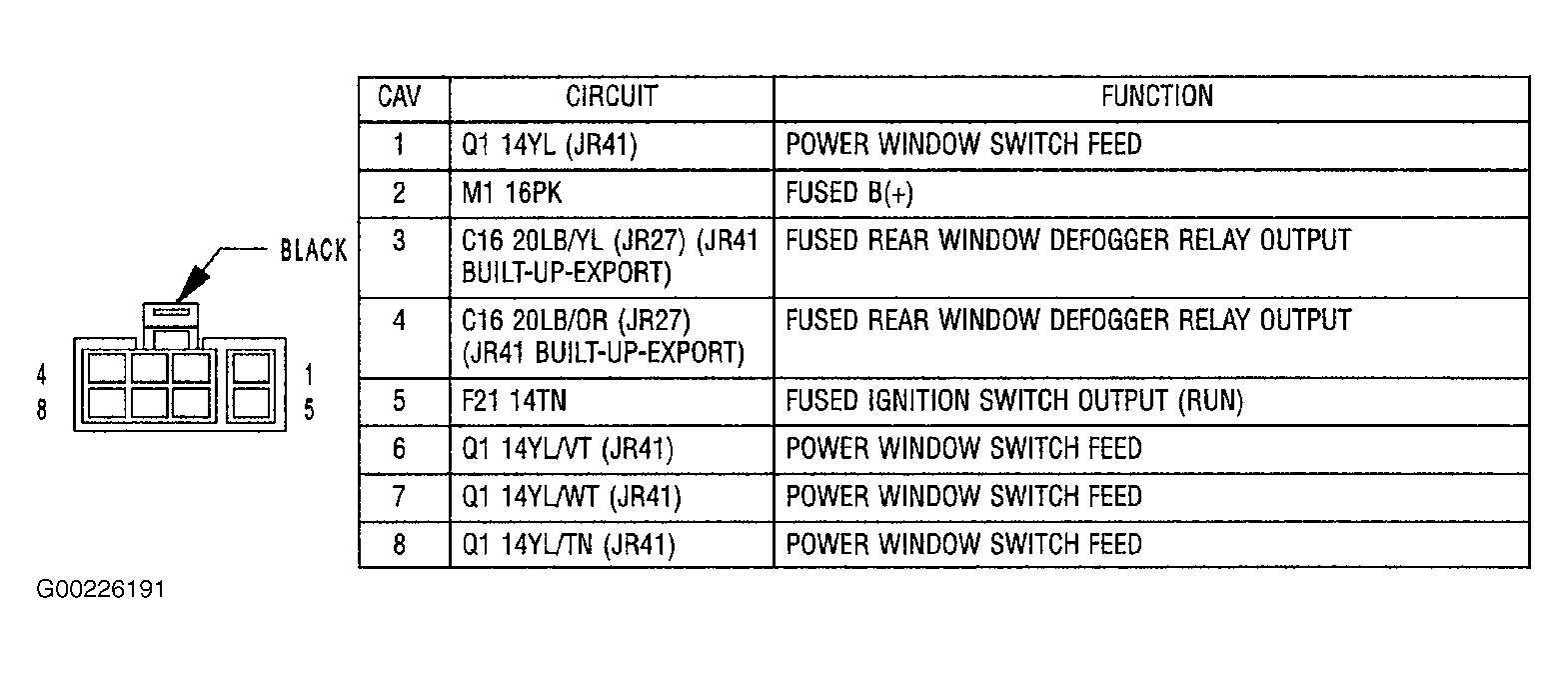

Fig 57: Identifying Junction Block Connector C8

G00226191

Courtesy of CHRYSLER CORP.

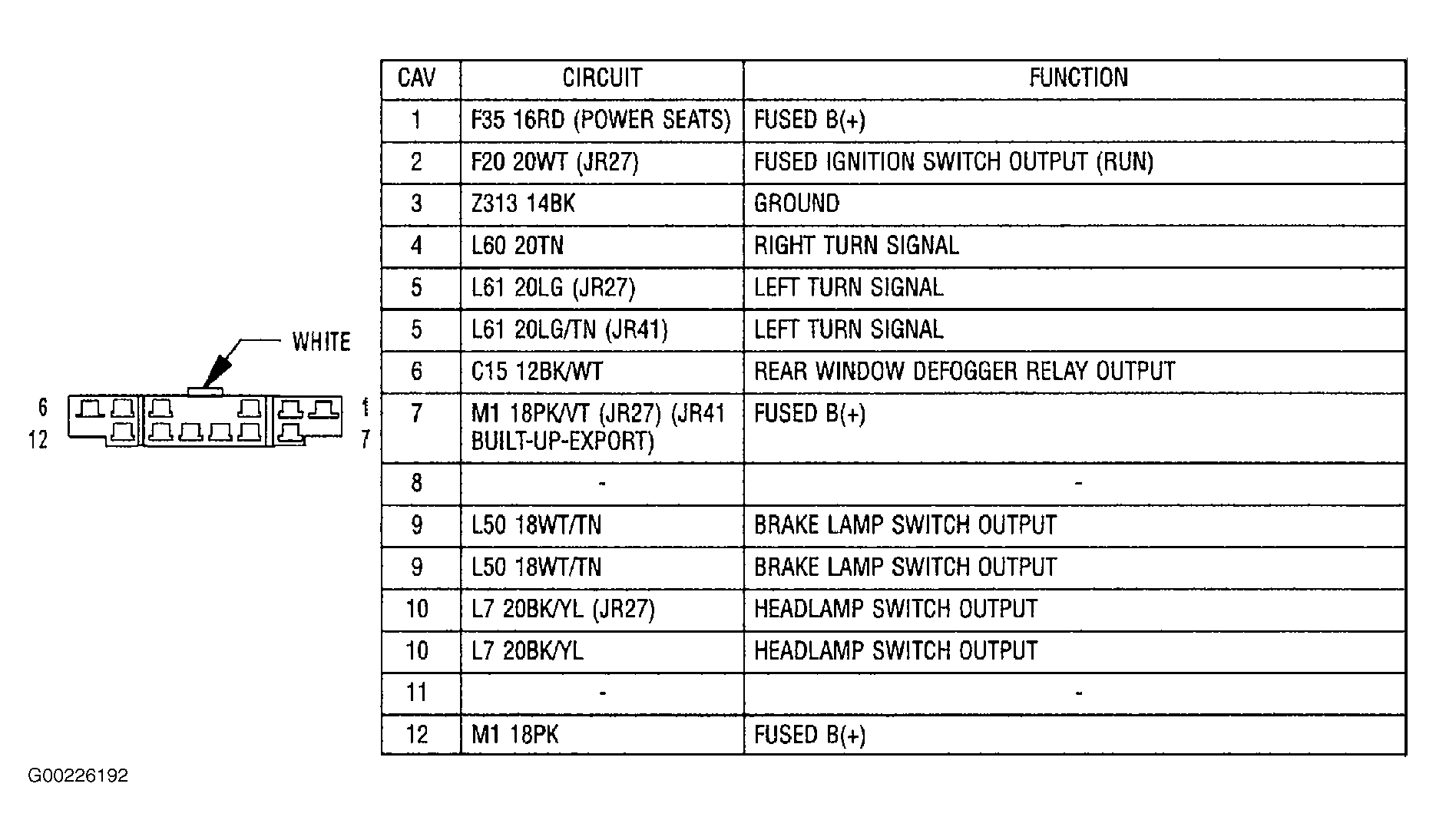

Fig 58: Identifying Junction Block Connector C9

G00226192

Courtesy of CHRYSLER CORP.

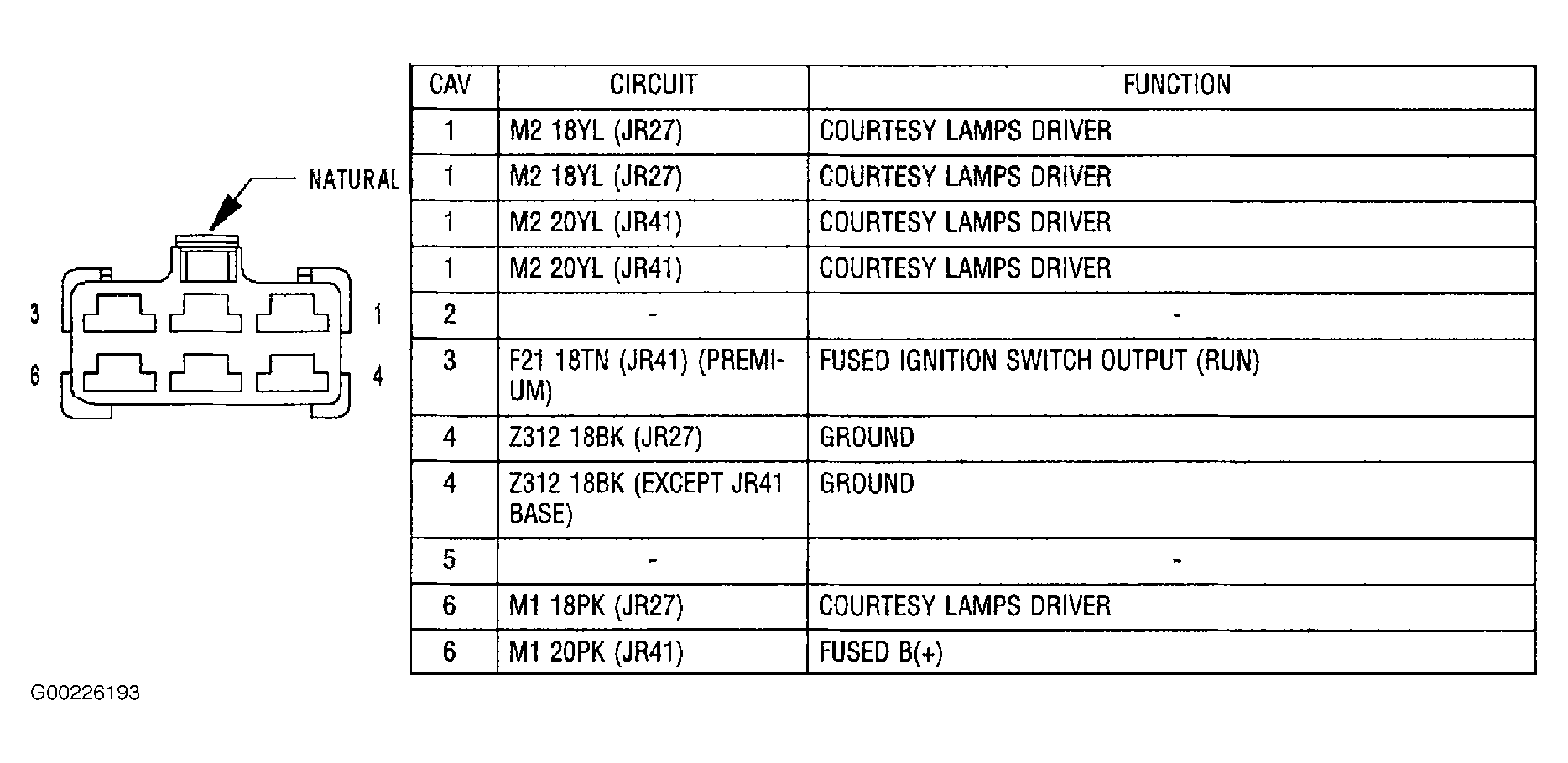

Fig 59: Identifying Junction Block Connector C10

G00226193

Courtesy of CHRYSLER CORP.

Fig 60: Identifying Left Curtain Air Bag Connector

G00226194

Courtesy of CHRYSLER CORP.

Fig 61: Identifying Left Door Courtesy Light Connector

G00226195

Courtesy of CHRYSLER CORP.

Fig 62: Identifying Left Fog Lamp Connector

G00226196

Courtesy of CHRYSLER CORP.

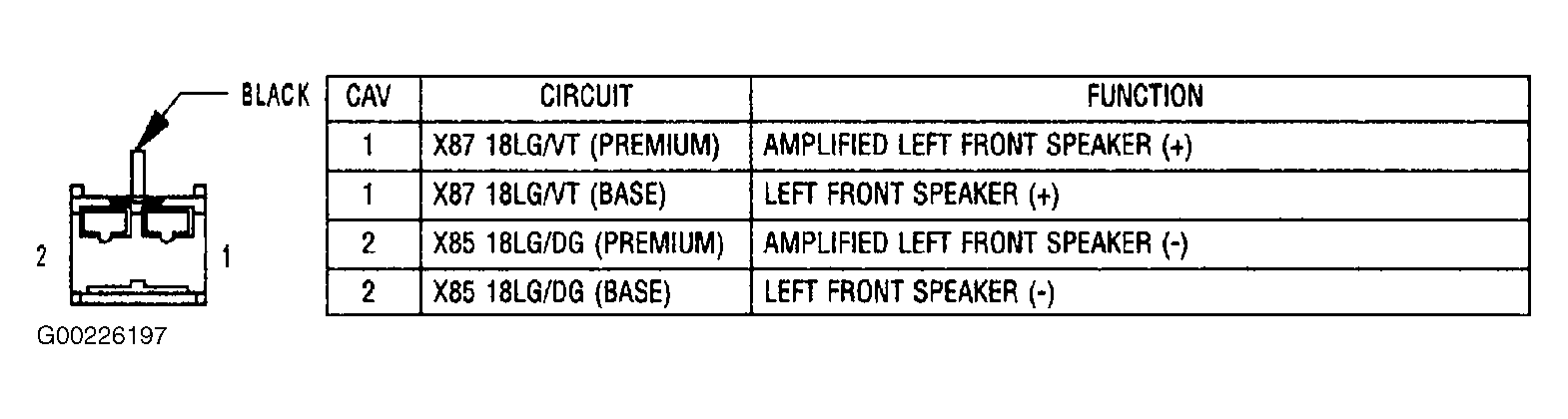

Fig 63: Identifying Left Front Door Speaker Connector

G00226197

Courtesy of CHRYSLER CORP.

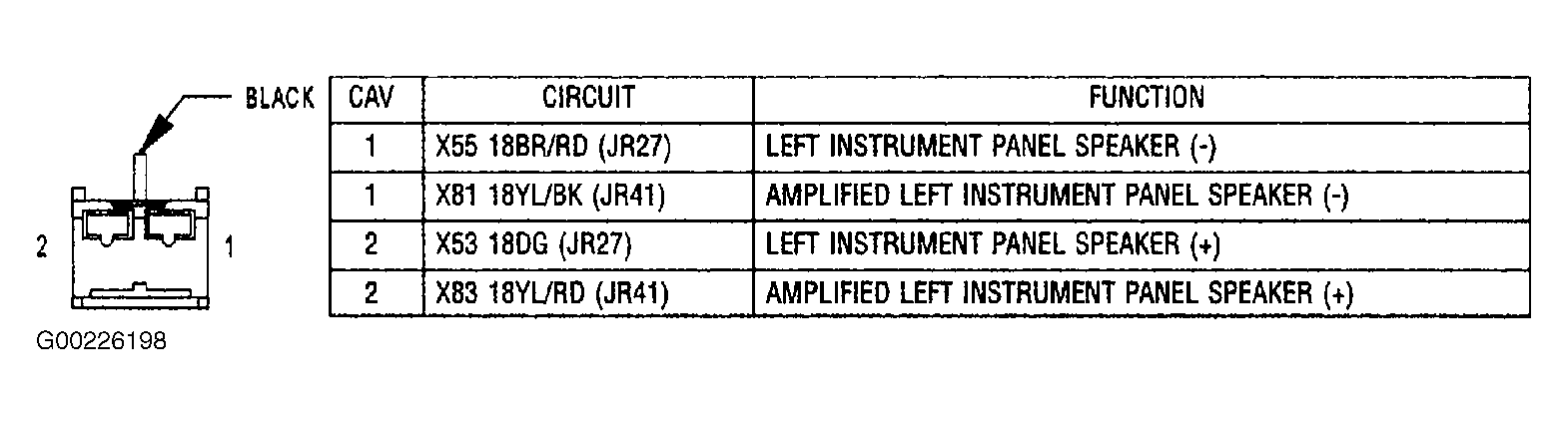

Fig 64: Identifying Left Front Instrument Panel Speaker Connector (Except JR27 Premium)

G00226198

Courtesy of CHRYSLER CORP.

Fig 65: Identifying Left Front Instrument Panel Speaker Connector (JR27 Premium)

G00226199

Courtesy of CHRYSLER CORP.

Fig 66: Identifying Left Headlight Connector

G00226200

Courtesy of CHRYSLER CORP.

Fig 67: Identifying Left Park/Turn Signal Light Connector

G00226202

Courtesy of CHRYSLER CORP.

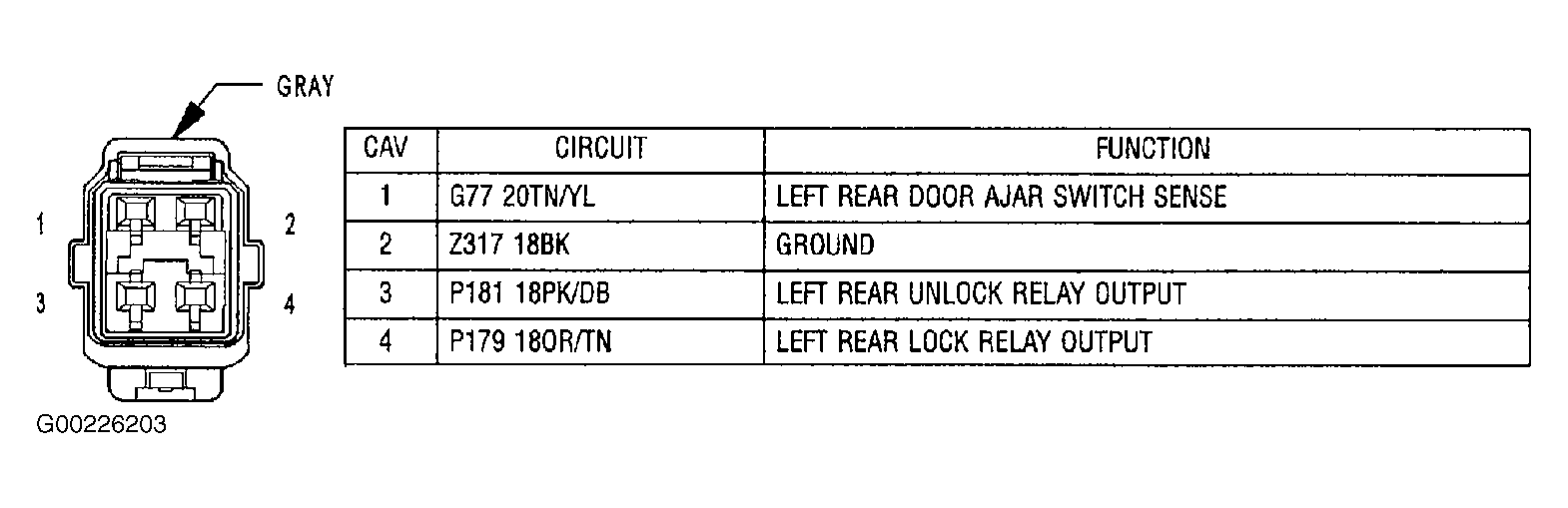

Fig 68: Identifying Left Rear Door Lock Motor/Ajar Switch Connector

G00226203

Courtesy of CHRYSLER CORP.

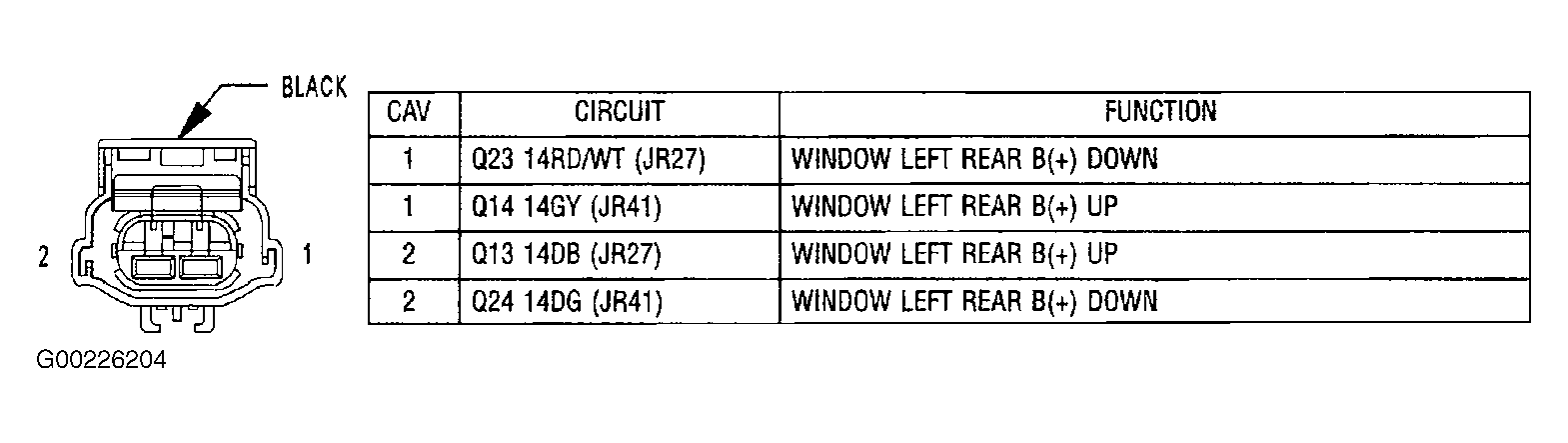

Fig 69: Identifying Left Rear Power Window Motor Connector

G00226204

Courtesy of CHRYSLER CORP.

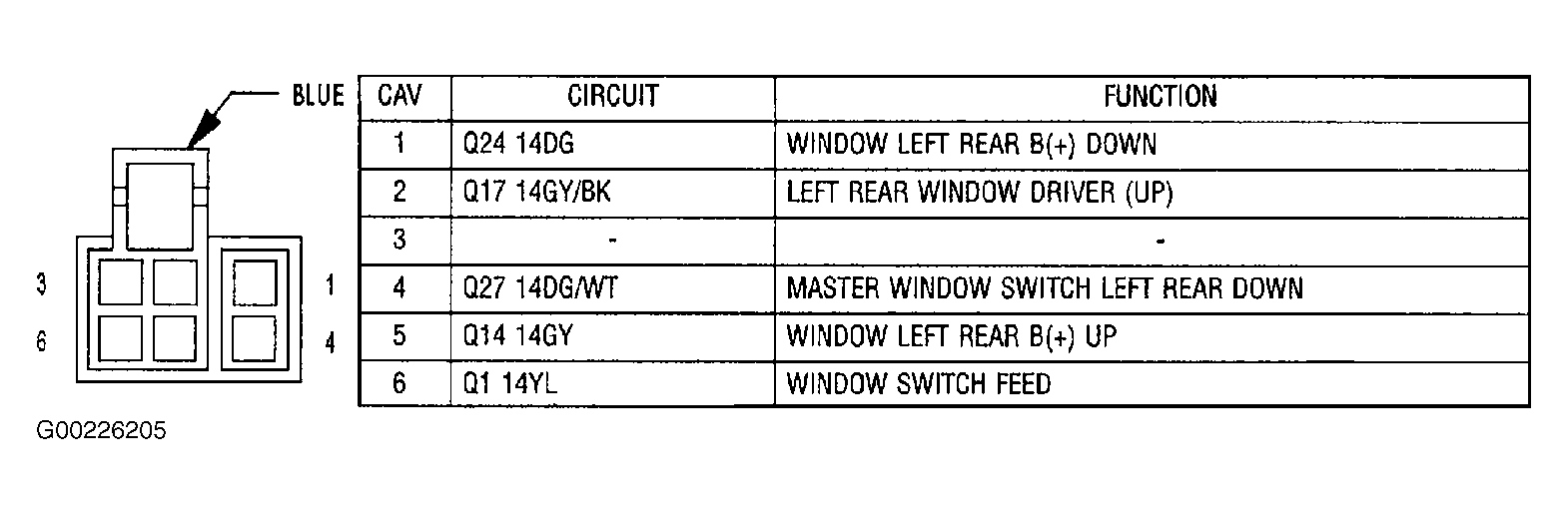

Fig 70: Identifying Left Rear Window Switch Connector

G00226205

Courtesy of CHRYSLER CORP.

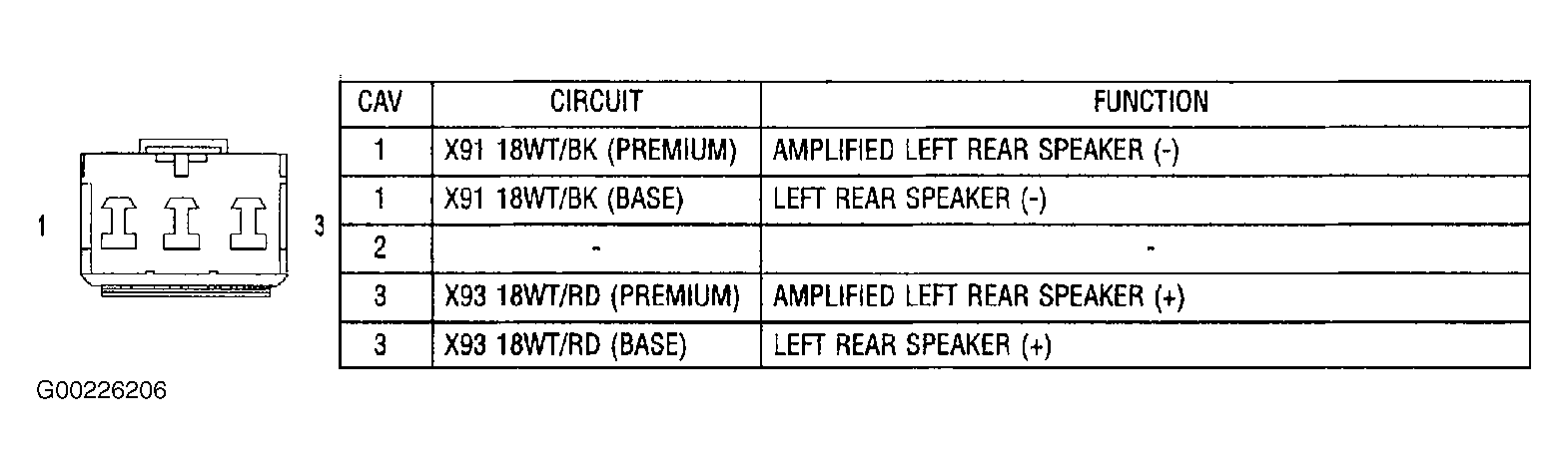

Fig 71: Identifying Left Rear Speaker Connector

G00226206

Courtesy of CHRYSLER CORP.

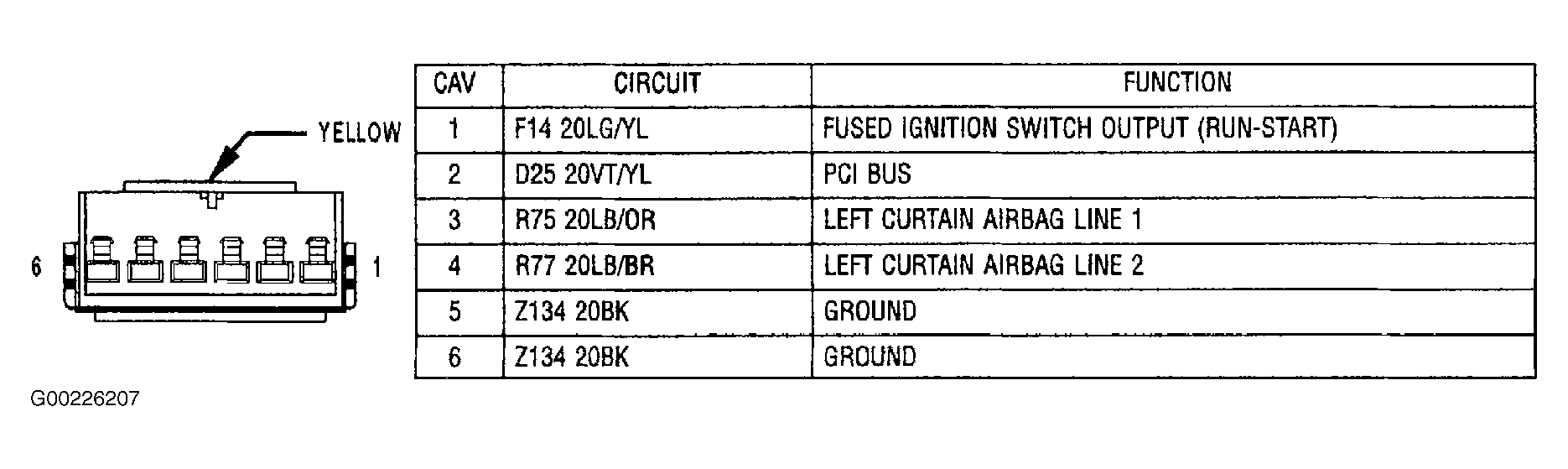

Fig 72: Identifying Left SIACM Connector

G00226207

Courtesy of CHRYSLER CORP.

Fig 73: Identifying Left Tail/Side Marker Light Connector

G00226208

Courtesy of CHRYSLER CORP.

Fig 74: Identifying Left Tail/Stop Light Connector

G00226209

Courtesy of CHRYSLER CORP.

Fig 75: Identifying Left Tail/Turn Signal Light Connector (Stratus)

G00226210

Courtesy of CHRYSLER CORP.

Fig 76: Identifying Left Turn Light Connector (Sebring)

G00226211

Courtesy of CHRYSLER CORP.

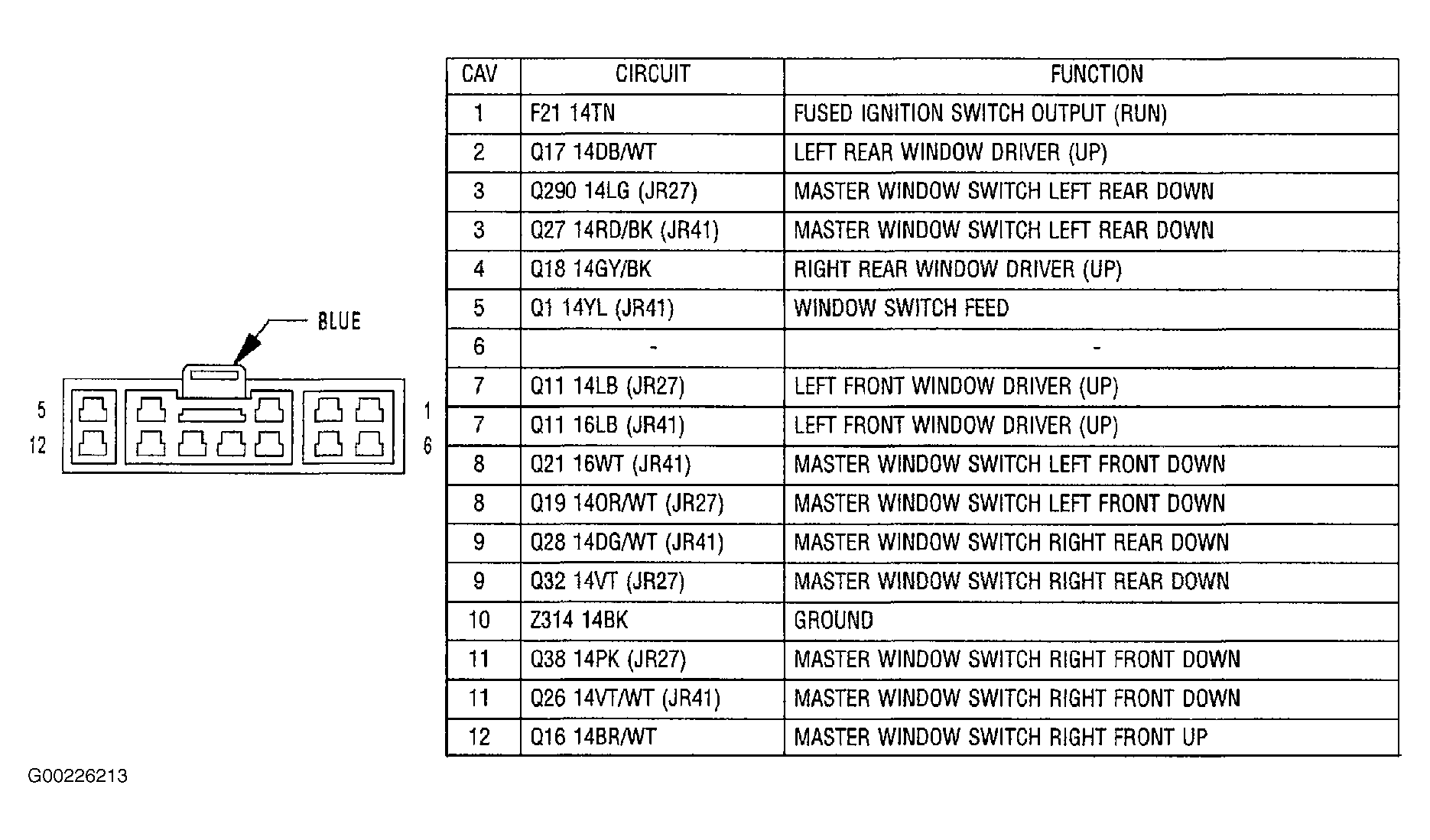

Fig 77: Identifying Master Power Window Switch Connector

G00226213

Courtesy of CHRYSLER CORP.

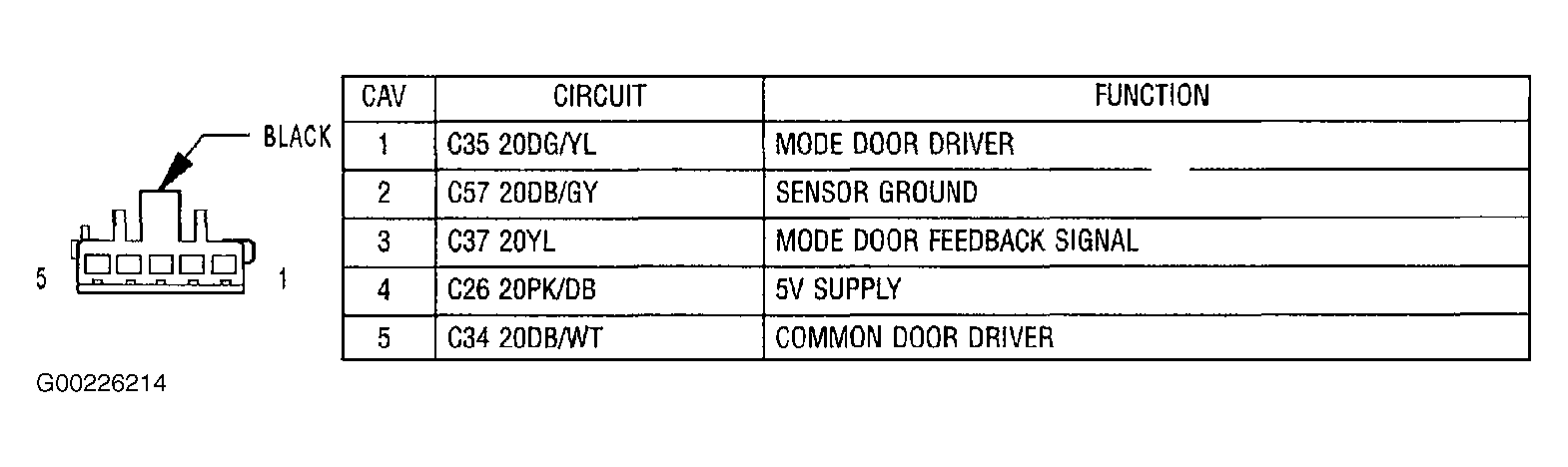

Fig 78: Identifying Mode Door Actuator Connector

G00226214

Courtesy of CHRYSLER CORP.

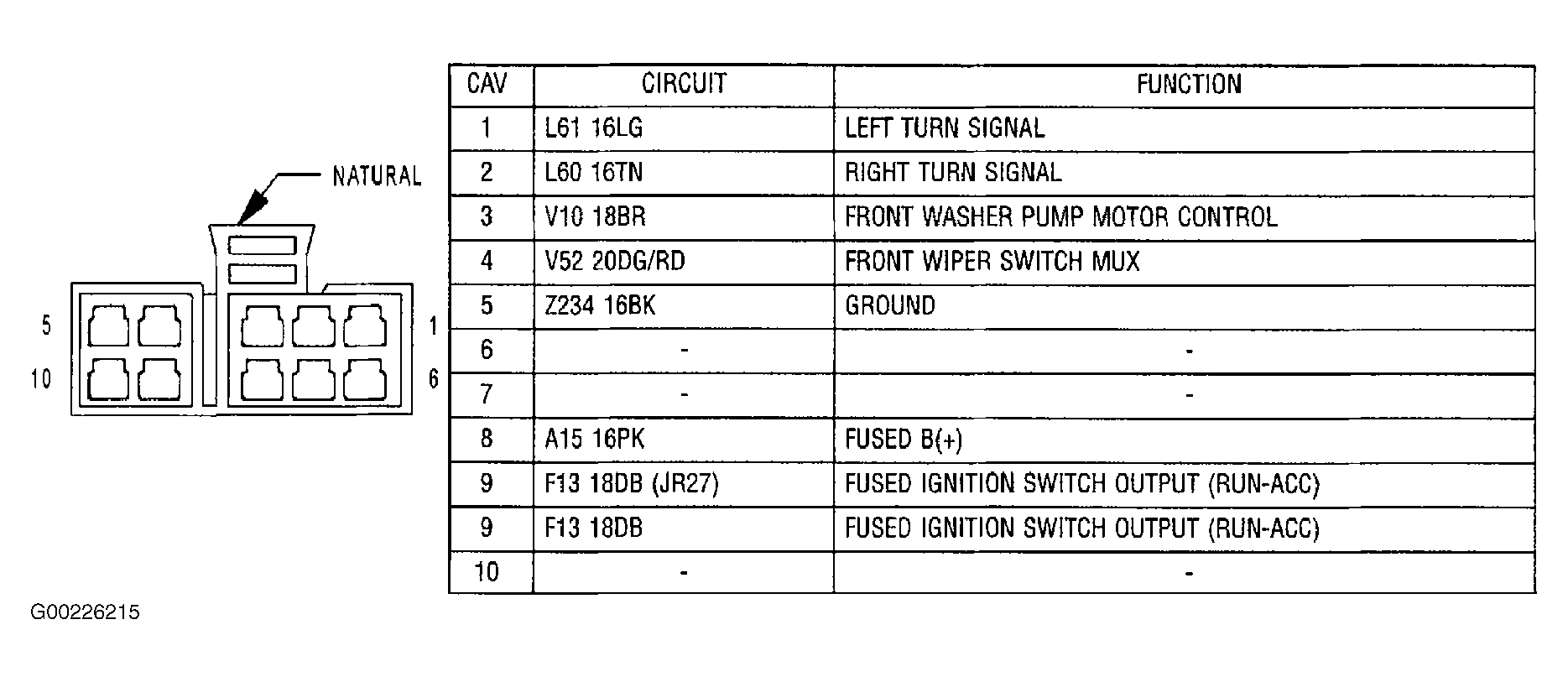

Fig 79: Identifying Multi-Function Switch Connector C1

G00226215

Courtesy of CHRYSLER CORP.

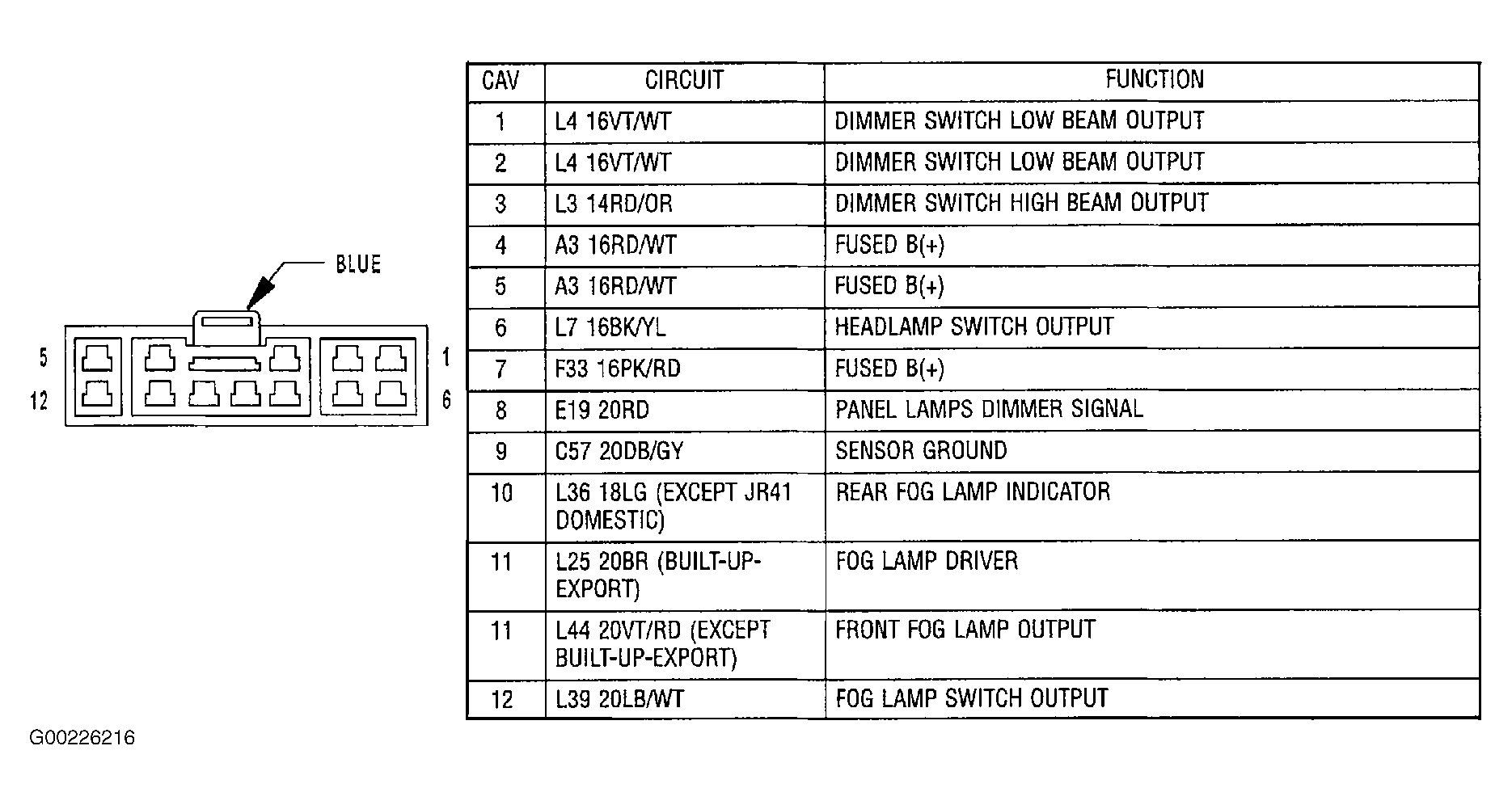

Fig 80: Identifying Multi-Function Switch Connector C2

G00226216

Courtesy of CHRYSLER CORP.

Fig 81: Identifying Overhead Map/Courtesy Light Connector

G00226217

Courtesy of CHRYSLER CORP.

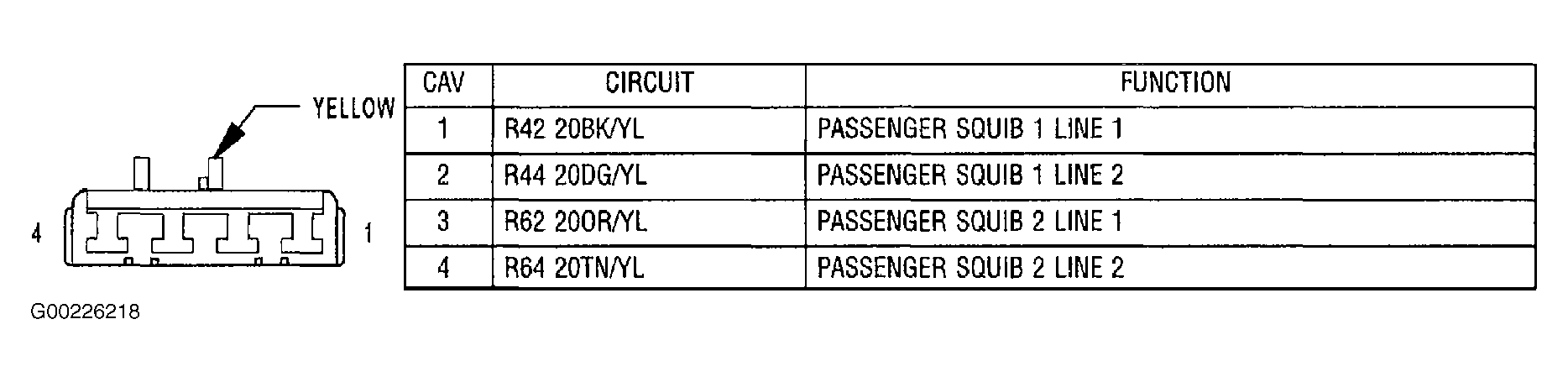

Fig 82: Identifying Passenger Air Bag Connector

G00226218

Courtesy of CHRYSLER CORP.

Fig 83: Identifying Passenger Cylinder Lock Switch Connector

G00226219

Courtesy of CHRYSLER CORP.

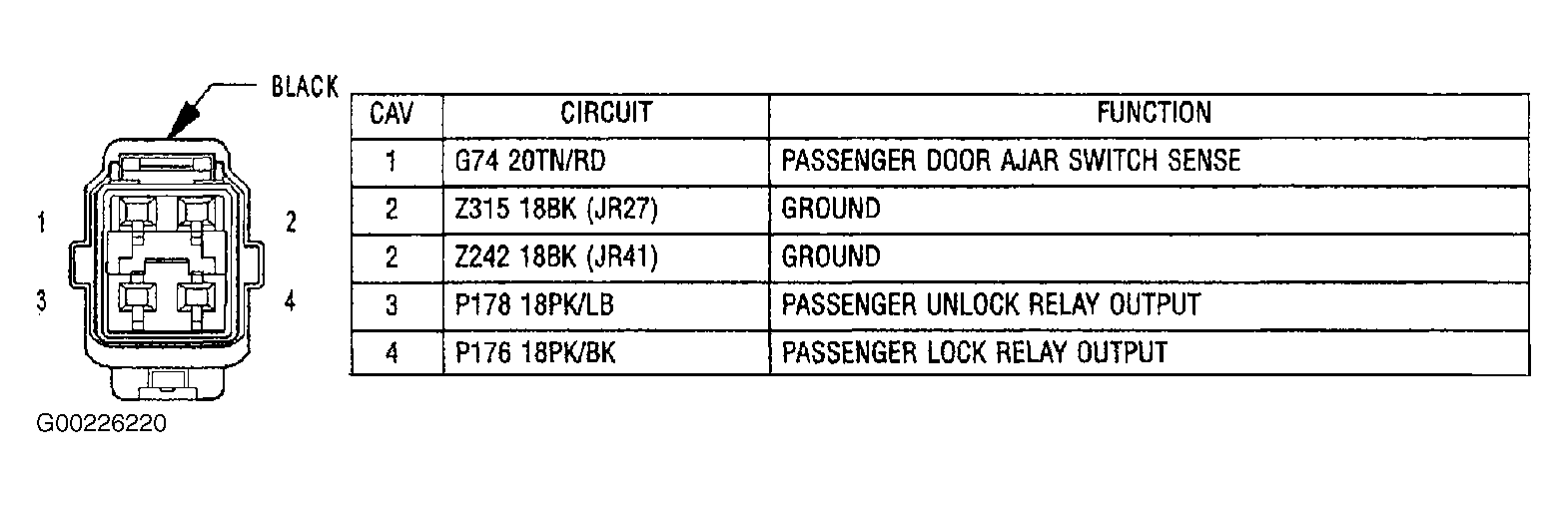

Fig 84: Identifying Passenger Door Lock Motor/Ajar Switch Connector

G00226220

Courtesy of CHRYSLER CORP.

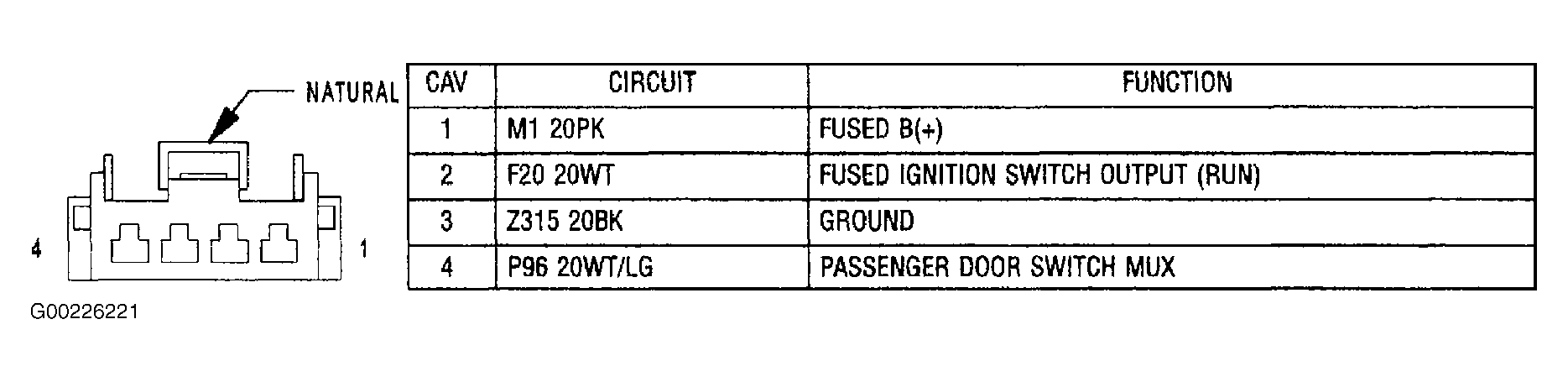

Fig 85: Identifying Passenger Door Lock Switch Connector

G00226221

Courtesy of CHRYSLER CORP.

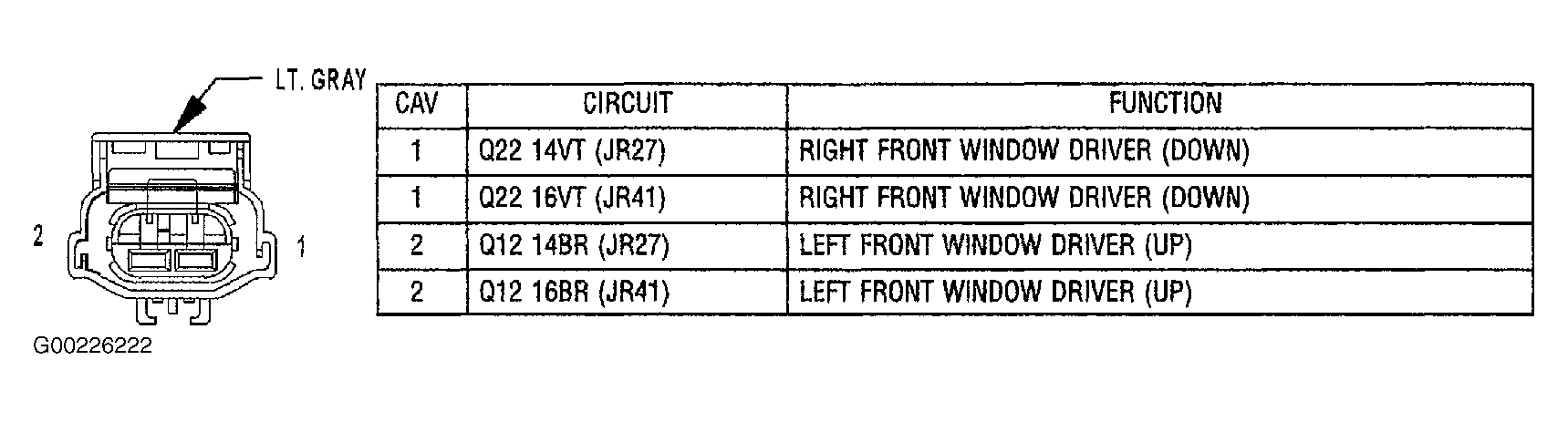

Fig 86: Identifying Passenger Power Window Motor Connector

G00226222

Courtesy of CHRYSLER CORP.

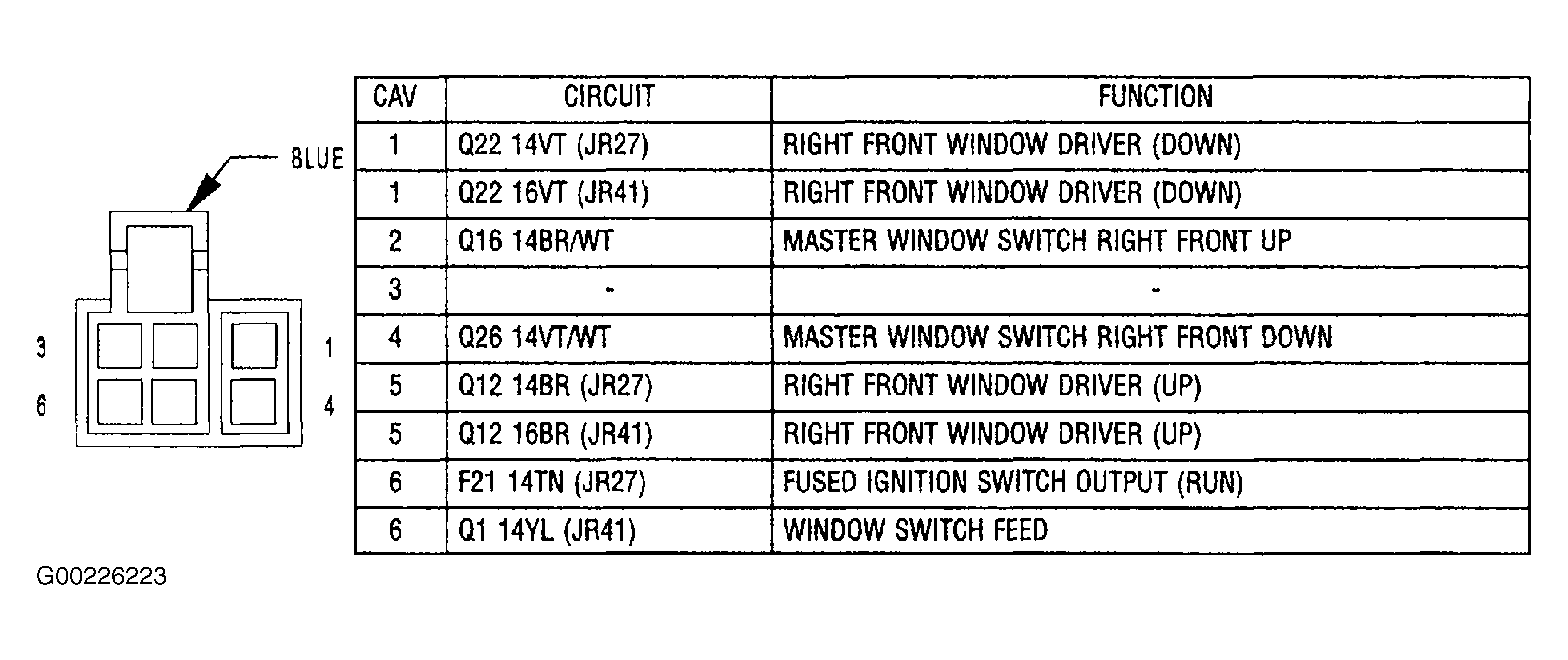

Fig 87: Identifying Passenger Power Window Switch Connector

G00226223

Courtesy of CHRYSLER CORP.

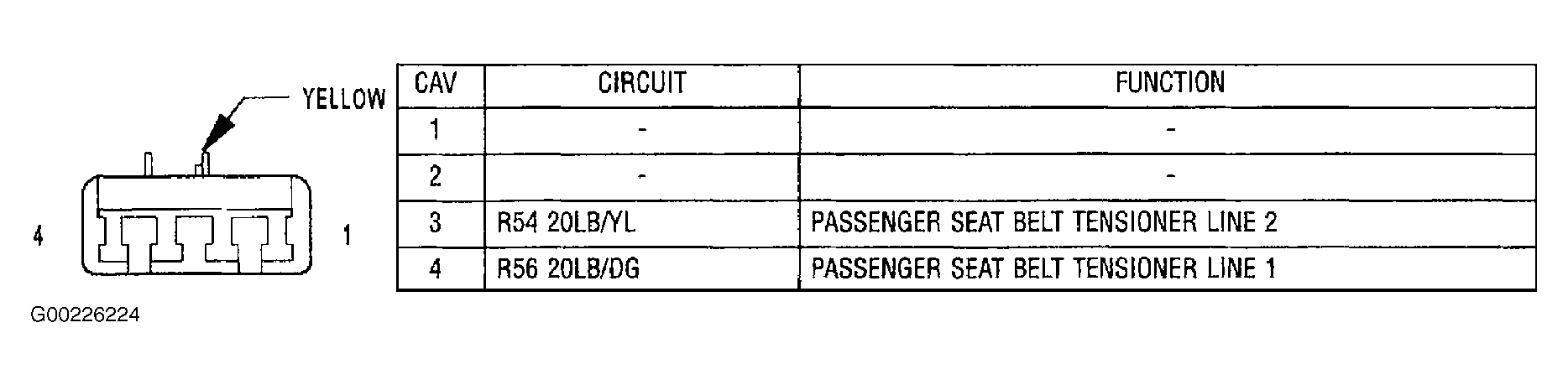

Fig 88: Identifying Passenger Seat Belt Tensioner Connector (Yellow 4-Pin)

G00226224

Courtesy of CHRYSLER CORP.

Fig 89: Identifying Passenger Seat Belt Tensioner Connector (2-Pin)

G00226225

Courtesy of CHRYSLER CORP.

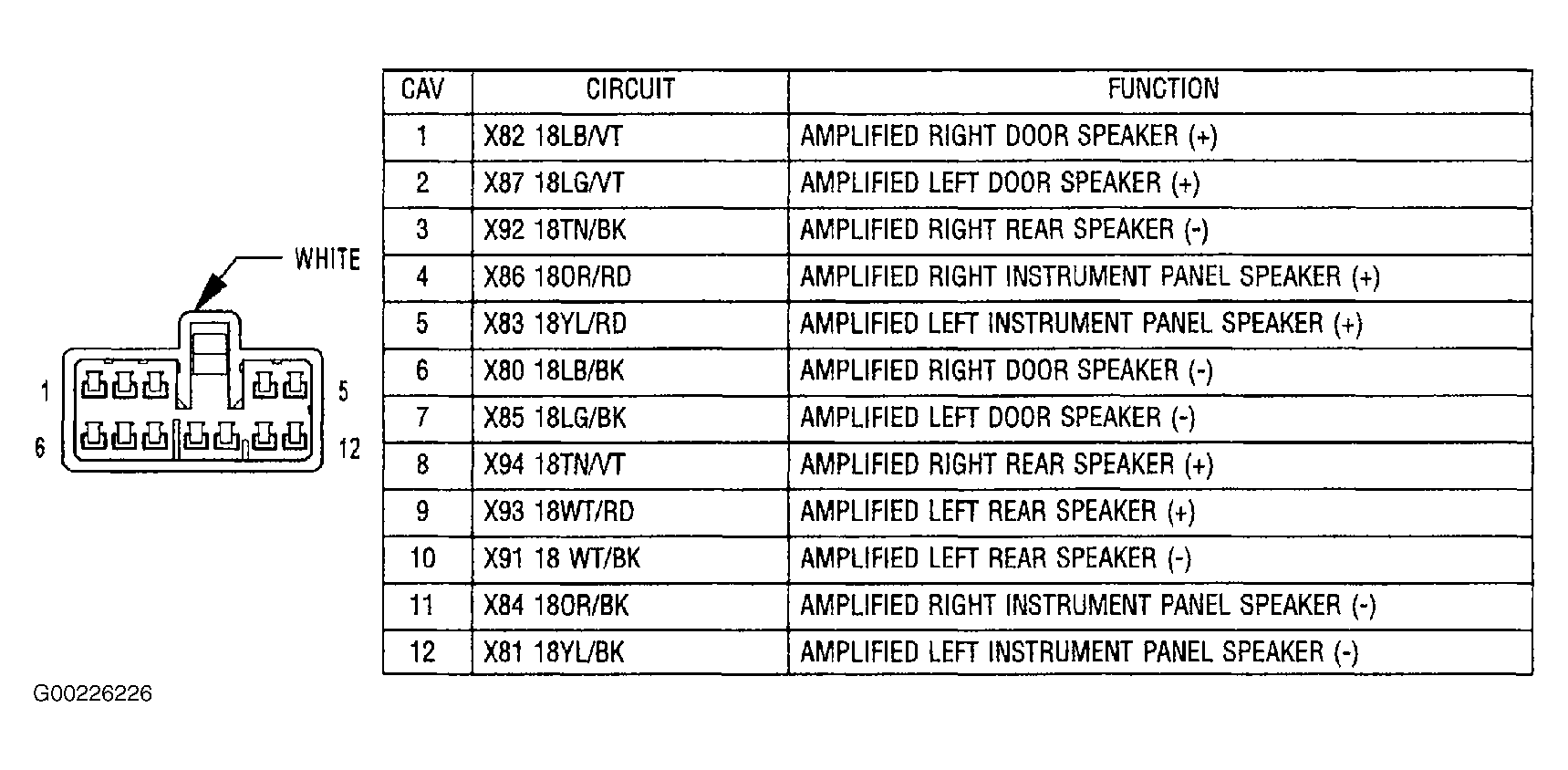

Fig 90: Identifying Power Amplifier Connector C1 (Premium 12-Pin)

G00226226

Courtesy of CHRYSLER CORP.

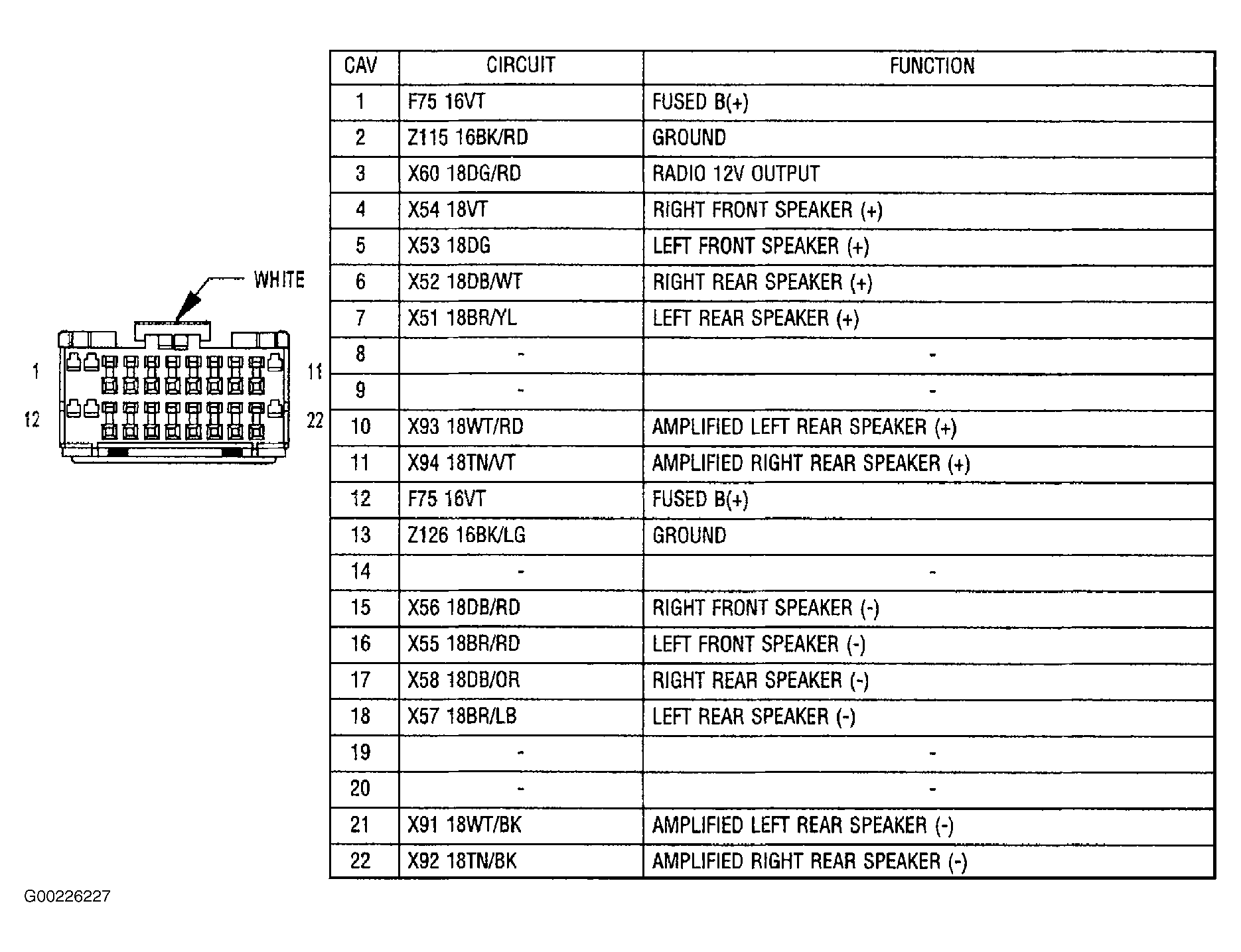

Fig 91: Identifying Power Amplifier Connector C1 (Premium 22-Pin)

G00226227

Courtesy of CHRYSLER CORP.

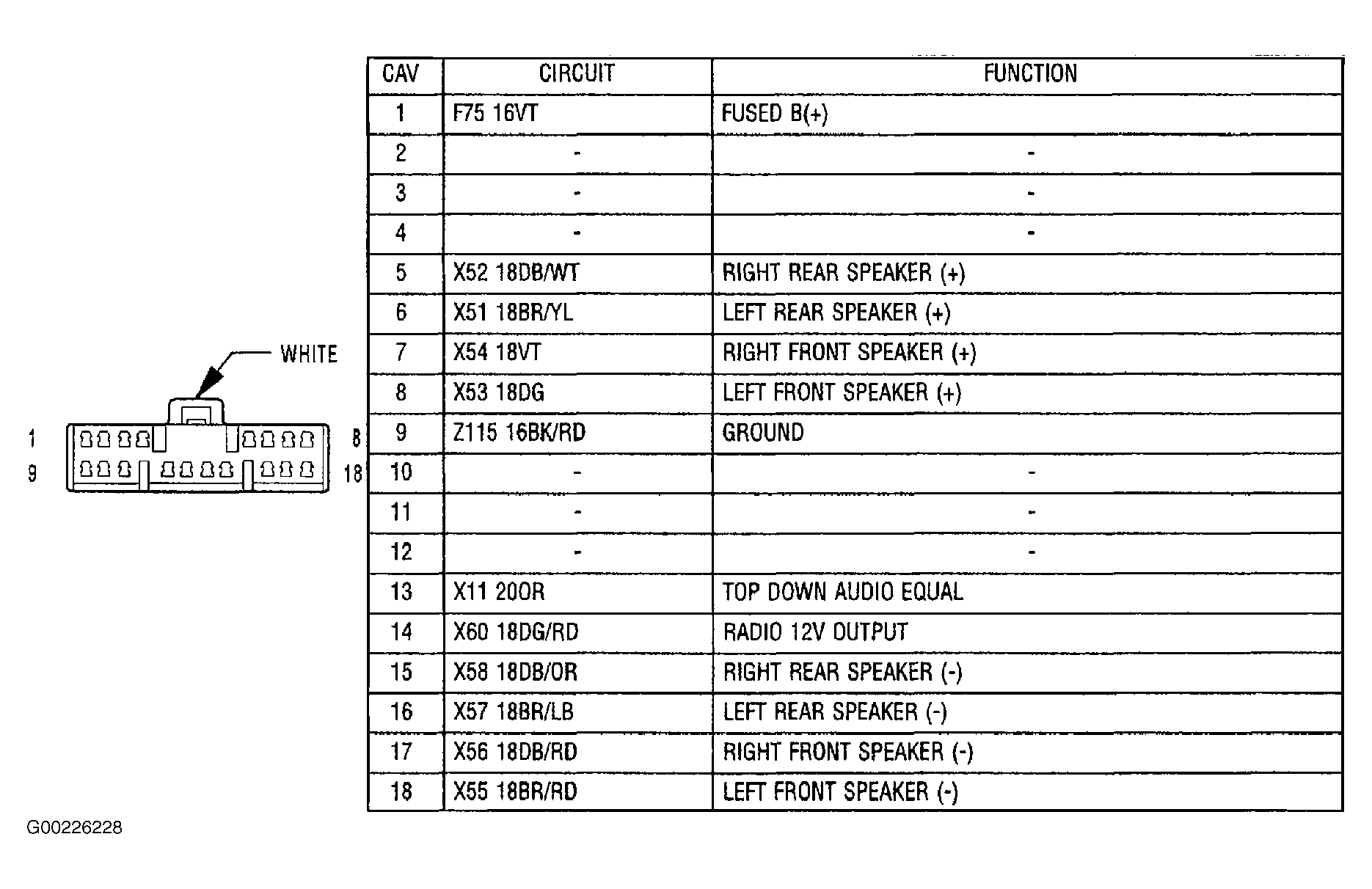

Fig 92: Identifying Power Amplifier Connector C2 (Premium 22-Pin)

G00226228

Courtesy of CHRYSLER CORP.

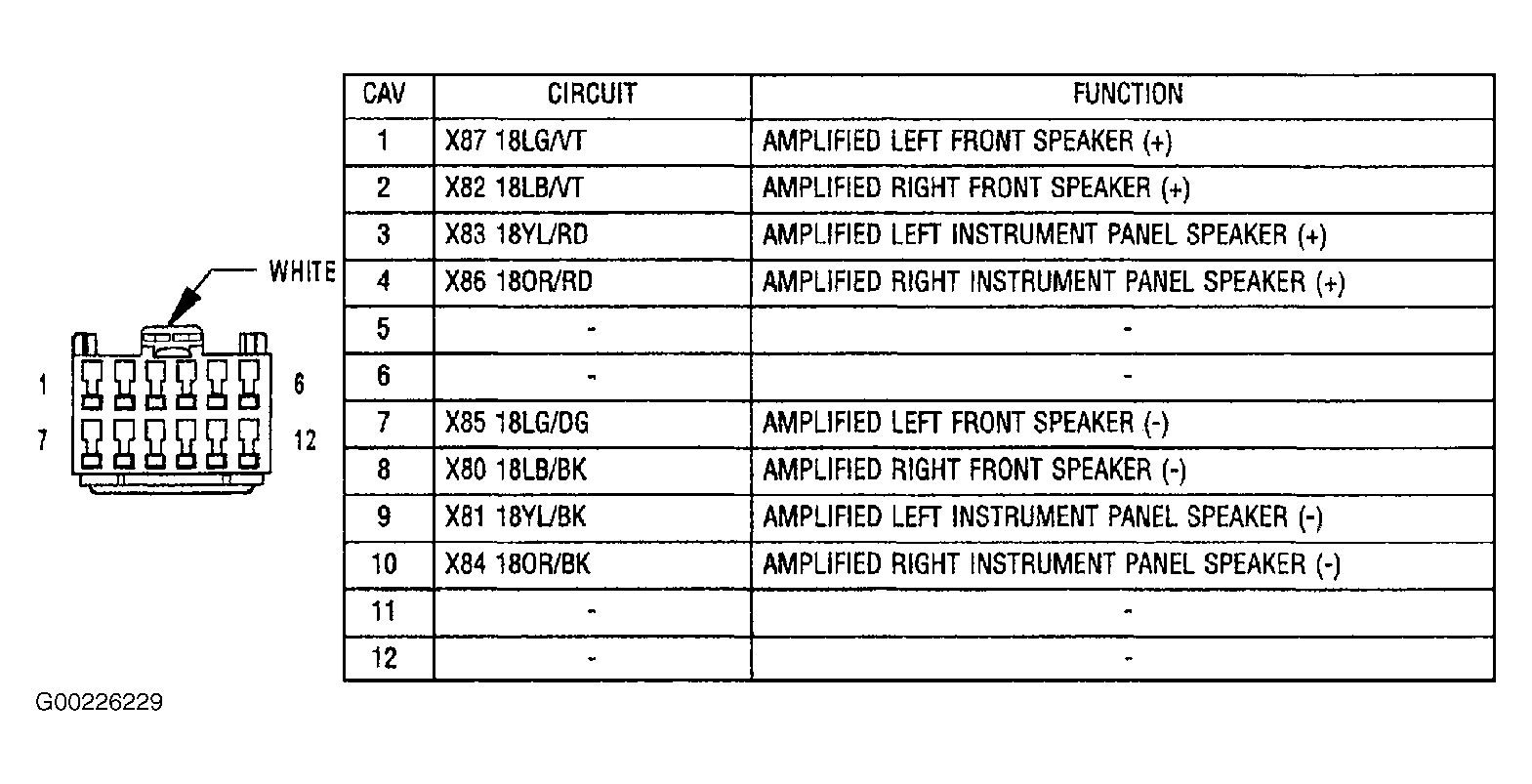

Fig 93: Identifying Power Amplifier Connector C2 (Premium 12-Pin)

G00226229

Courtesy of CHRYSLER CORP.

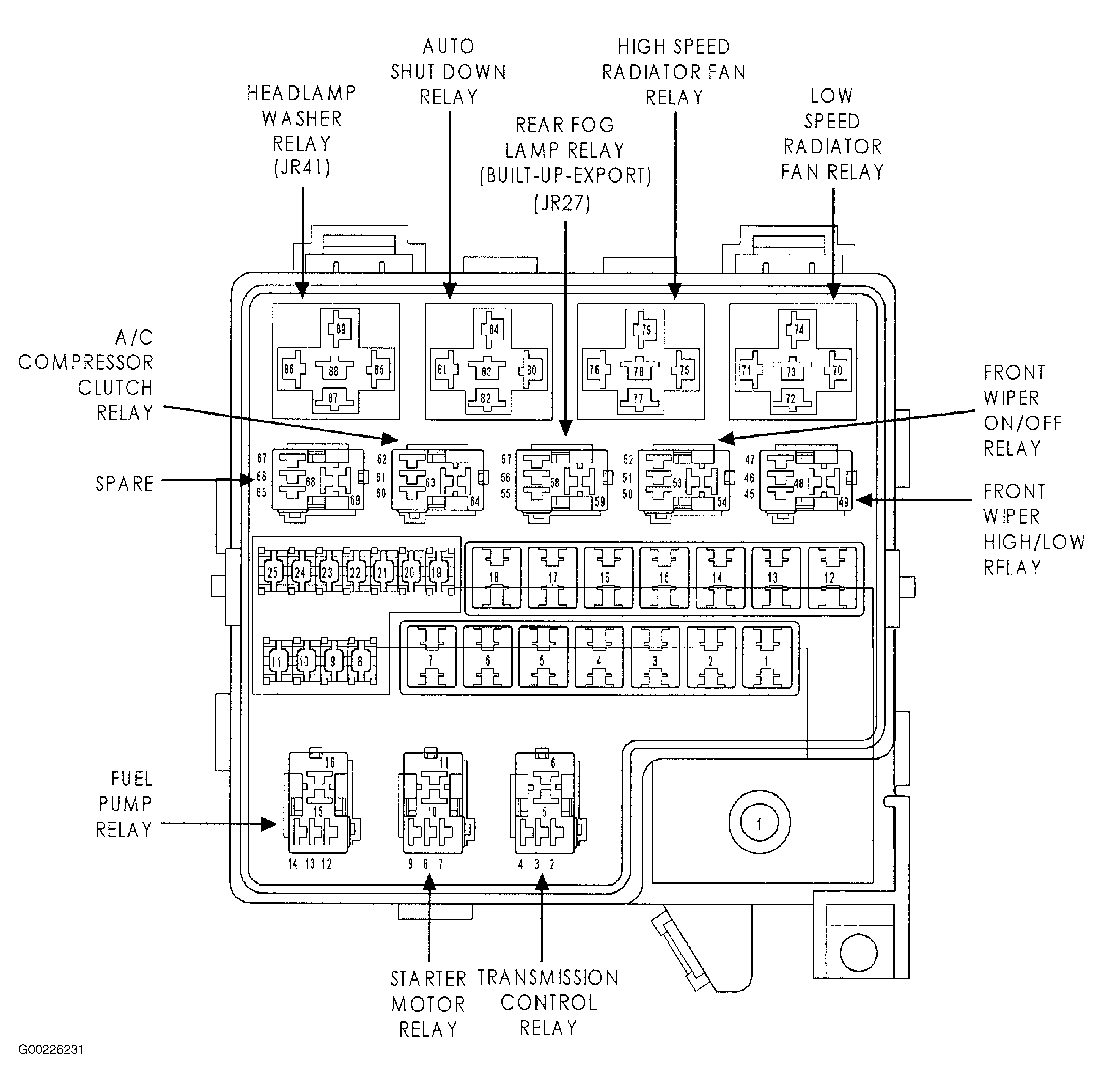

Fig 94: Identifying Power Distribution Center Connector

G00226231

Courtesy of CHRYSLER CORP.

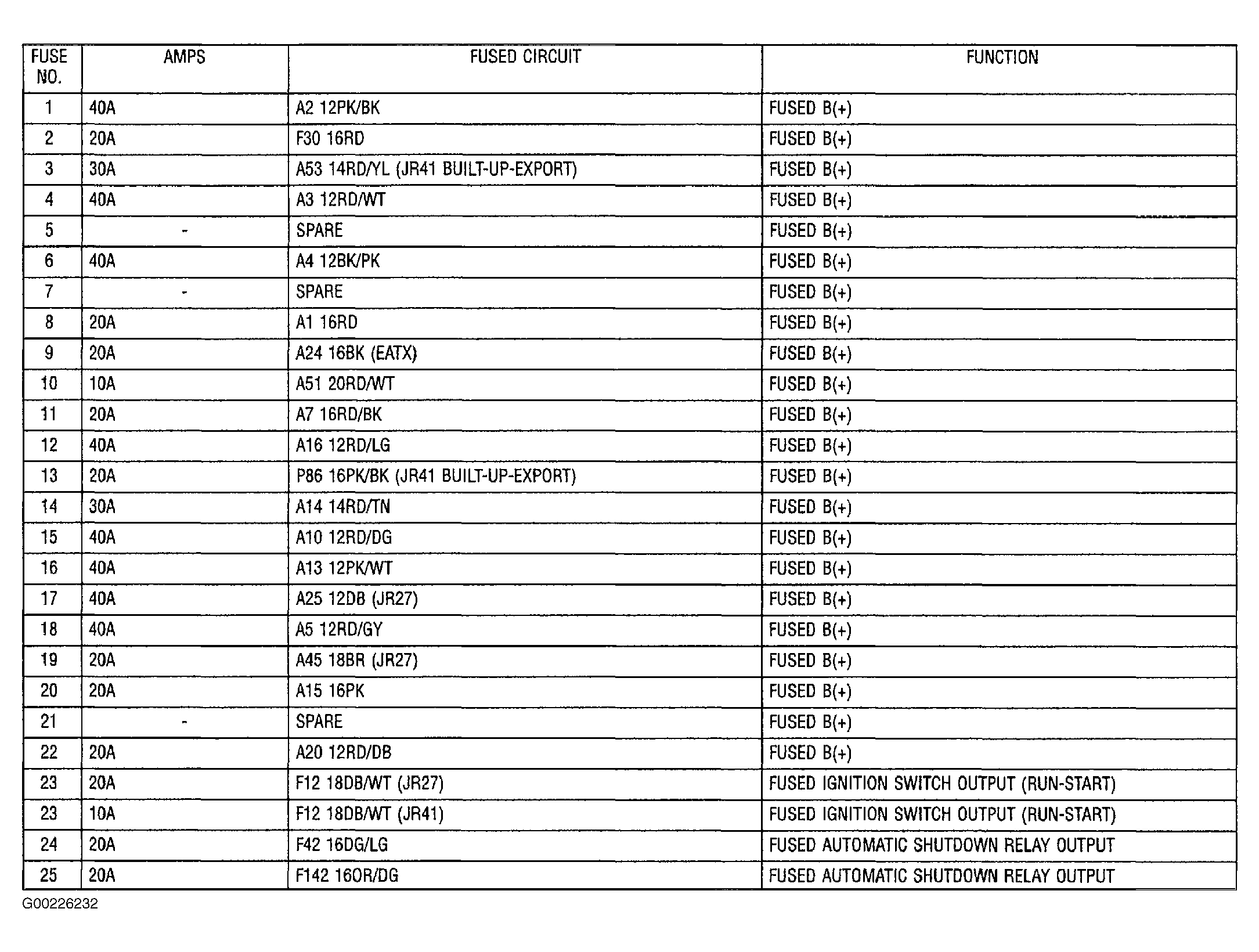

Fig 95: Identifying PDC Fuses

G00226232

Courtesy of CHRYSLER CORP.

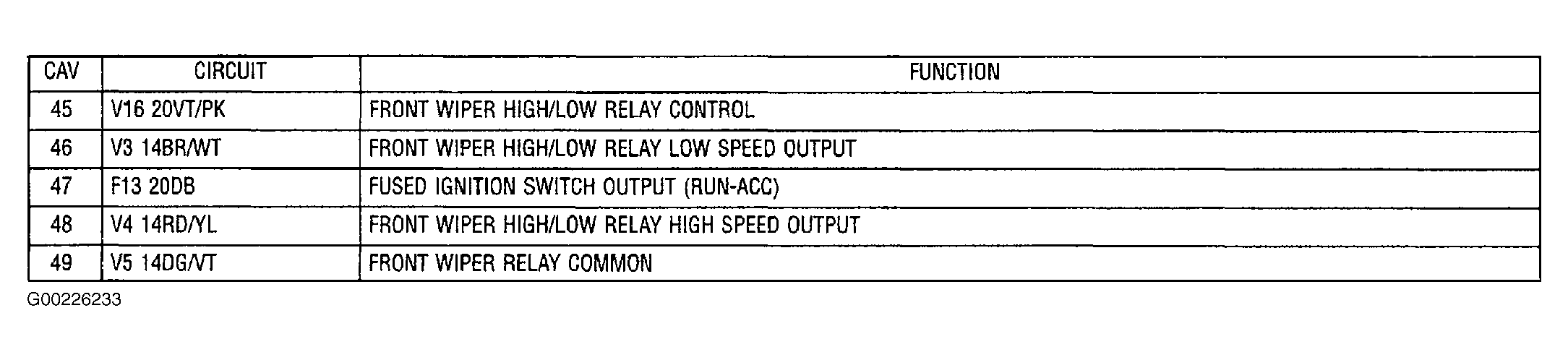

Fig 96: Identifying PDC Front Wiper High/Low Relay Connector Terminals

G00226233

Courtesy of CHRYSLER CORP.

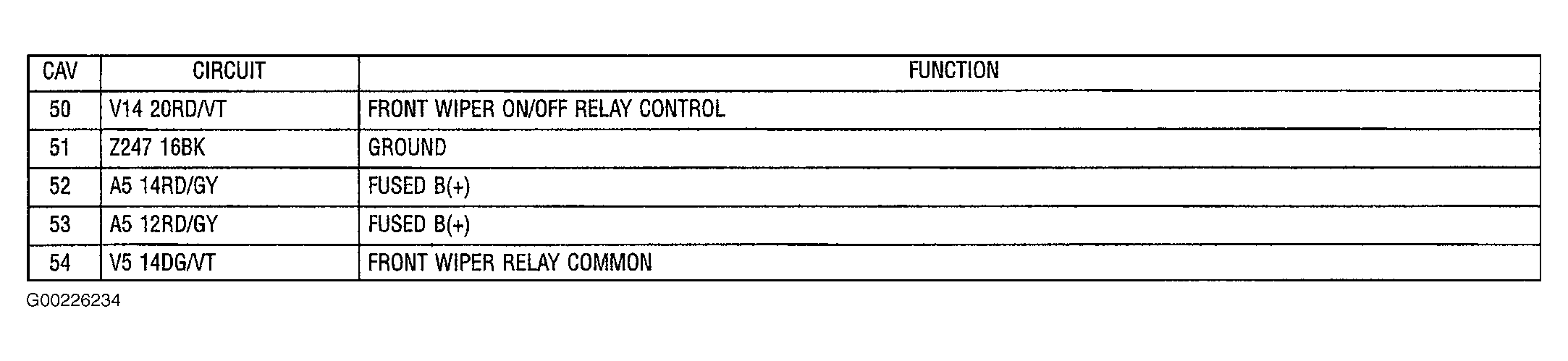

Fig 97: Identifying PDC Front Wiper On/Off Relay Connector Terminals

G00226234

Courtesy of CHRYSLER CORP.

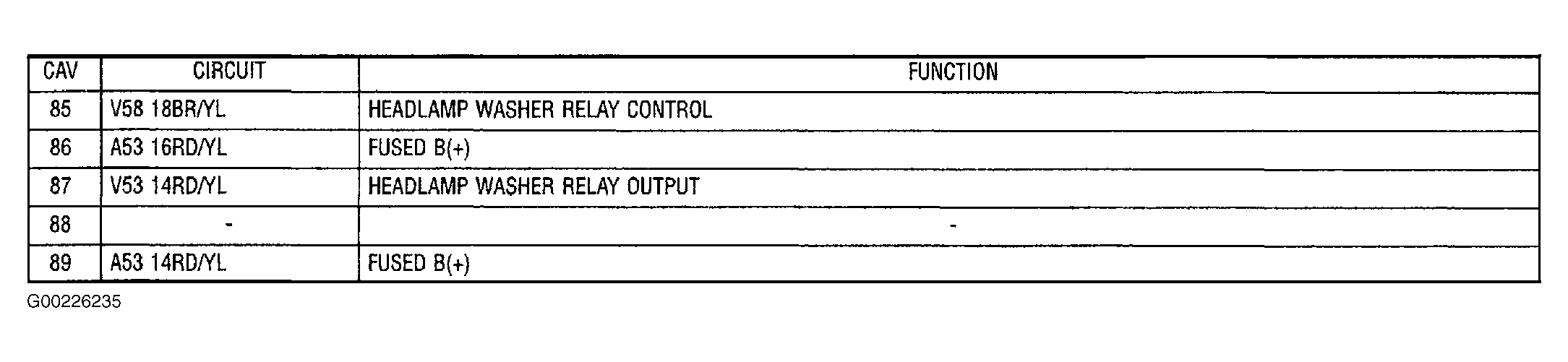

Fig 98: Identifying Headlight Washer Relay Connector Terminals

G00226235

Courtesy of CHRYSLER CORP.

Fig 99: Identifying Power Top Pump Motor Connector (Sebring Convertible)

G00226237

Courtesy of CHRYSLER CORP.

Fig 100: Identifying Power Top Switch Connector (Sebring Convertible)

G00226238

Courtesy of CHRYSLER CORP.

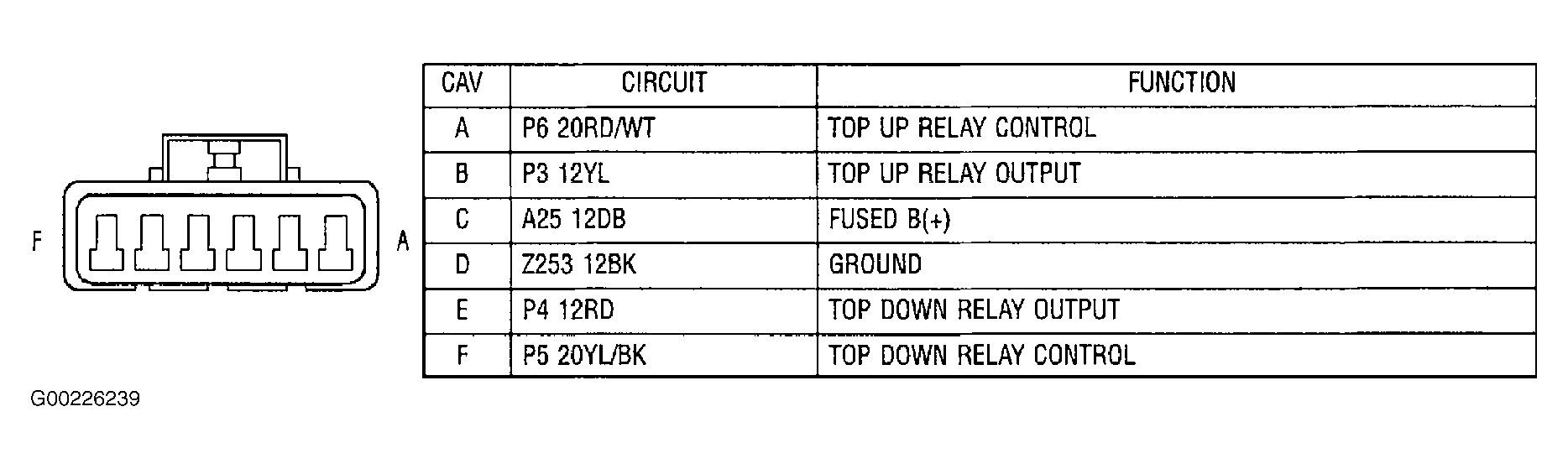

Fig 101: Identifying Power Top Up/Down Relay Connector (Sebring Convertible)

G00226239

Courtesy of CHRYSLER CORP.

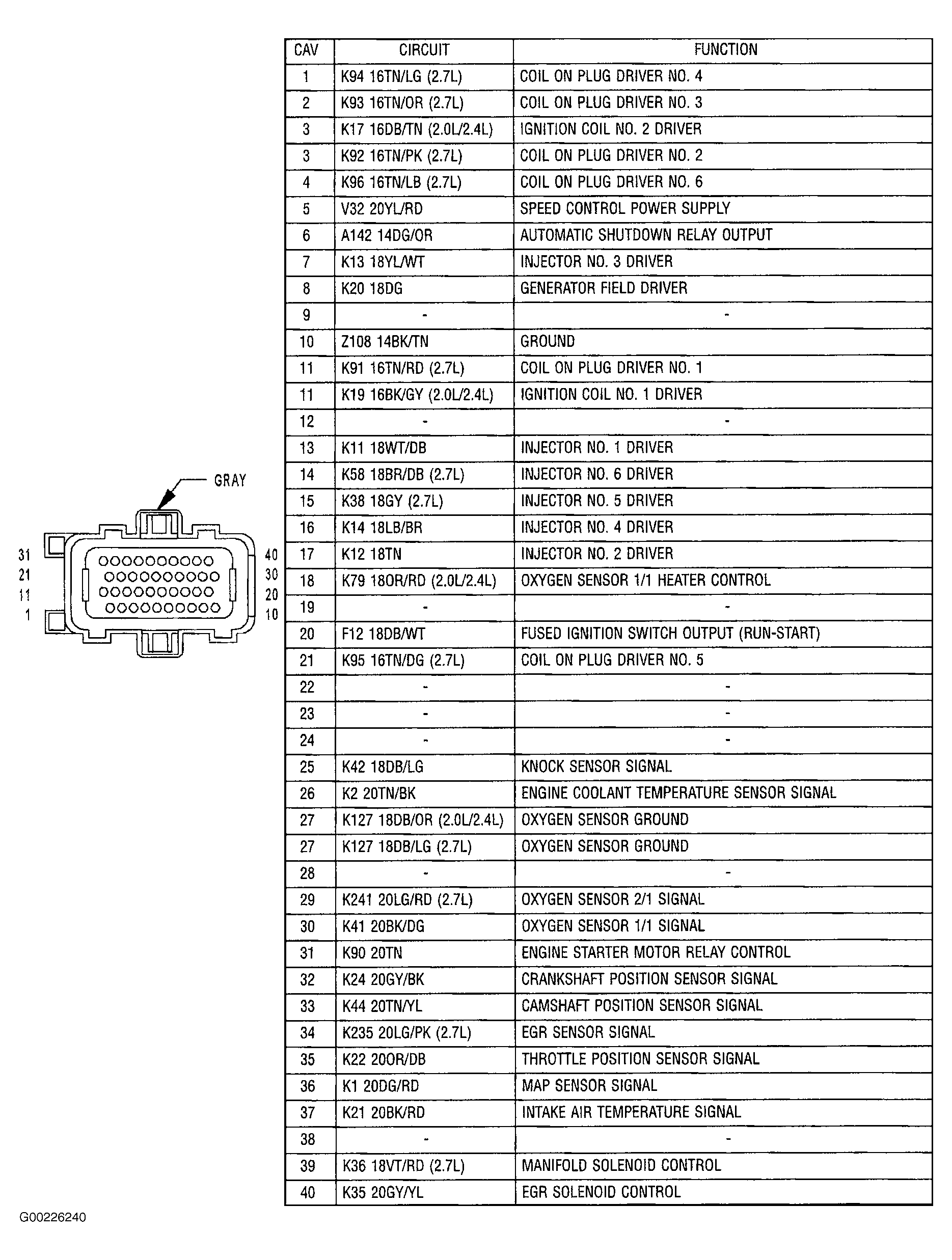

Fig 102: Identifying Powertrain Control Module Connector C1

G00226240

Courtesy of CHRYSLER CORP.

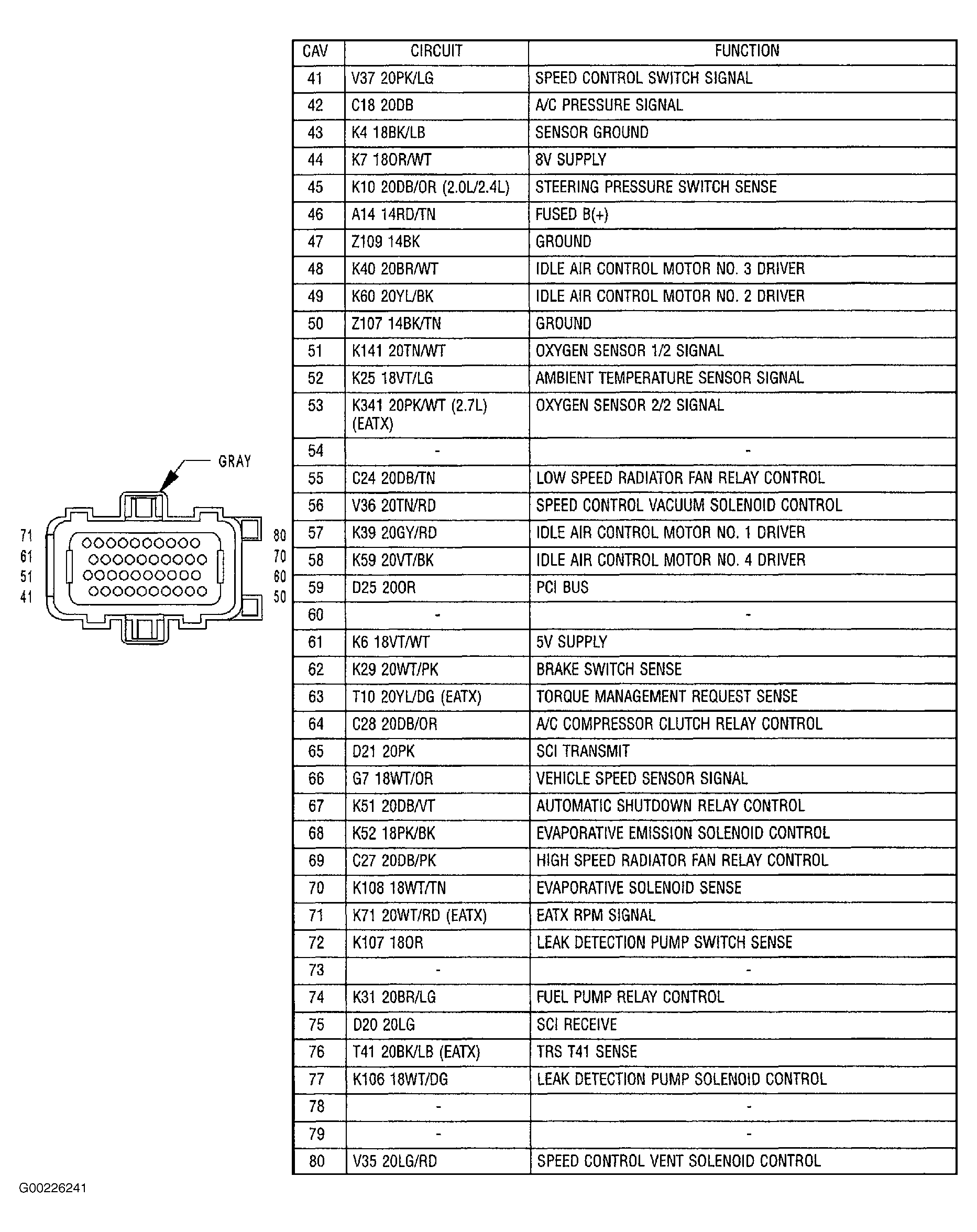

Fig 103: Identifying Powertrain Control Module Connector C2

G00226241

Courtesy of CHRYSLER CORP.

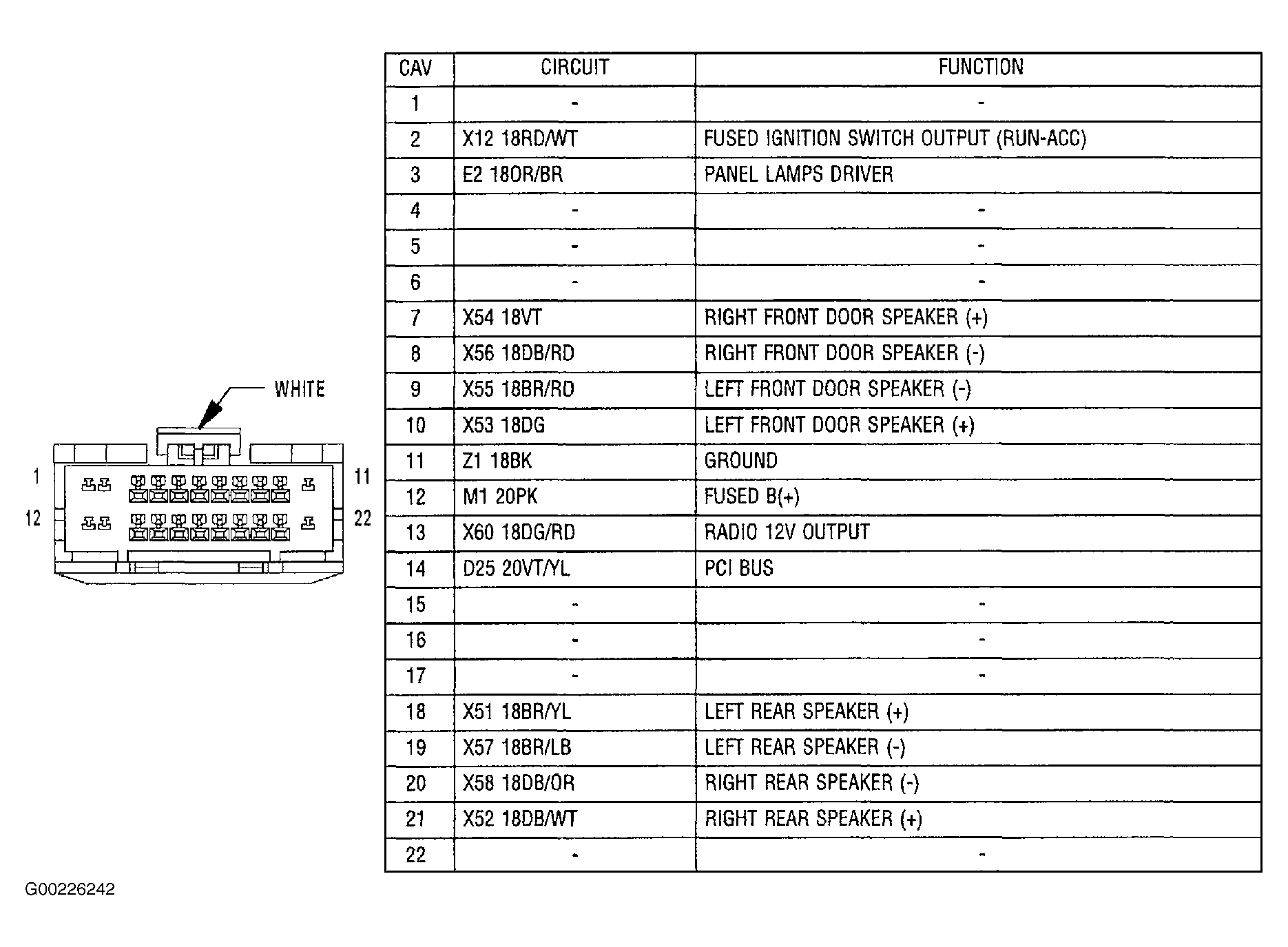

Fig 104: Identifying Radio Connector C1

G00226242

Courtesy of CHRYSLER CORP.

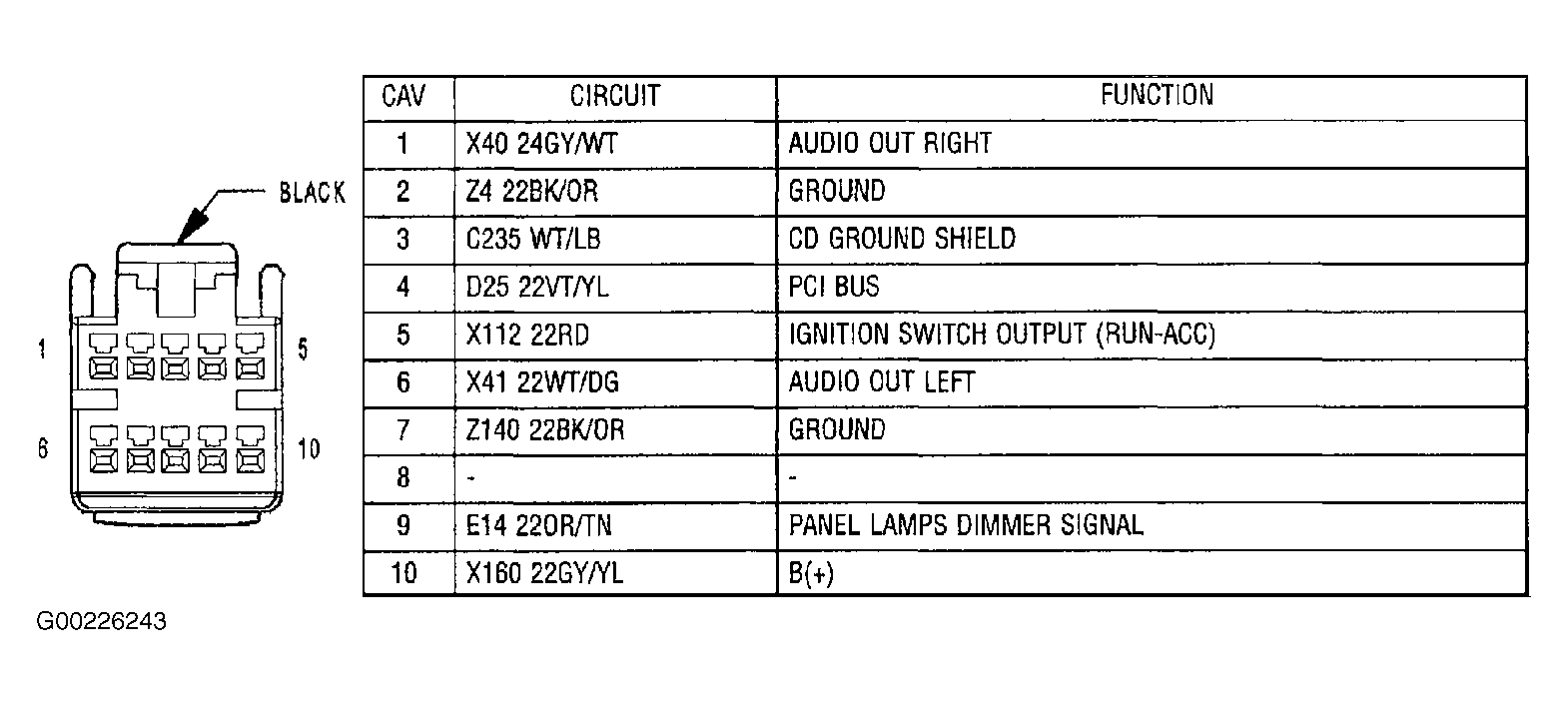

Fig 105: Identifying Radio Connector C2

G00226243

Courtesy of CHRYSLER CORP.

Fig 106: Identifying Rear Floor Courtesy Light Connector

G00226244

Courtesy of CHRYSLER CORP.

Fig 107: Identifying Recirculation Door Actuator Connector

G00226245

Courtesy of CHRYSLER CORP.

Fig 108: Identifying Right Curtain Air Bag Connector

G00226246

Courtesy of CHRYSLER CORP.

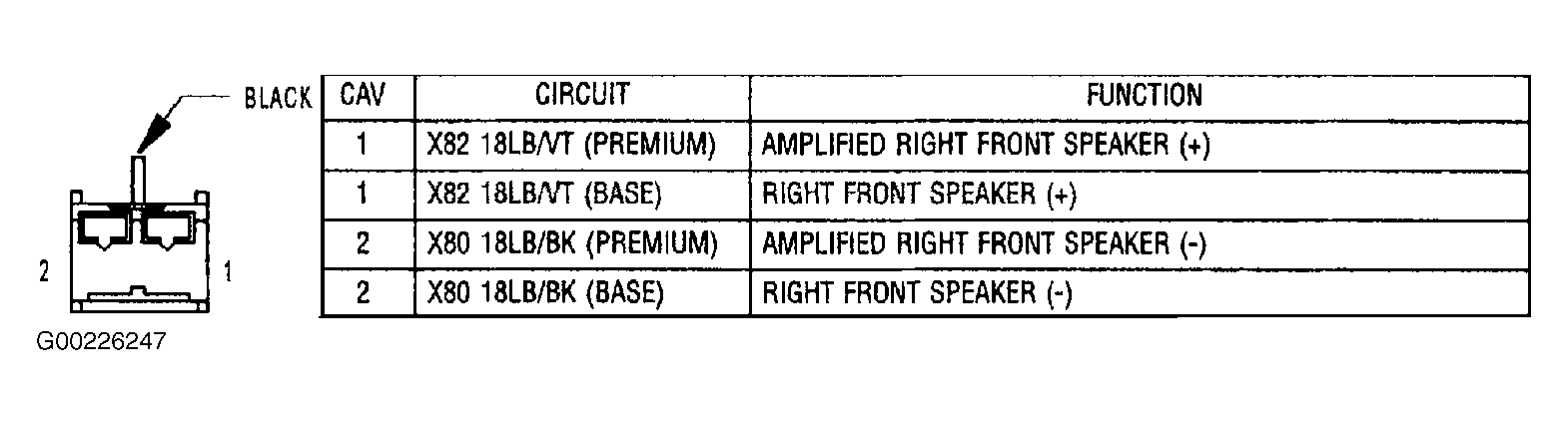

Fig 109: Identifying Right Front Door Speaker Connector

G00226247

Courtesy of CHRYSLER CORP.

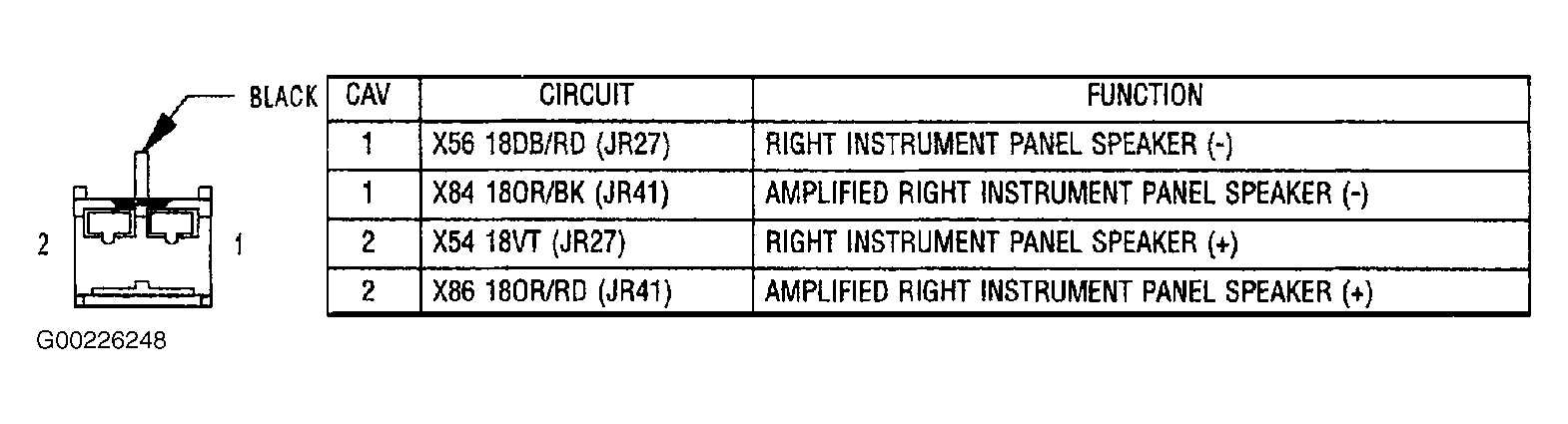

Fig 110: Identifying Right Front Instrument Panel Speaker Connector (Except JR27 Premium)

G00226248

Courtesy of CHRYSLER CORP.

Fig 111: Identifying Right Front Instrument Panel Speaker Connector (JR27 Premium)

G00226249

Courtesy of CHRYSLER CORP.

Fig 112: Identifying Right Headlight Connector

G00226250

Courtesy of CHRYSLER CORP.

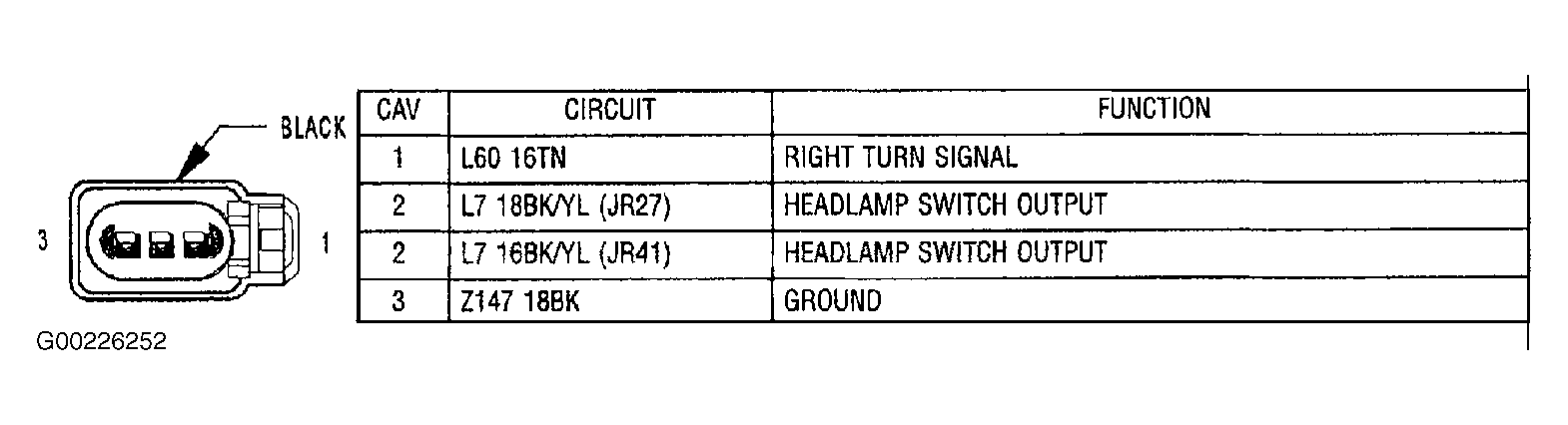

Fig 113: Identifying Right Park/Turn Signal Light Connector

G00226252

Courtesy of CHRYSLER CORP.

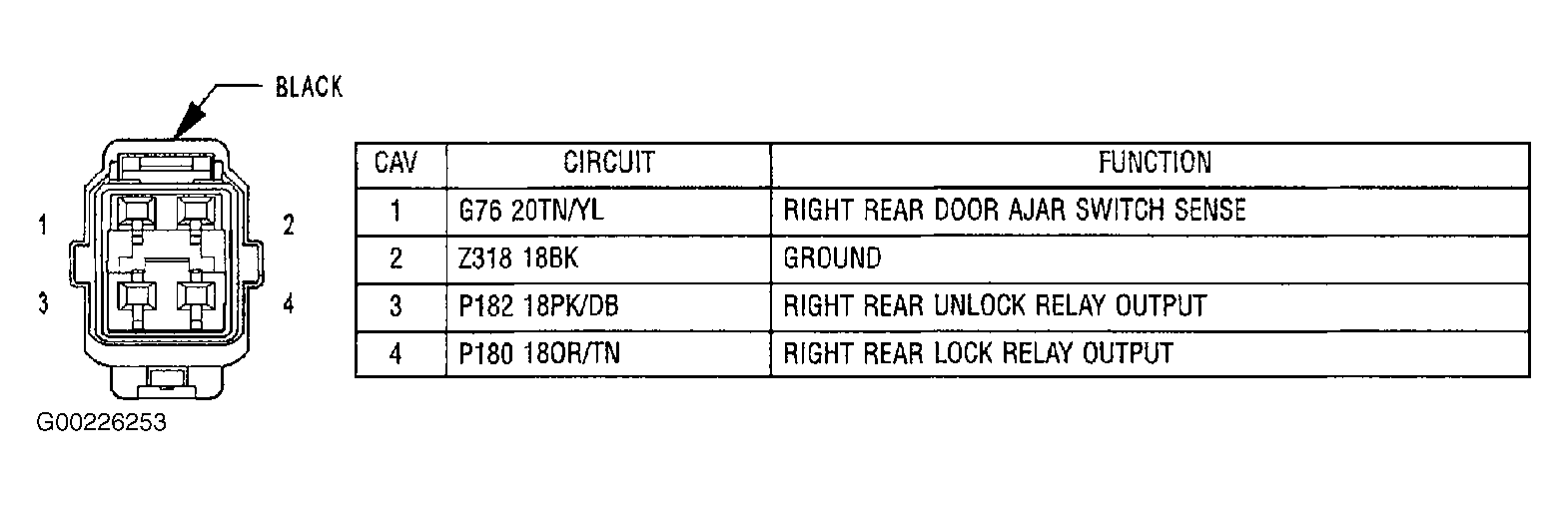

Fig 114: Identifying Right Rear Door Lock Motor/Ajar Switch Connector

G00226253

Courtesy of CHRYSLER CORP.

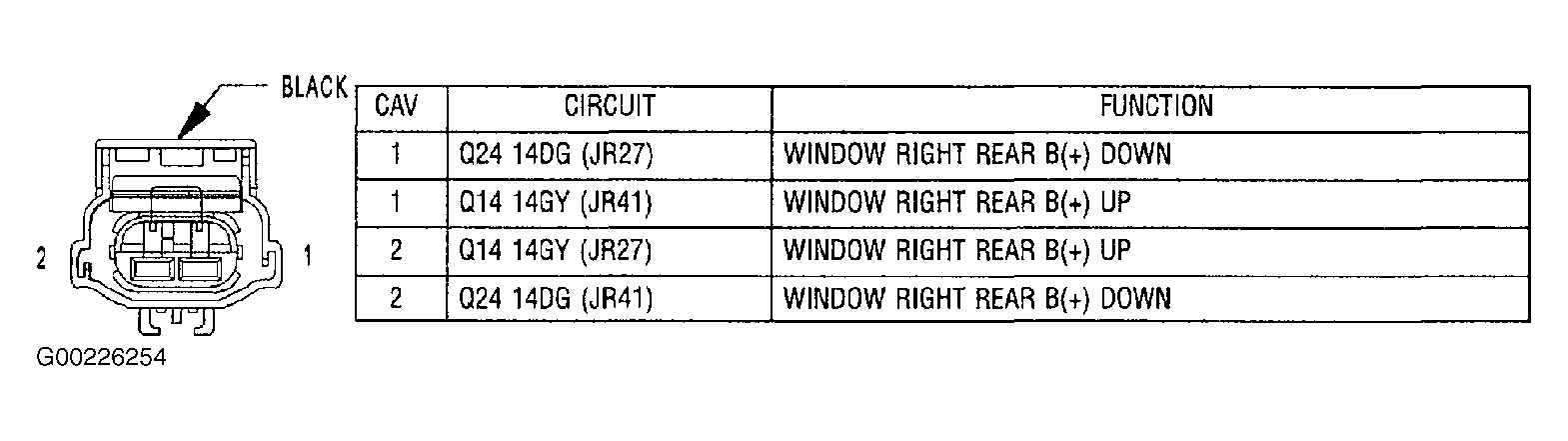

Fig 115: Identifying Right Rear Window Motor Connector

G00226254

Courtesy of CHRYSLER CORP.

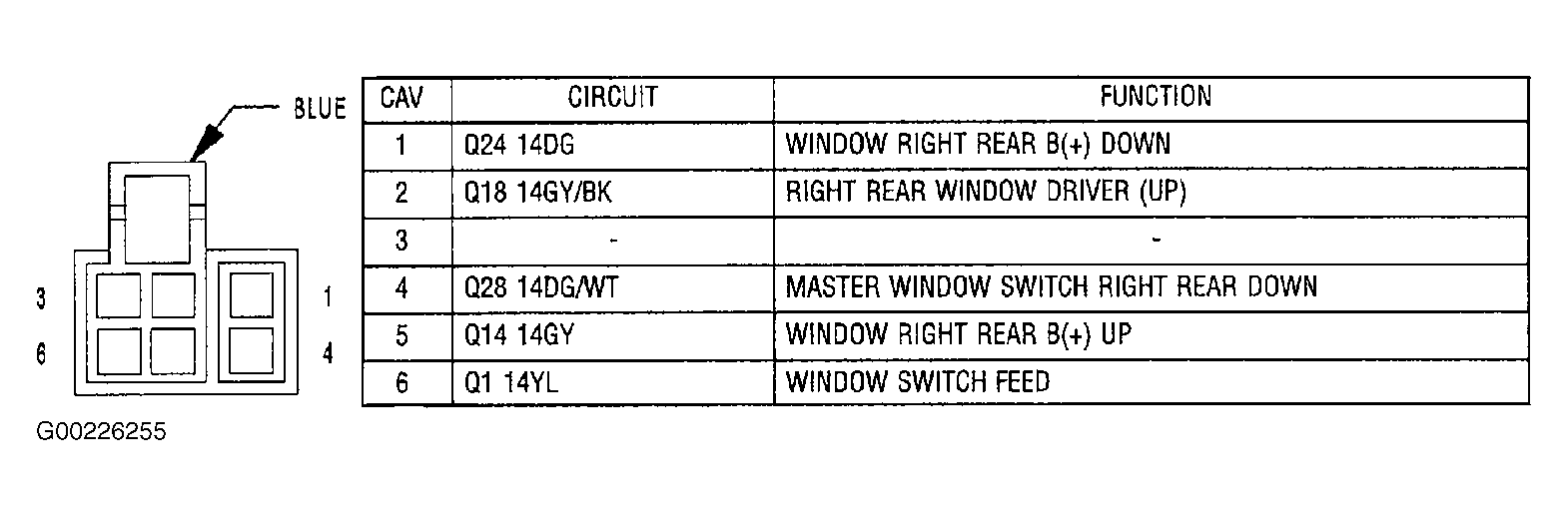

Fig 116: Identifying Right Rear Power Window Switch Connector

G00226255

Courtesy of CHRYSLER CORP.

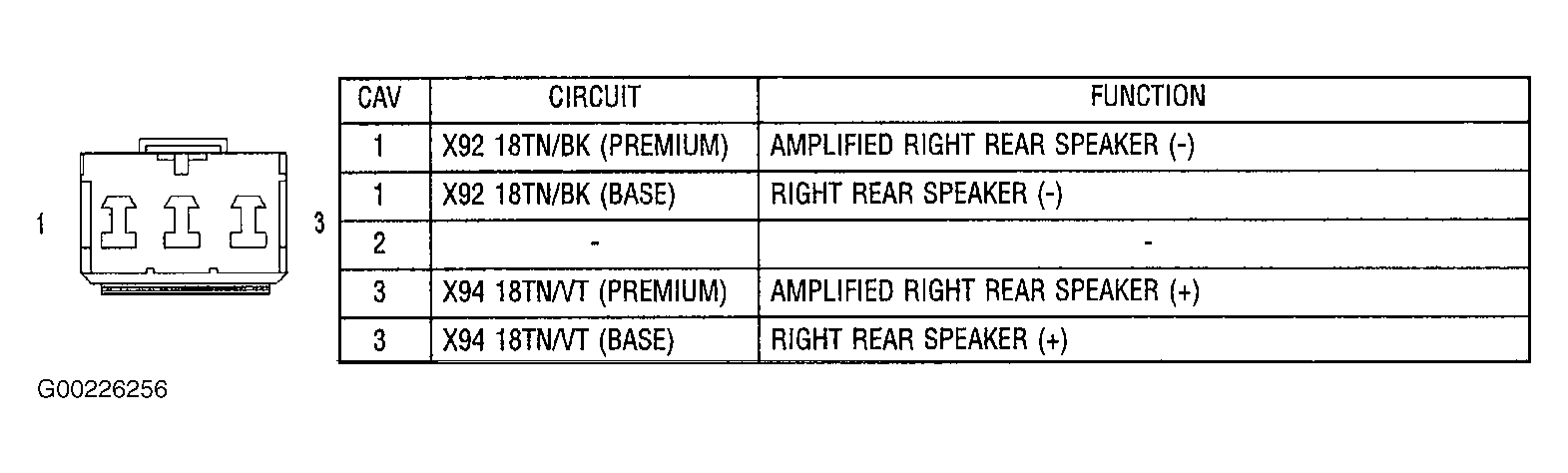

Fig 117: Identifying Right Rear Speaker Connector

G00226256

Courtesy of CHRYSLER CORP.

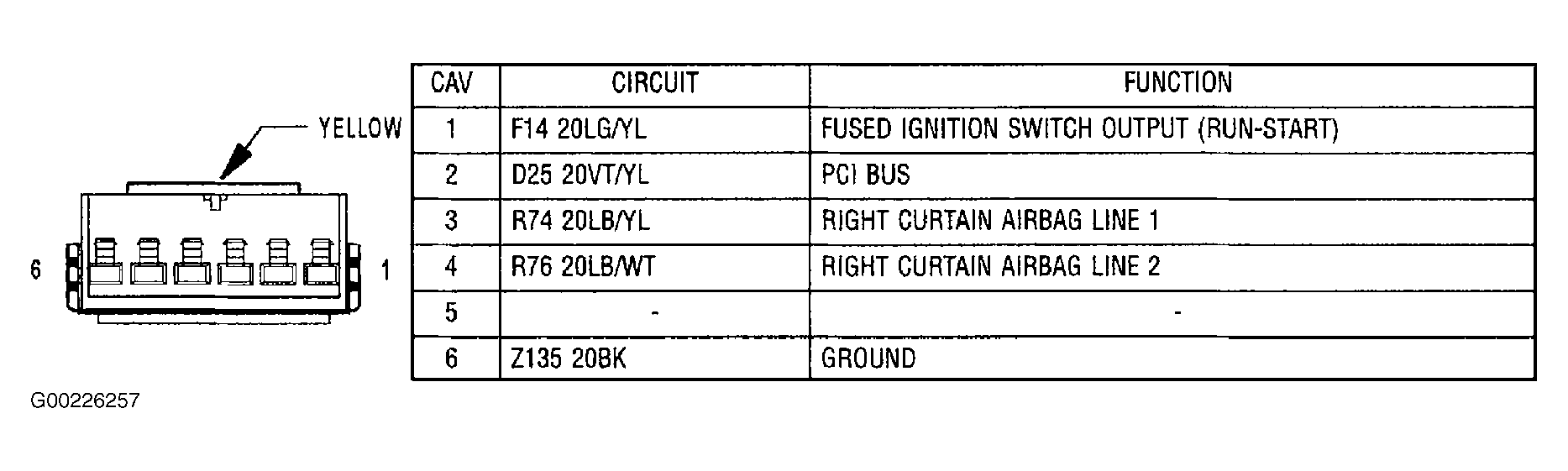

Fig 118: Identifying Right SIACM Connector

G00226257

Courtesy of CHRYSLER CORP.

Fig 119: Identifying Right Tail/Side Marker Light Connector

G00226258

Courtesy of CHRYSLER CORP.

Fig 120: Identifying Right Tail/Stop Light Connector

G00226259

Courtesy of CHRYSLER CORP.

Fig 121: Identifying Right Tail/Turn Signal Light (Dodge)

G00226260

Courtesy of CHRYSLER CORP.

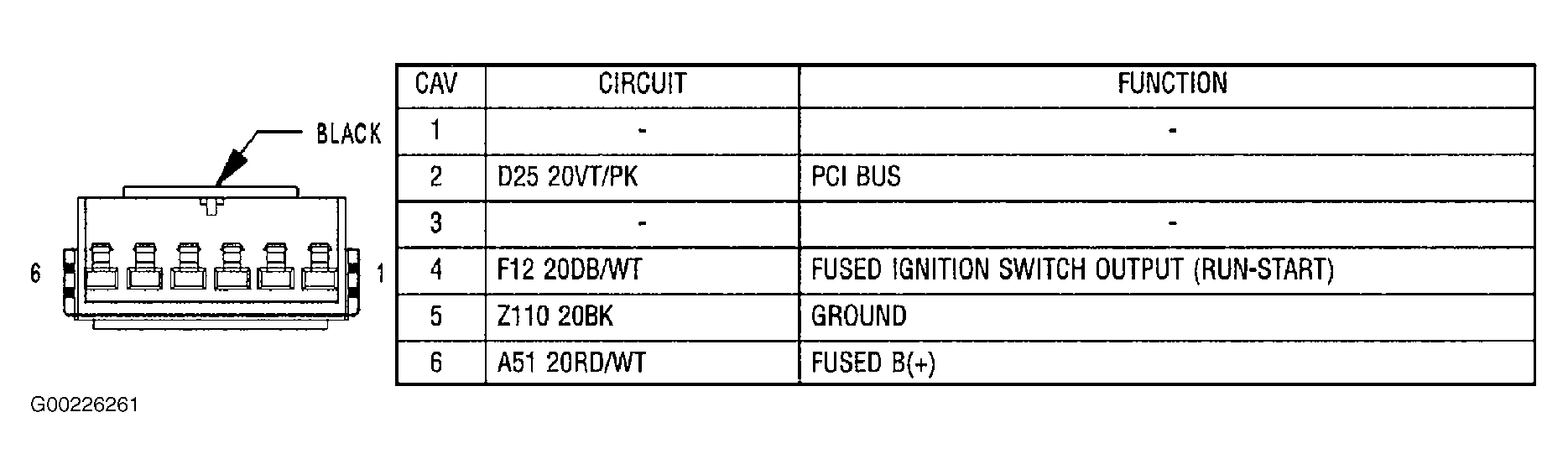

Fig 122: Identifying Sentry Key Immobilizer Module Connector

G00226261

Courtesy of CHRYSLER CORP.

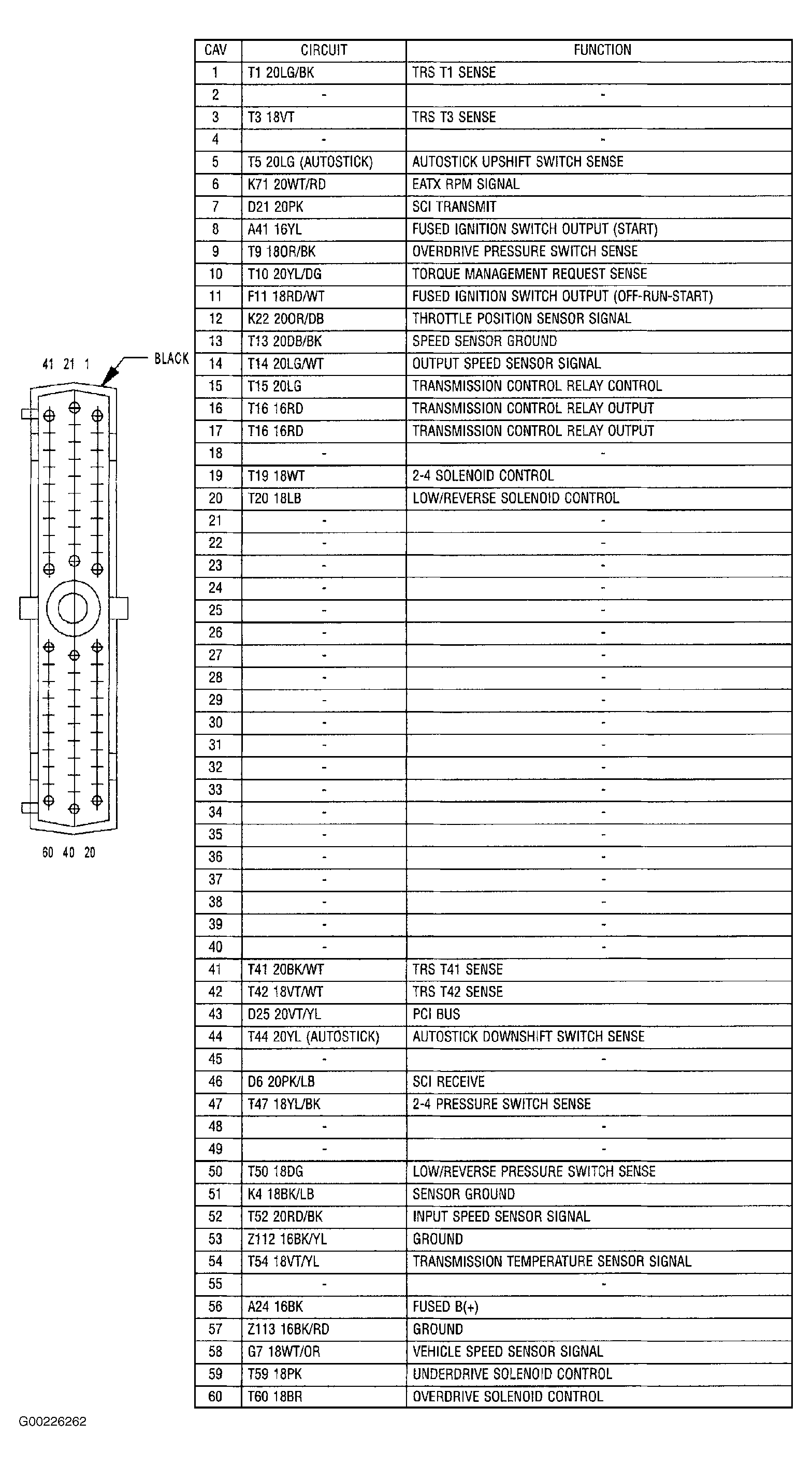

Fig 123: Identifying Transmission Control Module Connector

G00226262

Courtesy of CHRYSLER CORP.

Fig 124: Identifying Washer Fluid Level Switch Connector

G00226263

Courtesy of CHRYSLER CORP.

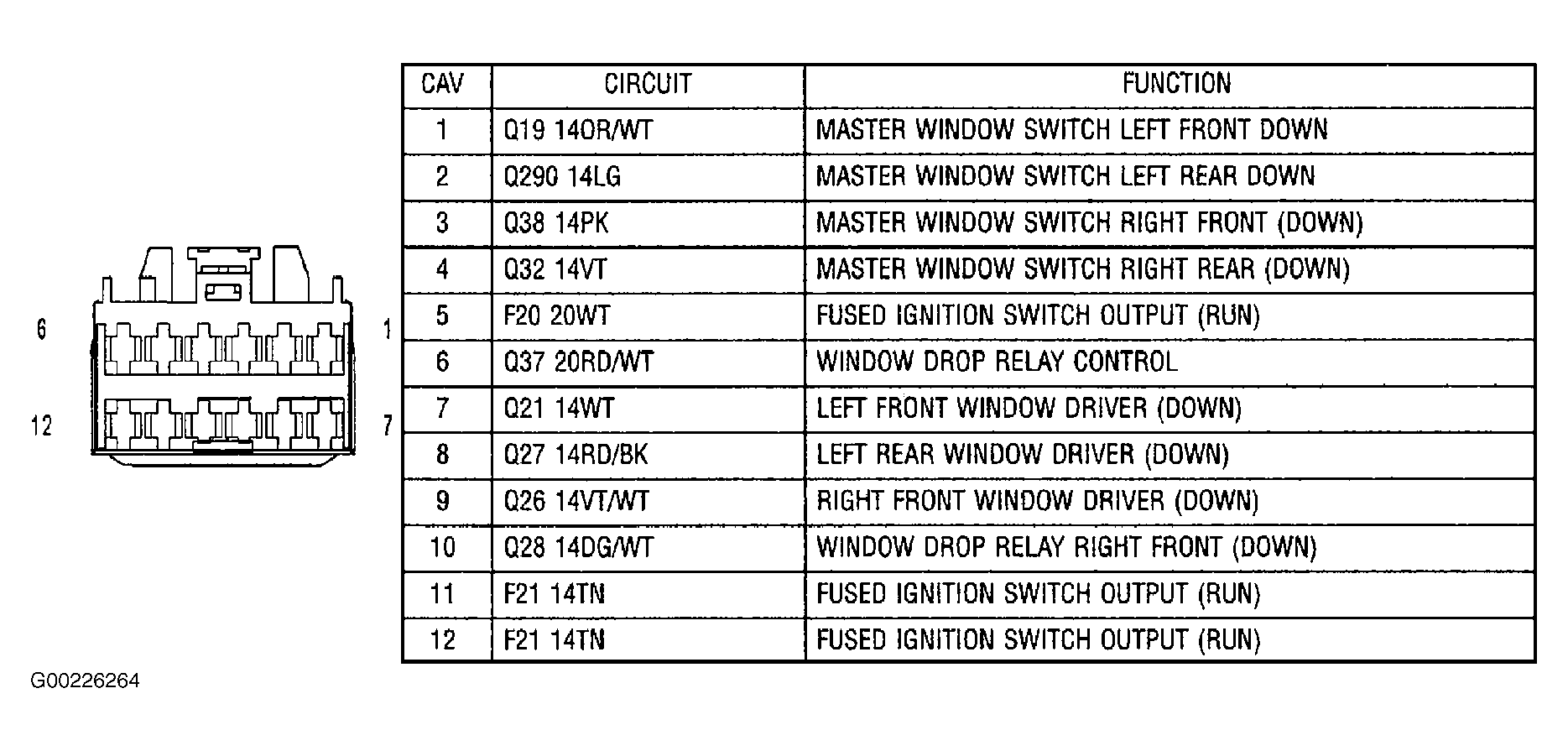

Fig 125: Identifying Window Drop Relay Assembly Connector (Sebring Convertible)

G00226264

Courtesy of CHRYSLER CORP.
