Battery Power To Module Disconnected

For testing procedures, see Fig 1 .

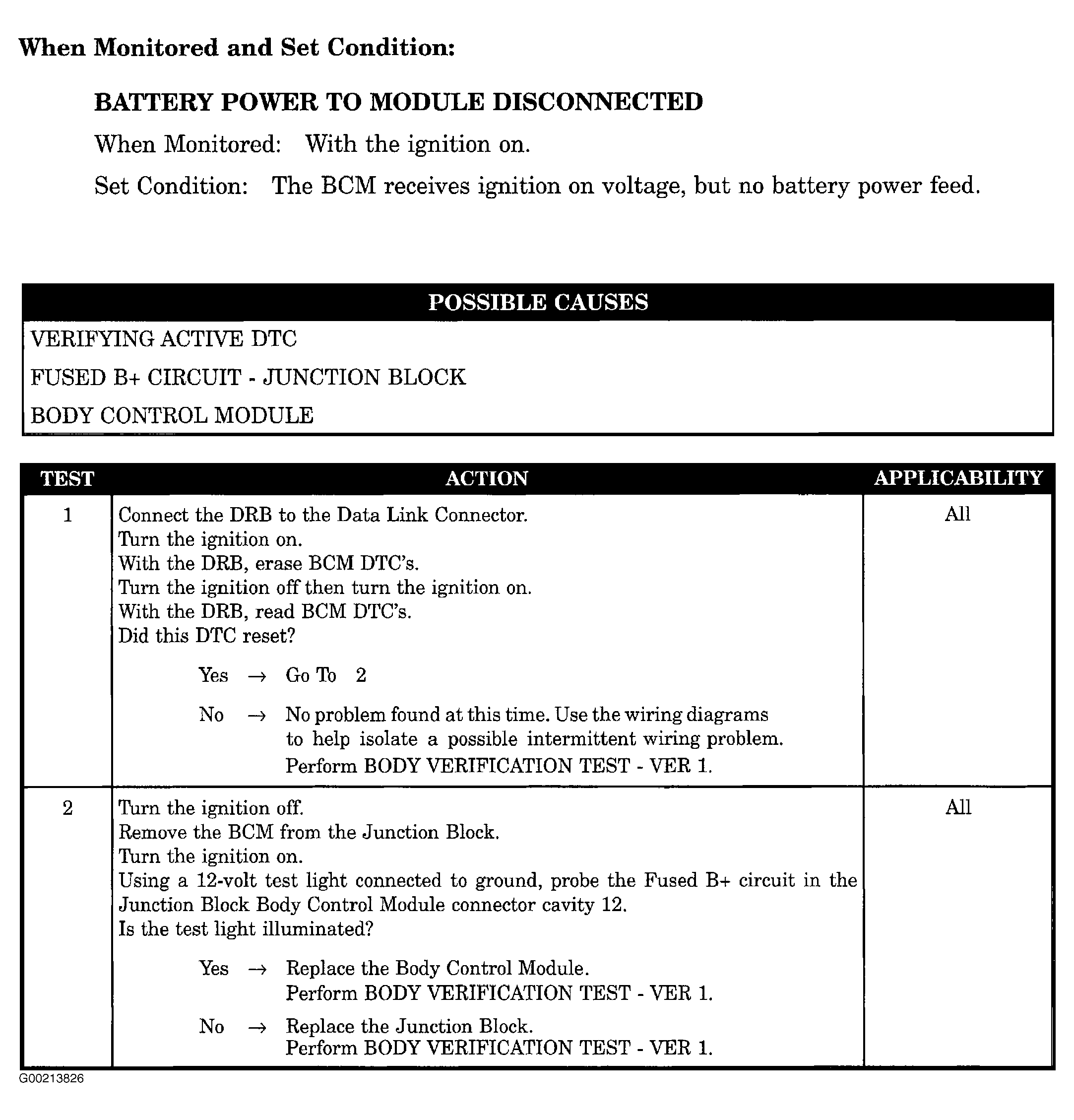

Fig 1: Battery Power To Module Disconnected
G00213826Courtesy of CHRYSLER CORP.
