Bootloader Checksum Failure
For testing procedures, see
Fig 1
.

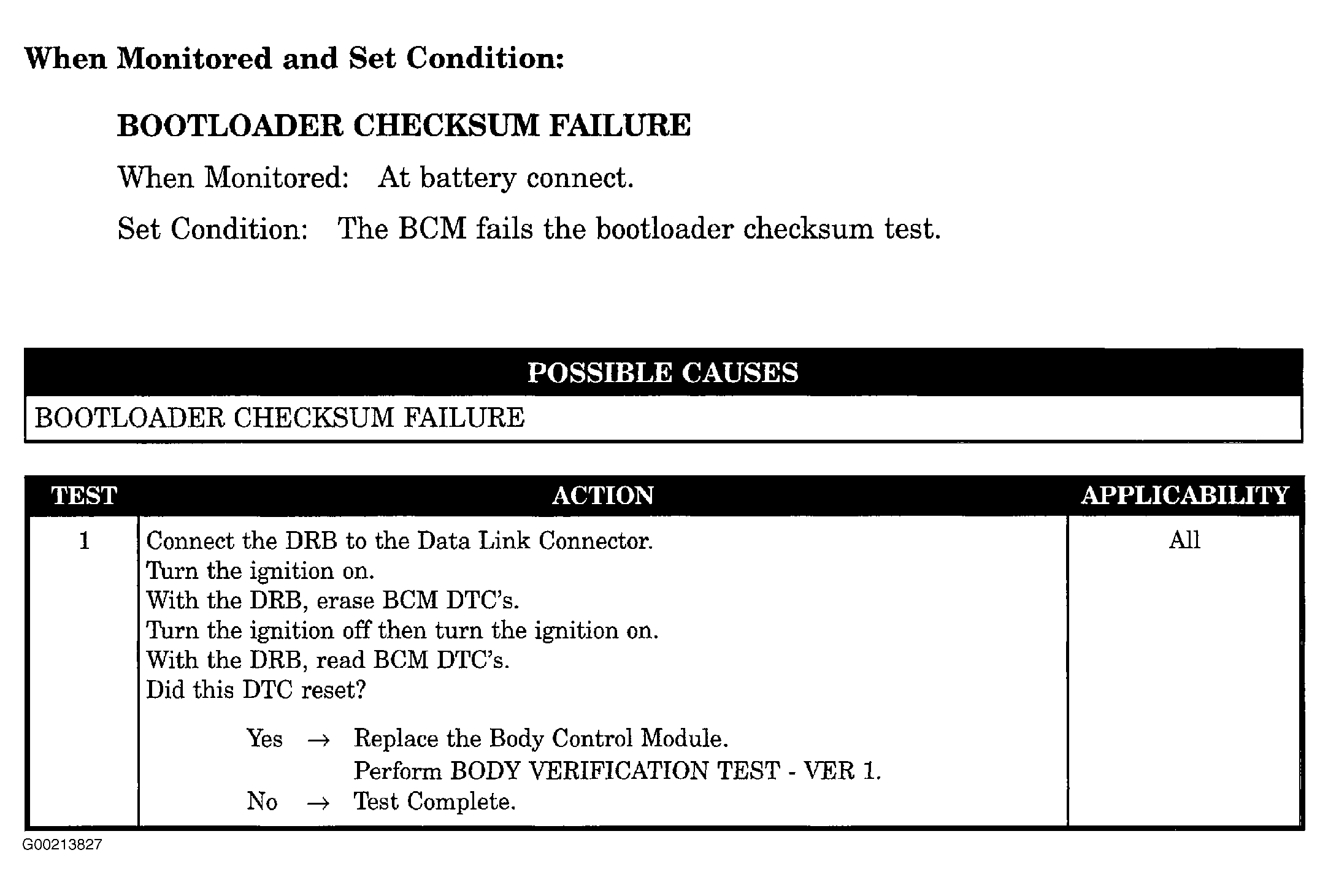

Fig 1: Bootloader Checksum Failure
Courtesy of CHRYSLER CORP.
