BCM Message Not Received
For testing procedures, see
Fig 1
.

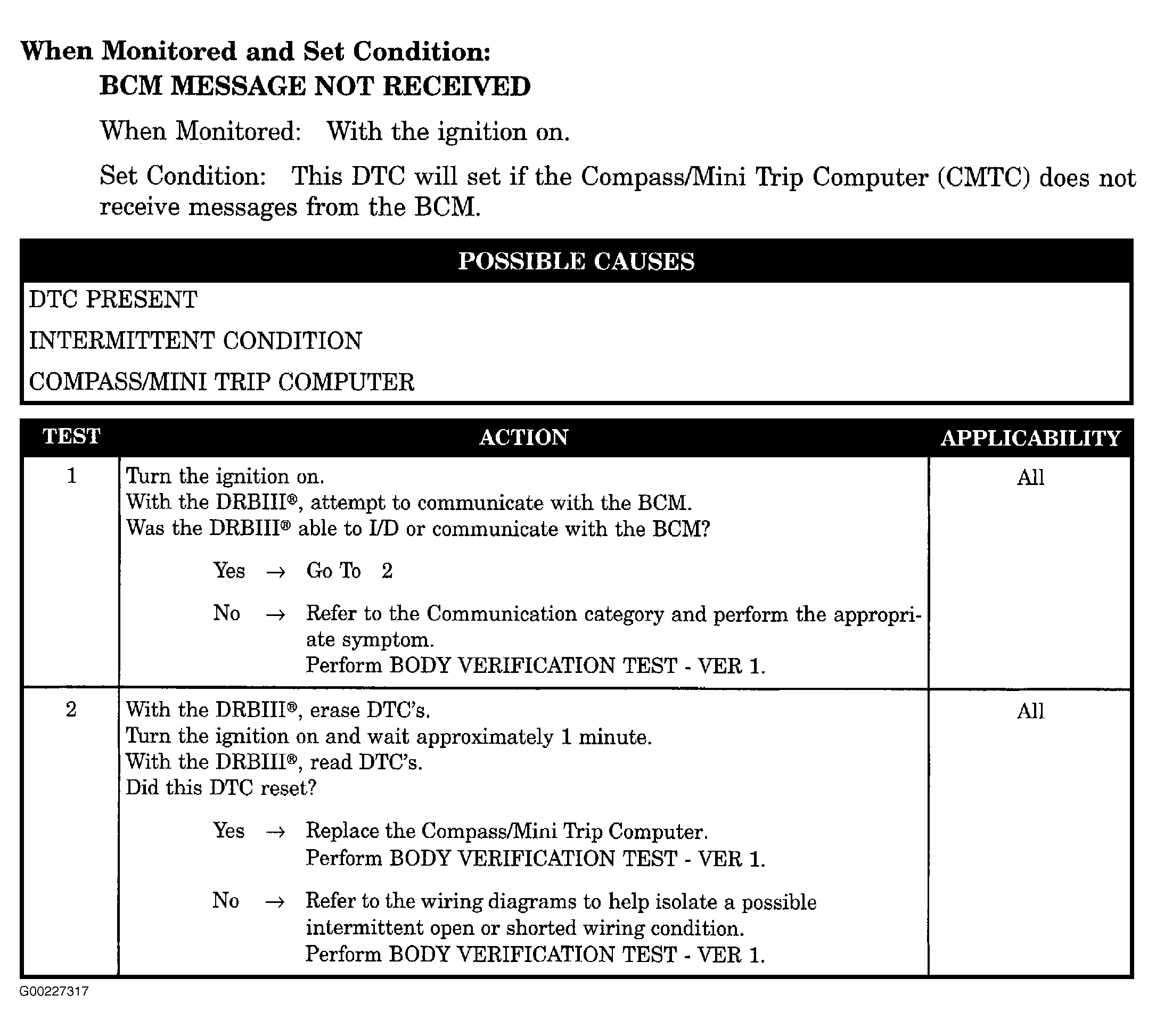

Fig 1: BCM Message Not Received
Courtesy of CHRYSLER CORP.
