Oil Pressure Indicator Not Operating Properly

For testing procedures, see Fig 1 and Fig 2 .

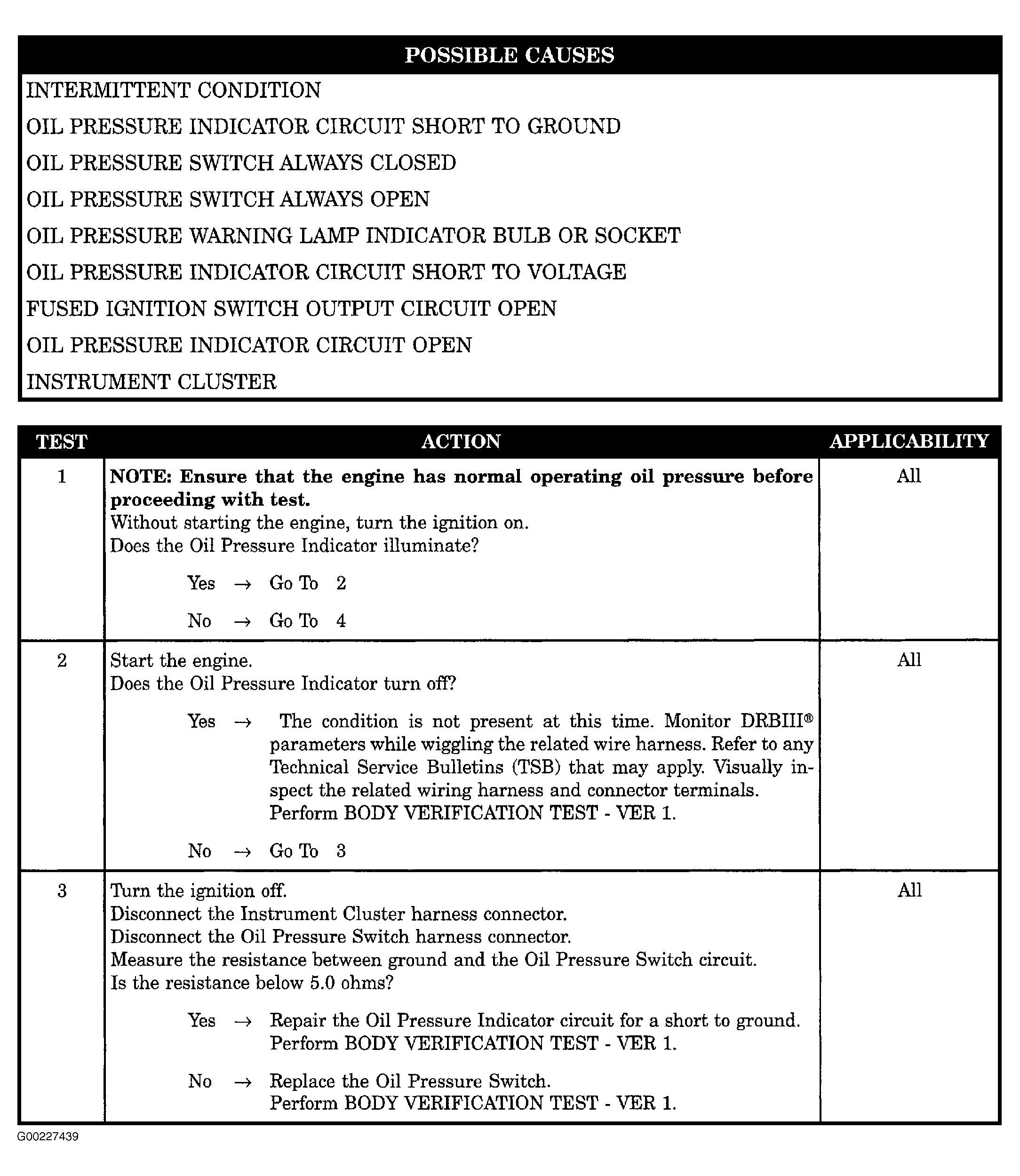

Fig 1: Oil Pressure Indicator Not Operating Properly - Steps 1-3 (1 Of 2)

Courtesy of CHRYSLER CORP.

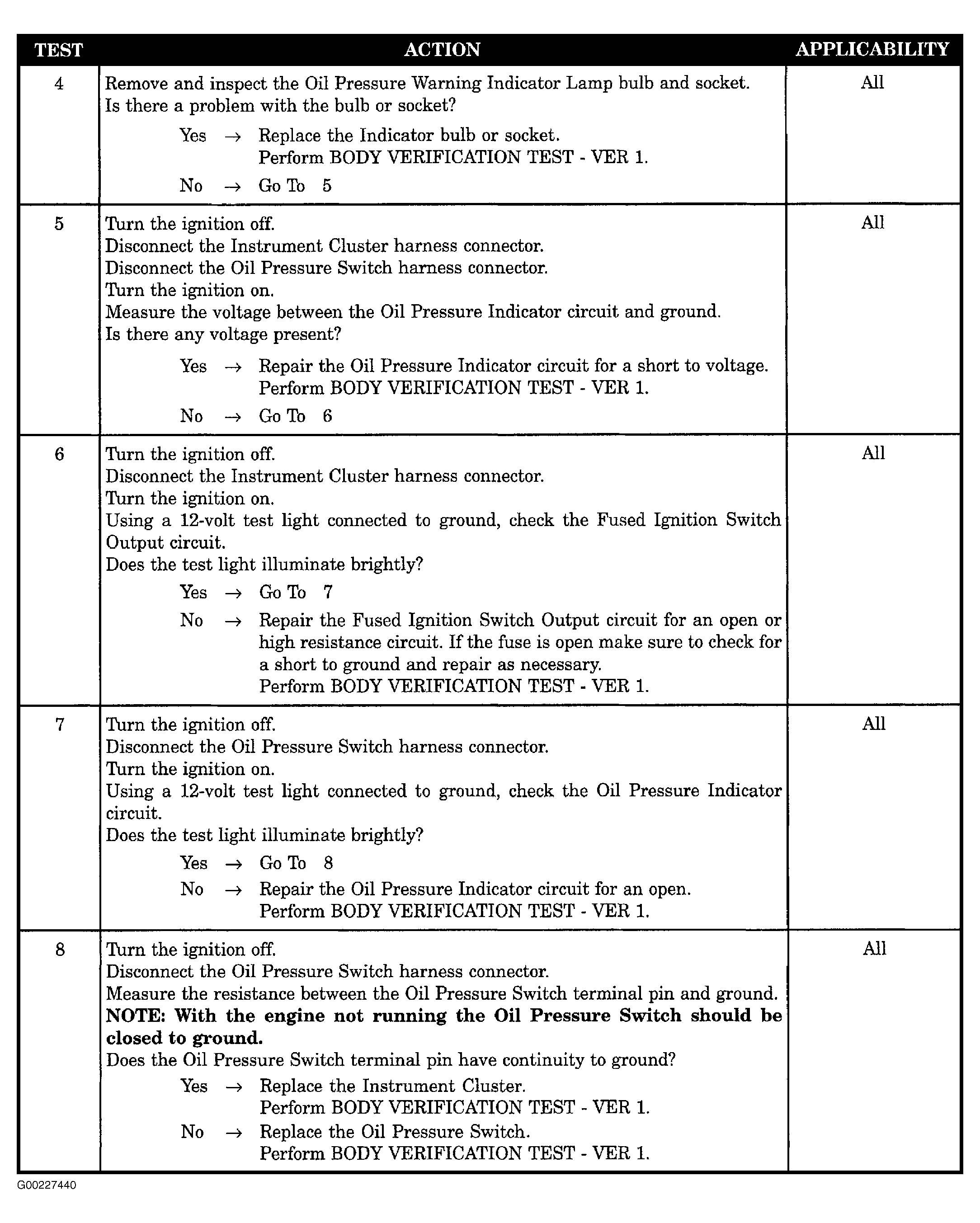

Fig 2: Oil Pressure Indicator Not Operating Properly - Steps 4-8 (2 Of 2)

Courtesy of CHRYSLER CORP.
