Speedometer Not Operating Properly

For testing procedures, see Fig 1 and Fig 2 .

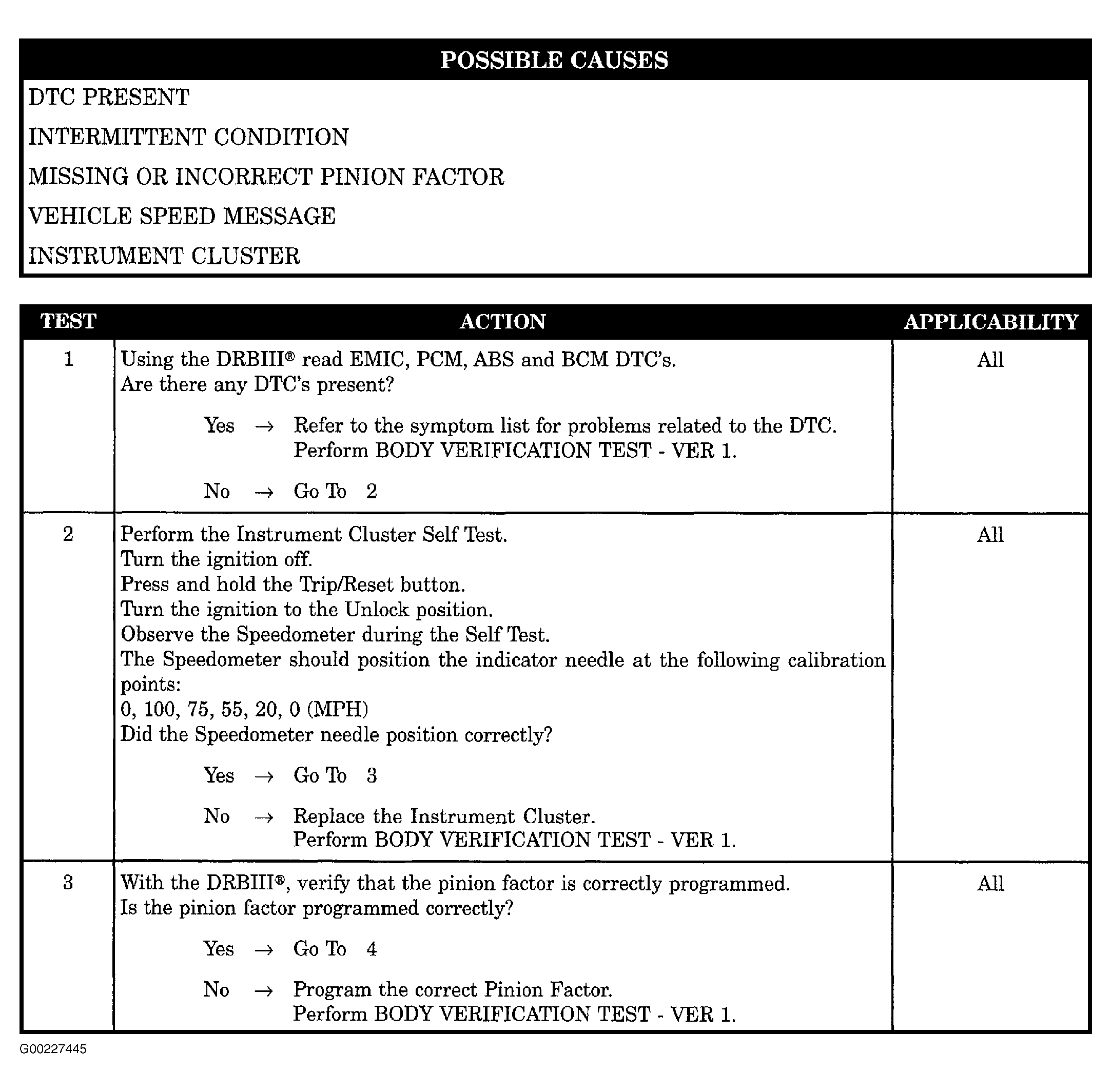

Fig 1: Speedometer Not Operating Properly - Steps 1-3 (1 Of 2)

Courtesy of CHRYSLER CORP.

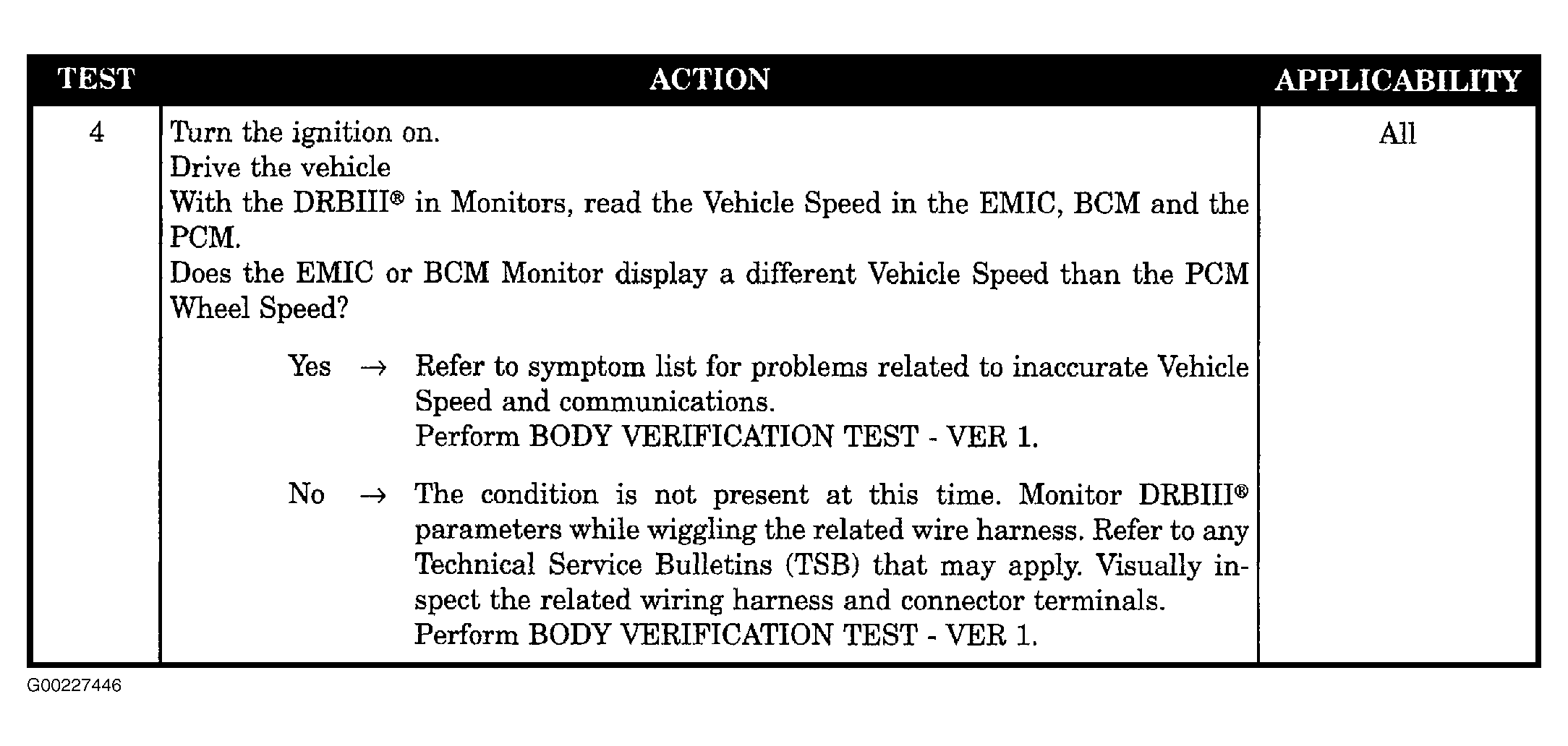

Fig 2: Speedometer Not Operating Properly - Step 4 (2 Of 2)

Courtesy of CHRYSLER CORP.
