Dimming Level Switch Input Failure

For testing procedures, see Fig 1 and Fig 2 .

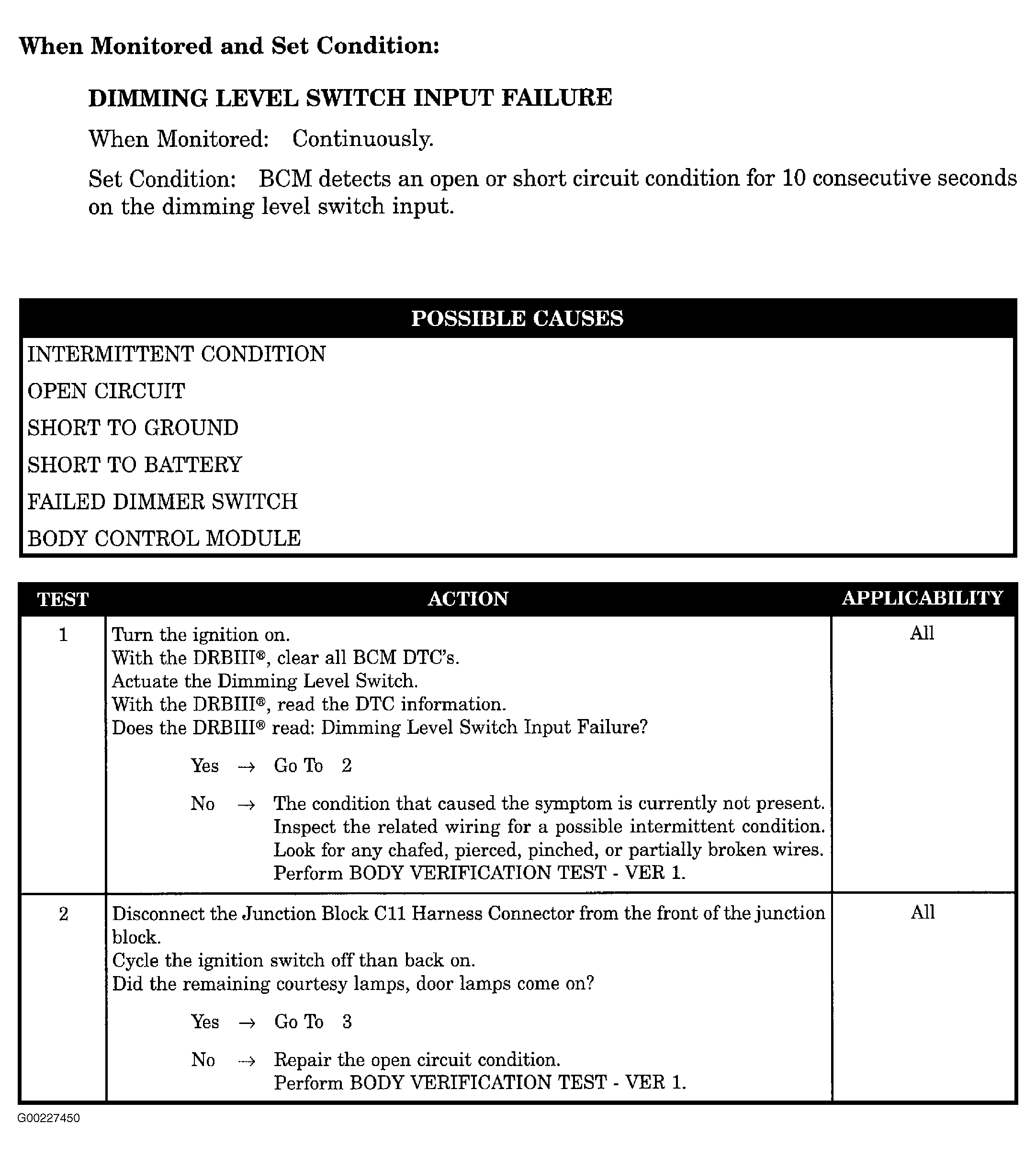

Fig 1: Dimming Level Switch Input Failure - Steps 1 & 2 (1 Of 2)

Courtesy of CHRYSLER CORP.

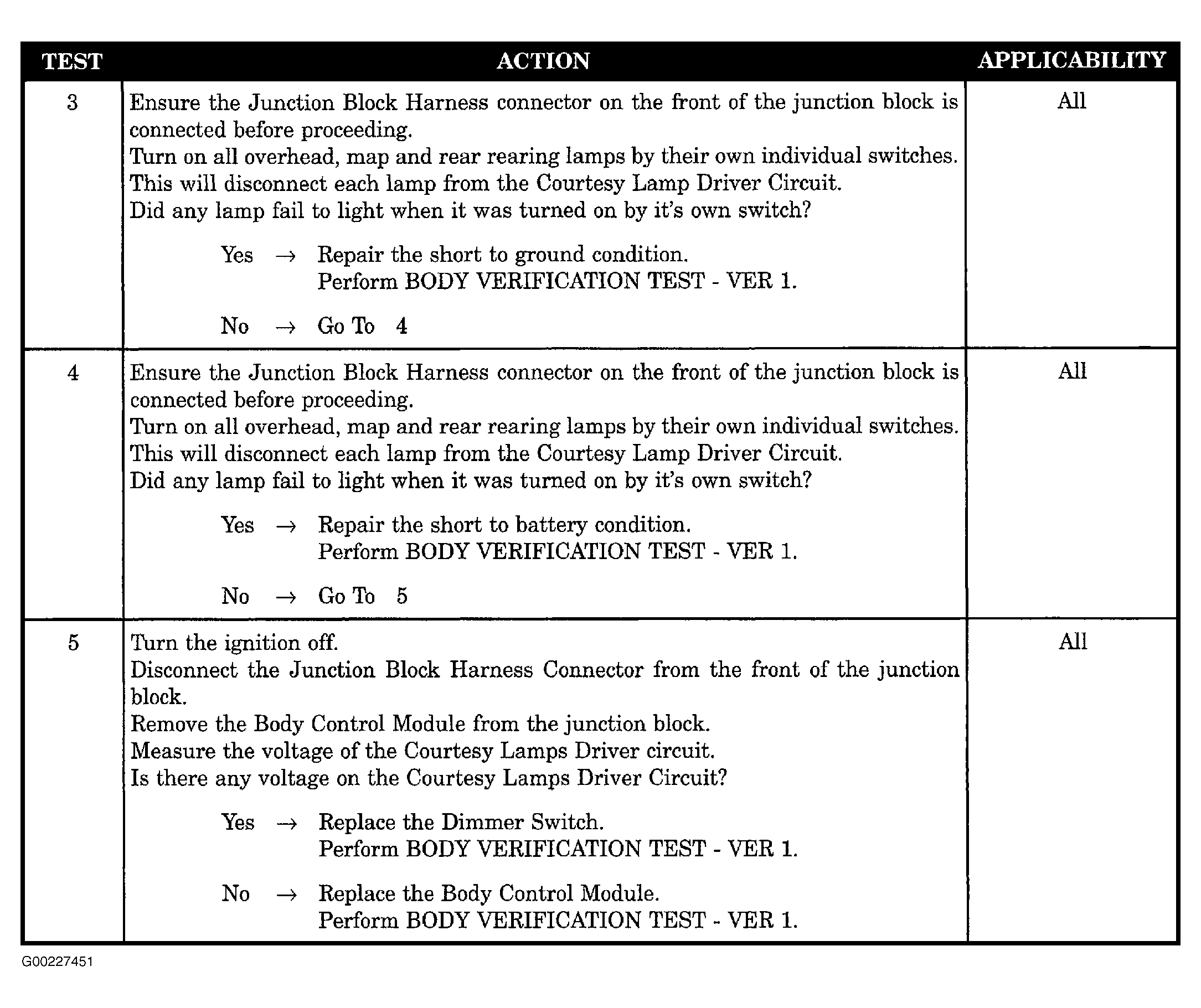

Fig 2: Dimming Level Switch Input Failure - Steps 3-5 (2 Of 2)

Courtesy of CHRYSLER CORP.
