Component Locations

NOTE: See Fig 1 thru Fig 24 for component locations.

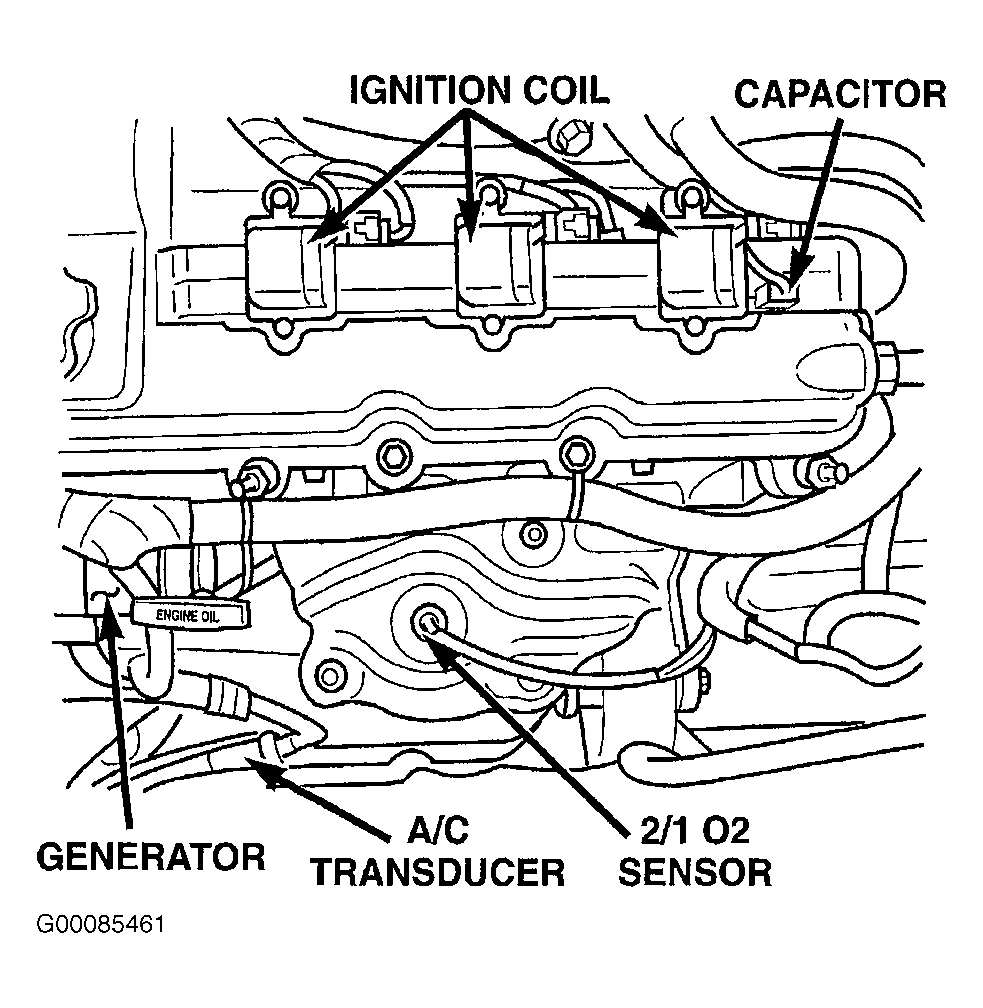

Fig 1: Locating A/C Transducer, Capacitor, Ignition Coils & 2/1 O2 Sensor (2.7L)

G00085461

Courtesy of DAIMLERCHRYSLER CORPORATION

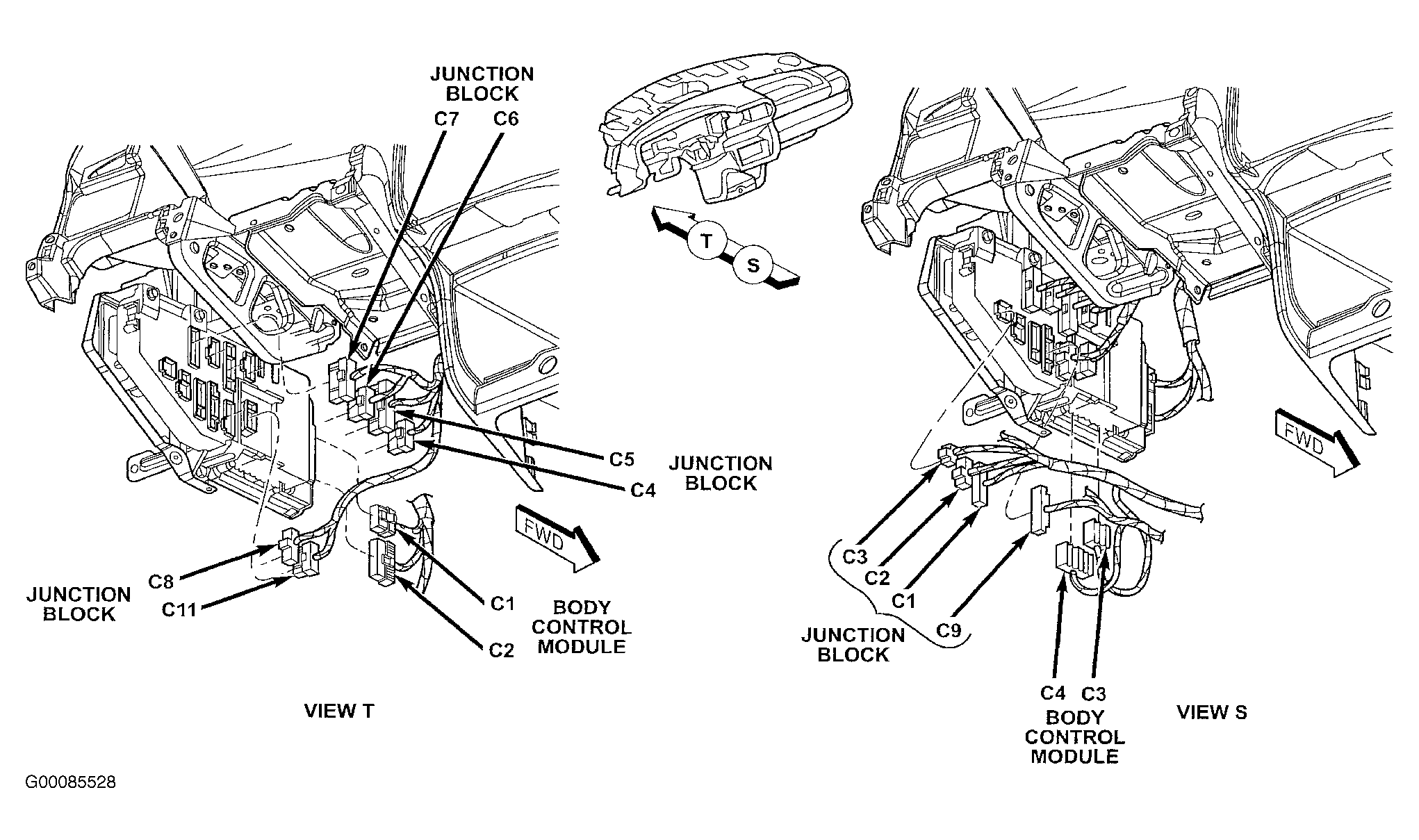

Fig 2: Locating Body Control Module & Junction Block Connectors

G00085528

Courtesy of DAIMLERCHRYSLER CORPORATION

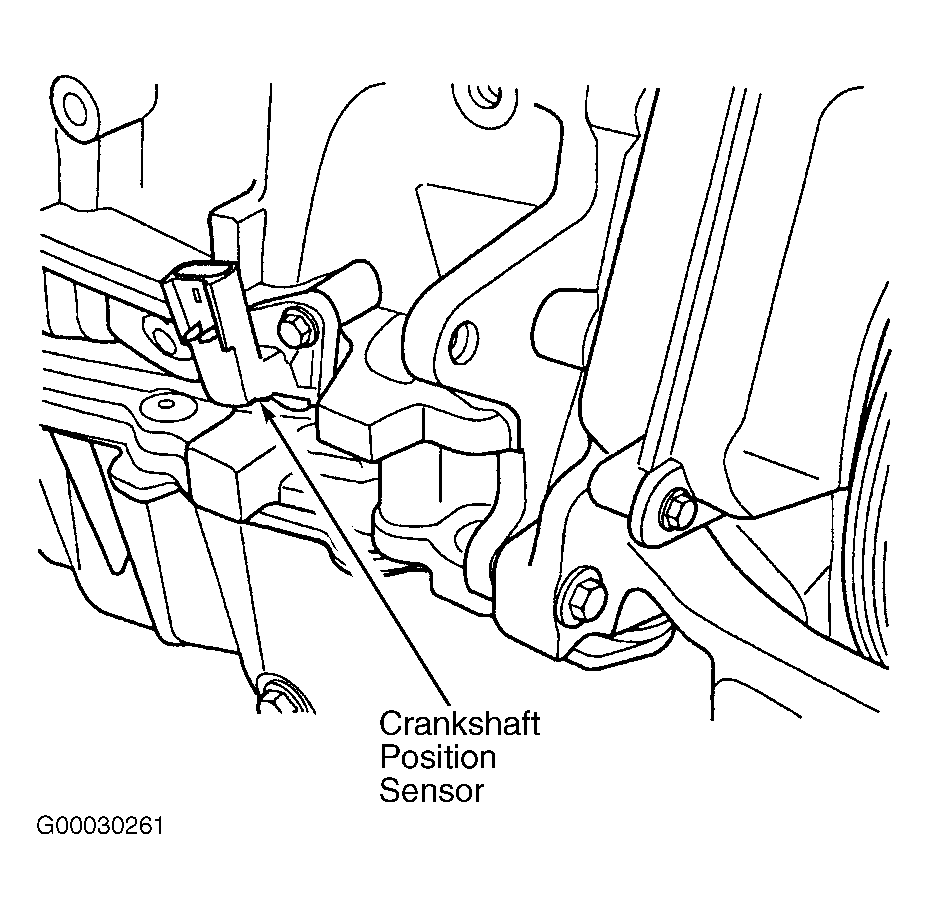

Fig 3: Locating CKP Sensor (2.4L)

G00030261

Courtesy of DAIMLERCHRYSLER CORPORATION

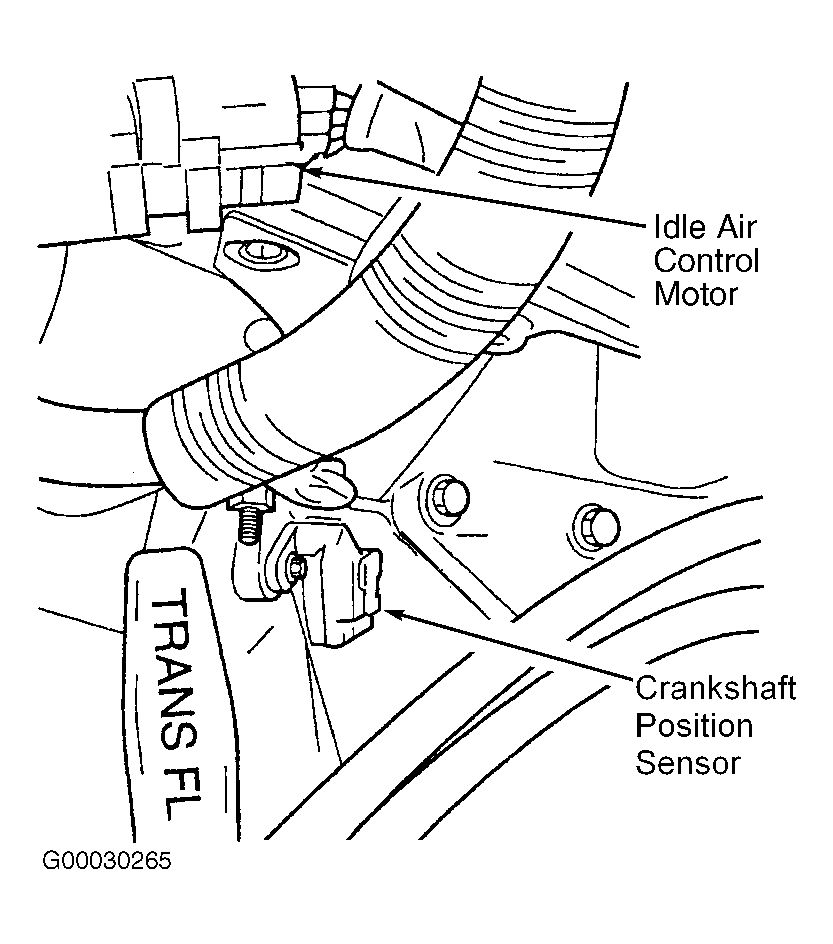

Fig 4: Locating Crankshaft Position Sensor & Idle Air Control Motor (Sebring Convertible, Sebring Sedan & Stratus Sedan -- 2.7L)

G00030265

Courtesy of DAIMLERCHRYSLER CORPORATION

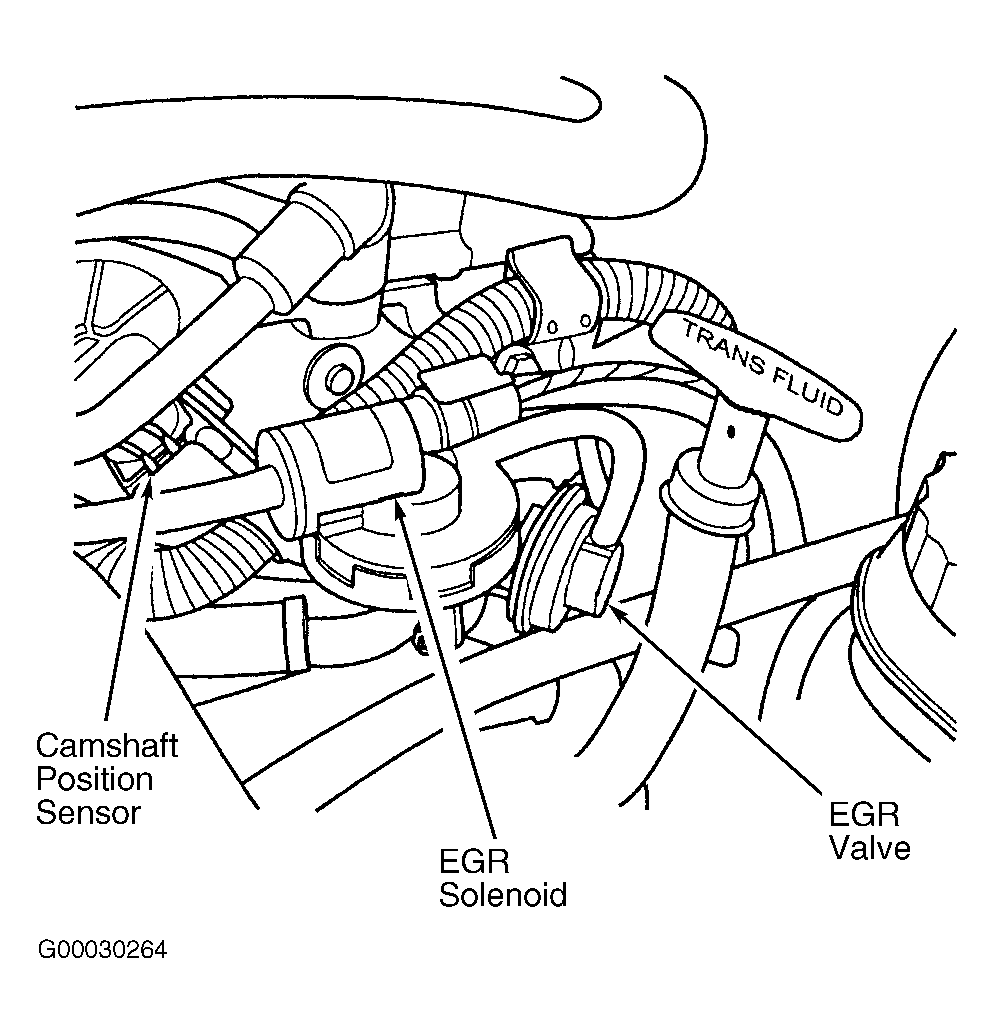

Fig 5: Locating CMP Sensor, EGR Solenoid & EGR Valve (2.4L)

G00030264

Courtesy of DAIMLERCHRYSLER CORPORATION

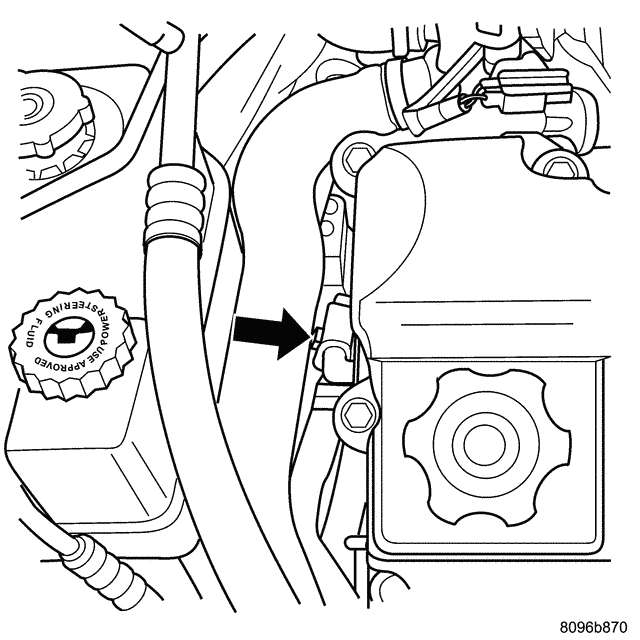

Fig 6: Locating CMP Sensor (2.7L)

G00499515

Courtesy of CHRYSLER GROUP, LLC

Fig 7: Locating Data Link Connector

G98I00156

Courtesy of CHRYSLER CORP.

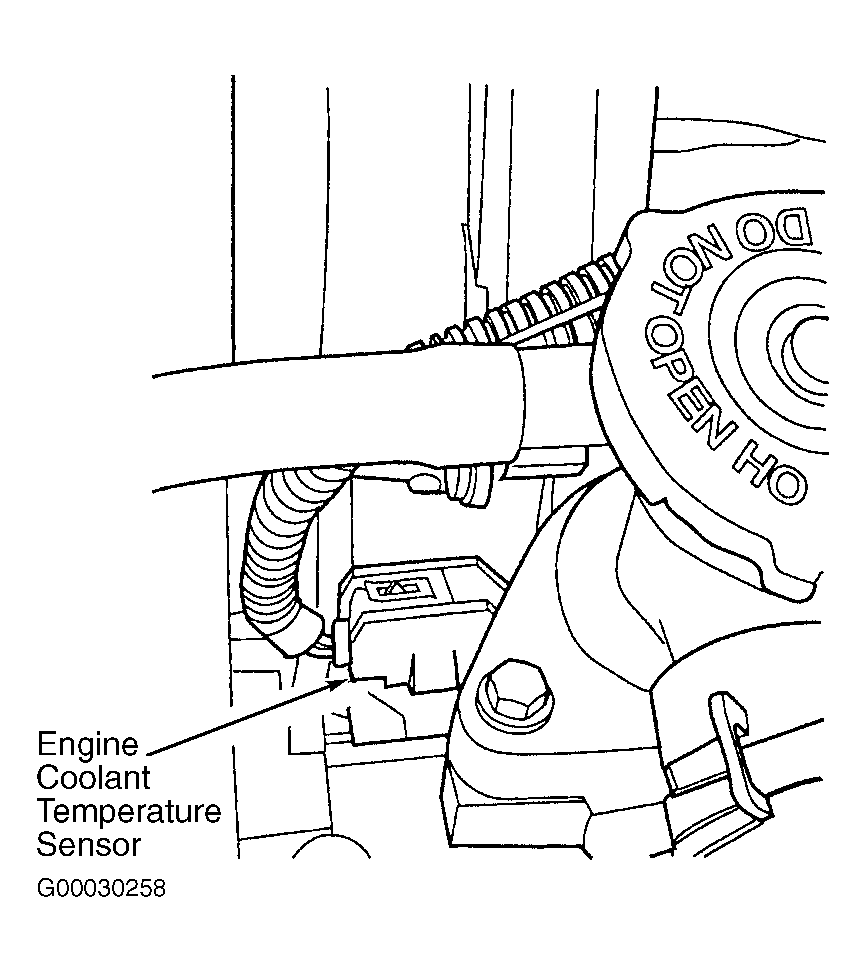

Fig 8: Locating ECT Sensor (2.4L)

G00030258

Courtesy of DAIMLERCHRYSLER CORPORATION

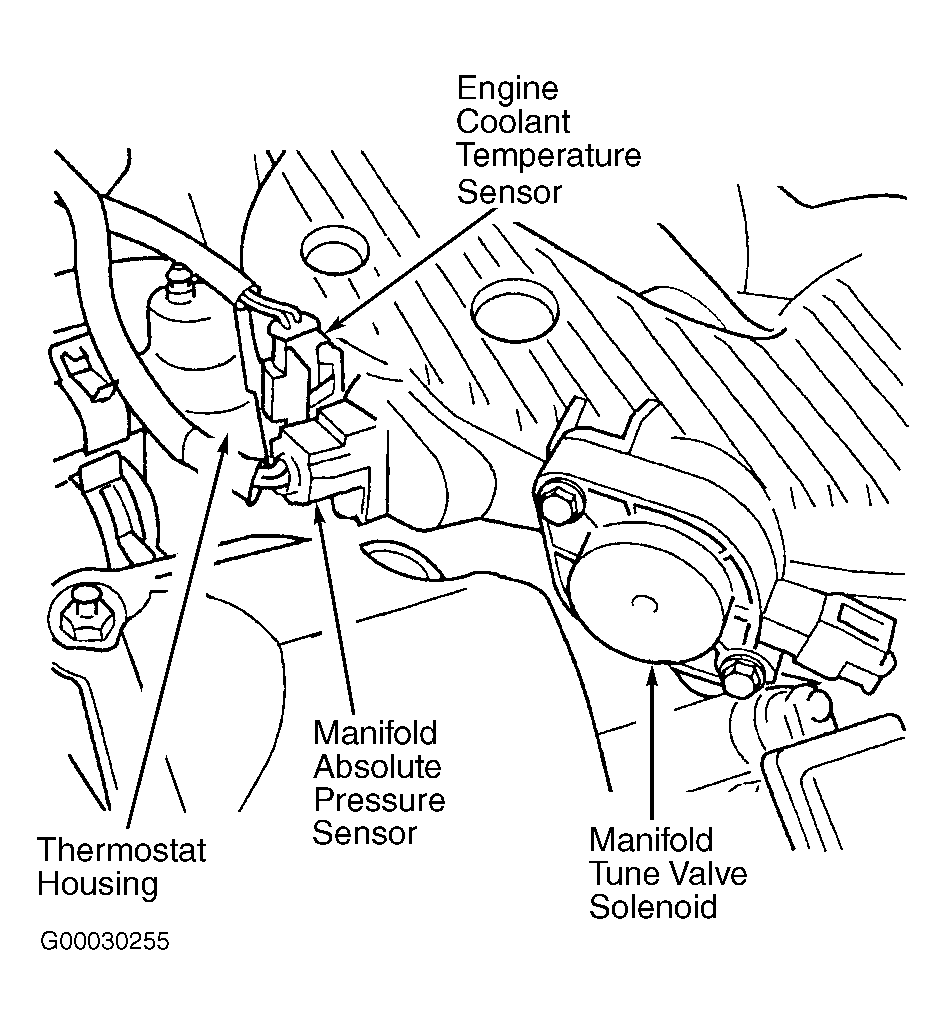

Fig 9: Locating ECT & MAP Sensors (2.7L)

G00030255

Courtesy of DAIMLERCHRYSLER CORPORATION

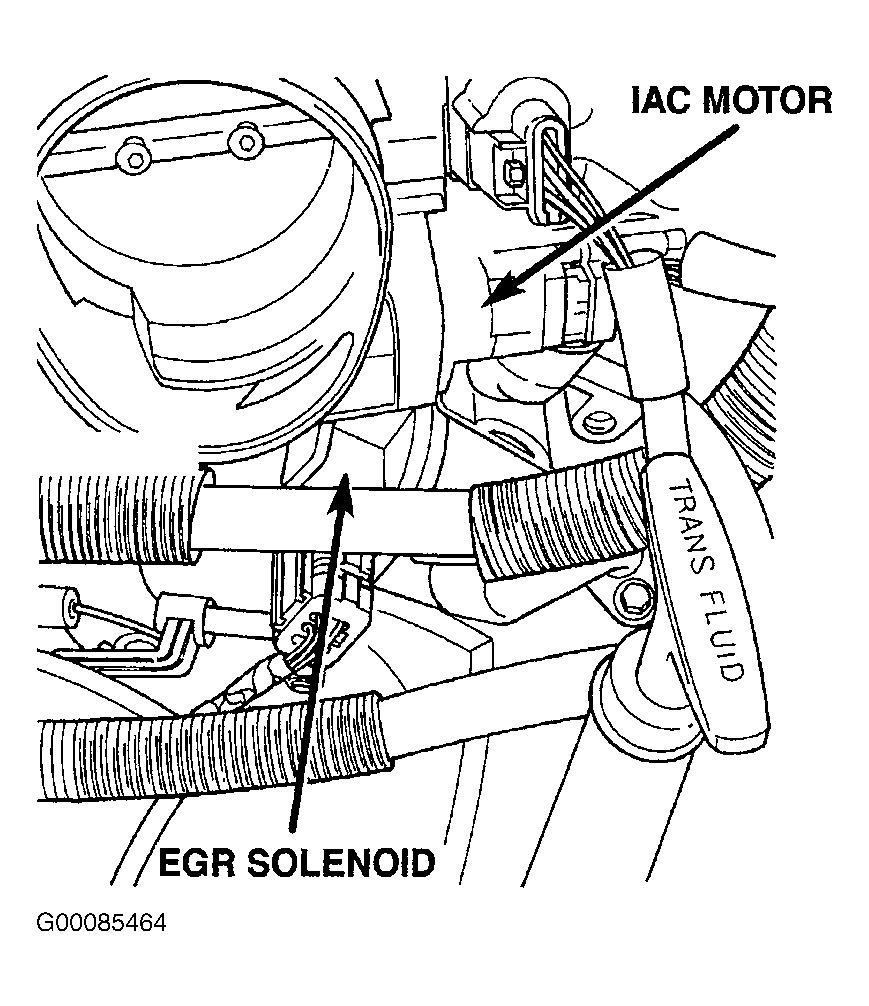

Fig 10: Locating EGR Solenoid & IAC Motor (2.7L)

G00085464

Courtesy of DAIMLERCHRYSLER CORPORATION

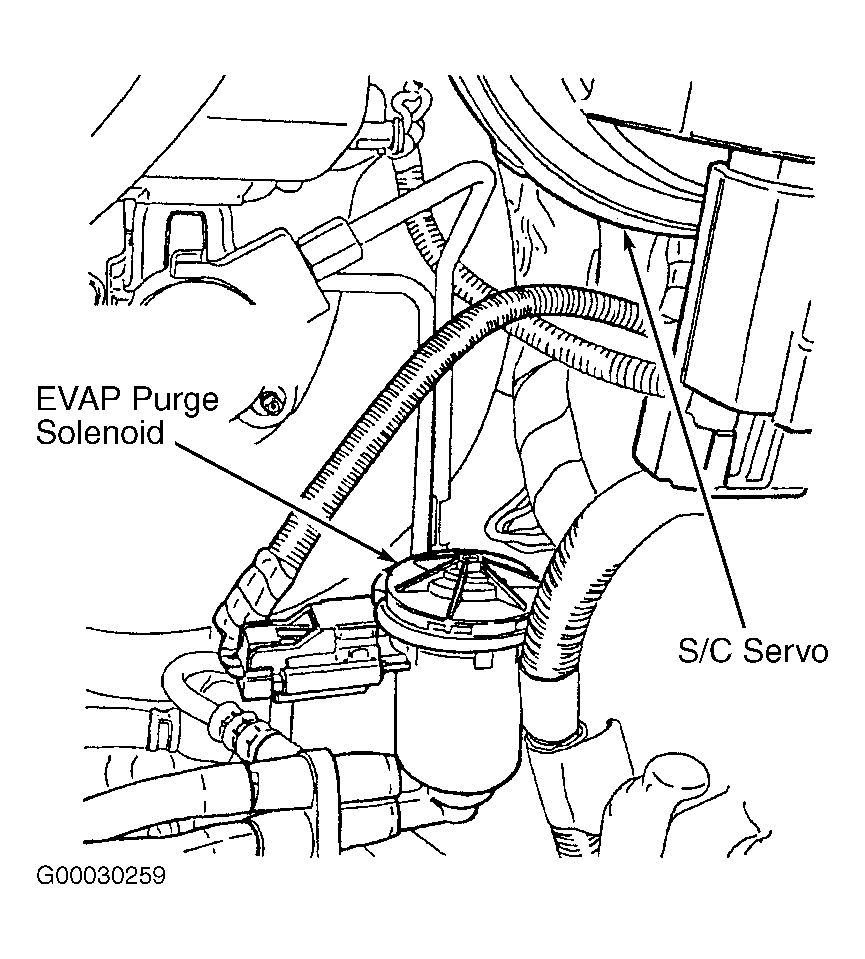

Fig 11: Locating EVAP Purge Solenoid

G00030259

Courtesy of DAIMLERCHRYSLER CORPORATION

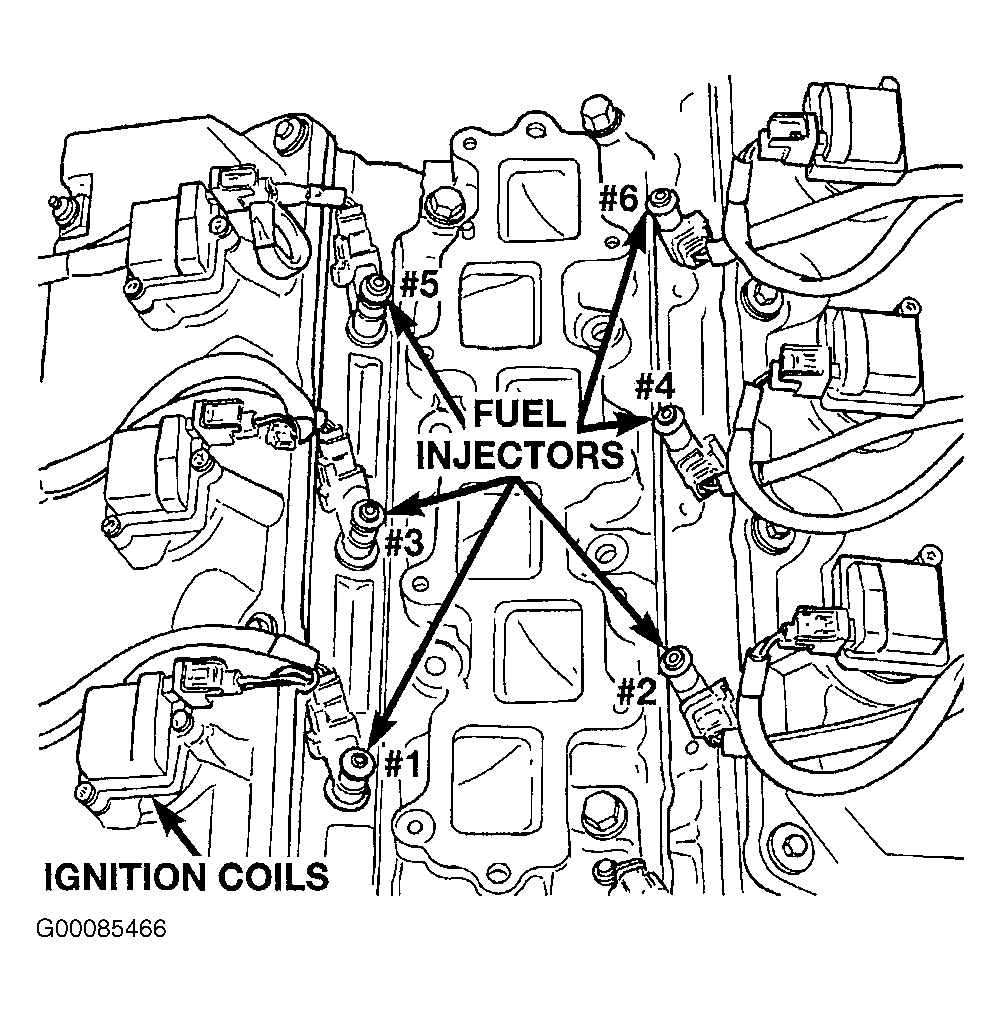

Fig 12: Locating Fuel Injectors & Ignition Coils (2.7L)

G00085466

Courtesy of DAIMLERCHRYSLER CORPORATION

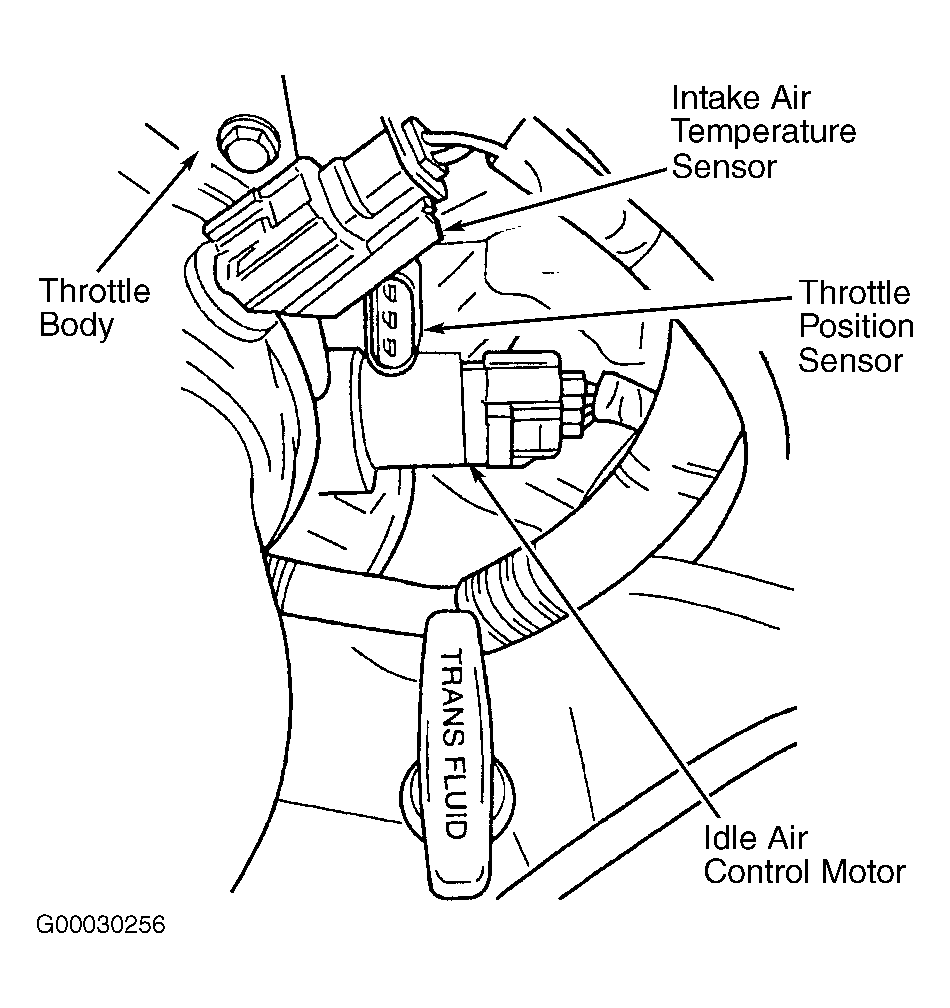

Fig 13: Locating IAC Motor, IAT Sensor & TP Sensor (2.4L)

G00030256

Courtesy of DAIMLERCHRYSLER CORPORATION

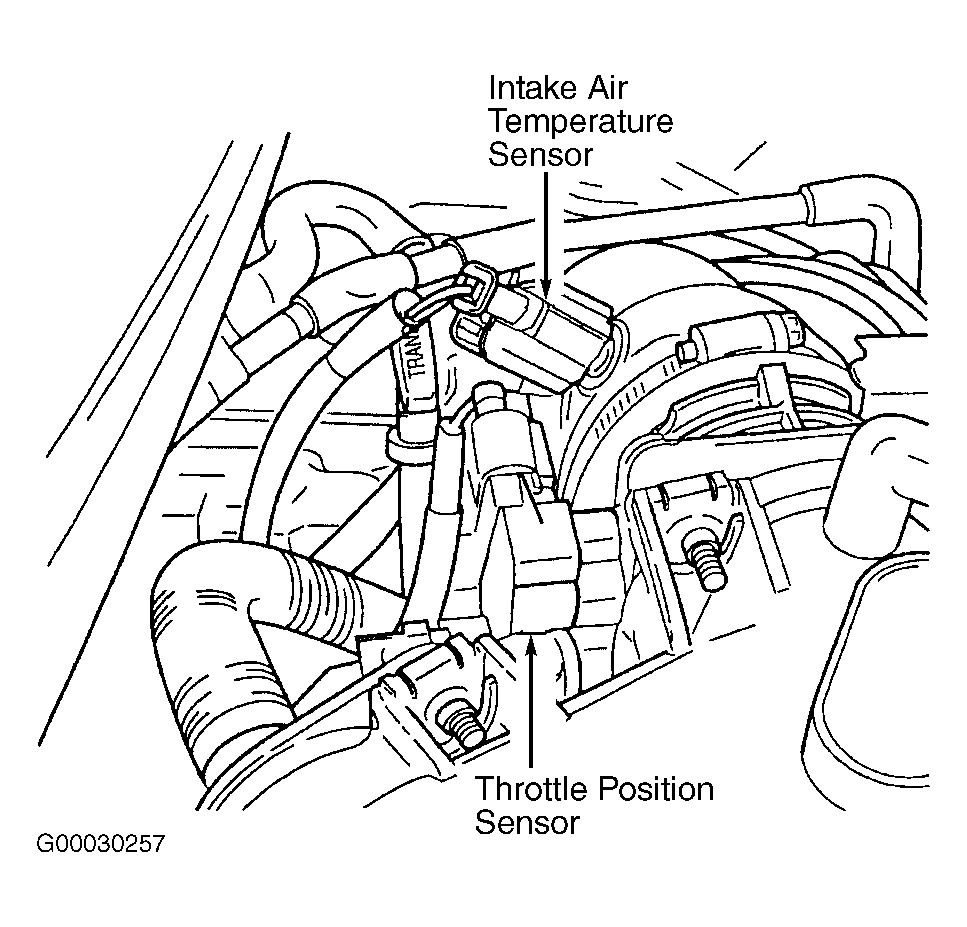

Fig 14: Locating IAT Sensor & TP Sensor (2.7L)

G00030257

Courtesy of DAIMLERCHRYSLER CORPORATION

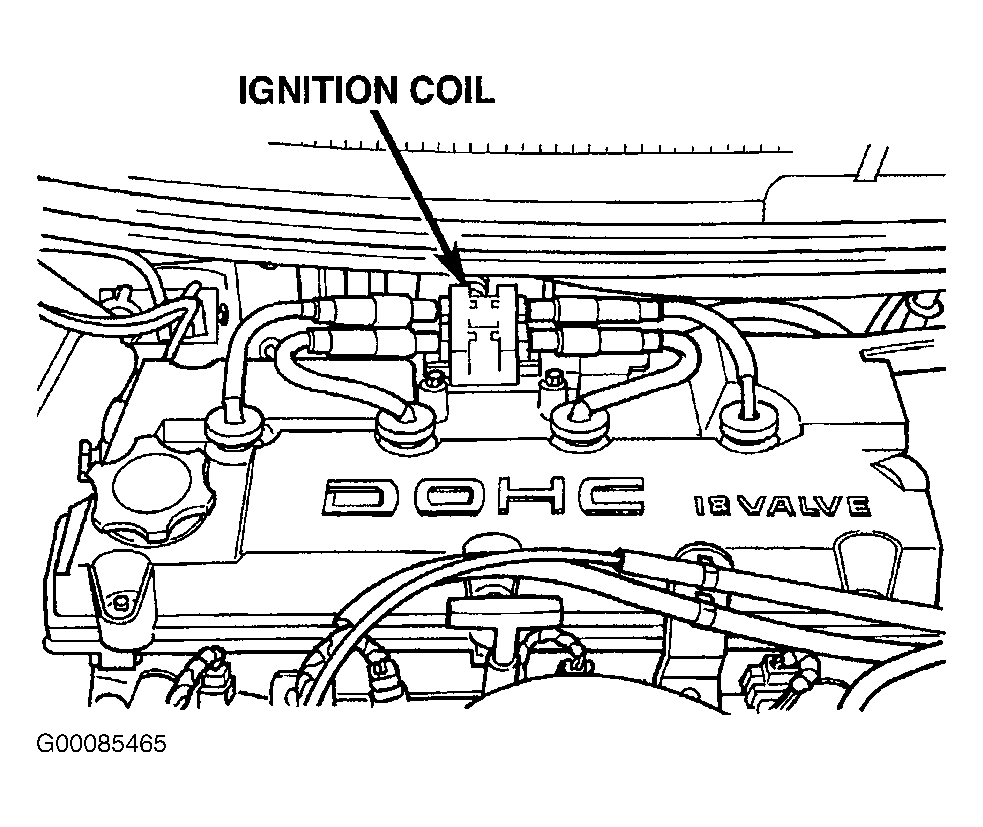

Fig 15: Locating Ignition Coil (2.4L)

G00085465

Courtesy of DAIMLERCHRYSLER CORPORATION

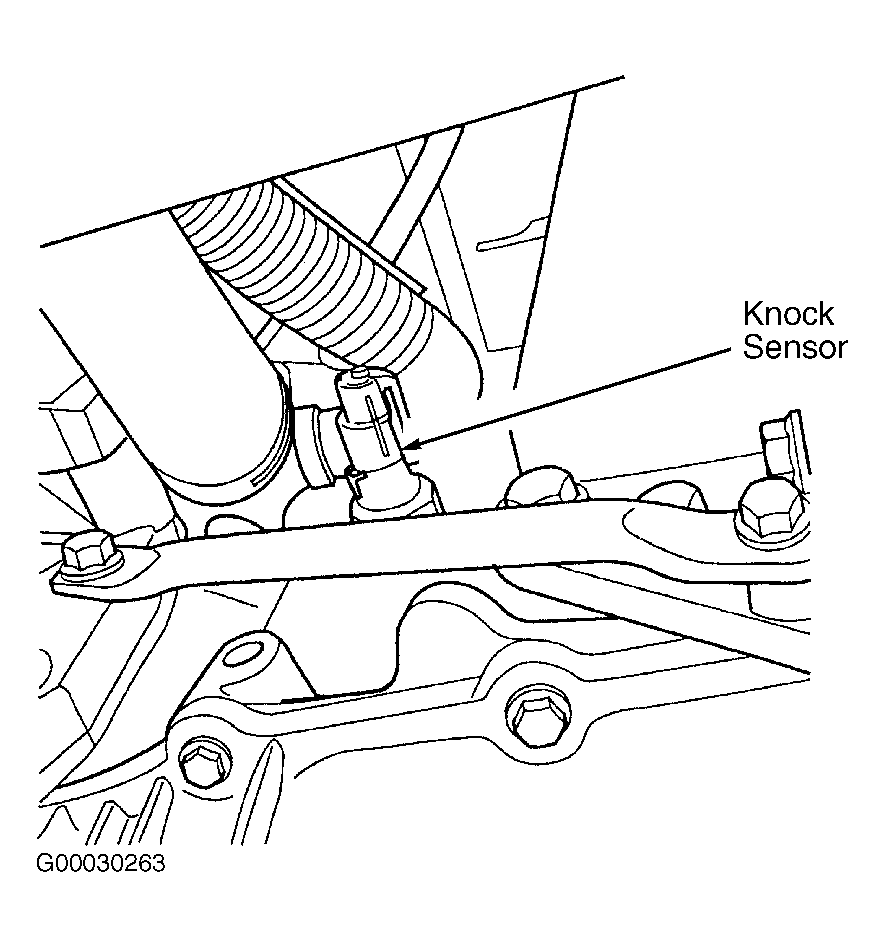

Fig 16: Locating Knock Sensor (2.4L)

G00030263

Courtesy of DAIMLERCHRYSLER CORPORATION

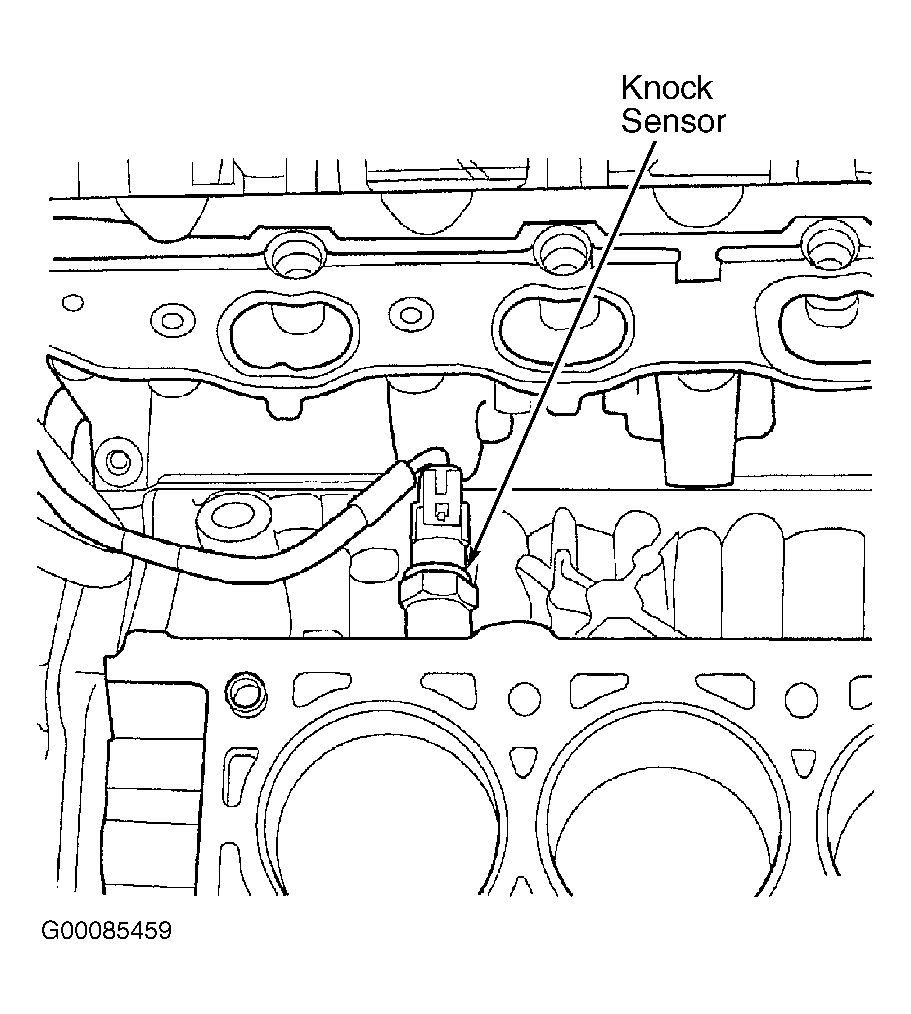

Fig 17: Locating Knock Sensor (2.7L)

G00085459

Courtesy of DAIMLERCHRYSLER CORPORATION

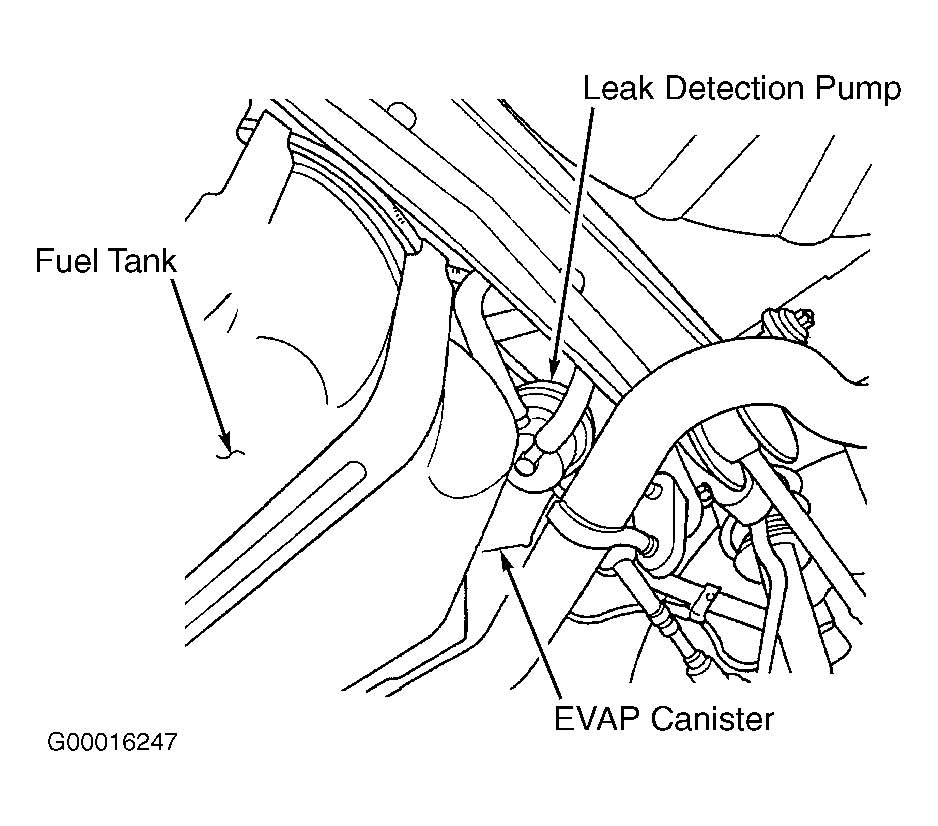

Fig 18: Locating Leak Detection Pump & EVAP Canister

G00016247

Courtesy of DAIMLERCHRYSLER CORPORATION

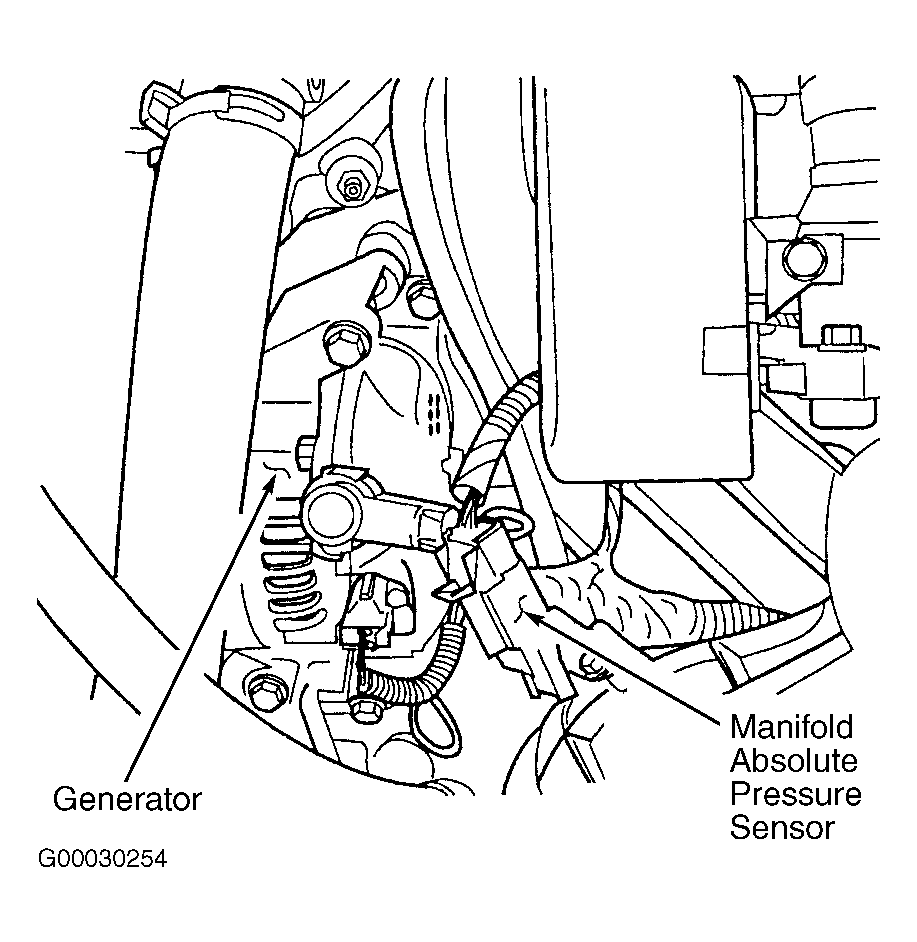

Fig 19: Locating MAP Sensor (2.4L)

G00030254

Courtesy of DAIMLERCHRYSLER CORPORATION

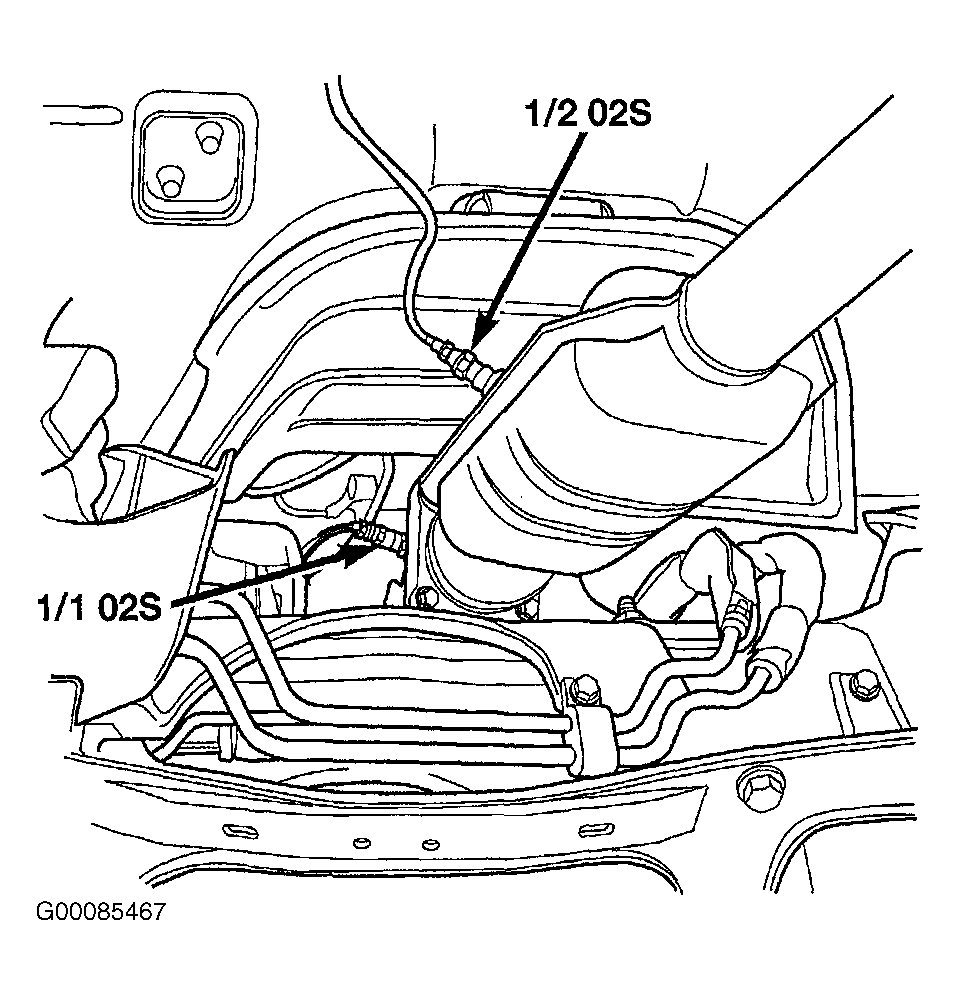

Fig 20: Locating O2 Sensors (2.4L)

G00085467

Courtesy of DAIMLERCHRYSLER CORPORATION

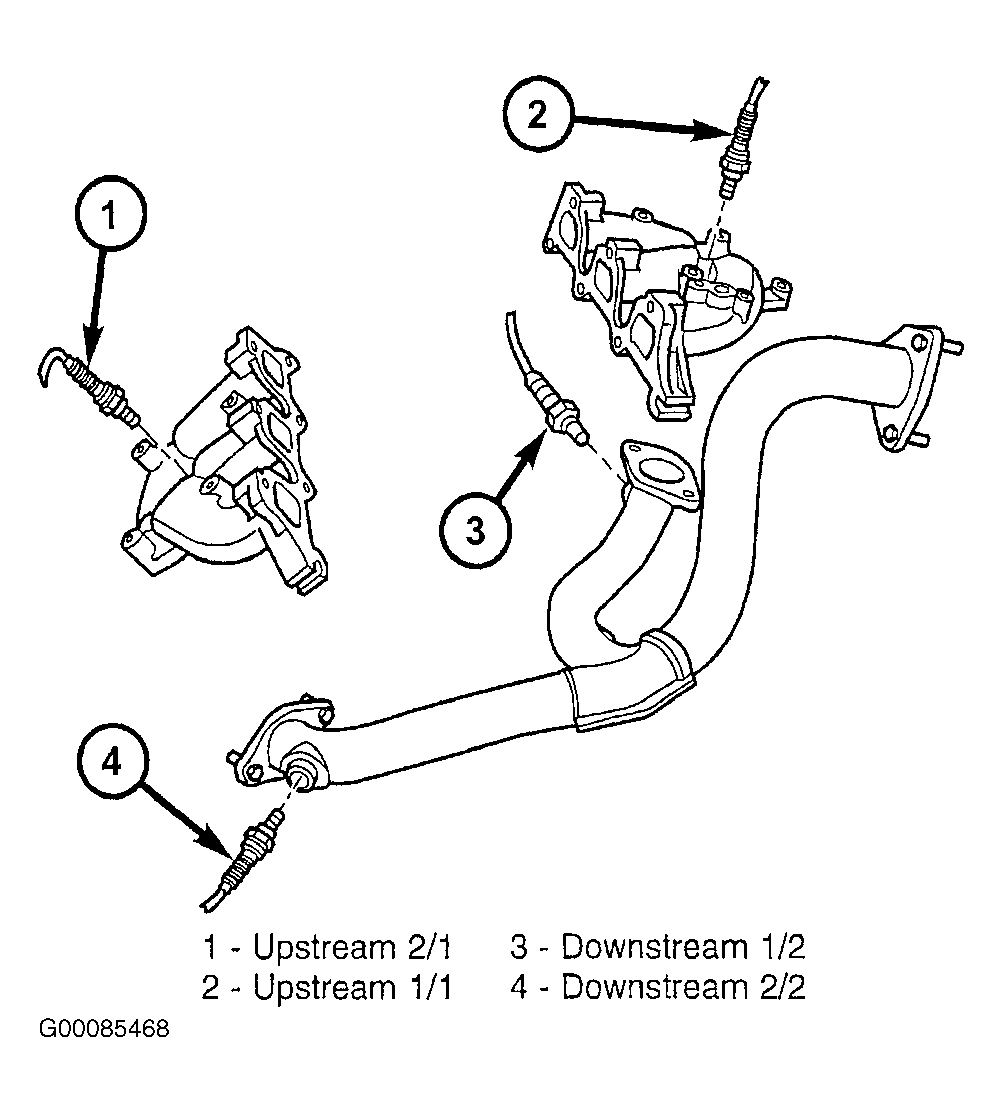

Fig 21: Locating O2 Sensors (2.7L)

G00085468

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 22: Locating PCM, Power Distribution Center & TCM

G00085462

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 23: Locating Sentry Key Immobilizer Module

G00085463

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 24: Locating Transmission Range Sensor (A/T)

G96G04261

Courtesy of DAIMLERCHRYSLER CORPORATION
