Connector Identification

NOTE: See Fig 1 thru Fig 60 for connector identification.
Fig 1: Identifying A/C Compressor Clutch Harness Connector
G00085469Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: Identifying A/C Transducer Harness Connector
G00085470Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 3: Identifying Ambient Temperature Sensor Harness Connector
G00085471Courtesy of DAIMLERCHRYSLER CORPORATION

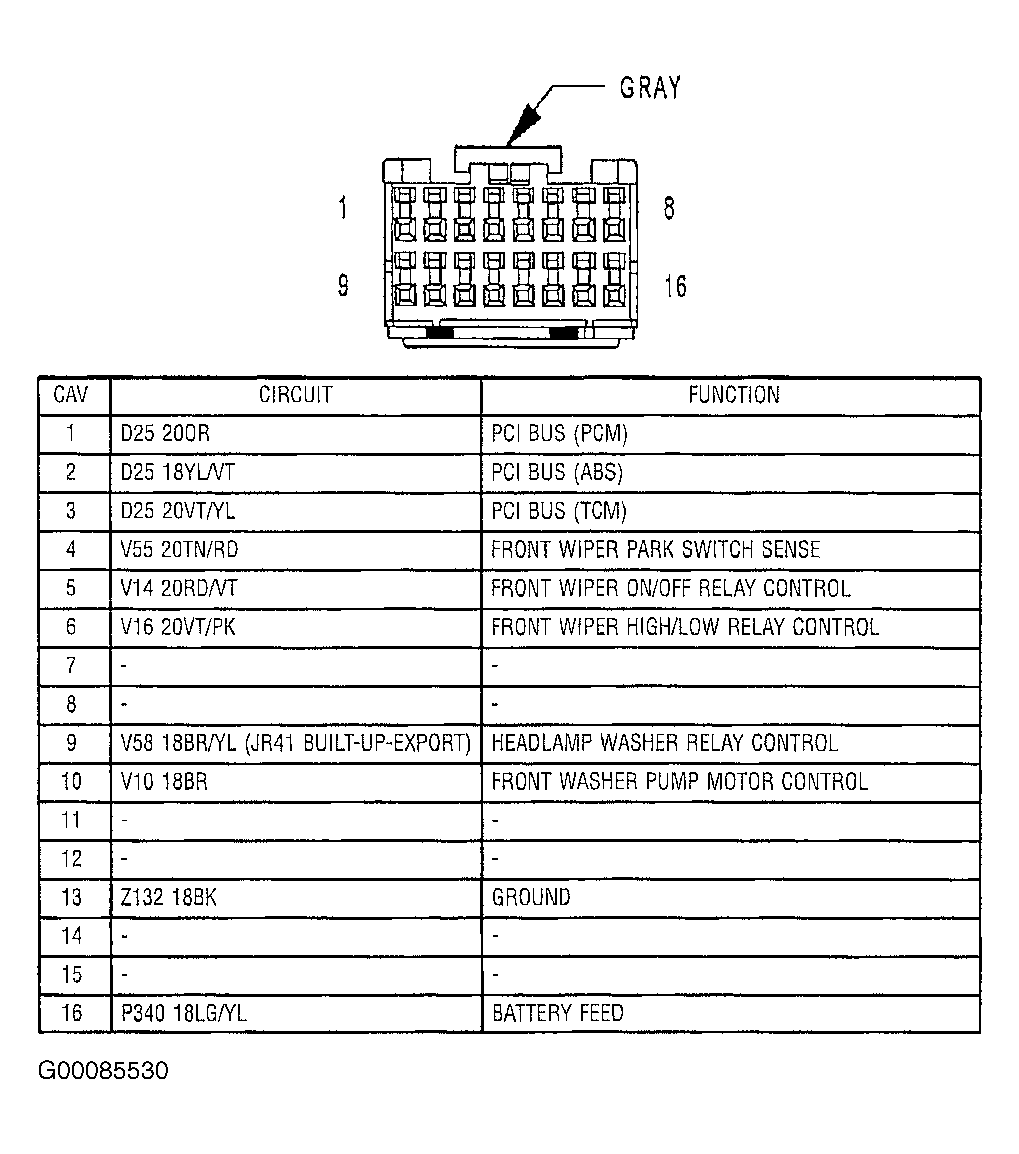

Fig 4: Identifying Body Control Module C3 Harness Connector
G00085530Courtesy of DAIMLERCHRYSLER CORPORATION

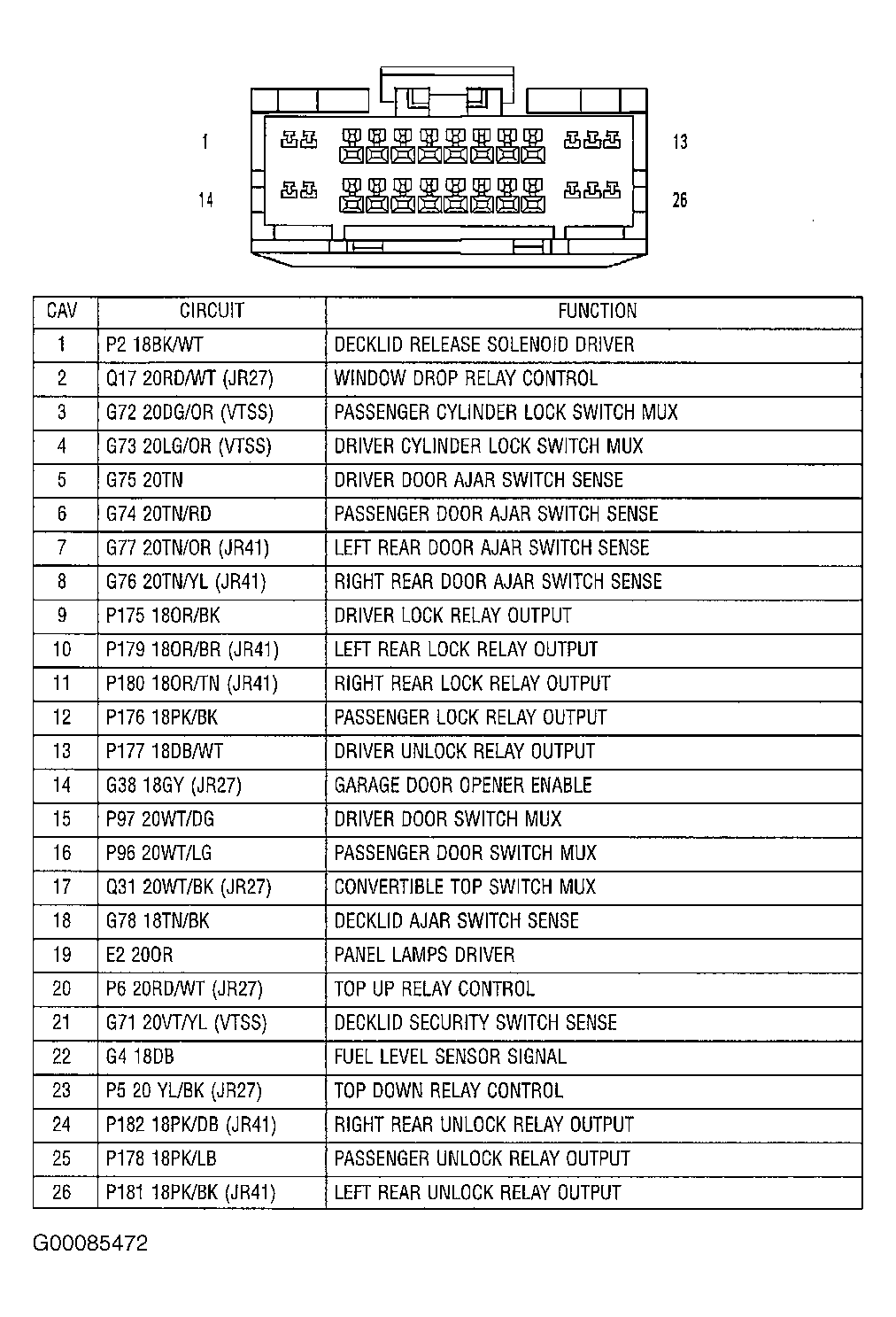

Fig 5: Identifying Body Control Module C4 Harness Connector
G00085472Courtesy of DAIMLERCHRYSLER CORPORATION

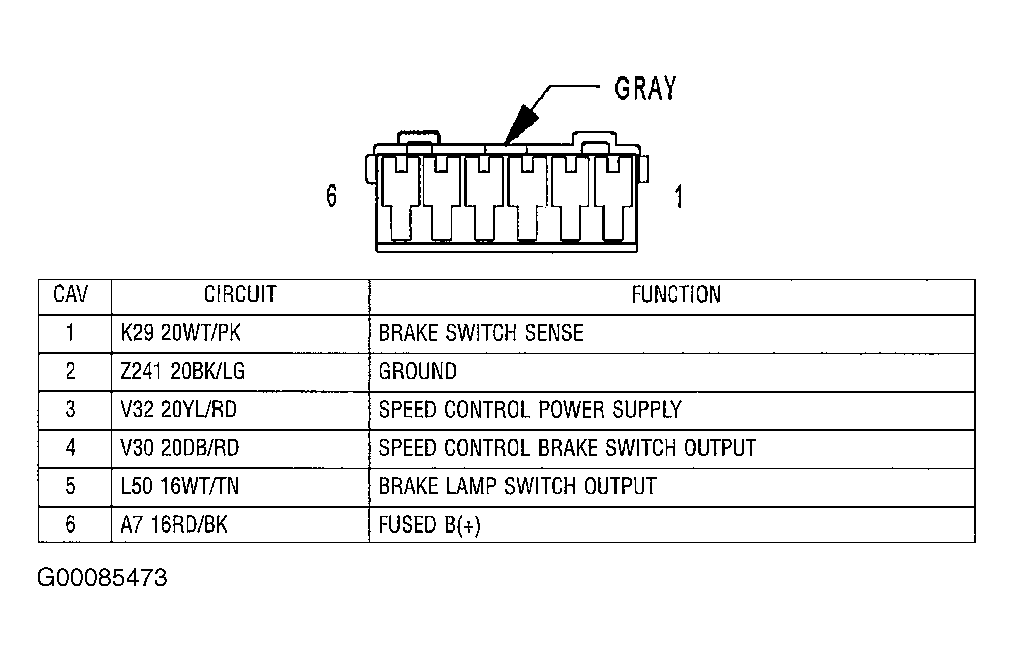

Fig 6: Identifying Brakelight Switch Harness Connector
G00085473Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 7: Identifying Brake Transmission Shift Interlock Solenoid Harness Connector
G00085474Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 8: Identifying CMP Sensor Harness Connector
G00085475Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 9: Identifying Clutch Interlock/Upstop Switch Harness Connector (Convertible M/T Only)
G00085524Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 10: Identifying Clutch Interlock/Upstop Switch Harness Connector (Sedan M/T Only)
G00085525Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 11: Identifying Coil On Plug No. 1 Harness Connector (2.7L)
G00085476Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 12: Identifying Coil On Plug No. 2 Harness Connector (2.7L)
G00085477Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 13: Identifying Coil On Plug No. 3 Harness Connector (2.7L)
G00085478Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 14: Identifying Coil On Plug No. 4 Harness Connector (2.7L)
G00085479Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 15: Identifying Coil On Plug No. 5 Harness Connector (2.7L)
G00085480Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 16: Identifying Coil On Plug No. 6 Harness Connector (2.7L)
G00085481Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 17: Identifying CKP Sensor Harness Connector
G00085482Courtesy of DAIMLERCHRYSLER CORPORATION

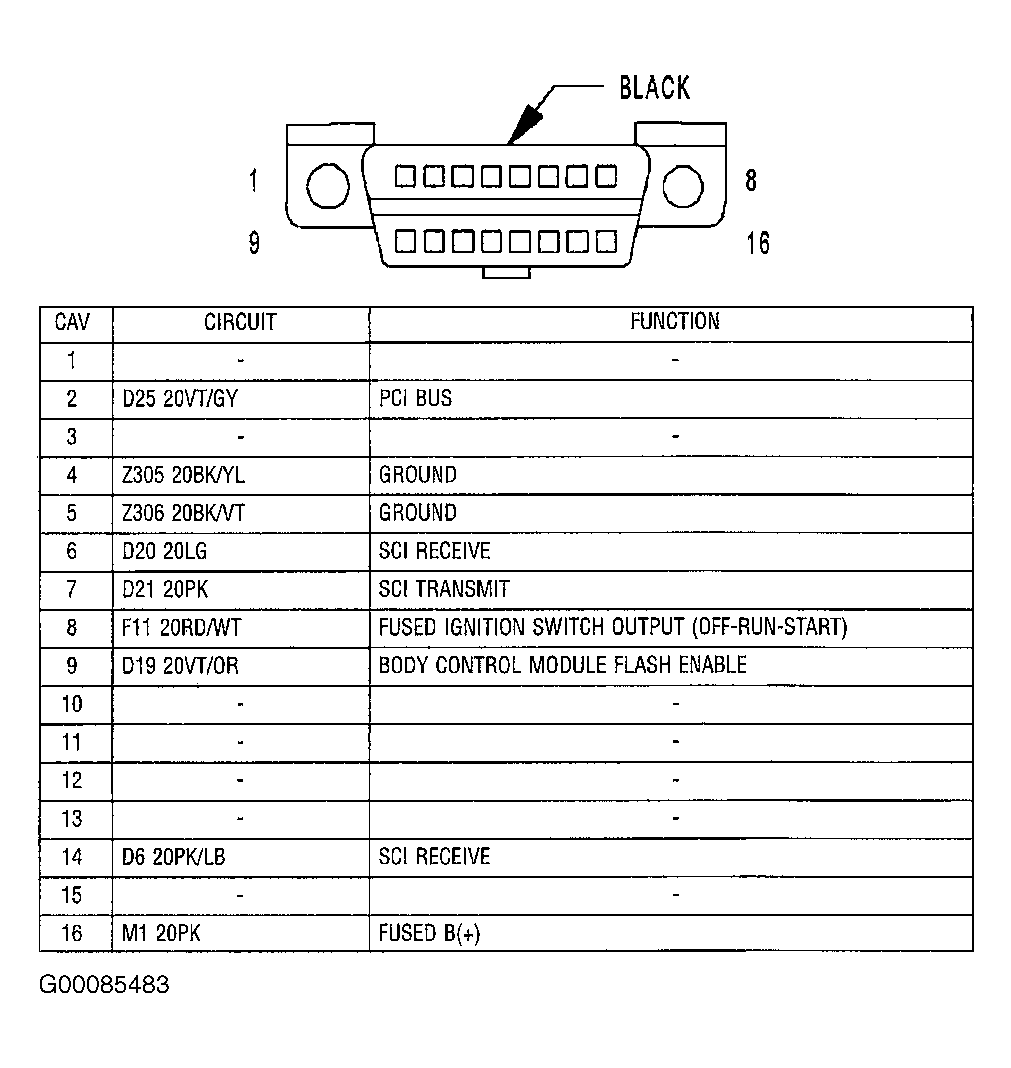

Fig 18: Identifying Data Link Connector Terminals
G00085483Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 19: Identifying EGR Solenoid Harness Connector (2.4L)
G00085484Courtesy of DAIMLERCHRYSLER CORPORATION

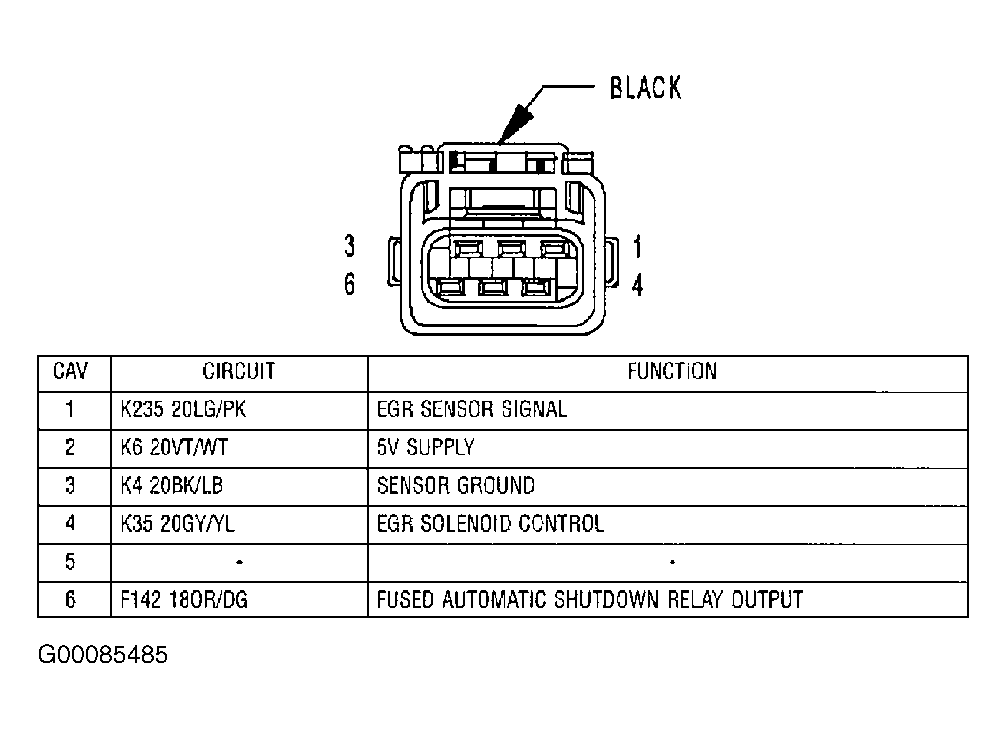

Fig 20: Identifying EGR Solenoid Harness Connector (2.7L)
G00085485Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 21: Identifying ECT Sensor Harness Connector
G00085486Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 22: Identifying EVAP Purge Solenoid Terminals
G00085487Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 23: Identifying EVAP Purge Solenoid Harness Connector
G00085488Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 24: Identifying Fuel Injector No. 1 Harness Connector (2.4L)
G00085489Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 25: Identifying Fuel Injector No. 2 Harness Connector (2.4L)
G00085491Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 26: Identifying Fuel Injector No. 3 Harness Connector (2.4L)
G00085493Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 27: Identifying Fuel Injector No. 4 Harness Connector (2.4L)
G00085495Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 28: Identifying Fuel Injector No. 1 Harness Connector (2.7L)
G00085490Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 29: Identifying Fuel Injector No. 2 Harness Connector (2.7L)
G00085492Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 30: Identifying Fuel Injector No. 3 Harness Connector (2.7L)
G00085494Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 31: Identifying Fuel Injector No. 4 Harness Connector (2.7L)
G00085496Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 32: Identifying Fuel Injector No. 5 Harness Connector (2.7L)
G00085497Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 33: Identifying Fuel Injector No. 6 Harness Connector (2.7L)
G00085498Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 34: Identifying Fuel Pump Module Harness Connector
G00085499Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 35: Identifying Idle Air Control Motor Harness Connector
G00085501Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 36: Identifying Ignition Coil Harness Connector (2.4L)
G00085502Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 37: Identifying Inlet Air Temperature Sensor Harness Connector
G00085503Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 38: Identifying Knock Sensor Harness Connector (2.4L)
G00085504Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 39: Identifying Knock Sensor Harness Connector (2.7L)
G00085505Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 40: Identifying Leak Detection Pump Harness Connector
G00085506Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 41: Identifying MAP Sensor Harness Connector (2.4L)
G00085507Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 42: Identifying MAP Sensor Harness Connector (2.7L)
G00085508Courtesy of DAIMLERCHRYSLER CORPORATION

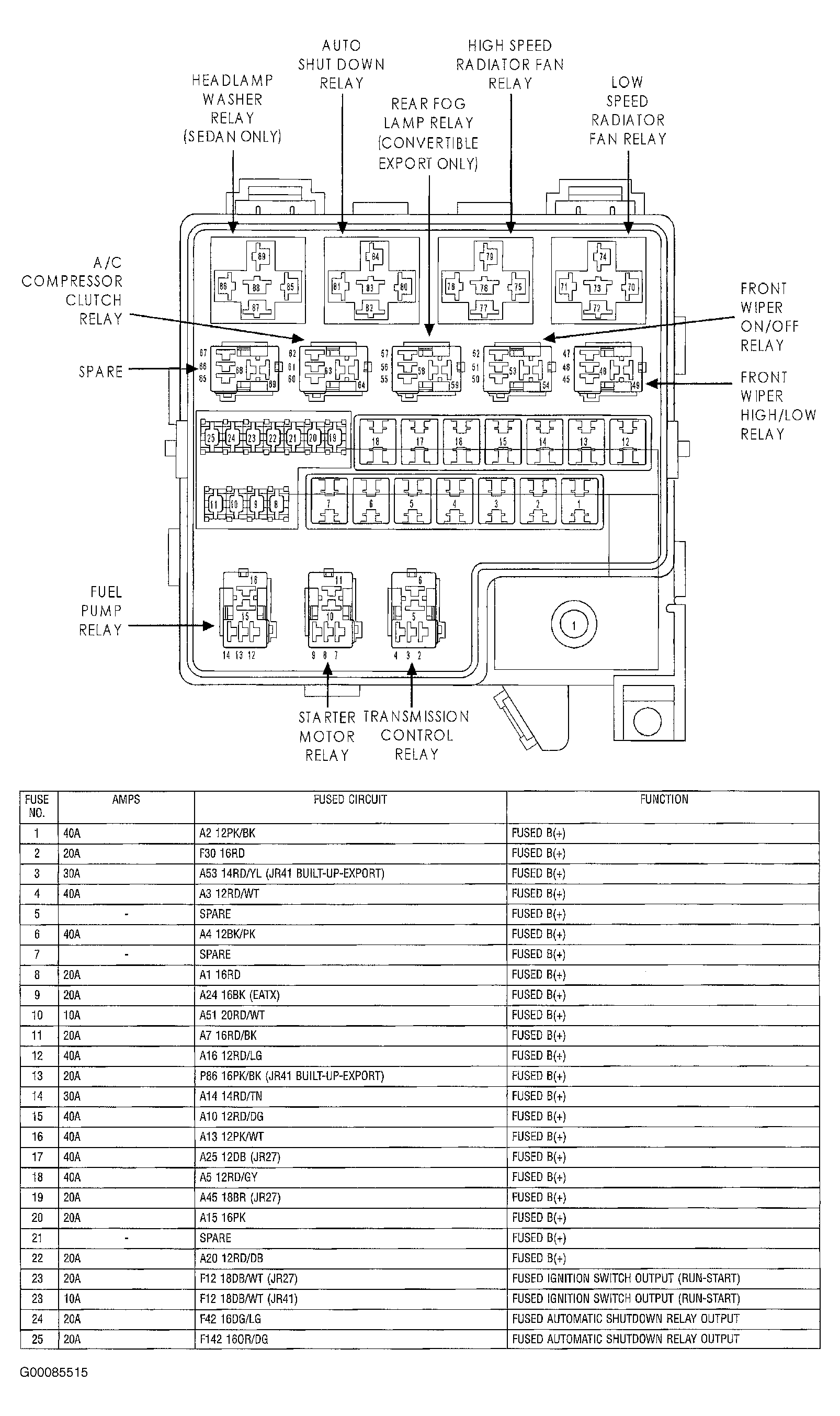

Fig 43: Identifying Power Distribution Center Fuses & Fuse Circuits
G00085515Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 44: Identifying Power Distribution Center Relay Cavities & Circuits
G00085516Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 45: Identifying PCM C1 Harness Connector
G00085517Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 46: Identifying PCM C2 Harness Connector
G00085518Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 47: Identifying Power Steering Pressure Switch Harness Connector (2.4L)
G00085529Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 48: Identifying Radiator Fan Motor Harness Connector
G00085519Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 49: Identifying Sentry Key Immobilizer Module Harness Connector
G00085520Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 50: Identifying TP Sensor Harness Connector (2.4L)
G00085521Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 51: Identifying TP Sensor Harness Connector (2.7L)
G00085522Courtesy of DAIMLERCHRYSLER CORPORATION

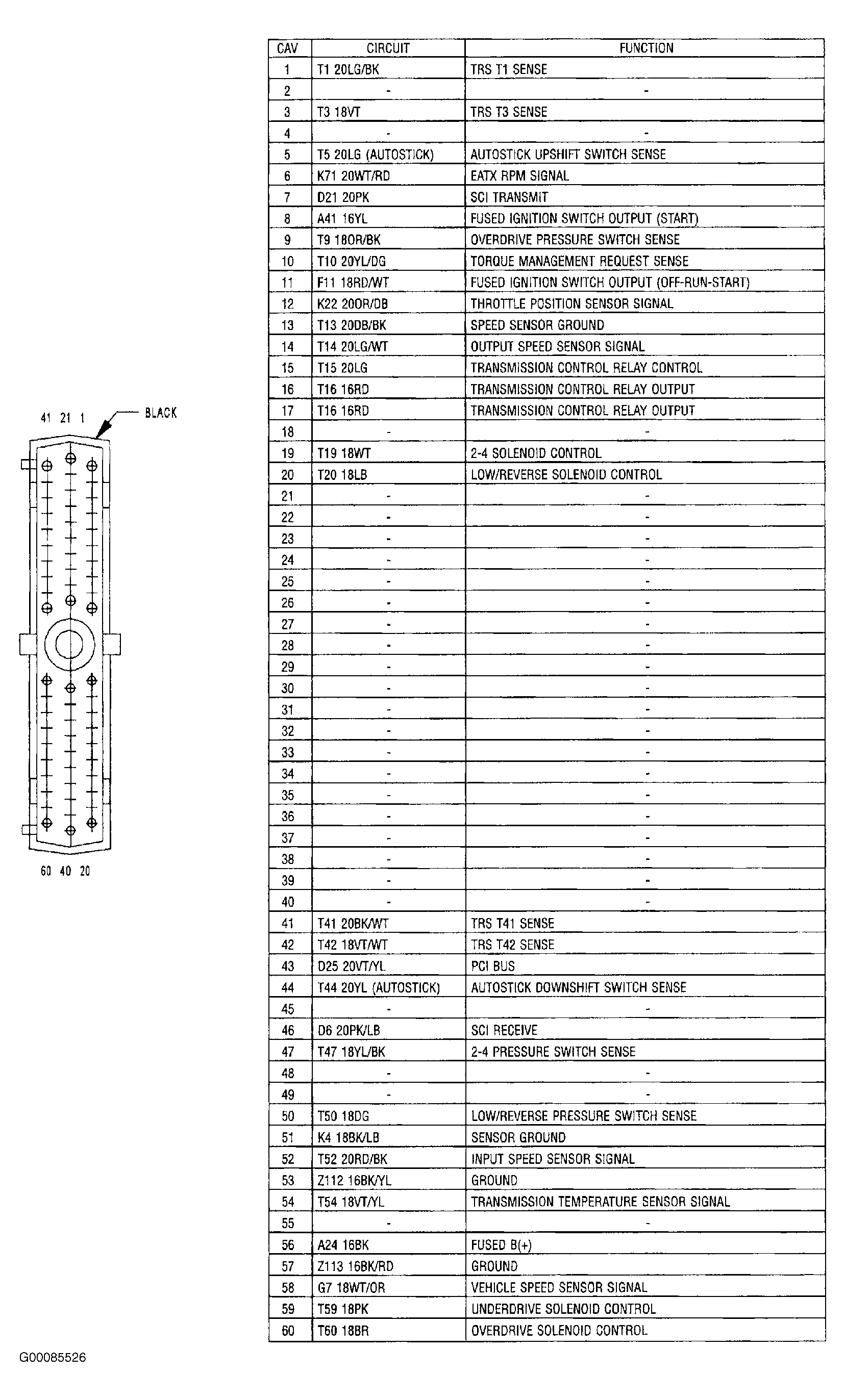

Fig 52: Identifying TCM Harness Connector
G00085526Courtesy of DAIMLERCHRYSLER CORPORATION

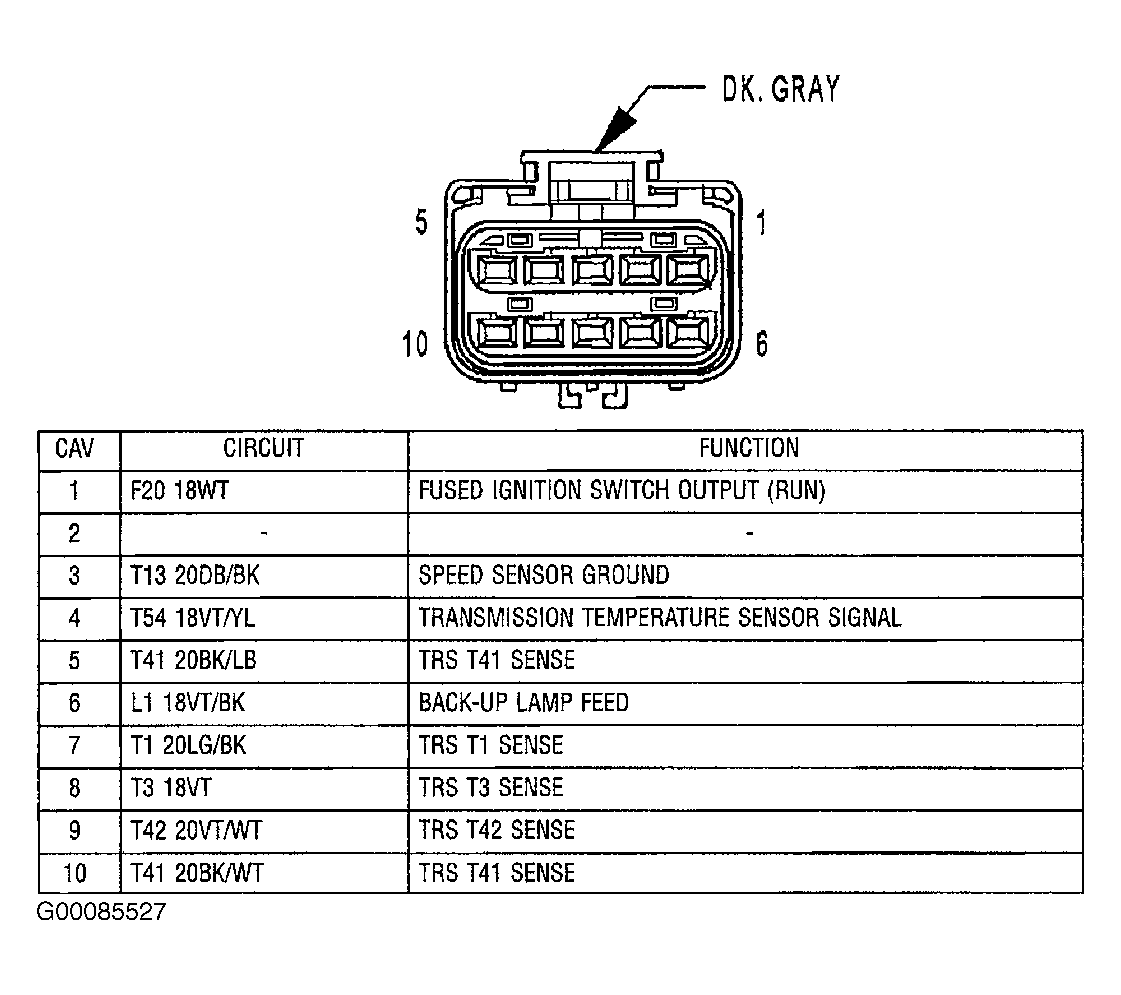

Fig 53: Identifying Transmission Range Sensor Harness Connector
G00085527Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 54: Identifying Vehicle Speed Sensor (M/T)
G00085523Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 55: Identifying 1/1 O2 Sensor Harness Connector (2.4L)
G00085510Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 56: Identifying 1/2 O2 Sensor Harness Connector (2.4L)
G00085511Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 57: Identifying 1/1 O2 Sensor Harness Connector (2.7L)
G00085509Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 58: Identifying 1/2 O2 Sensor Harness Connector (2.7L)
G00085512Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 59: Identifying 2/1 O2 Sensor Harness Connector (2.7L)
G00085513Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 60: Identifying 2/2 O2 Sensor Harness Connector (2.7L)
G00085514Courtesy of DAIMLERCHRYSLER CORPORATION
