Power Window Switch

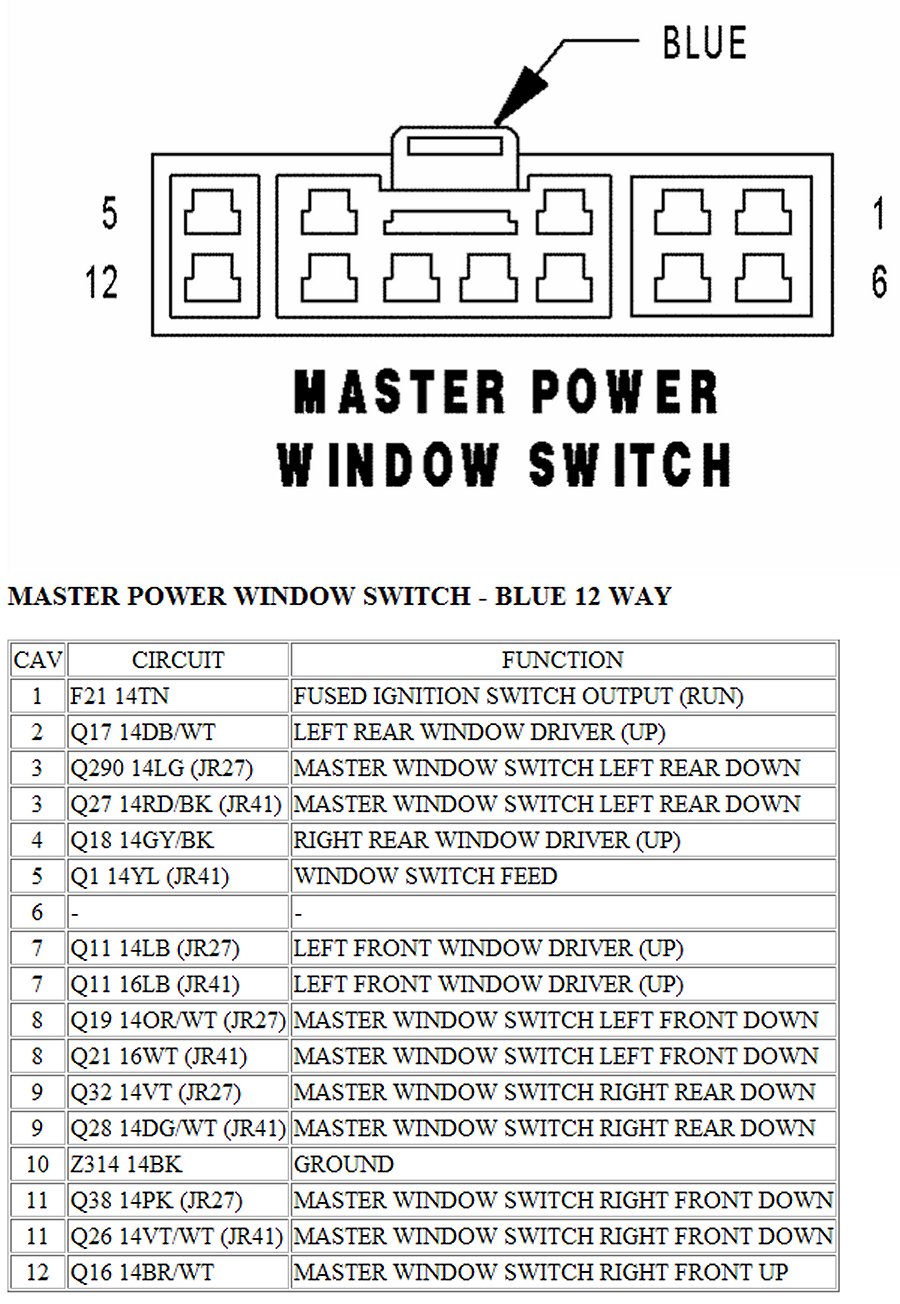

Master Power Window Switch:

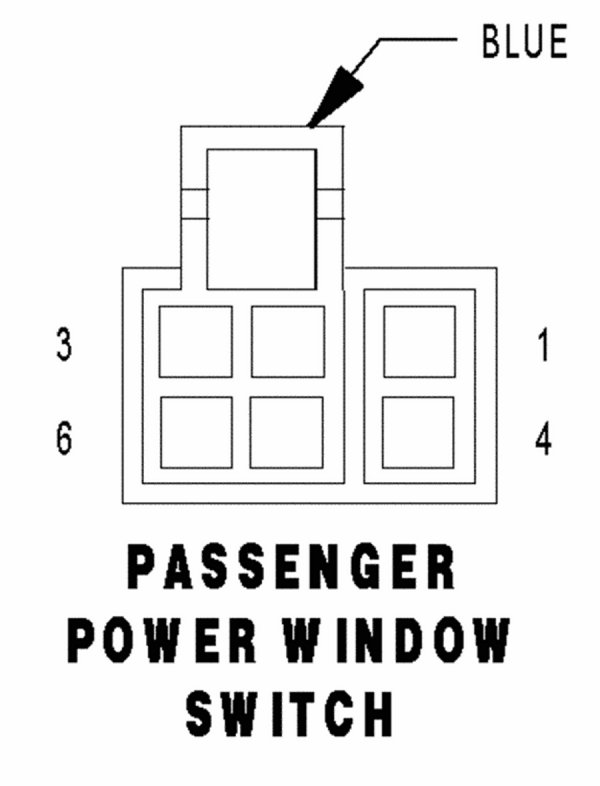

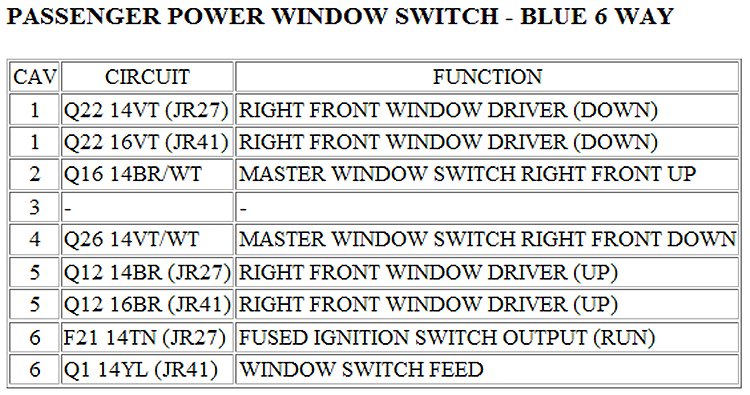

Passenger Power Window Switch (1 Of 2):




Passenger Power Window Switch (2 Of 2):

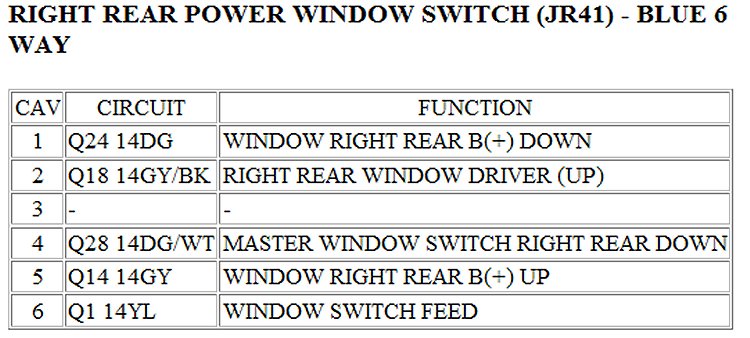

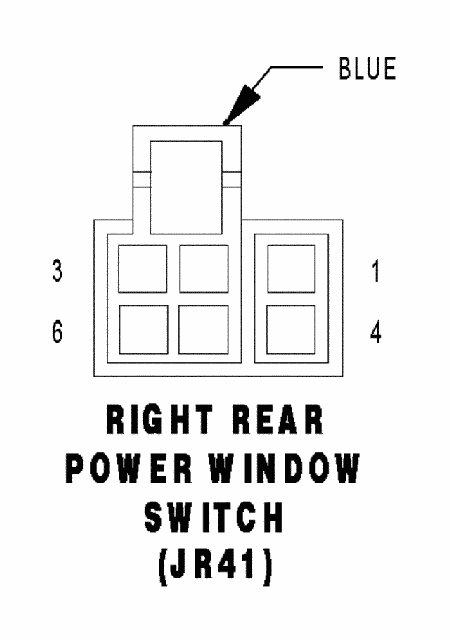

RR Window (1 Of 2):




RR Window (2 Of 2):

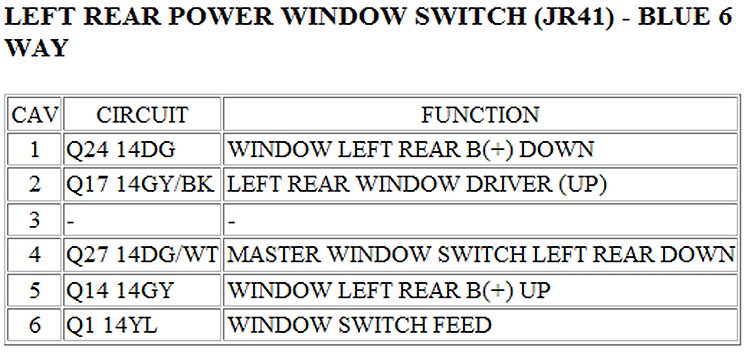

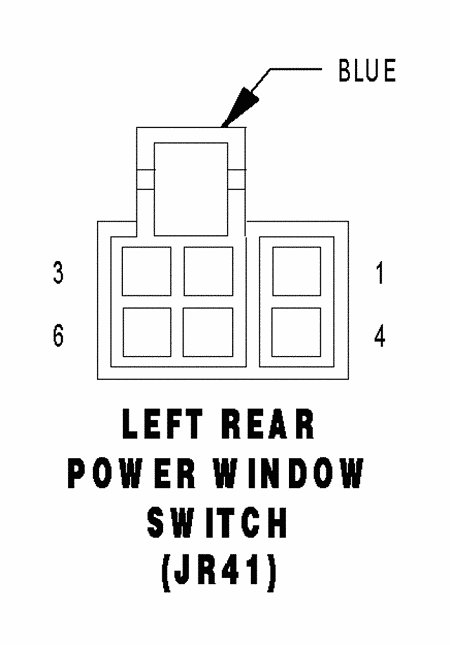

LR Window (1 Of 2):




LR Window (2 Of 2):
