Blower Motor Inoperative

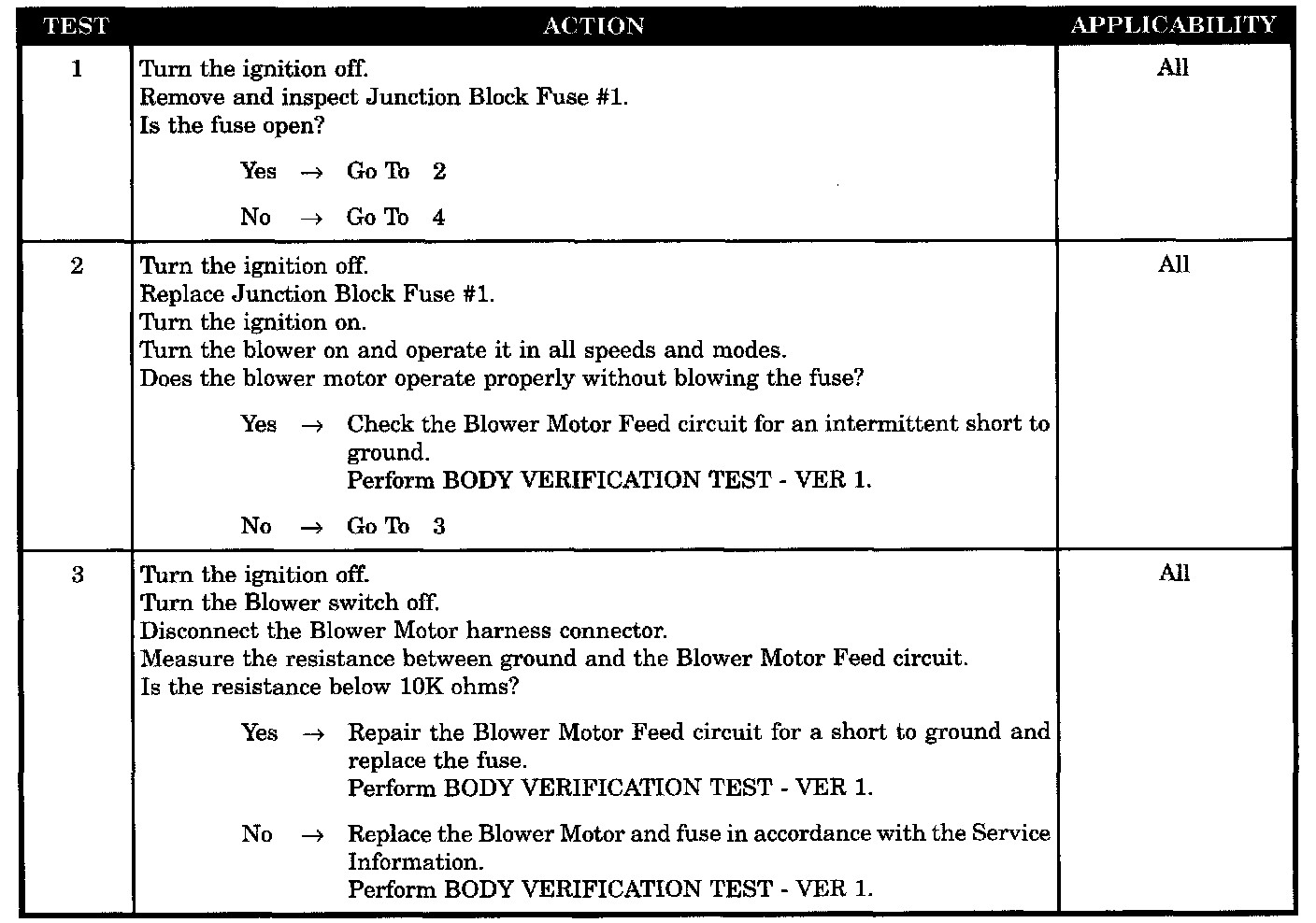

Test 1 - 3:

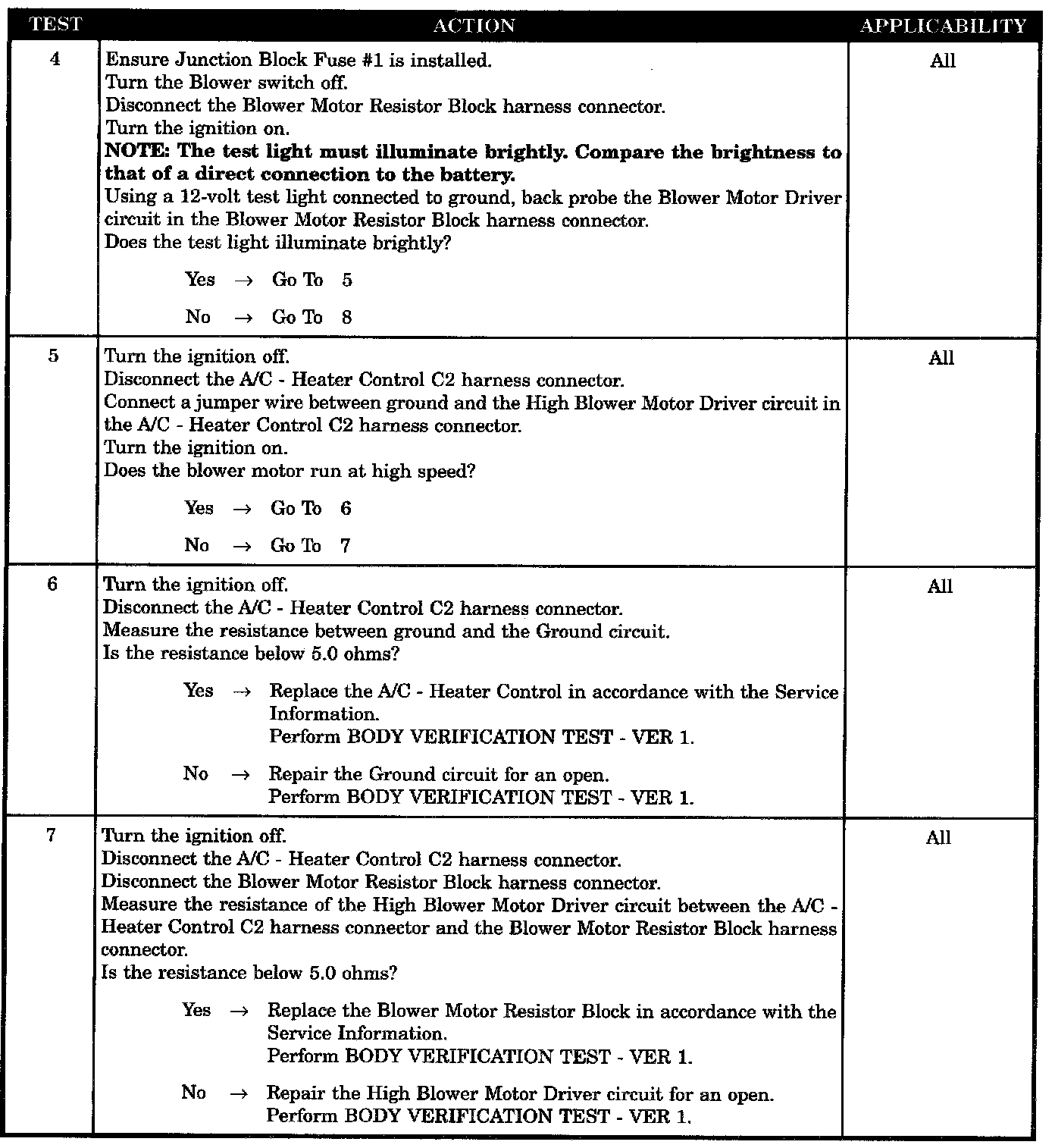

Test 4 - 7:

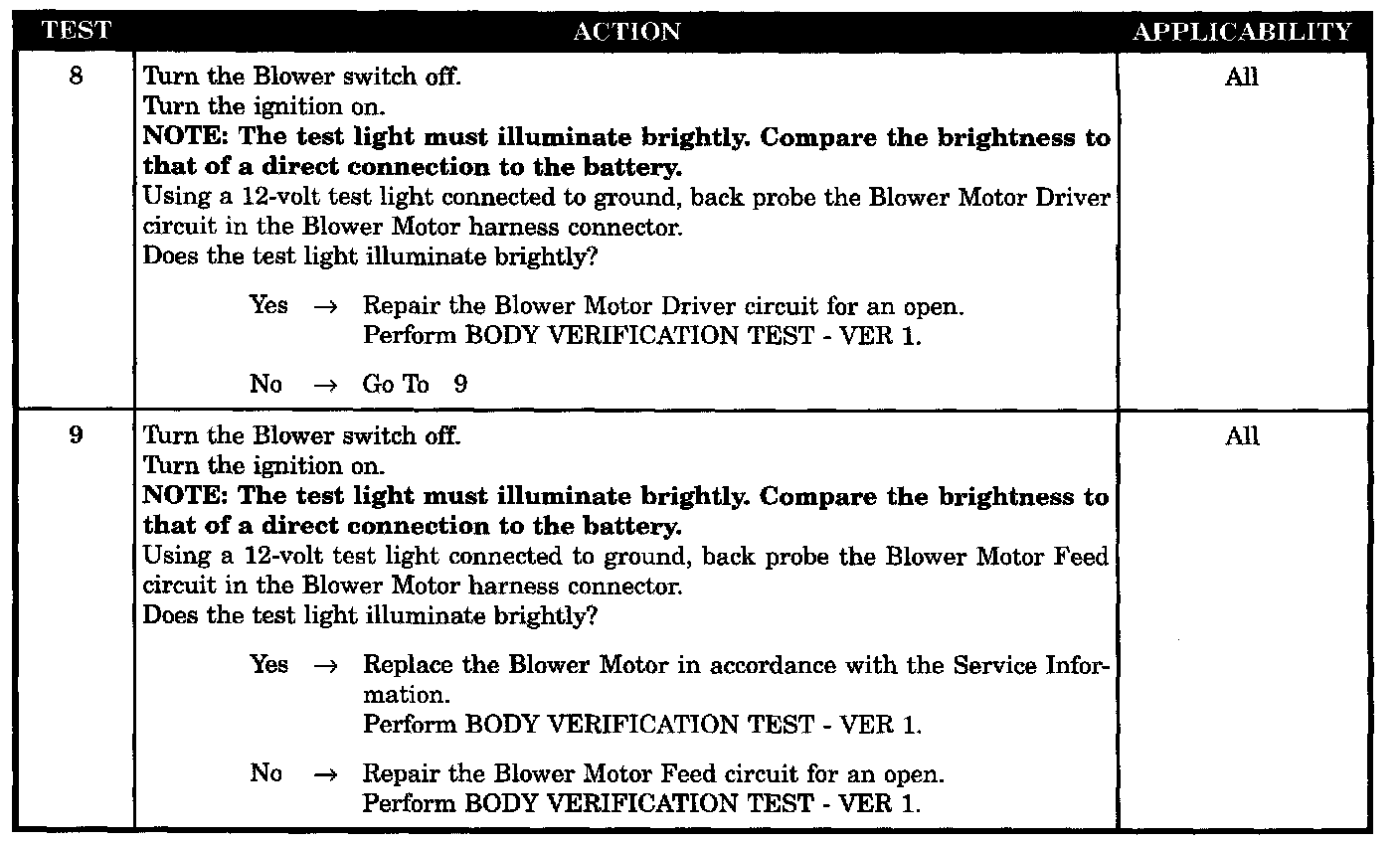

Test 8 - 9:

SYMPTOM
BLOWER MOTOR INOPERATIVE

POSSIBLE CAUSES
- Junction block fuse #1
- Blower motor feed circuit shorted to ground
- Blower motor shorted to ground
- Ground circuit open
- A/C - Heater control open
- Blower motor driver circuit open
- Resistor-Open HI blower motor driver
- Blower motor driver circuit open
- Blower motor feed circuit open
- Blower motor open
