A/C System Test
For testing procedures, see
Fig 1
.

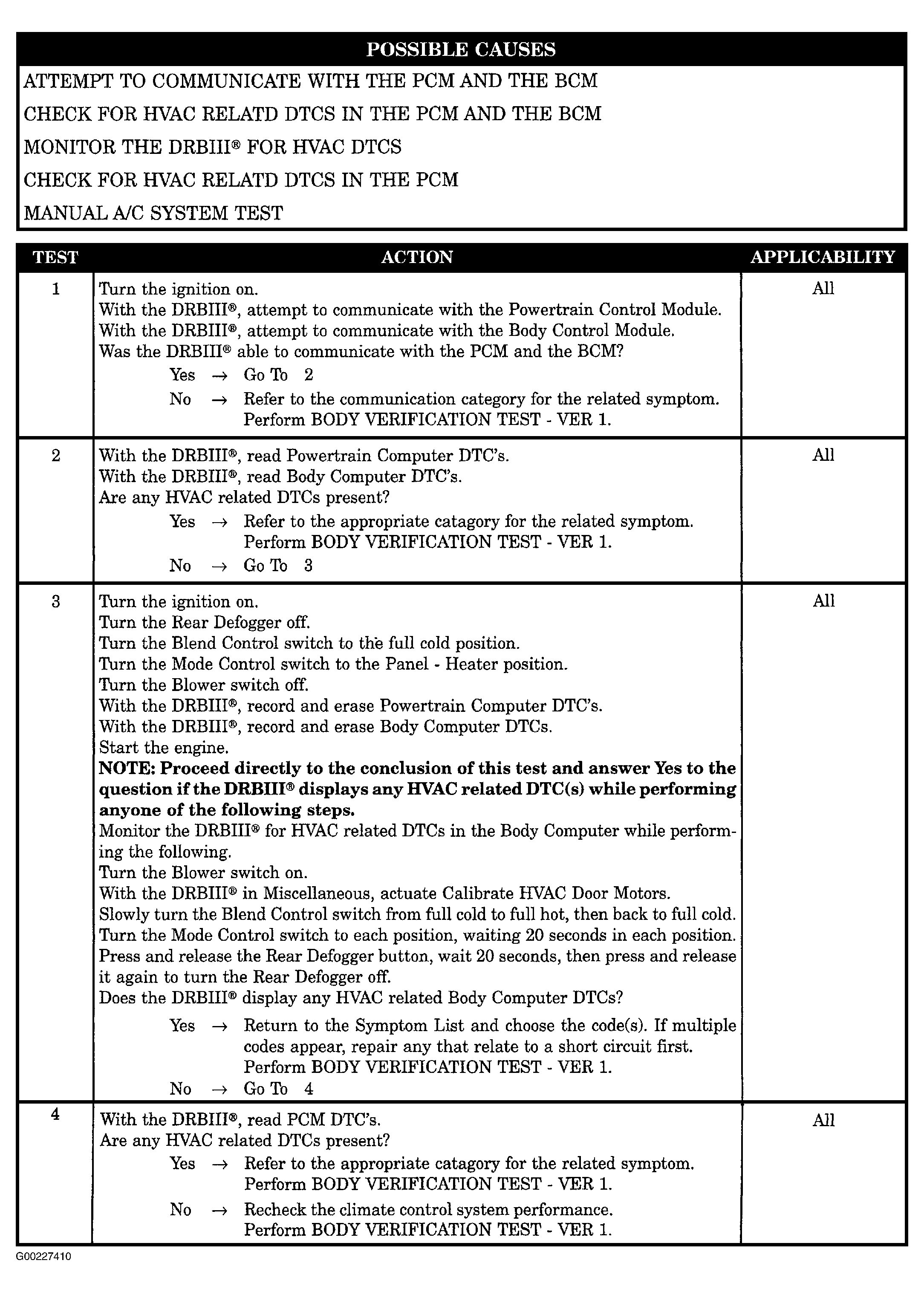

Fig 1: A/C System Test
Courtesy of CHRYSLER CORP.
