Brake Warning Indicator Inoperative
For testing procedures, see
Fig 1
and
Fig 2
.

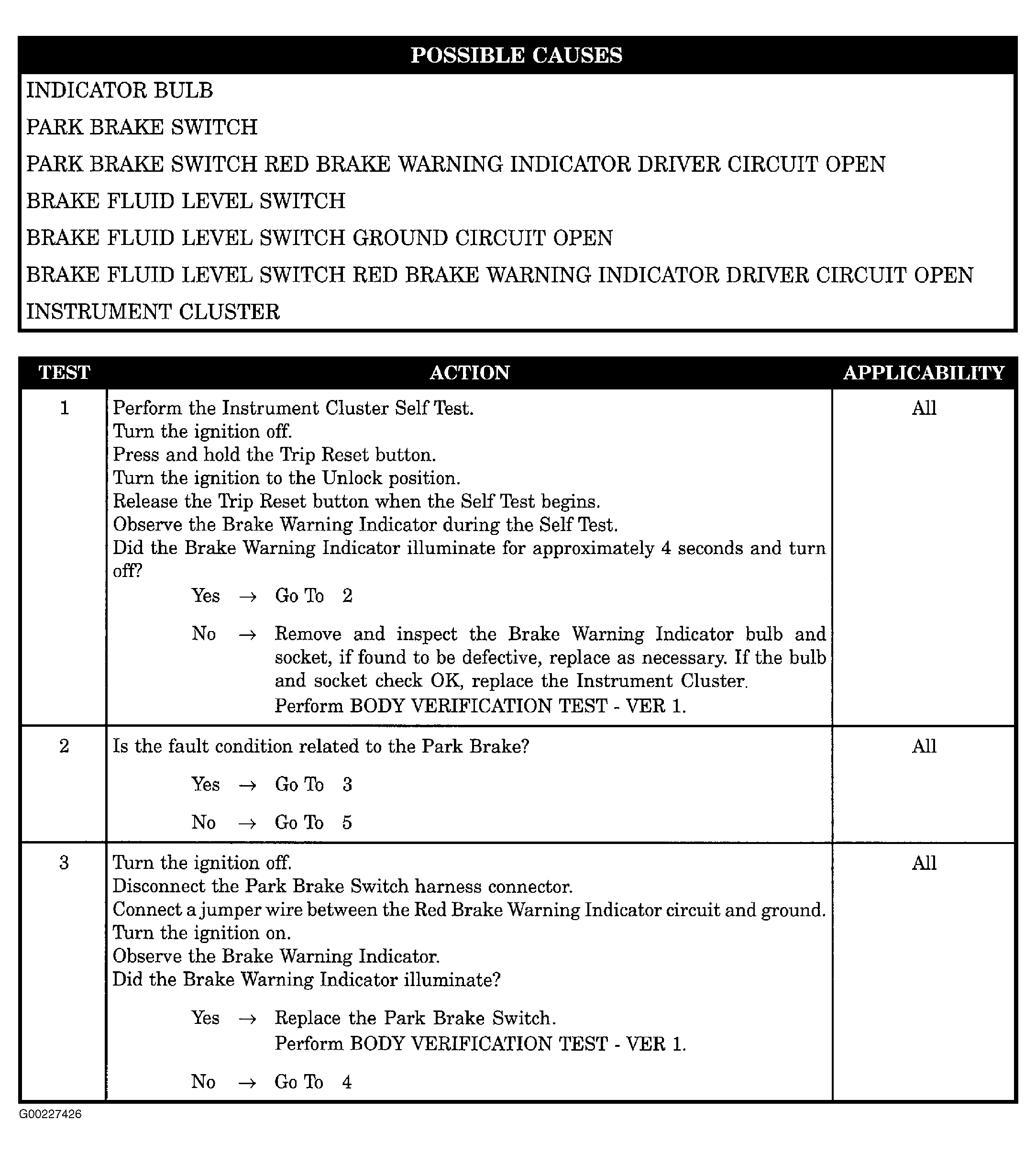

Fig 1: Brake Warning Indicator Inoperative - Steps 1-3 (1 Of 2)
Courtesy of CHRYSLER CORP.

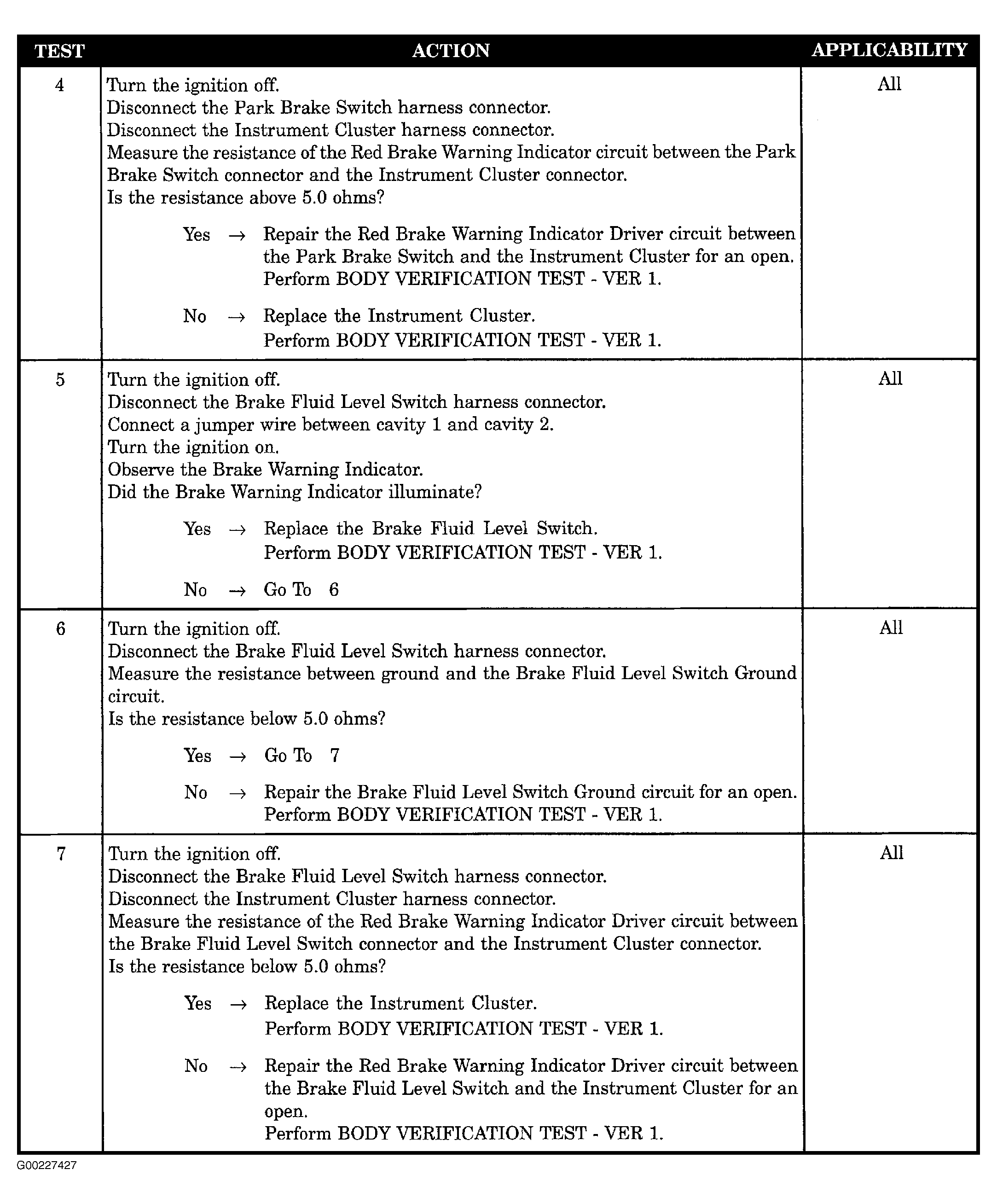

Fig 2: Brake Warning Indicator Inoperative - Steps 4-7 (2 Of 2)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
