Courtesy Light Output Failure
For testing procedures, see
Fig 1
.

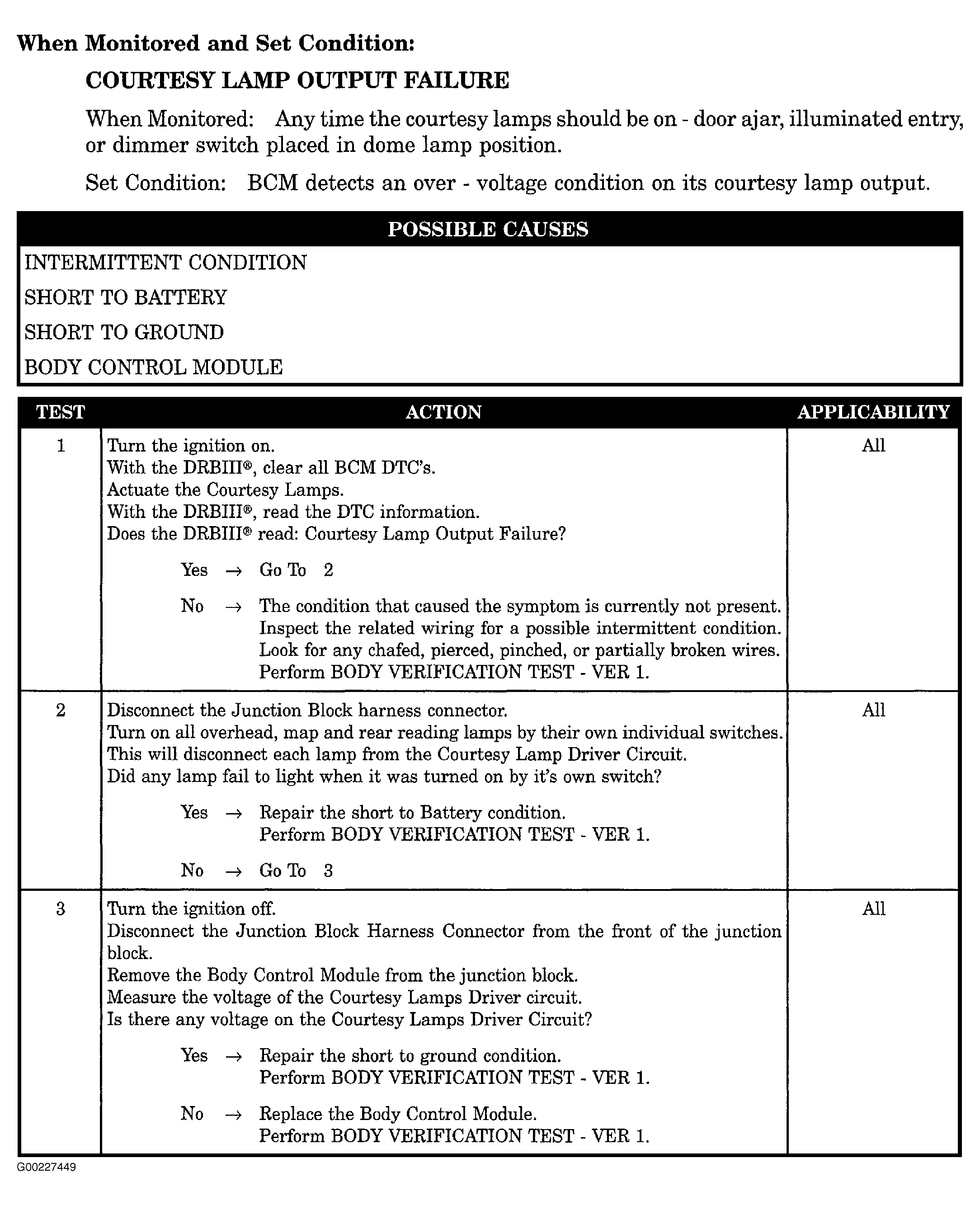

Fig 1: Courtesy Light Output Failure
Courtesy of CHRYSLER CORP.
