Power Top Switch Shorted To Ground

For testing procedures, see Fig 1 .

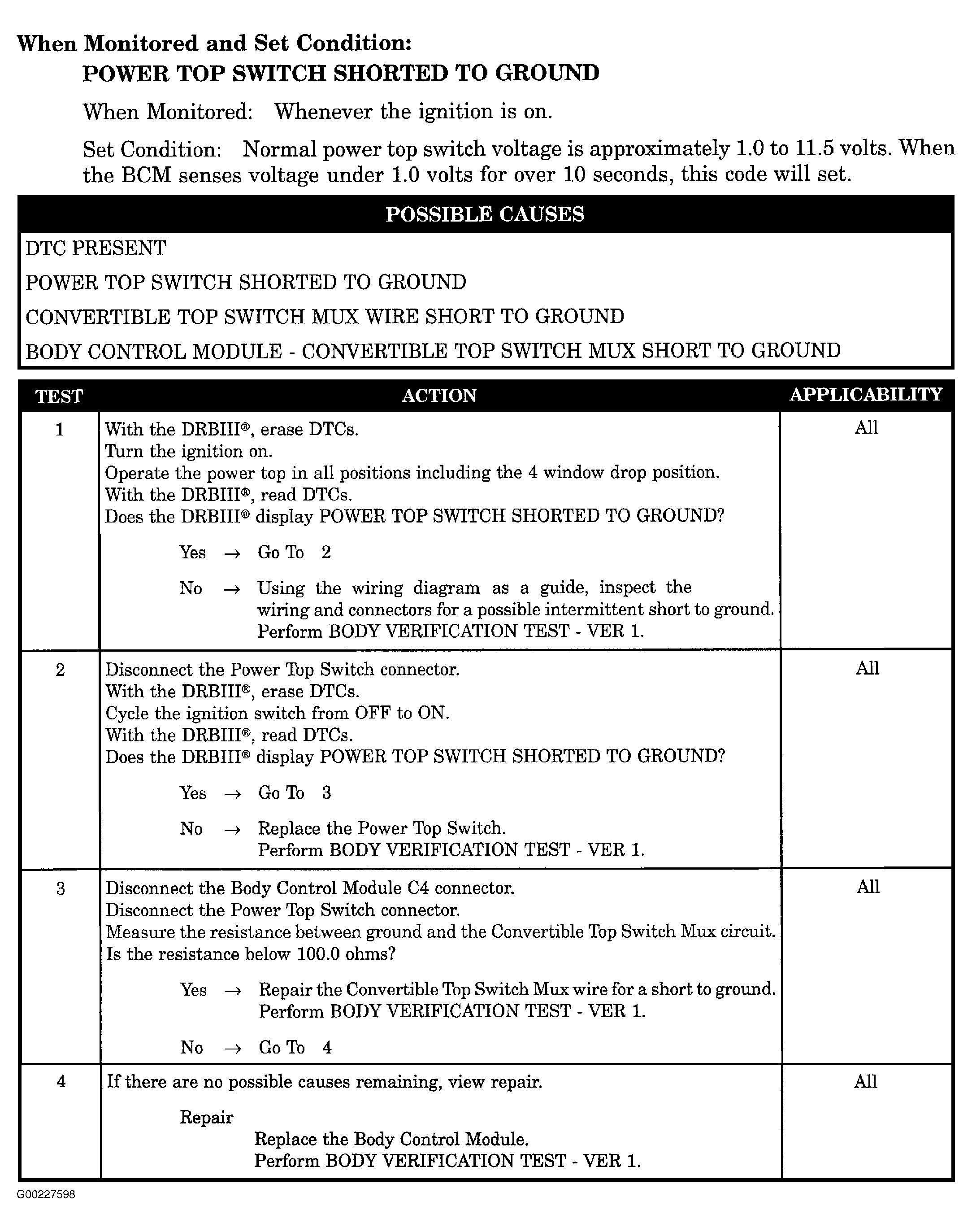

Fig 1: Power Top Switch Shorted To Ground
G00227598Courtesy of CHRYSLER CORP.
