Power Top Switch Stuck

For testing procedures, see Fig 1 and Fig 2 .

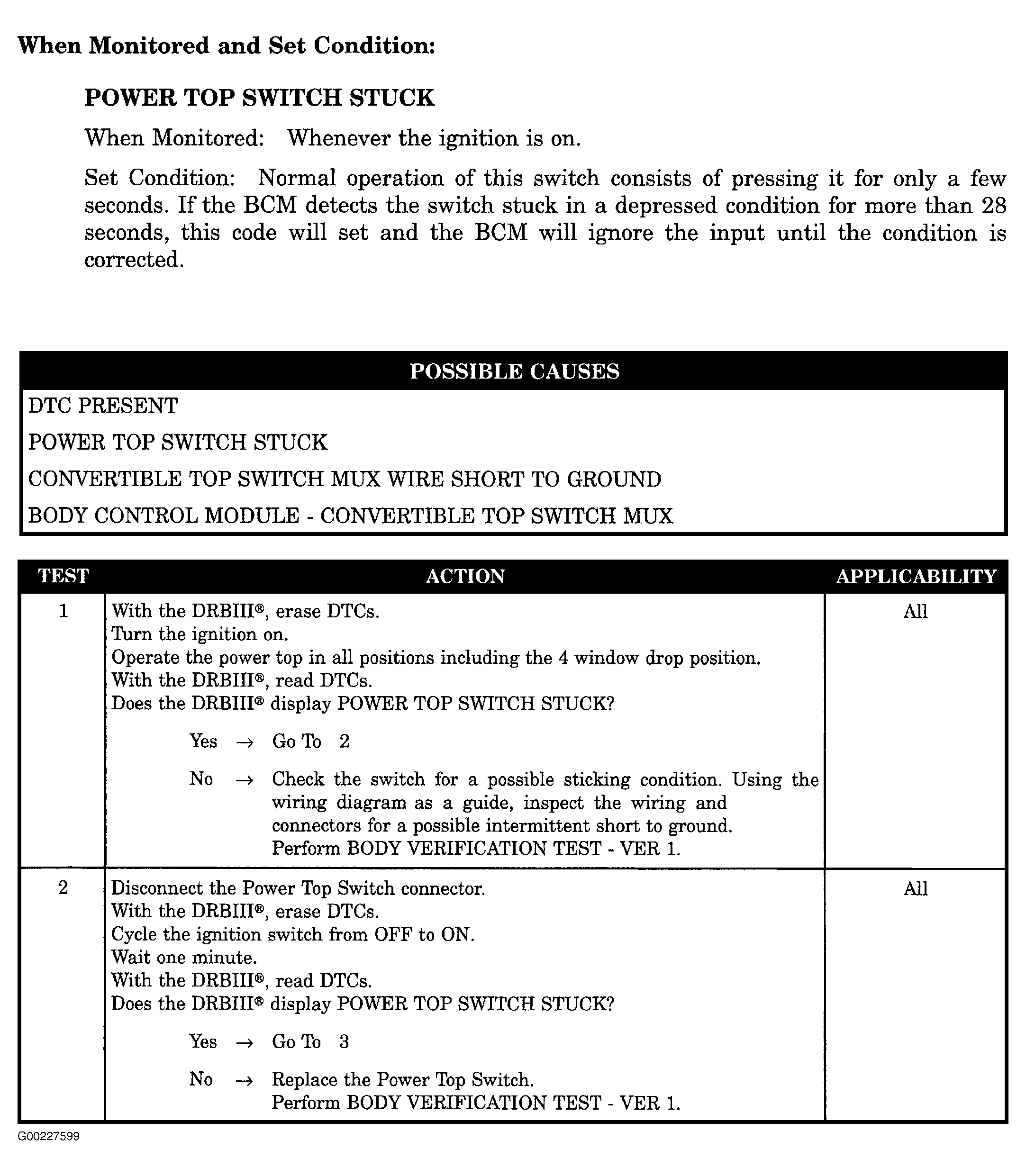

Fig 1: Power Top Switch Stuck - Steps 1 & 2 (1 Of 2)
G00227599Courtesy of CHRYSLER CORP.

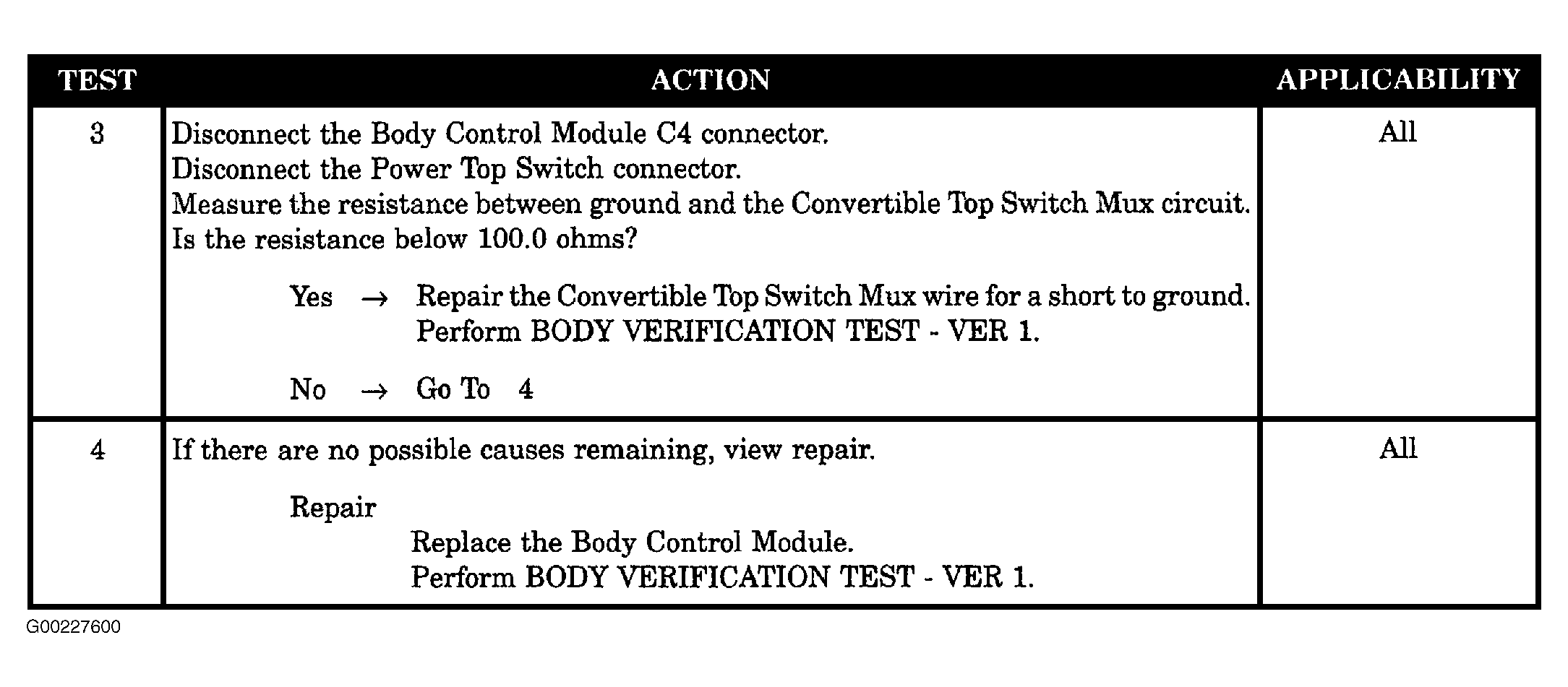

Fig 2: Power Top Switch Stuck - Steps 3 & 4 (2 Of 2)
G00227600Courtesy of CHRYSLER CORP.
