Front Control Module - Black 49 Way Connector End View

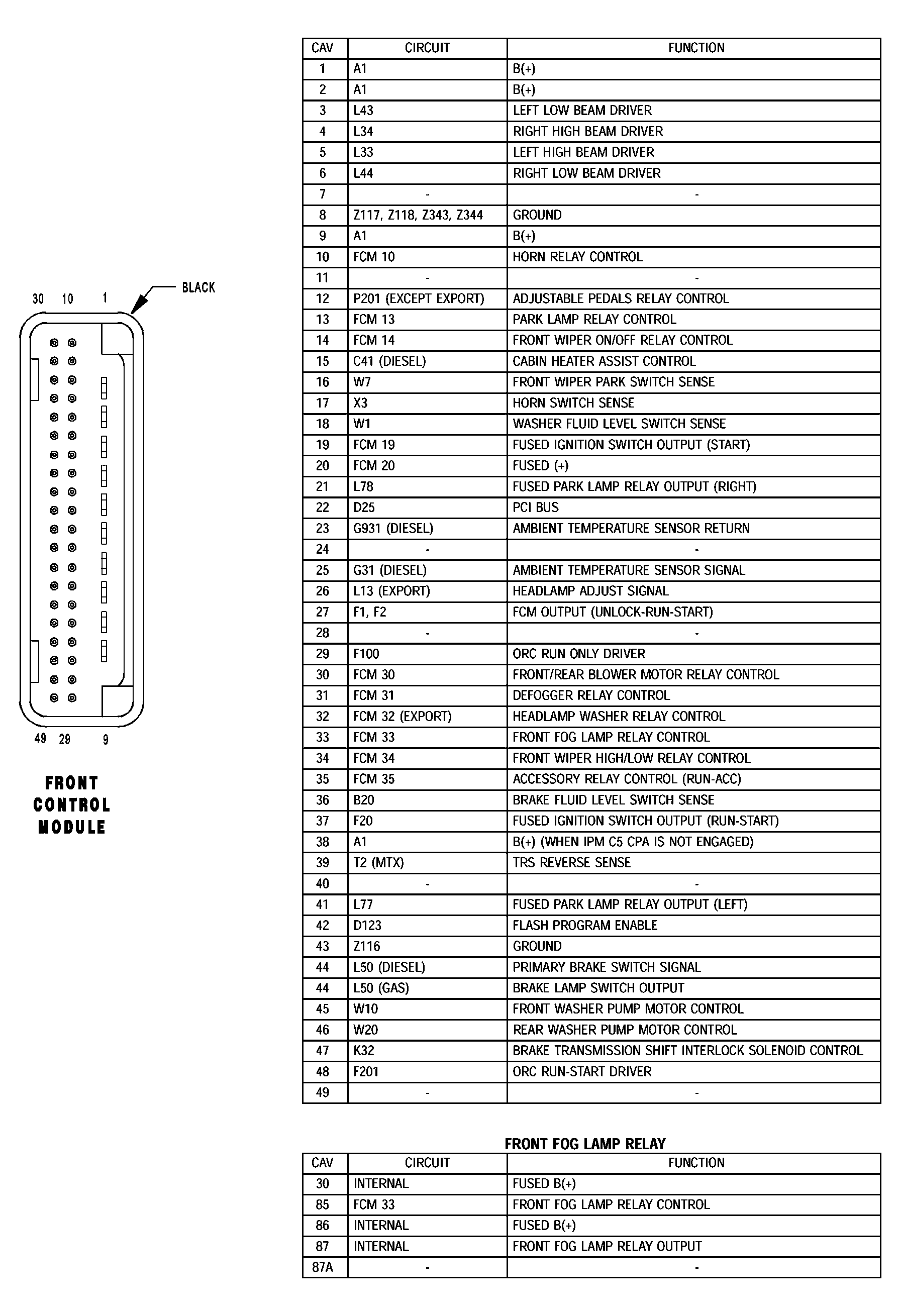

Fig 1: Front Control Module - Black 49 Way Connector End View
G04549425Courtesy of CHRYSLER GROUP, LLC
