Powertrain Control Module C2 Connector End View -- Black 38-Way

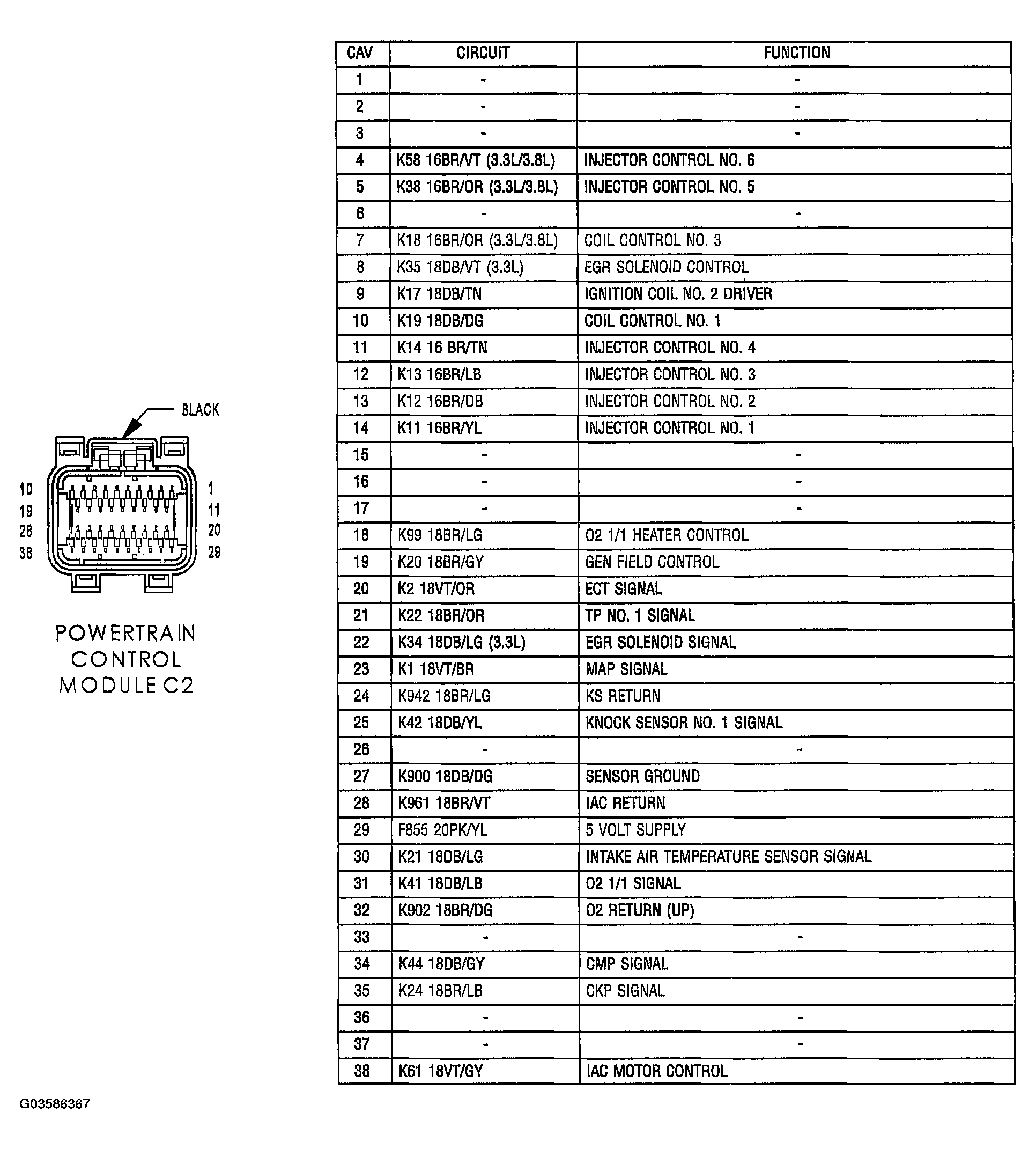

Fig 1: Powertrain Control Module C2 Connector End View -- Black 38-Way
G03586367Courtesy of CHRYSLER GROUP, LLC
