Driver Heated Seat Module Connector End View (C2)

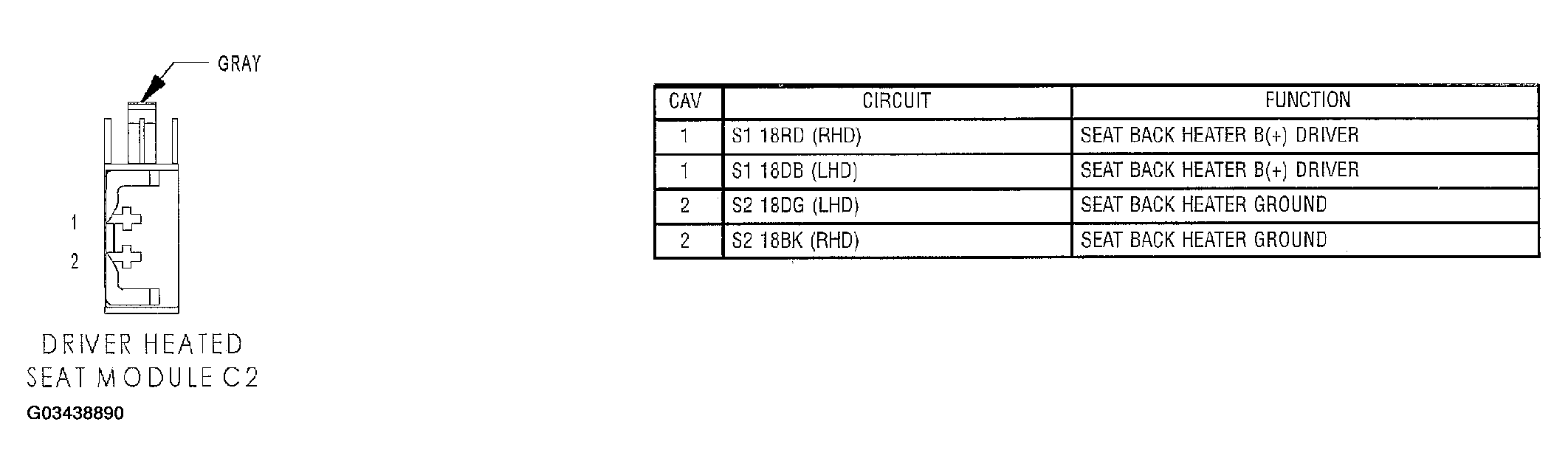

Fig 1: Driver Heated Seat Module Connector End View (C2)
G03438890Courtesy of CHRYSLER GROUP, LLC
